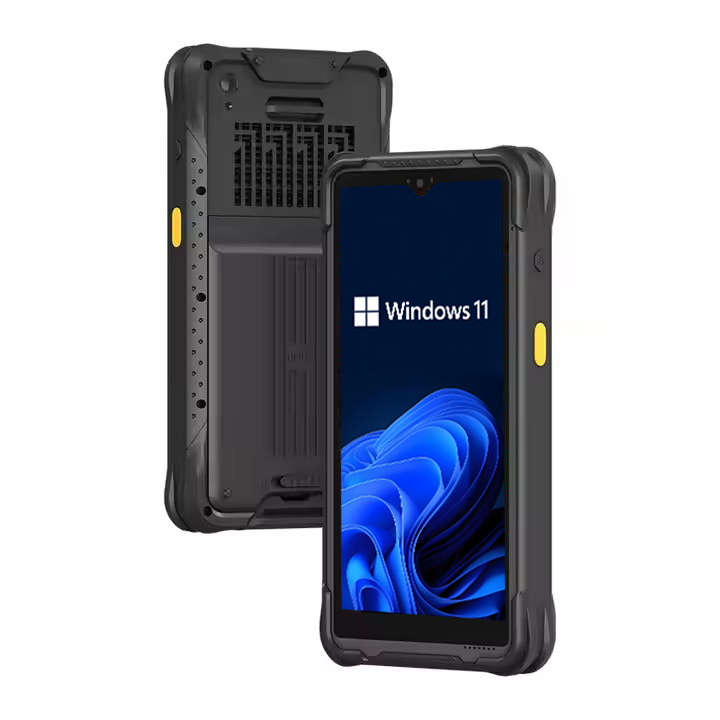

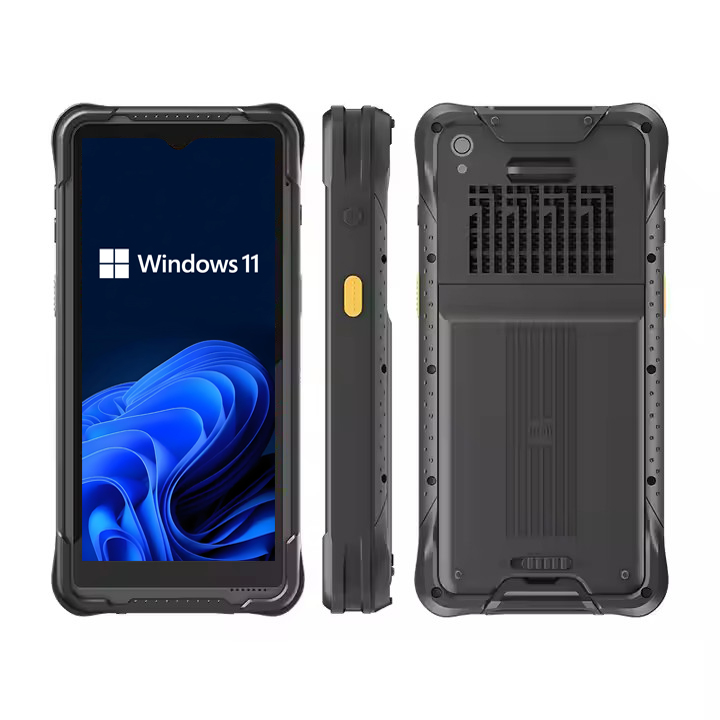

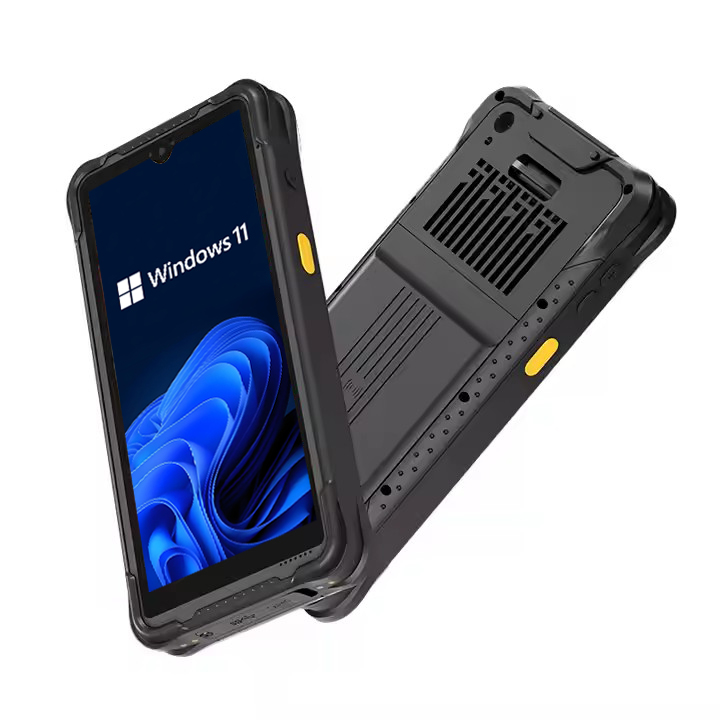

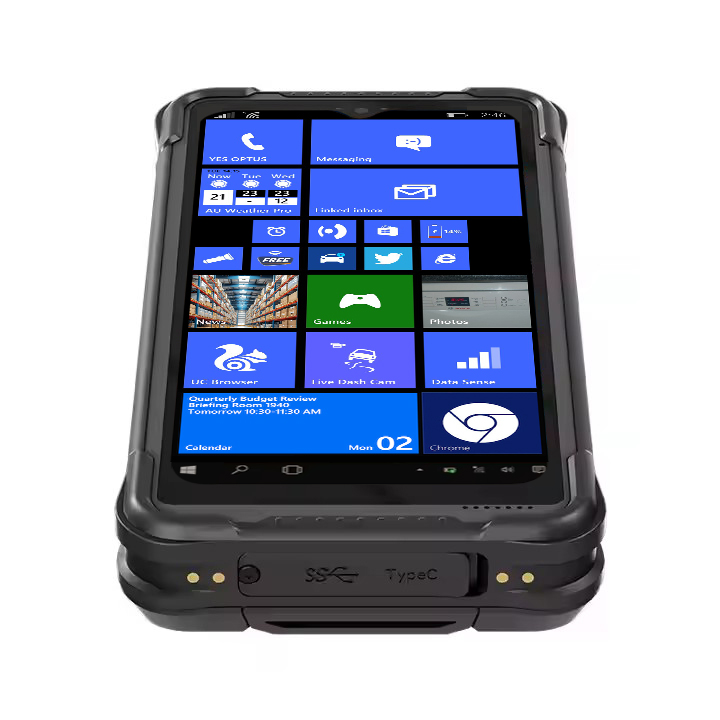

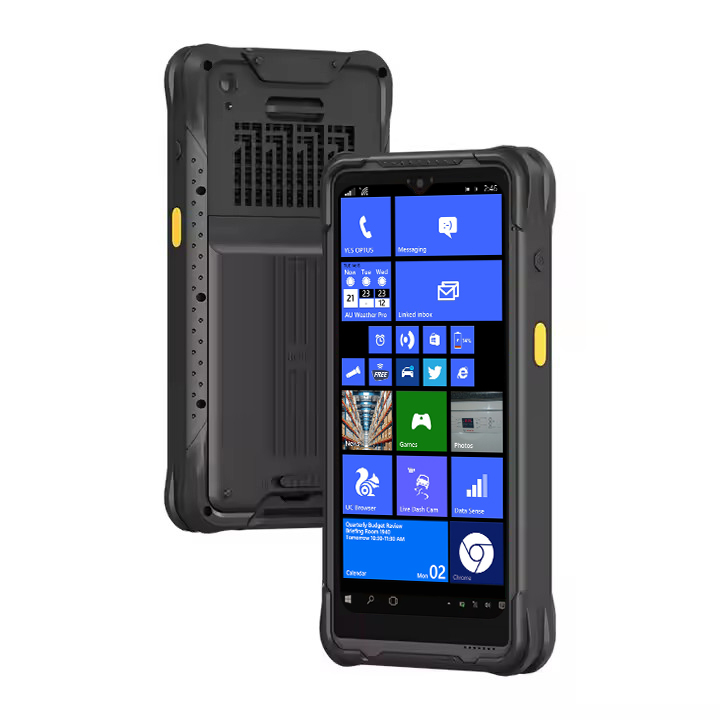

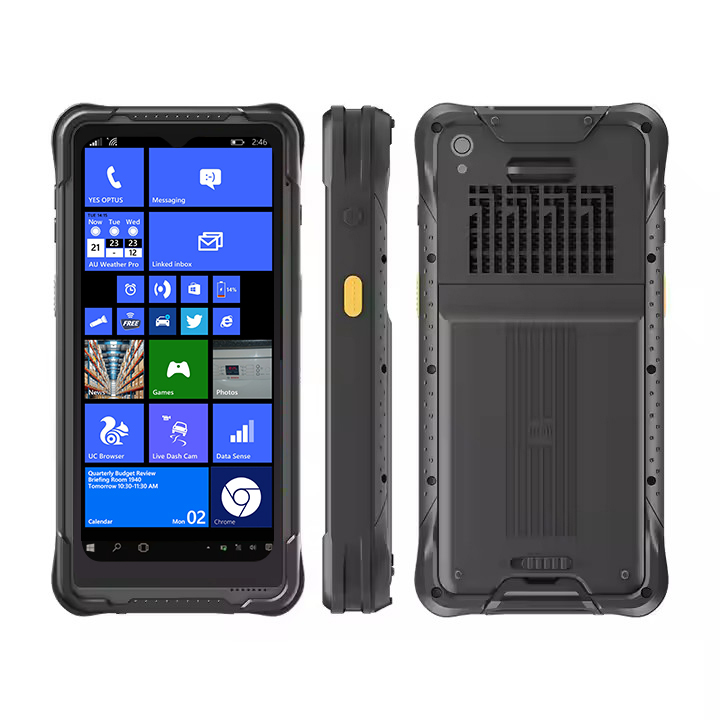

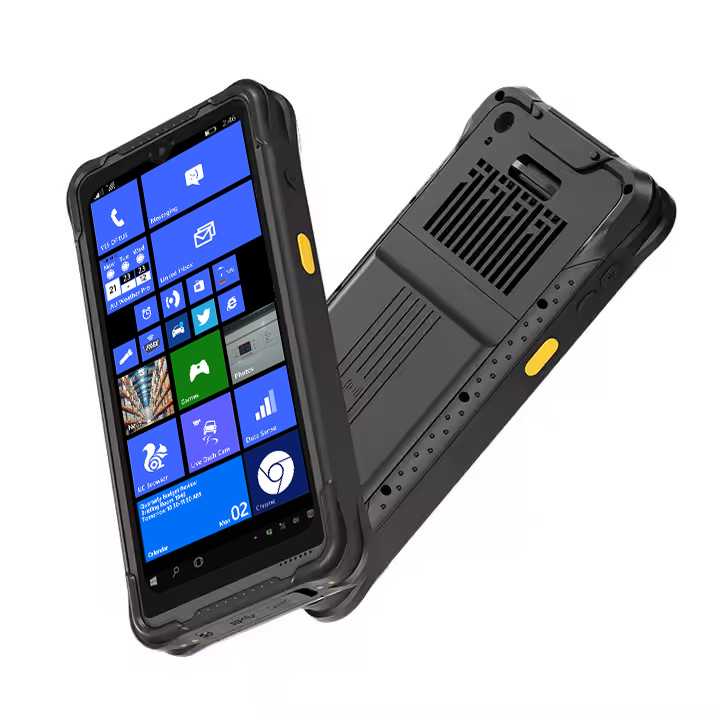

6.5" Windows Rugged Handheld Terminal with Barcode Scanner for Warehouse & Logistics
The F9836 Rugged Handheld delivers military-grade durability (IP67 waterproof, 1.5m drop-proof) and a 6.5-inch Windows 11 display, engineered for seamless barcode scanning and all-day productivity in warehouse logistics and outdoor environments.
Model NO. :
F9836CPU :
Intel JASPER LAKE N5100 quad core,2.8GHz;GPU:IntelQ UHDGraphics 620Operatng System :
Win10 / Win11 IOTDisplay :
6.5 inch Corning Gorilla Glass waterdrop IPS capacitive screen, 1600*720px, 500cd/m2Memory :
8GB LPDDR4;128GB EMMC, support Micro SD card up to 512GB maximallyPower :
Removable 7.4V/4000mAh Li-Polymer batteryWeight :
470g (include battery)Drop Specifications :
1.5 Meters dropSealing :
IP67 / MIL-STD-810HAdvantage :
Support OCR ScanningDesigned for Demanding Workflows: Rugged Windows IoT Mobile Computer
The F9836 is a high-performance industrial handheld terminal built to streamline operations in warehousing, logistics, and manufacturing. Powered by Windows 10/11 IoT for enterprise-grade security and compatibility, it features an Intel N5100 quad-core processor (2.8GHz) and 8GB RAM to handle complex data tasks seamlessly, even in high-speed scanning environments. The 6.5-inch Corning Gorilla Glass display (500cd/m² brightness) ensures crisp visibility under direct sunlight or low-light conditions, critical for inventory checks in outdoor yards or cold storage facilities (-20°C operation certified).
Unmatched Durability & Versatility
Engineered with IP67 waterproofing, MIL-STD-810H compliance, and 1.5m drop resistance, this device thrives in harsh settings like dusty warehouses or humid ports. Customize your workflow with optional Honeywell N3680 2D barcode scanning (30 scans/sec) or NFC/RFID modules, ideal for asset tracking and paperless logistics. Dual SIM slots and 4G LTE global bands ensure uninterrupted connectivity across regions, while GPS/GLONASS provides real-time location accuracy for fleet management.
Extended Uptime & Scalability
The removable 4000mAh battery supports 12+ hours of continuous use, with hot-swappable options for 24/7 operations. Expand storage via a 512GB microSD card or connect peripherals through USB 3.0, Type-C OTG, and pogo-pin docks. Optional accessories like vehicle mounts and docking stations further adapt the device to vertical workflows.

FYJ F9836
Rugged Windows Handheld Terminal

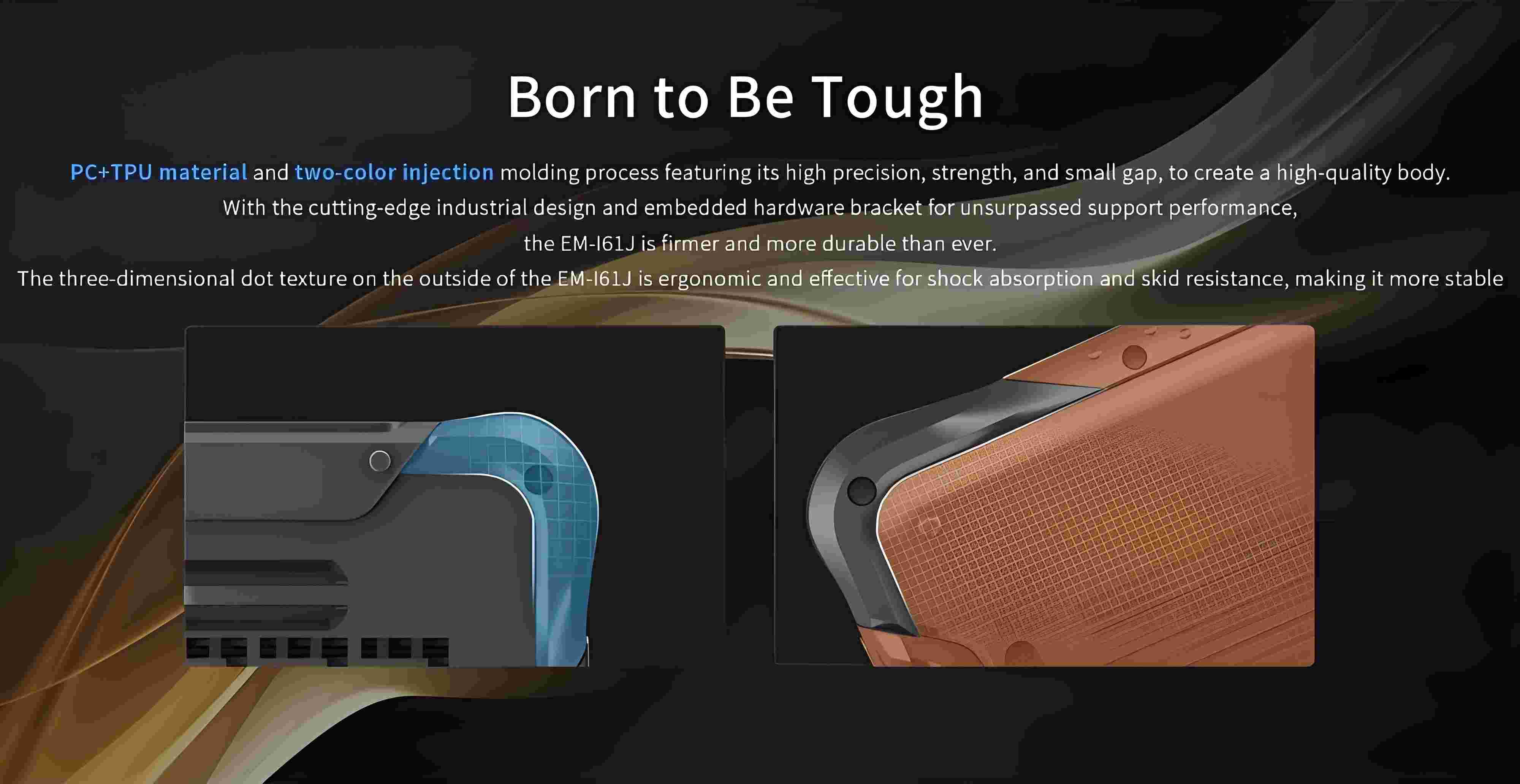

Born to Be Tough
PC+ TPU material and two-color injection molding process featuring its high precision, strength, and small gap, to create a high-quality body.With the cutting-edge industrial design and embedded hardware bracket for unsurpassed support performance,firmer and more durable than ever.
The three-dimensional dot texture on the outside is ergonomic and effective for shock absorption and skid resistance, making it more stable

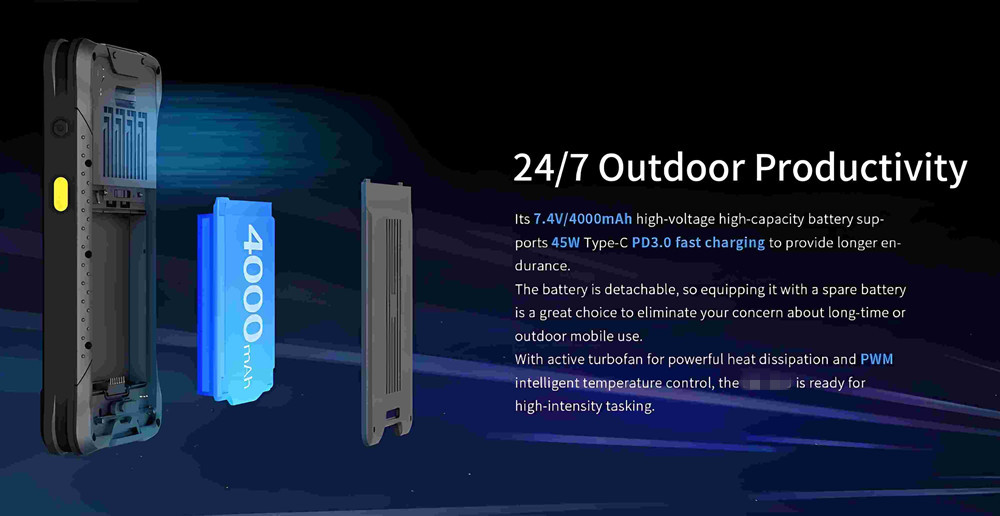

24/7 Outdoor Productivity
Its 7.4V/4000mAh high-voltage high-capacity battery sup-ports 45W Type-C PD3.0 fast charging to provide longer en-durance.

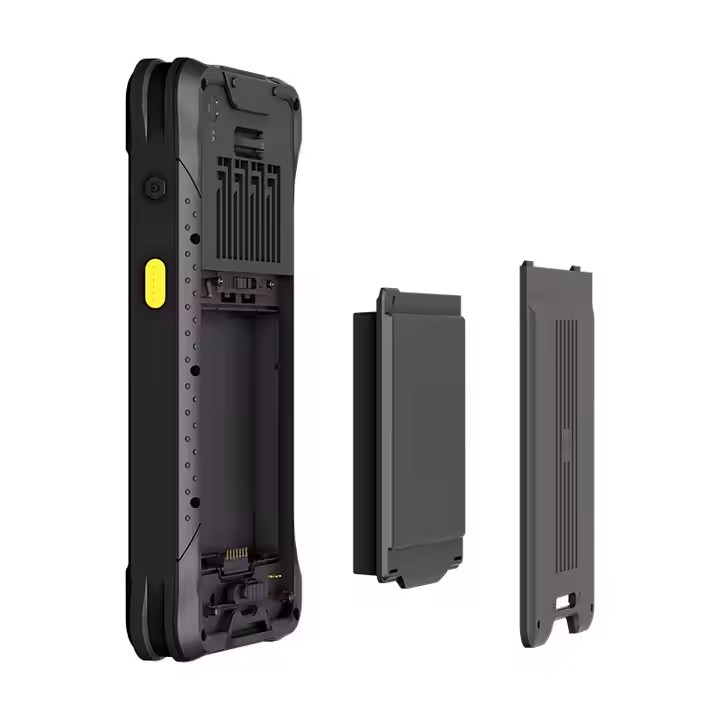

The battery is detachable, so equipping it with a spare batteryis a great choice to eliminate your concern about long-time oroutdoor mobile use.

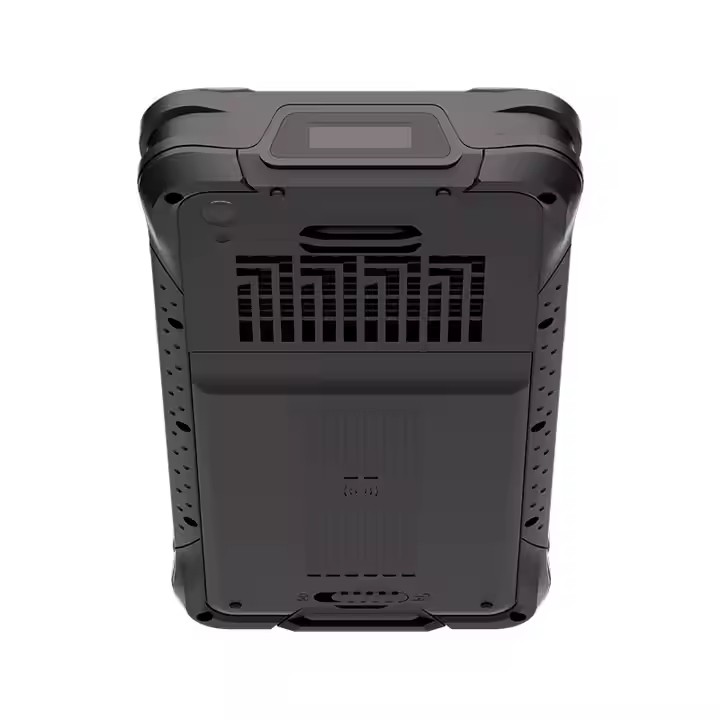

With active turbofan for powerful heat dissipation and PWMintelligent temperature control, the PDA is ready for high-intensity tasking.

Peformance Beyond Your Imagination
Powered by the Intel Celeron N5100 Processor with a 4-core CPU, upping to 2.80 GHzt
Better balance between performance and power consumption.Equippod with the Windows 10 operating system, and optional Windows 11, ensures security and improves eficiency and productivity, 8GB LPDDR4 + 128GB eMMC is the mainstream configuration, providing a faster speed to bring smooth operation.

Ready for Harsh Environments
Sealed and precision structure is up to IP67-grade dustproof and waterproof, so there is no need to worry about rainy and other harsh weather.Its 1.5m fall-resistance performance keeps it intact even if falling from a height of up to 1.5m to the surface of the composite wood floor.This PDA scanner is impressive in fast cooling and temperature control. In the laboratory test environment, it can maintain about 30C for a long time.

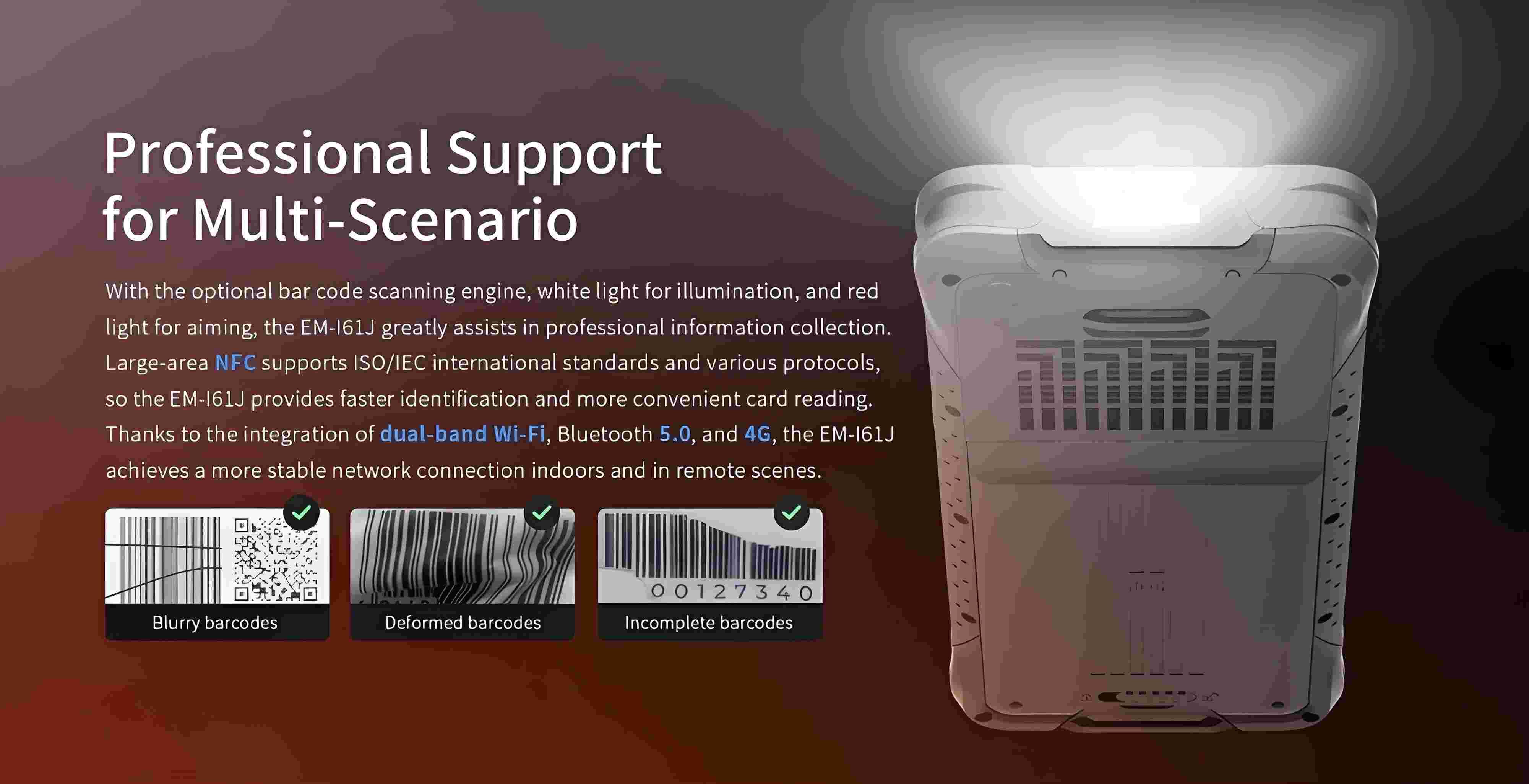

Professional Supportfor Multi-Scenario
With the optional bar code scanning engine, white light for illumination, and redlight for aiming, this PDA greatly assists in professional information collection.Large-area NFC supports IS0/IEC international standards and various protocols,so the PDA provides faster identification and more convenient card reading.Thanks to the integration of dual-band Wi-Fi, Bluetooth 5.0,and 4G, the PDA achieves a more stable network connection indoors and in remote scenes.

Display Whatever You Want

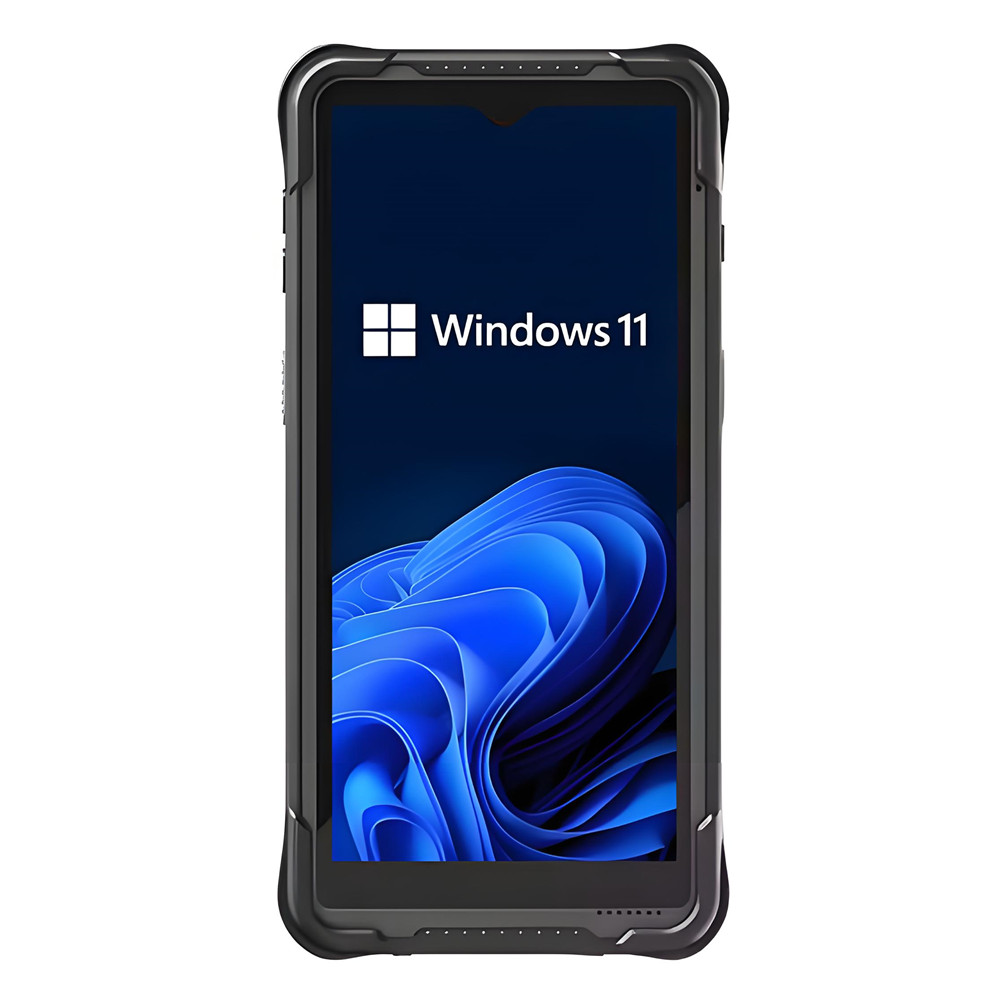

6.5-inch TFT screen with 20:9 overlength ratio and arc border for a rounded and refined appearance.
It supports 720X 1600 resolution and 500 nits brightness, giving you a smooth HD display.
The 5-point capacitive touch panel with Corning Gorilla Glass provides you with a smooth operation experience, and the tough cover plate isresistant to drops and scratches.
Specification:
| BASIC INFO | |
| Model No. | F9836 |
| Operating System | Win10 or Win11 IOT |
| Dimension | 183.1*88.6*24.1mm |
| Weight | 470g (include battery) |
| Material | ABS+PC+Metal |
| Color | Black |
| Language | Multi-language |
| HARDWARE | |
| Display | 6.5 inch Corning Gorilla Glass waterdrop IPS capacitive screen, 1600*720px, 500cd/m2 |
| Processor | Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel UHD Graphics 620 |
| RAM | 8GB LPDDR4 |
| ROM | 128GB EMMC, support Micro SD card up to 512GB maximally |
| Camera | Double cameras: 8MP AF rear camera with flashlight, 5MP front |
| Battery | Removable 7.4V/4000mAh Li-Polymer battery |
| G-sensor | Support |
| Speaker | 1W |
| Key | Custom buttons*2, Power key*1, Volume key+/-*1 |
| NETWORK & CONNECTIVITY | |
| Bands | 2G GSM900/1800MHz |
| 3G WCDMA850/900/2100MHz | |
| 4G FDD-LTE B1/B3/B7/B8/B20, TDD-LTE: B40 (American Bands Optional) | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT | V5.0 (BLE), transmission distance: up to 10 meters |
| GNSS | Support GPS/GLONASS |
| I/O INTERFACES | |
| TF card slot | *1 |
| Nano SIM card slot | *1 |
| USB Type-A 3.0 | *1 |

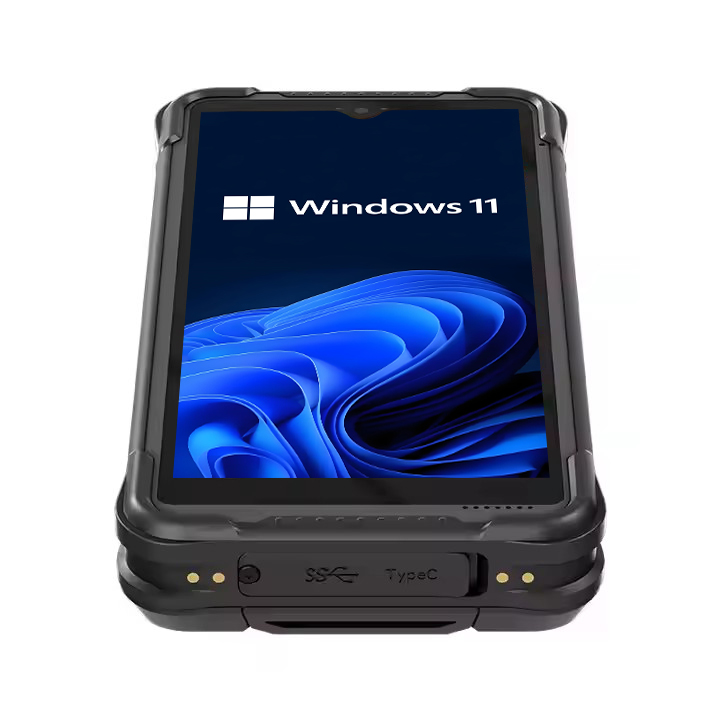

| USB Type-C 2.0 | *1, support OTG |
| Pogo Pin | *1 |
| RELIABILITY | |
| Waterproof | IP67 / MIL-STD-810H |
| Drop-proof | 1.5 Meters drop |
| Electrostatic discharge | ±8KV contact discharge, ±10kV air discharge |
| Temperature range | Operating:-20 ℃'to 60℃,storage: '30℃,to 709 |
| Humidity range | 95% Non-Condensing |
| OPTIONAL FEATURES | |
| 2D barcode scanning | Optional, (Honeywell N3680, 30 times/s) |
| NFC | Optional, support ISO/IEC 14443A/14443B/15693/18092/mifare protocol) |
| ACCESSORIES | |
| 45W PD3.0 USB Charger | *1 |
| Type-C USB data Cable | *1 |
| Hand-strap | Optional |
| Docking Charger | Optional |
| Vehicle Mount | Optional |
| Protective film | Optional |
| Leather Cover | Optional |
