5.7'' Big Screen Qualcomm 64-bit Octa-core 2.4G Handheld Terminal Scanner

Home Mobile Computers

5.7'' Big Screen Qualcomm 64-bit Octa-core 2.4G Handheld Terminal Scanner

5.7'' Big Screen Qualcomm 64-bit Octa-core 2.4G Handheld Terminal Scanner

The all-new F9850 is designed to meet the needs of enterprise mobile applications. Withits slim and lightweight body, fashion-forward smartphone-like appearance, ruggedand durable structural design, and enterprise-grade security features, this device standsout as the optimal choice for enterprises seeking mobile application solutions.Equipped with a high-end processing chip and internationally top-tier scanning module,it significantly enhances the work efficiency of feld operators. The replaceable batterydesign, coupled with support for OC4.0 fast charging, ensures that the product meetsthe demands of high-intensity usage with exceptional battery life.To address the diverse device management requirements of different enterprises.FYJ has developed a series of enterprise-level management tools,enabling users tooperate more efficiently and work more professionally.

  • Model NO. :

    F9850
  • CPU :

    Qualcomm 64-bit octa-core processor, up to 2.4GHz
  • Operatng System :

    Android 11
  • Display :

    5.7-inch HD
  • Memory :

    RAM: 4GB; ROM: 64GB (Standard)
  • Power :

    3.8V/5000mAh (typical)
  • Weight :

    250g / 8.8oz (including battery)
  • Drop Specifications :

    1.5m
  • Sealing :

    IP67
  • Advantage :

    BT5.0+BR/EDR + BLE

F9850

Fast,Tough,Connected — Redefine Enterprise Mobility

Fast Operation

High-Performance Qualcomm 64-bit Octa-Core

Android 11

4+64GB Standard(8+128GB Optional)

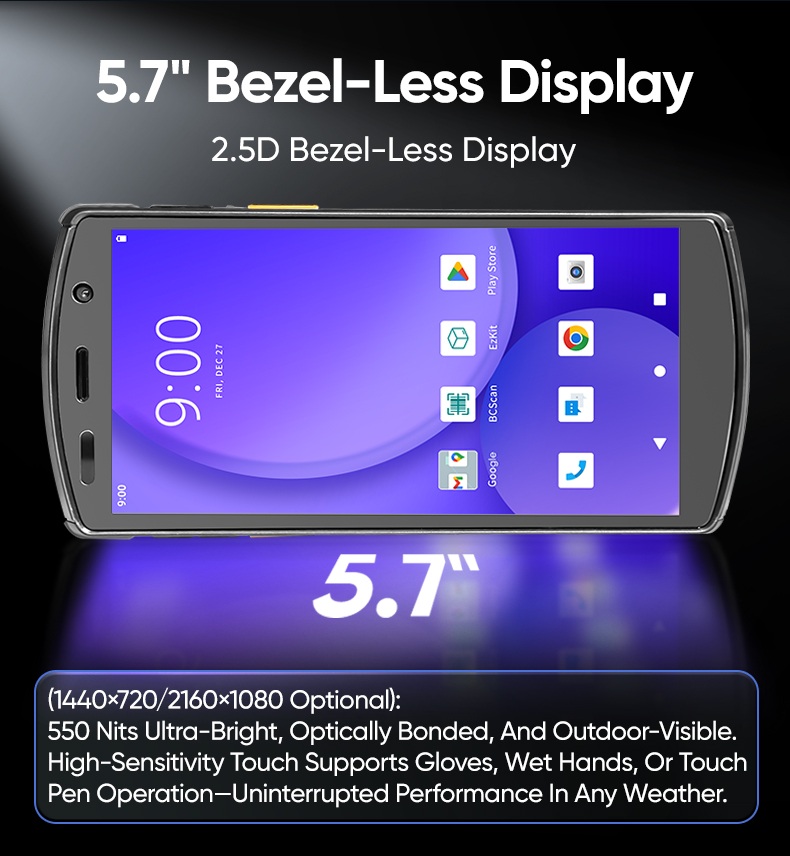

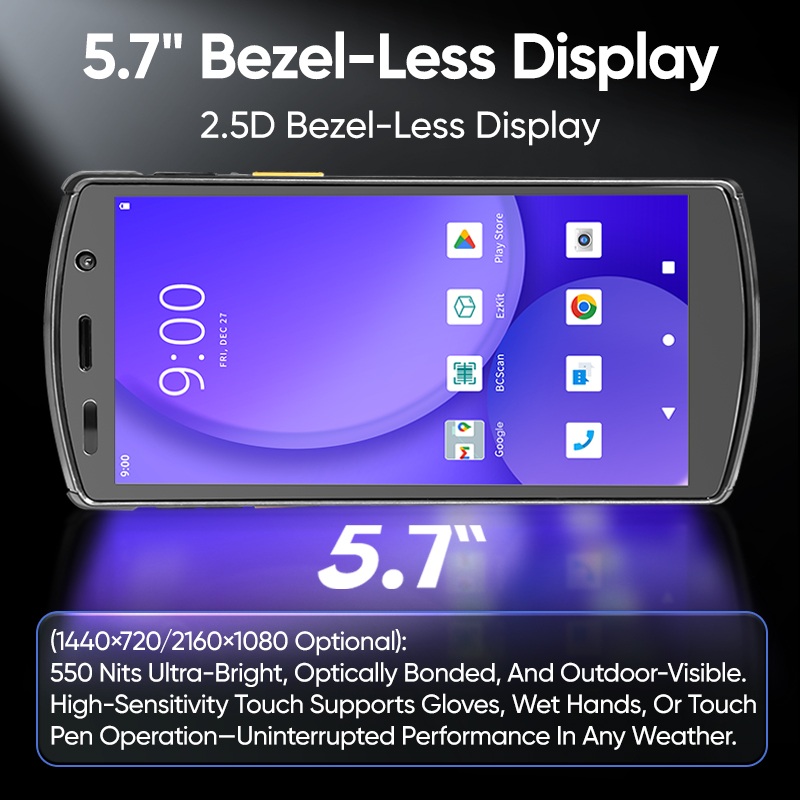

5.7" Bezel-Less Display

2.5D Bezel-Less Display (1440×720/2160×1080 Optional): 550 Nits Ultra-Bright, Optically Bonded, And Outdoor-Visible. High-Sensitivity Touch Supports Gloves, Wet Hands, Or Touch Pen Operation—Uninterrupted Performance In Any Weather.

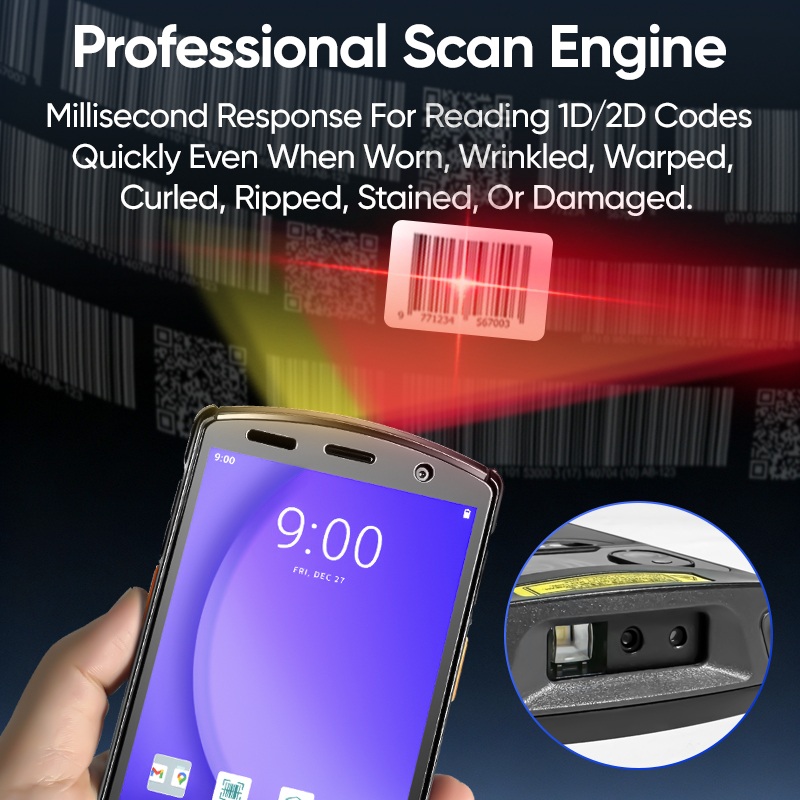

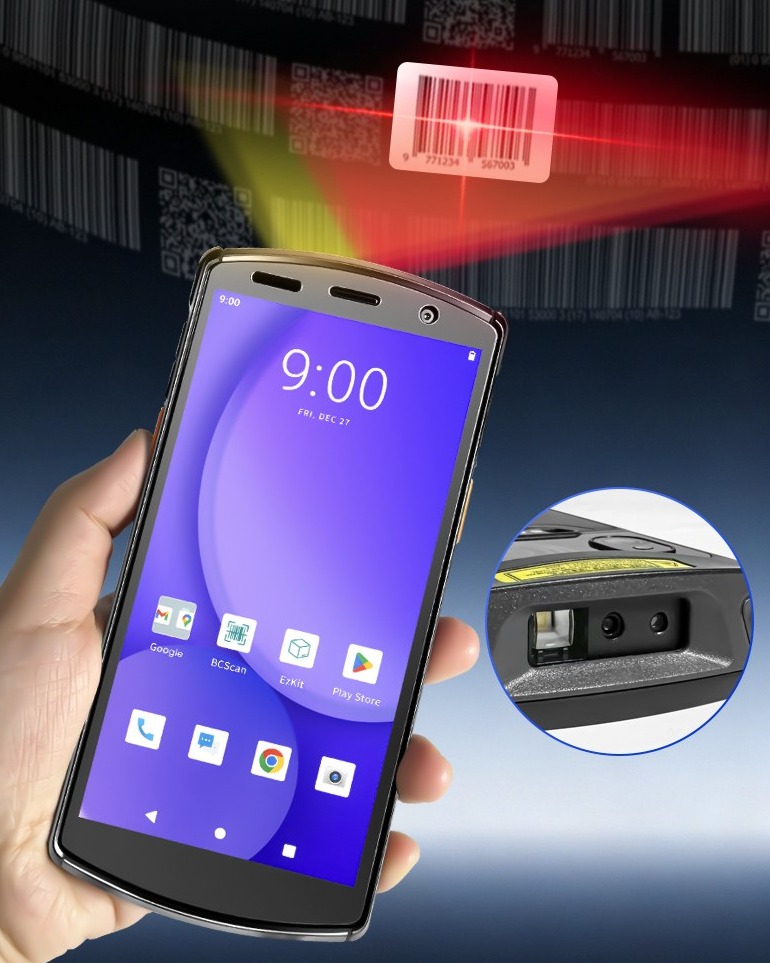

Professional Scan Engine

Millisecond Response For Reading 1D/2D Codes Quickly Even When Worn, Wrinkled, Warped, Curled, Ripped, Stained, Or Damaged.

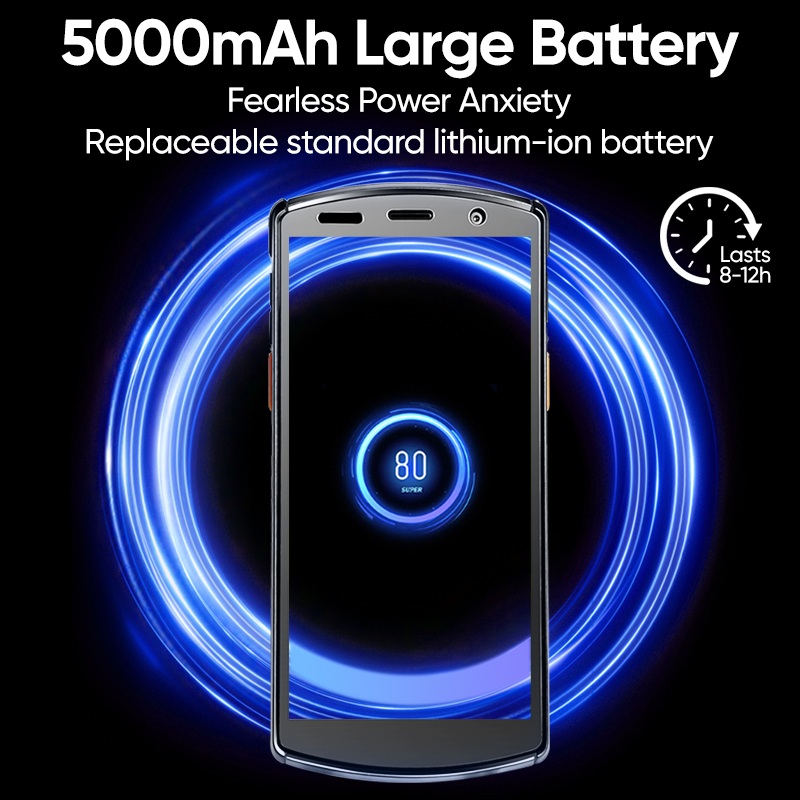

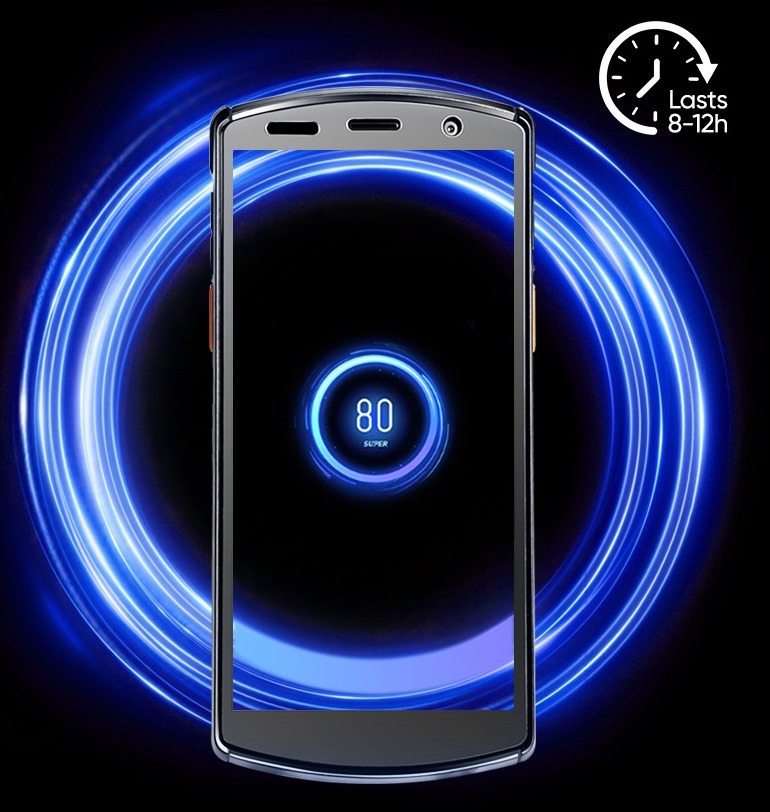

5000mAh Large Battery

Fearless Power Anxiety

Replaceable standard lithium-ion battery

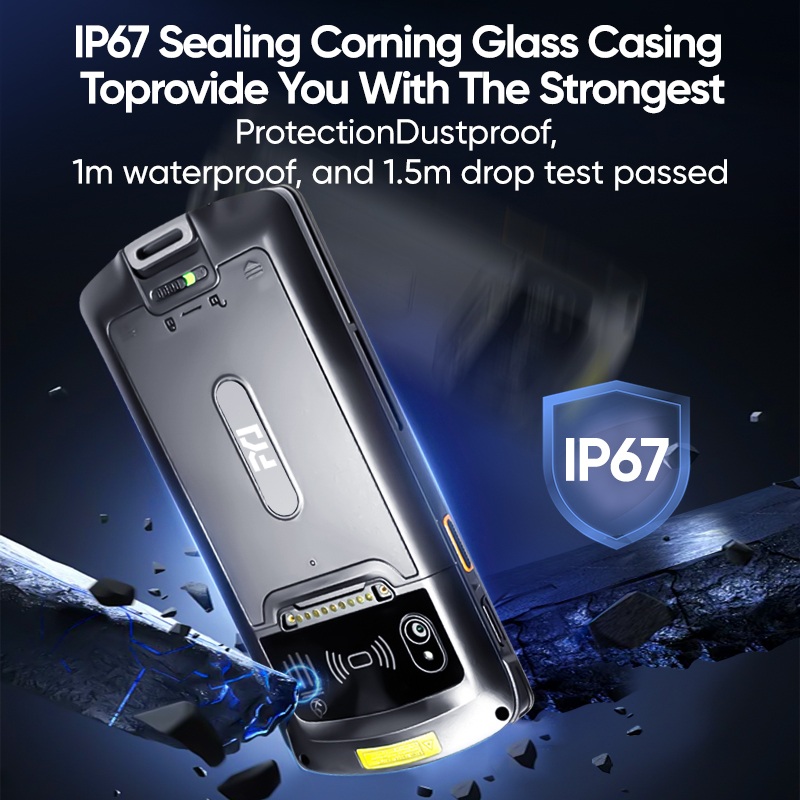

IP67 sealing

Corning glass casing toprovide you with the strongest

protectionDustproof, 1m waterproof, and 1.5m drop test passed

·1.5m Drop Test Passed

·99.9% Dustproof

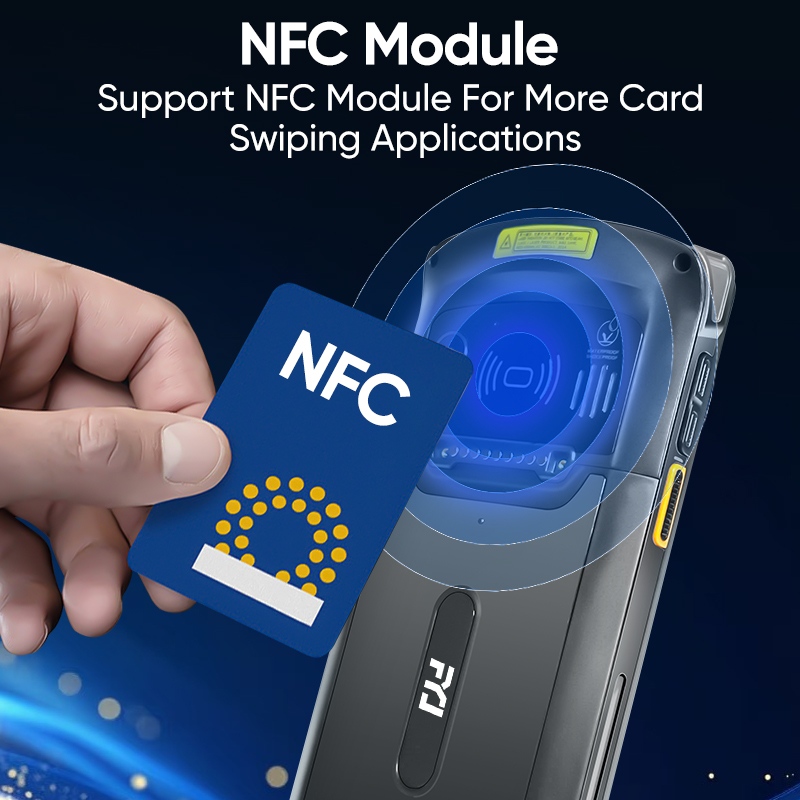

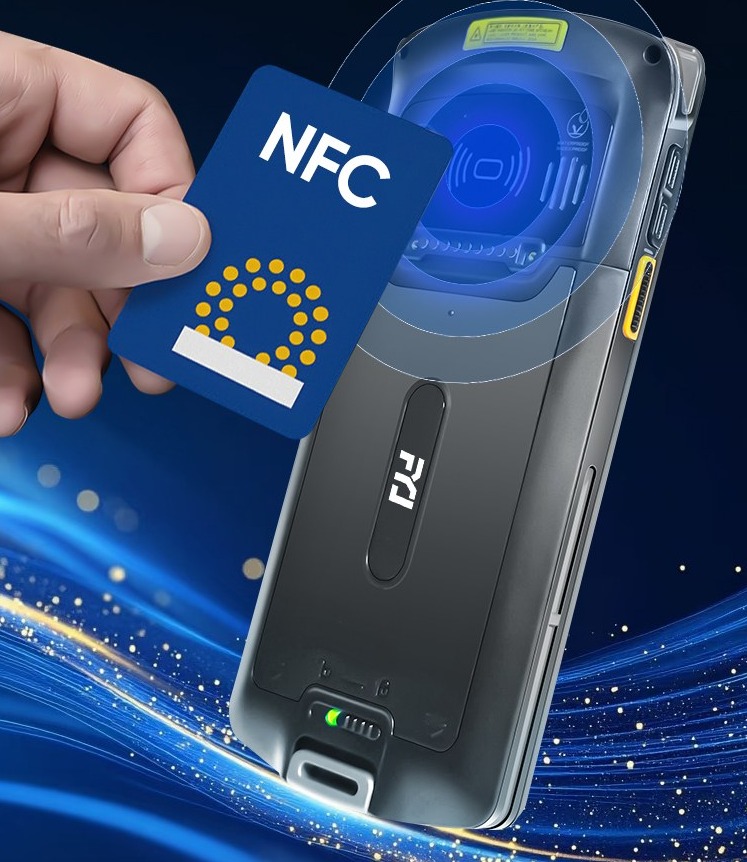

NFC Module

Support NFC Module For More Card Swiping Applications

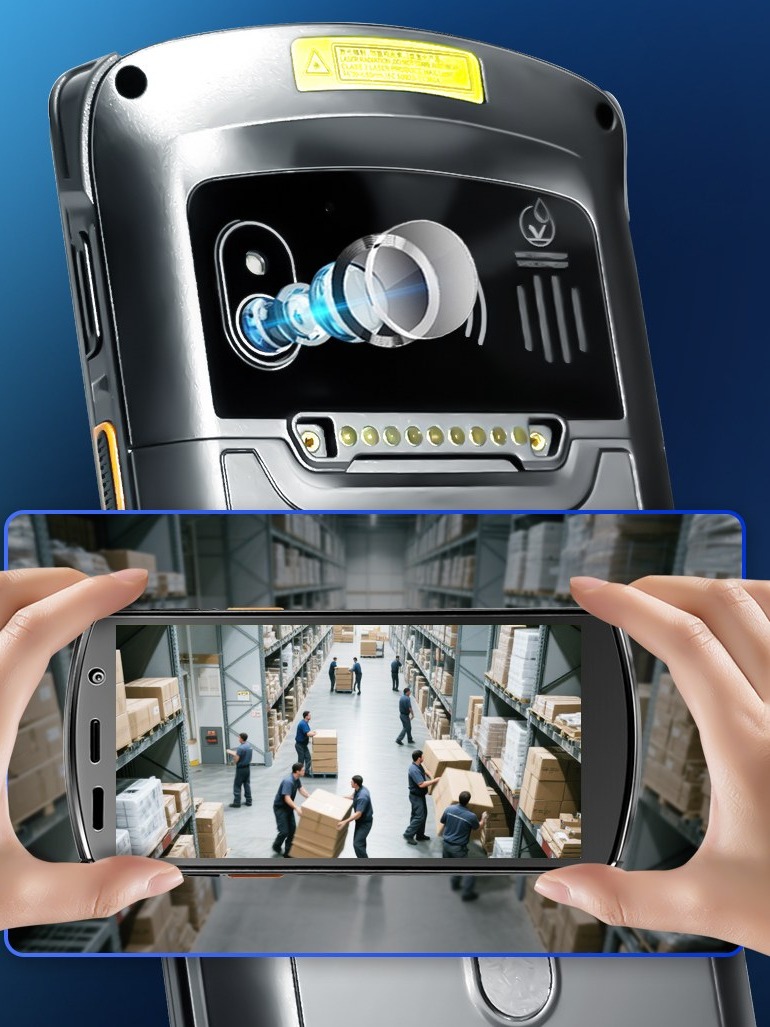

Professional Dual-Camera System

Rear 16MP+2MP Autofocus (Auto Flash/Flashlight) | 4K HD Video | Front 2MP/5MP Optional

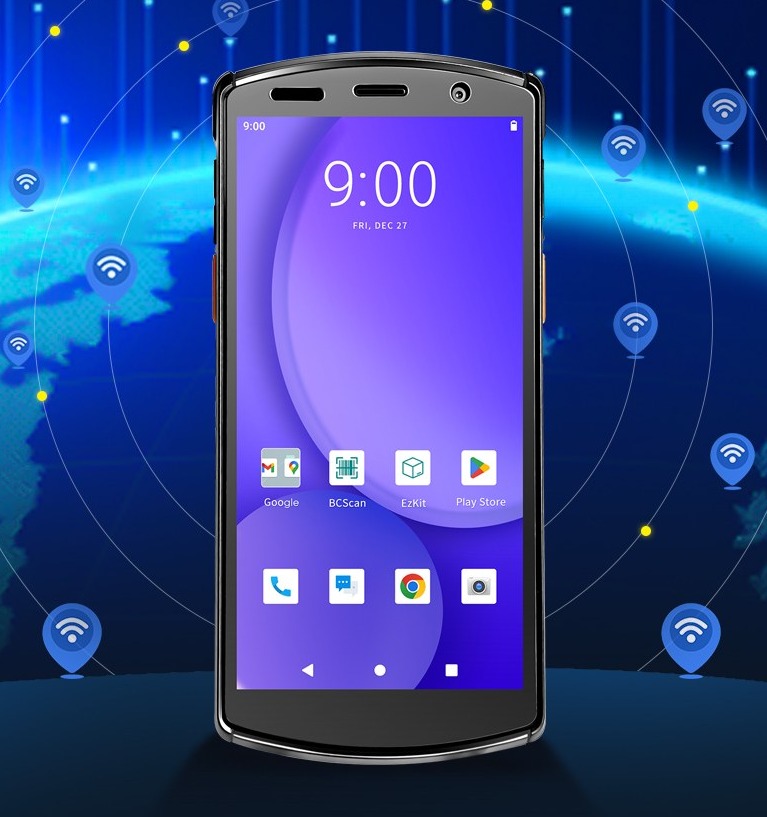

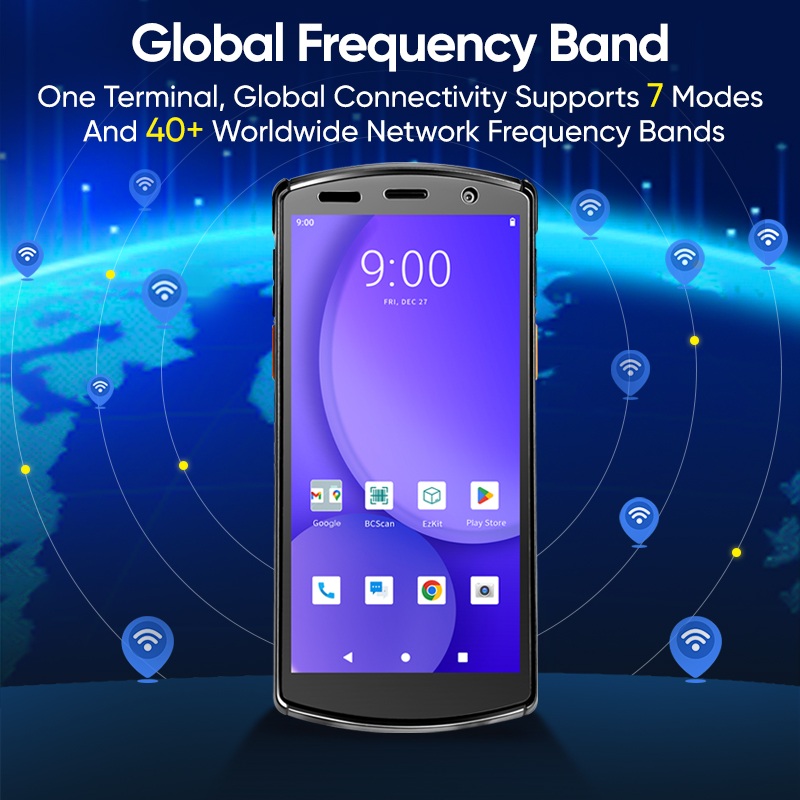

Global Frequency Band

One Terminal, Global Connectivity

Supports 7 Modes And 40+ Worldwide Network Frequency Bands

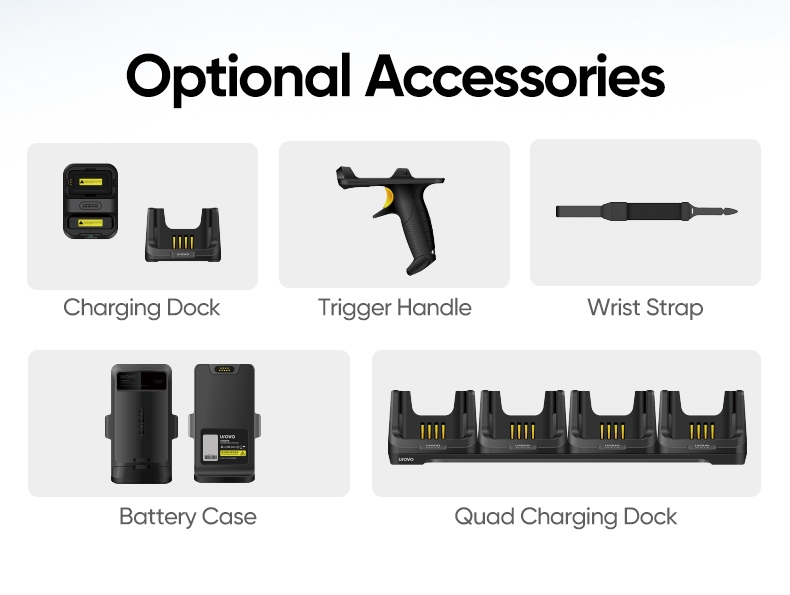

Optional Accessories

Specificaiton:



Features:
Powerful Computing Performance
Featuring a robust octa-core 2.2GHz processor, users can enjoy,higher performance and superior power eciency. The processor’s power consumption is reduced by 60% compared to the previous
generation, while application processing speeds are up to 5 times faster. This ensures smoother system operation and supports 2×2 MIMO technology for faster network communication.
Advanced Large-Size Display
Equipped with a 5.7-inch full-screen display, it provides ample viewing space for users. With an ultra-high brightness of 550 nits, the screen remains clearly visible and operable even under strong outdoor lighting. The highly responsive touchscreen maintains an optimal user experience whether operating with wet hands, gloves, or a stylus.
Powerful Device Management Tools
The U Home platform oers a comprehensive suite of ecient device management tools, providing new levels of support for enterprise device initialization, pre-installed applications, and customized configurations:1.U-setting – Device configuration synchronization tool.2.Customized Settings – Special configuration tools for device application functions.3.Scanwedge – Scanner initialization tool.4.App Autoinstall – Rapid pre-installation and auto-start of user applications upon device boot
Ultra-High Resolution Imaging
Equipped with a powerful rear dual-camera setup featuring,16MP+2MP high-definition sensors, it enables users to eortlessly,capture high-quality on-site photos and videos. This facilitates,quick completion of tasks such as evidence recording and document scanning.
Powerful Voice Solution
The device comes with a built-in network voice intercom platform,allowing users to quickly and easily establish voice intercom groups. This enables team members to engage in real-time voice and video conversations with online personnel anytime,anywhere. Additionally, it features an integrated voice command
service that swiftly converts voice messages into text and broadcasts them to application software, achieving purposes such as voice-based sorting and voice data entry.
Extensive Enterprise Accessories
The trigger handle delivers an ergonomically comfortable experience; the internationally safety-certified fingerprint module facilitates ecient fingerprint capture; and the nationally security-certified long-range RFID handle supports operations in apparel, retail,inventory management, and item location tasks.
Performance Parameters
CPU Qualcomm 64-bit octa-core processor, up to 2.4GHz, Kryo360 architecture,
supports LPDDR4X memory
Memory RAM: 4GB; ROM: 64GB (Standard)
RAM: 6GB; ROM: 128GB (Optional)
Operating System Android 11
Display Screen 5.7-inch HD (1440720), optionally 21601080, outdoor visible;
optionally bonded touchscreen with brightness up to 550 nits
Touchscreen Dual-mode capacitive touch, supports stylus and handwritten input (as sold separately), supports glove touch; Corning Gorilla Glass, supports multi-touch
Dimensions 152.0mm × 76mm × 13.6mm / 6.4in × 3in × 0.53in
Weight 250g / 8.8oz (including battery)
Image Window Covering Corning Gorilla Glass
Backlight LED Backlight
Power Supply Replaceable standard lithium-ion battery, 3.8V/5000mAh (typical), supports QC4.0 fast charging, charging time ≤ 3 hours
Buttons Two dedicated scan buttons, customizable,
volume control button, power button
Tumble Specification Withstands 400 tumbles from 1m (frequency of 10 times/minute)
Camera Rear: 16MP + 2MP autofocus camera with automatic flash, supports fingerprint mode, and 4K HD video recording.
Front-facing camera uses a 2MP / 5MP fixed-focus sensor.
Fingerprint Sensor 100ms quick screen unlock, supports dry/wet fingerprint unlocking, high recognition accuracy
Geomagnetic Sensor Three-axis geomagnetic sensor, supports compass applications
Proximity Sensor During calls, turns off the screen when the user's head approaches the earpiece to prevent accidental touches
Ambient Light Sensor Automatically adjusts display brightness
Expansion Slot Supports Micro-SD card, SDHC/SDXC protocols, expandable up to 256 GB
SIM 2 Nano-SIM card slots, supports dual SIM dual standby
Notifications Sound, multi-color LED, vibration
Keyboard On-screen keyboard, physical keyboard
Voice and Audio Two microphones (noise reduction supported), motor, speaker (1.5W), earphone, cellular circuit-switched voice
Operating Temperature -20℃ - 60℃
Storage Temperature -40℃ - 70℃
Humidity 5% RH to 95% RH (non-condensing)
Scanning Professional scanning module supports scanning mainstream 1D and 2D barcodes, including on-screen barcodes
NFC Reader mode supports reading ISO 14443 A/B, ISO 15693, supports Mifare cards, Felica cards, and supports P2P mode and Card Emulation mode
Wide Area Network Frequency Bands TD-LTE(B38/B39/B40/B41), FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28/B28B), WCDMA(B1/B2/B4/B5/B8),
TD-SCDMA(B34/B39), CDMA2000 1X/EVDO Rev.A/BCO (800MHz), CDMA 1x GSM/EDGE(GPRS850/900/1800/1900)
GPS Supports GPS (A-GPS), BeiDou, GLONASS, Galileo
VoLTE Supports VoLTE HD video and voice calls
Radio IEEE802.11a/b/g/n/ac/d/e/h/i/k/l/r/v/w;
IPv4, IPv6, 2x2 MIMO
Data Communication 5GHz: 802.11a/n/ac – Maximum rate 866.7 Mbps
2.4GHz: 802.11b/g/n – Maximum rate 300 Mbps
Bluetooth BTS.0+BR/EDR + BLE
Tumble Specification Withstands 400 tumbles from 1m at a frequency of 10 times/minute
Temperature Withstands 5 cycles of rapid temperature transition
Shock -40℃ to 70℃ (1 cycle: 125 hours at -40℃, 125 hours at 70℃)
Sealing IP67
Acceleration Sensor BT5.0+BR/EDR + BLE
Domestic CCC certification, Radio Equipment Type Approval Certificate, Network Access License for Telecommunications Equipment
