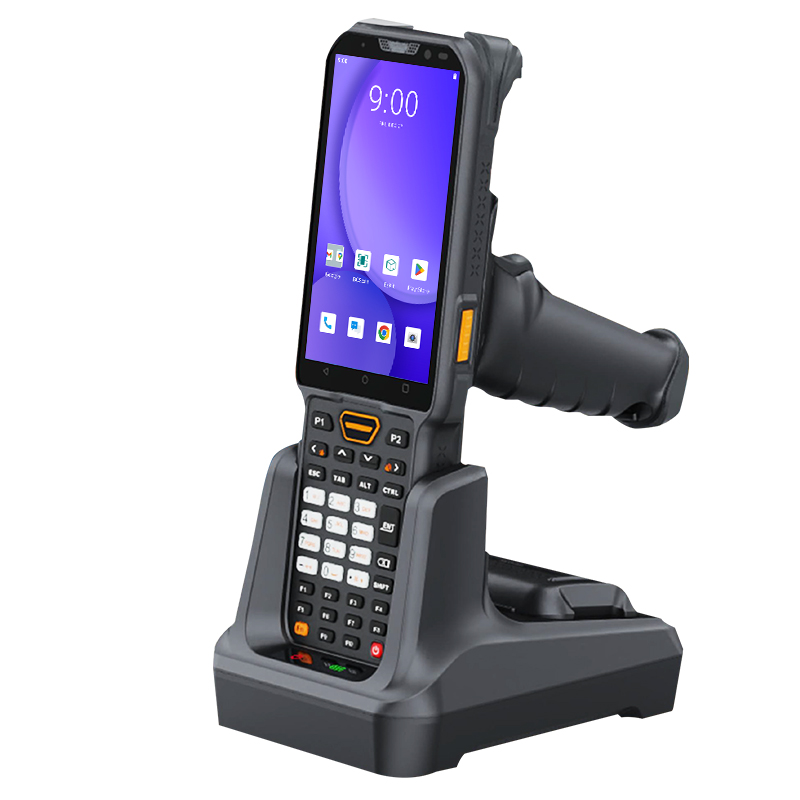

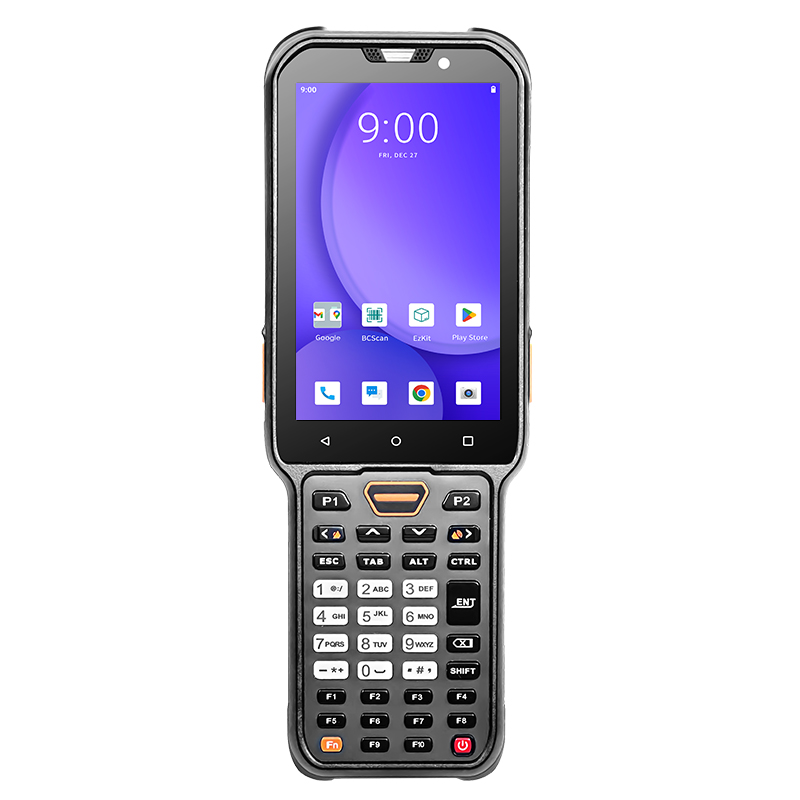

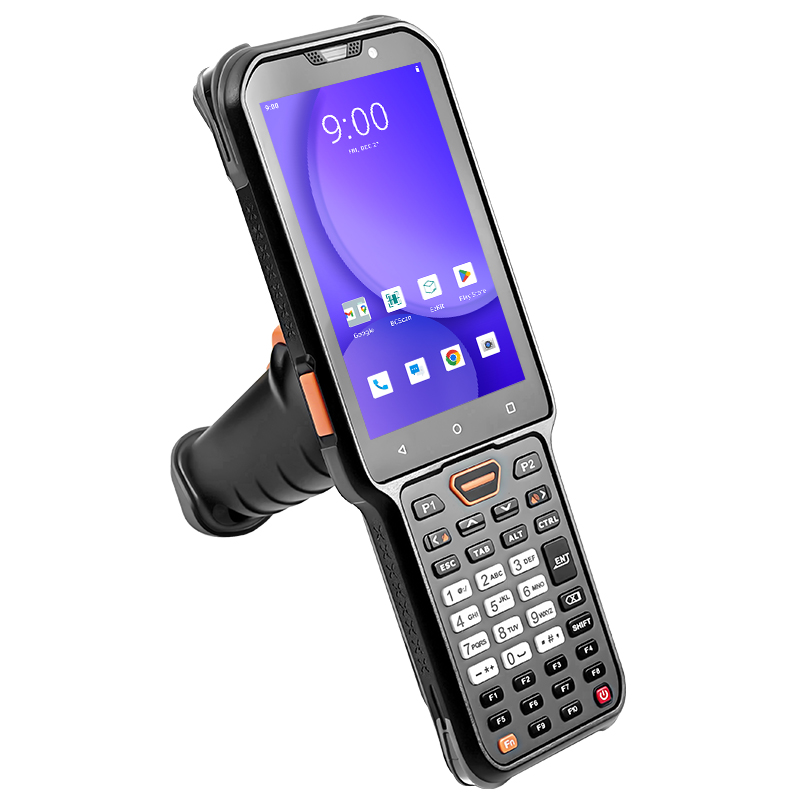

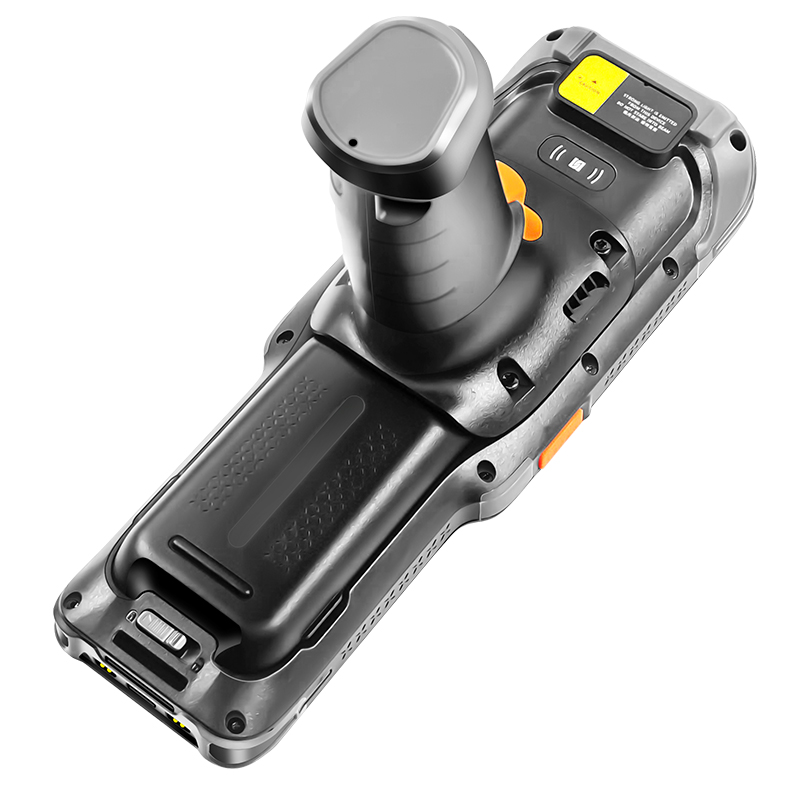

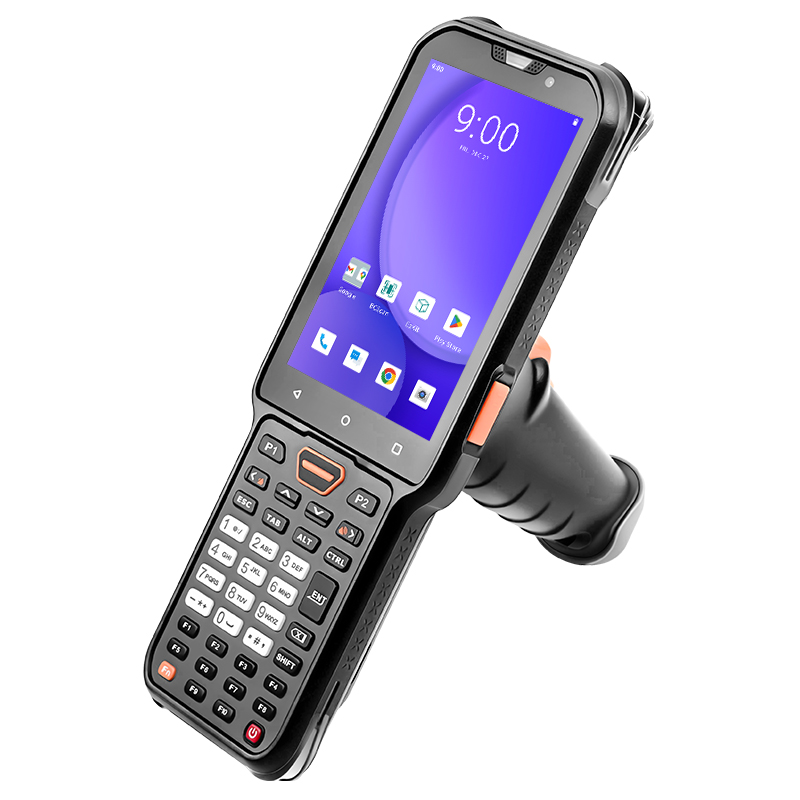

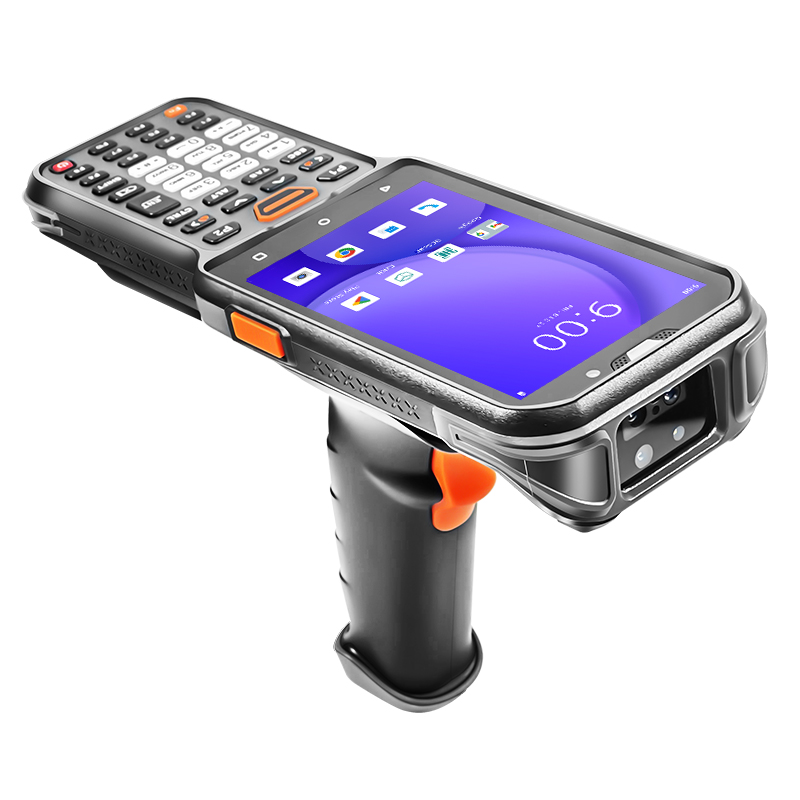

The F9827-ultra is an ultra-rugged, high-performance industrial handheld terminal featuring a high-density wide-angle dual camera scanning engine and 10m/20m ultra-long-range scanning engine for precision in diverse environments. Built to endure extreme conditions, it offers IP68 dustproof/waterproof protection, 2-meter drop resistance onto concrete, a 6800mAh Li-Ion battery, and an 8-core 2.2GHz CPU running Android 14, ensuring unmatched durability and power for demanding industrial workflows.
Model NO. :
F9827-ultraCPU :
Octa-core 2.2 GHzOperatng System :
Android 14.0Display :
4.3 in. 800 (H) × 480 (W) WVGA, Industrial-Grade IPS DisplayMemory :
RAM : 4GB(Optional 6GB、8GB) ROM : 64GB(Optional 128GB、256GB、512GB)Power :
Removable Li-Ion Battery, rated capacity 6800mAh, supports 18W Fast Charging, supports Battery replacement without Power Off.Weight :
400g (with battery, without handle)Drop Specifications :
Can withstand multiple falls from a height of 1.8m onto a concrete floorSealing :

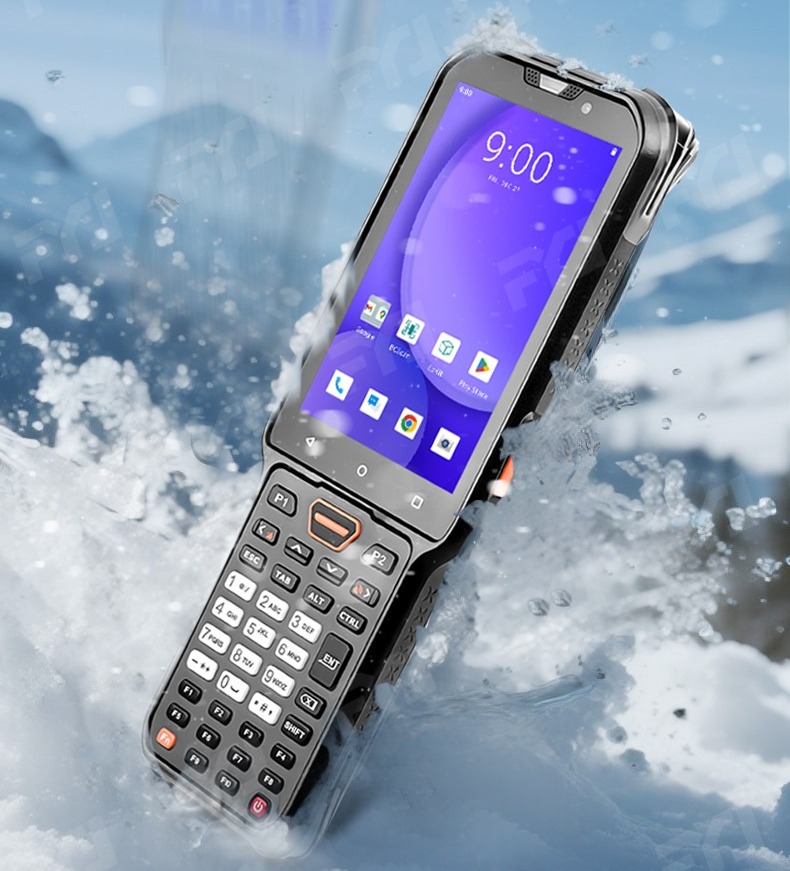

IP68Advantage :
Support OCR Scanning

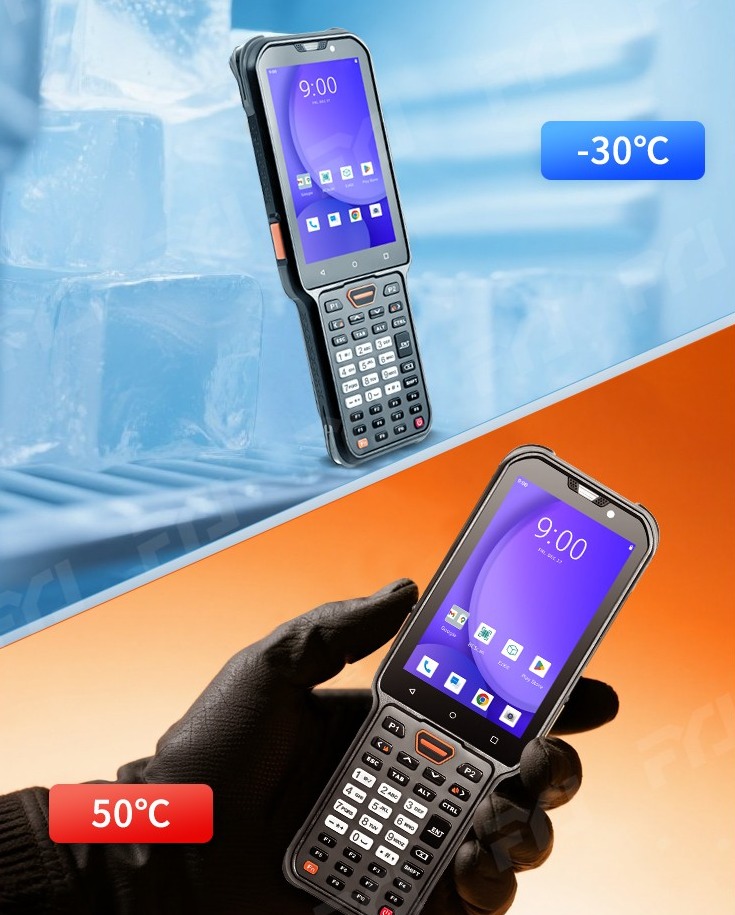

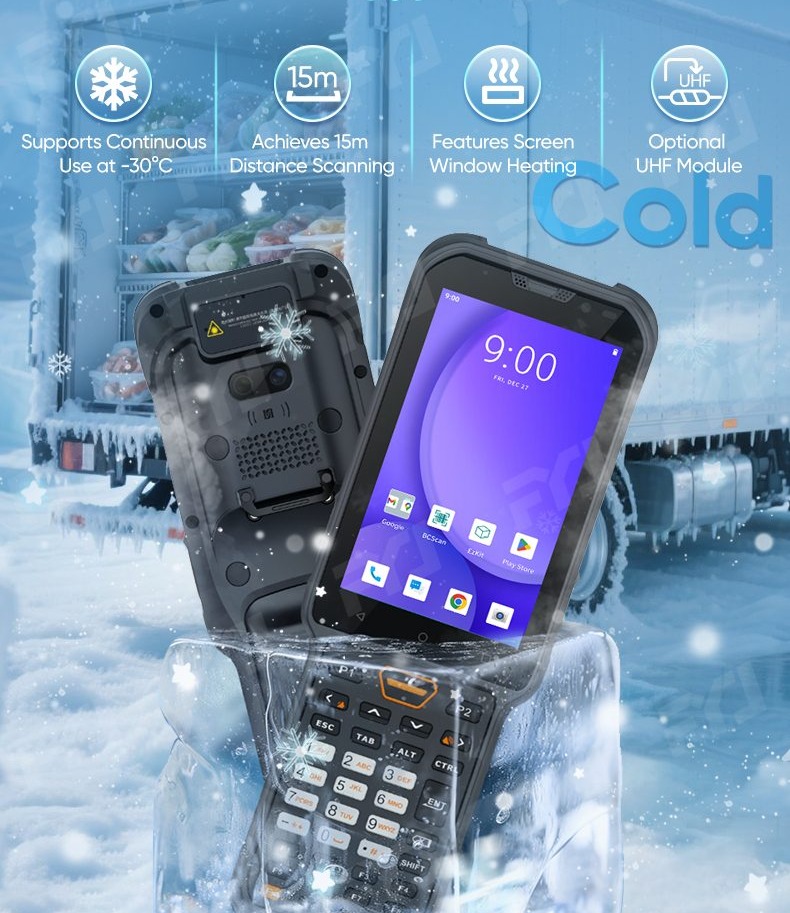

Ultra-low Temperature -30°C Resistant PDA for Cold Chain
1. Supports Continuous Use at -30°C.
2. Achieves 15m Distance Scanning.
3. Features Screen Window Heating.
4. Optional UHF Module.
Super Performance
Powered by a 2.2GHz octa-core CPU and Android 14OS, delivering industrial-grade performancewith intuitive smart functionality
1.8-core 2.2GHz
2.4+64GB(6+128GB/8+256GB OPtional,Support up to 512GB)
3.Android 14

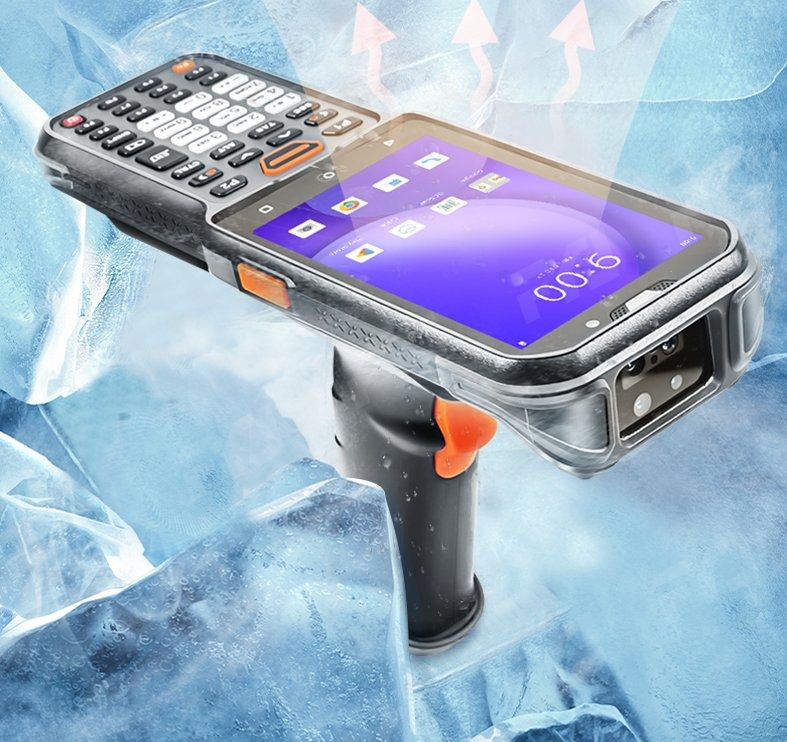

Despite Heat and Cold
Highly Integrated Low Temperature Resistant Heat Insulation Design.
No Fear of Condensation
Local Heating for Screens and Scanning Windows,Intelligent Electric Heating of Inner Cavity, Intelligent Temperature Control Sensor

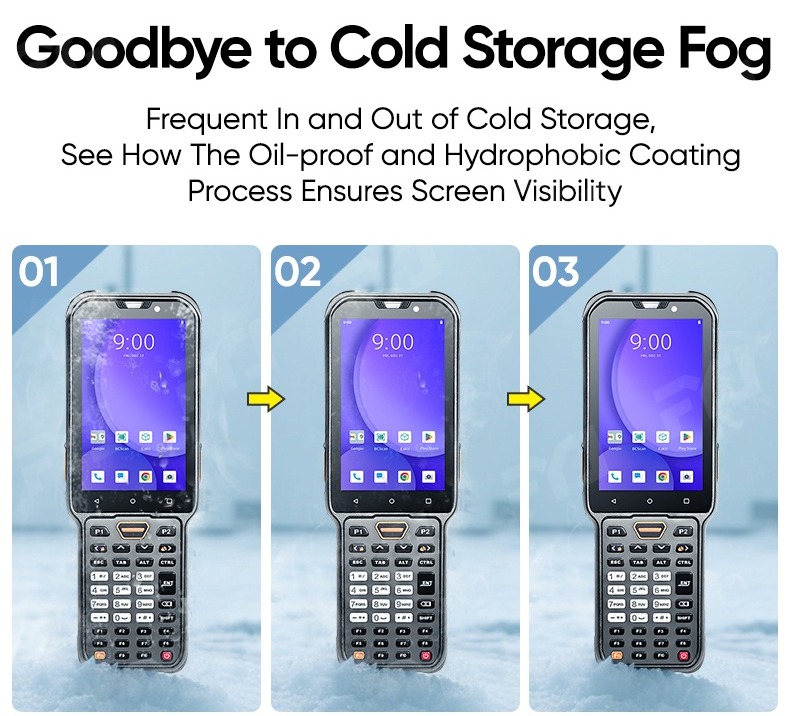

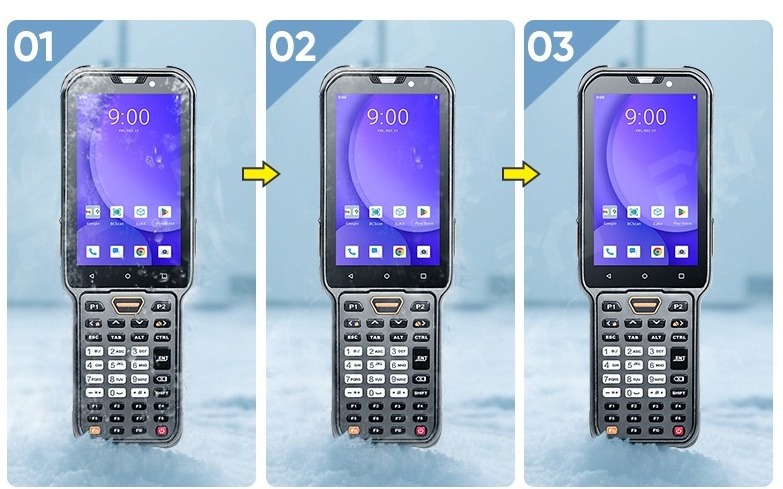

Goodbye to Cold Storage Fog
Frequent In and Out of Cold Storage,See How The Oil-proof and Hydrophobic Coating Process Ensures Screen Visibility

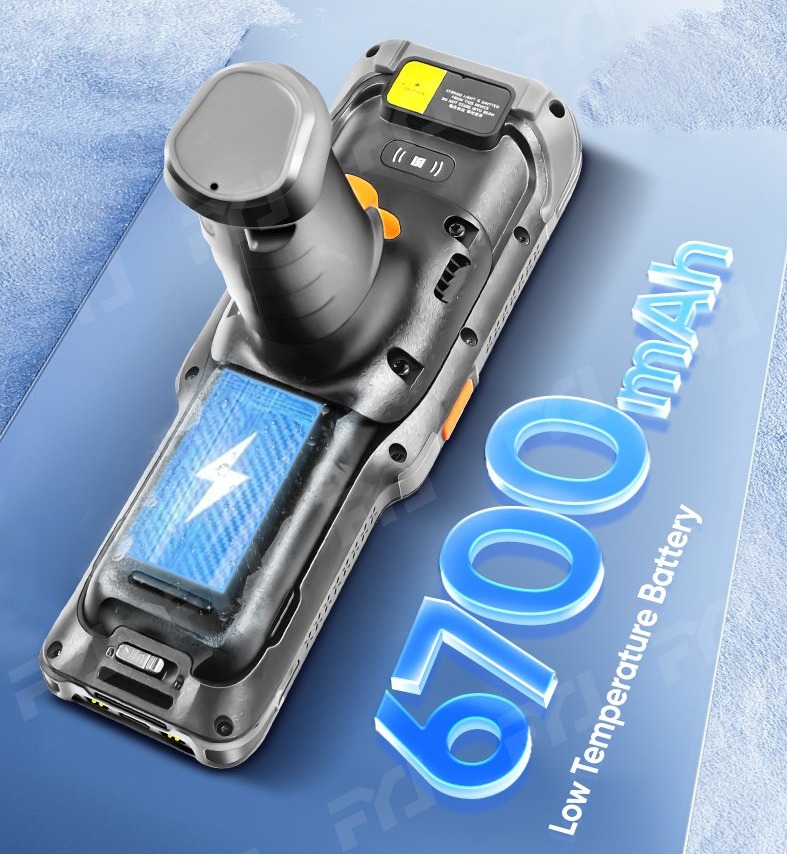

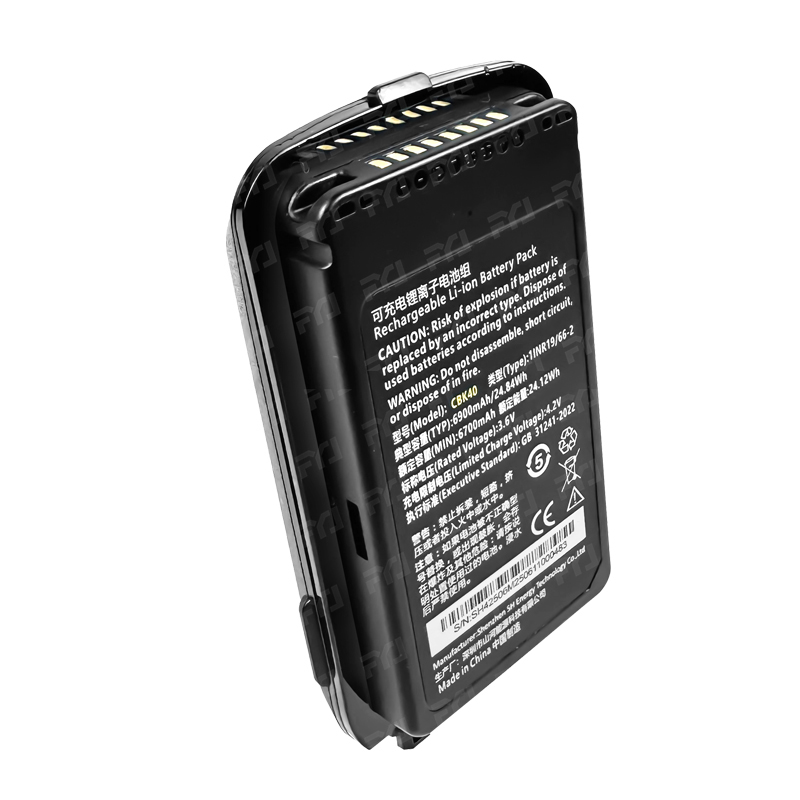

Low Temperature Resistant Battery, Strong Battery Life
6700mAh Low Temperature Battery, 6800mAh Normal Temperature Battery

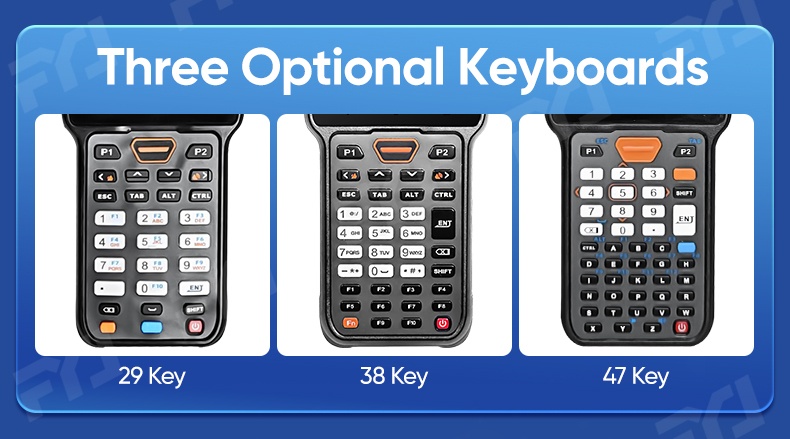

Three Optional Keyboards
29key/38key/47key
Upgraded Protection, Safe Use
2000 Drops from A Height of 0.5M, 1000 Rolling Impacts, Corning Gorilla Glass, Can withstand Drops of 2 Meters

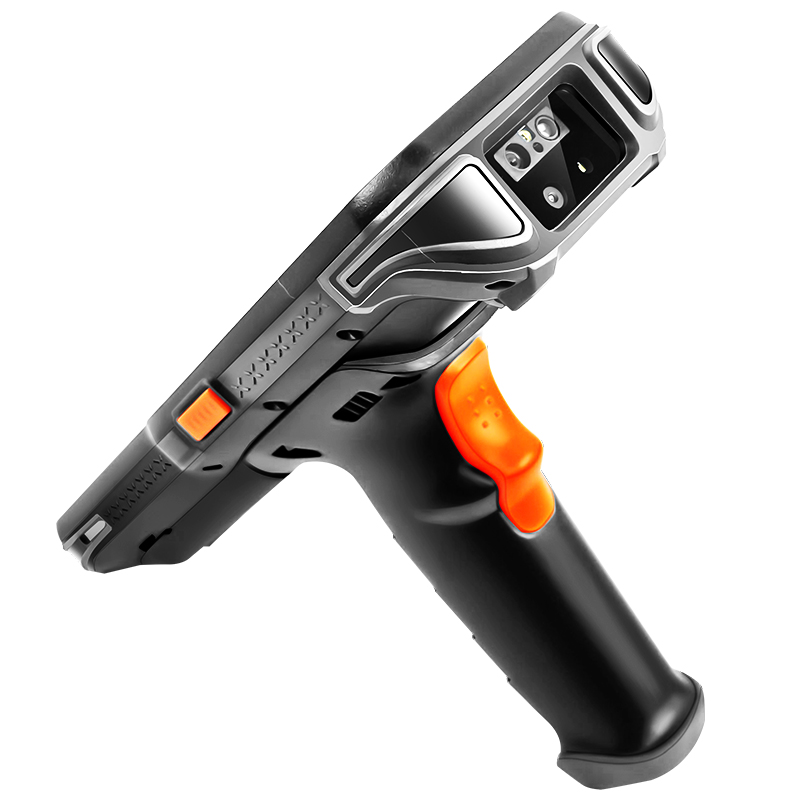

Decoding Long Range
Two Long-distance Scanning Configurations of 10 Meters and 20 Meters are Provided, and The Zebra Honey is Optional
High-Definition Camera
F9827 Ultra Boasts A 13MP Autofocus Color Camera with Flash. You Can Easily Capture Photosand Videos in Various Modes, Even Underlow Light and Back-lit Conditions.

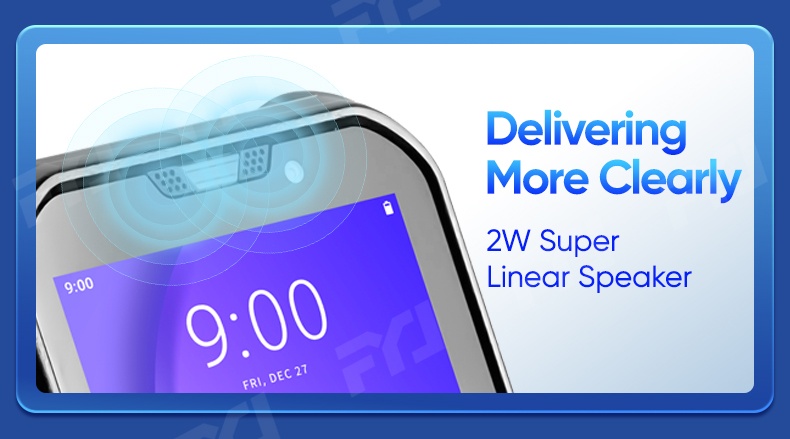

Delivering More Clearly
2W Super Linear Speaker

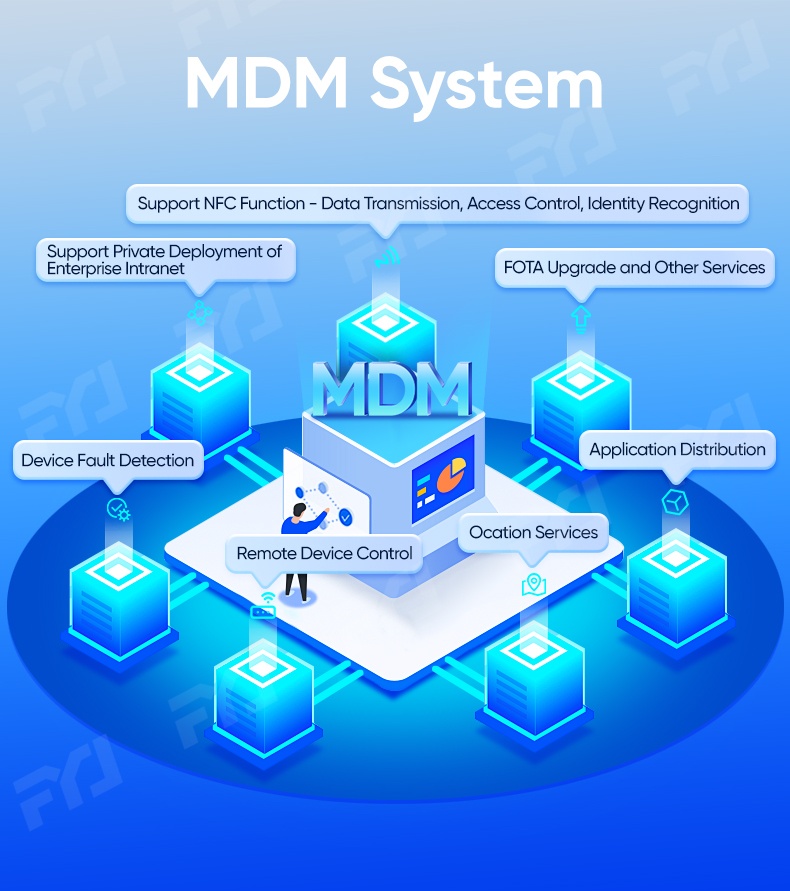

MDM System
1.Application Distribution
2.Ocation Services
3.Remote Device Control
4.Device Fault Detection
5.FOTA Upgrade and Other Services.
6.Support Private Deployment of Enterprise Intranet.
7.Support NFC Function - Data Transmission, Access Control, Identity Recognition
Specificaiton:
Performance Characteristics | |
CPU | Octa-core 2.2 GHz |
Operating System | Android 14.0 |
RAM | 4GB (Optional6GB,8GB) |
ROM | 64GB (Optional128GB,256GB,512GB) |
Physical Characteristics | |
Dimensions | 212(W)×75(H)×32.5(T)mm |
Weight | 400g(Battery included,Handle not included) |
Display | 4.3 in. 800 (H) × 480 (W) WVGA, Industrial-Grade IPS Display |
Imager Window | Corning® Gorilla® Glass |
Touch Panel | Corning® Gorilla® Glass Capacitive touch panel,Support stylus, wet hand, multi-touch and Gloves Touch Mode |
Backlight | 450 NITS, LED |
Power | Removable Li-Ion Battery, rated capacity 6800mAh, supports 18W Fast Charging, supports Battery replacement without Power Off. |
Expansion Slot | MicroSD card, SDHC/SDXC compatible, up to 512GB |
Expansion Ports | Back POGO PIN: Trigger key signalBottom POGO PIN:Charging port 12V/2A,Support USB communication and OTG mode |
SIM Slots | 1x Nano SIM, 1x mini SIM |
PSAM Slots | Optional 1x PSAM |
Notifications | Audible tone; Multi-color LEDs (System Alert Light, Heat Alert Light, Scan Light); Vibration |
Network Connections | 2G/3G/4G , Wi-Fi,Bluetooth , Support Ethernet Dock |
Voice and Audio | Speaker (2W), Receiver, Dual Mic (supports noise reduction), Type-C Headphones |
Keypad | 38-key Numeric (optional 47 keys / 29 keys) ; Two side Scanning Buttons |
Interface Ports | Bottom USB 2.0, OTG - host/client (Type-C) |
Data Capture | |
Scanning | ME5066/SE4750/SE5500/EX30etc.professional 2D scanning engine. |
Camera | Front 5 MP fixed focus; f/2.4 apertureRear 13 MP auto focus, PDFA; f/2.2 aperture; Flash LED with flashlight mode (with handle: rear camera and sweeping head combined in scanning position / without handle: rear camera on the back) |
NFC | High RF output power; ISO15693、ISO14443A/B、MIFARE:Mifare S50,Mifare S70,Mifare UltraLight,Mifare Pro,Mifare Desfire 、FeliCa Supported cards . |
Sensor | Proximity Sensor, Light Sensor, Accelerometer , Gyroscope, Compass,IR(optional) |
network connection | |
Wireless WAN |
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B66/B71 TDD-LTE: B34/B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 CDMA 1x: BCO GSM: 850/900/1800/1900 |
GPS | GLONASS, NavIC, Beidou,GPS, QZSS, Galileo |
Wireless LAN |
IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w(2.4G/5G Dual band WIFI) Supports 802.11r Fast Roaming |
Bluetooth | BT5.2+BR/EDR+BLECommunication distance>10m |
User Environment | |
Operating Temp | -20℃ to +50℃ |
Storage Temp | -40℃ to +70℃ |
Humidity | 5% to 95% ,non-condensing |
Sealing | IP68 |
Drop Specification | Withstands multiple 2m (6.56ft.) drops to concrete |
Tumble Specification | 2000 round 0.5 m/1.6 ft. tumbles |
Electrostatic Discharge | +/-15 kV air discharge, +/-8 kV direct discharge |
Accessories | |
Standard | Power Adapter ×1、USB cable ×1、Rechargeable Battery ×1、Hand Strap×1(Without handle)/Pistol grip x1(Includes handle) |

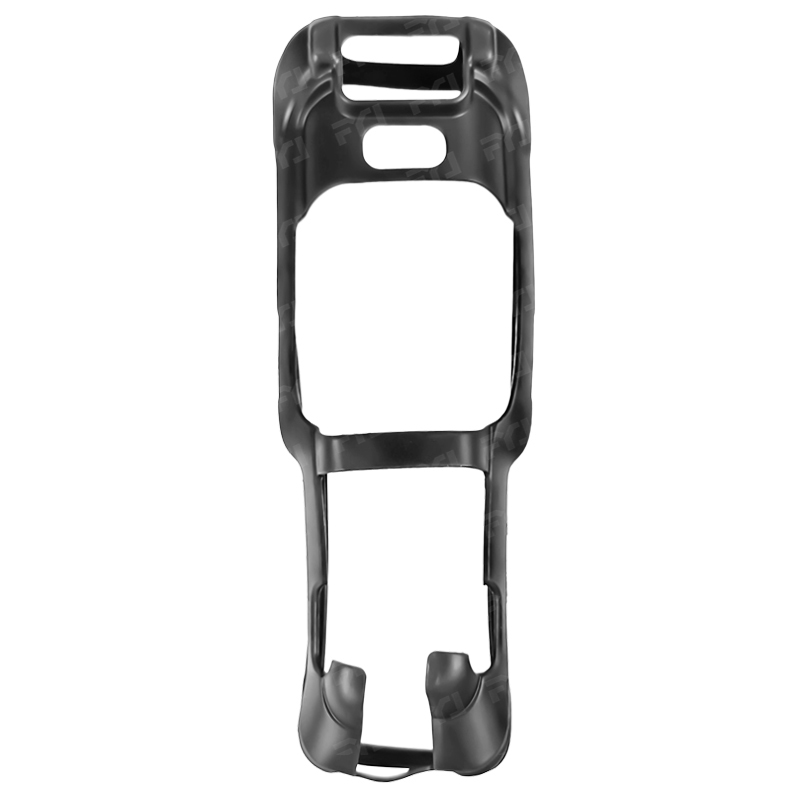

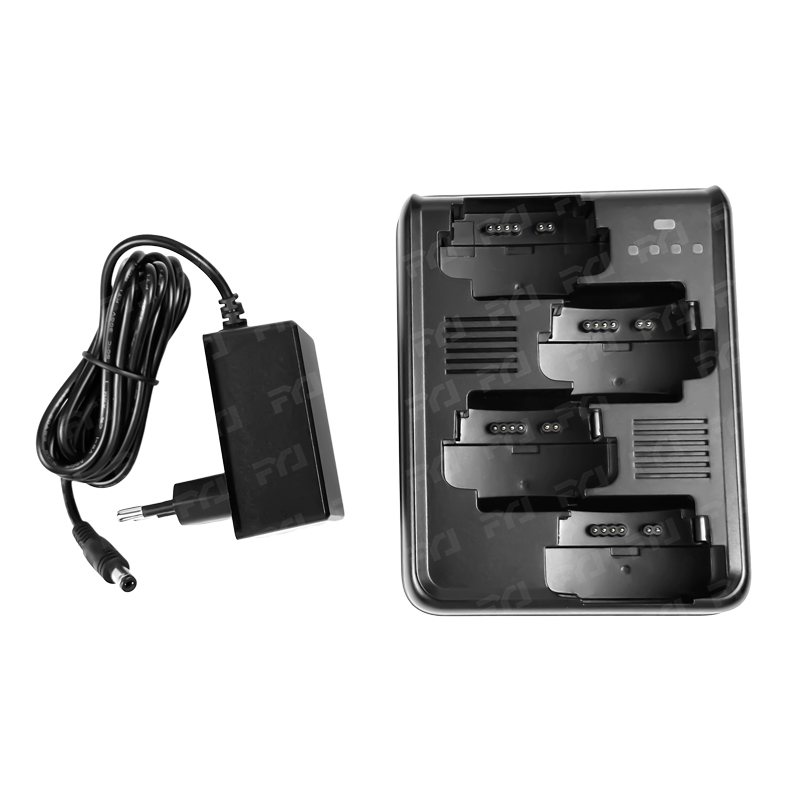

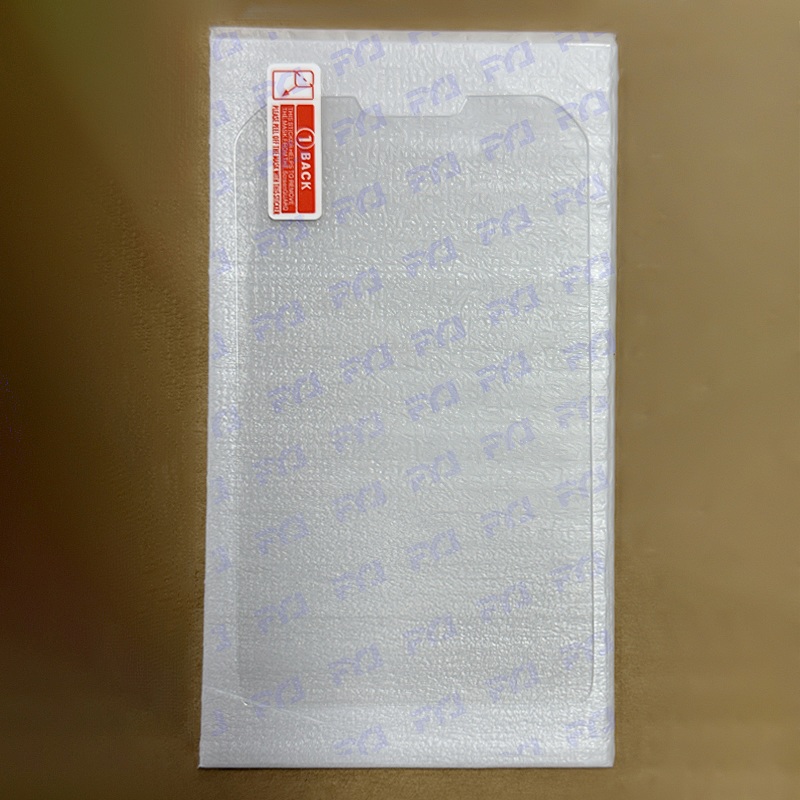

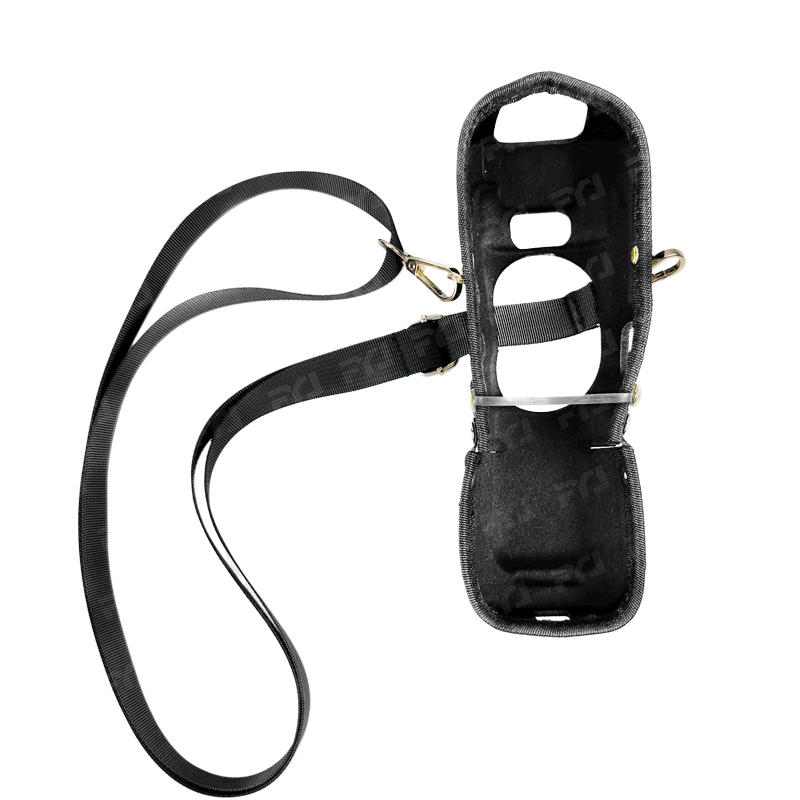

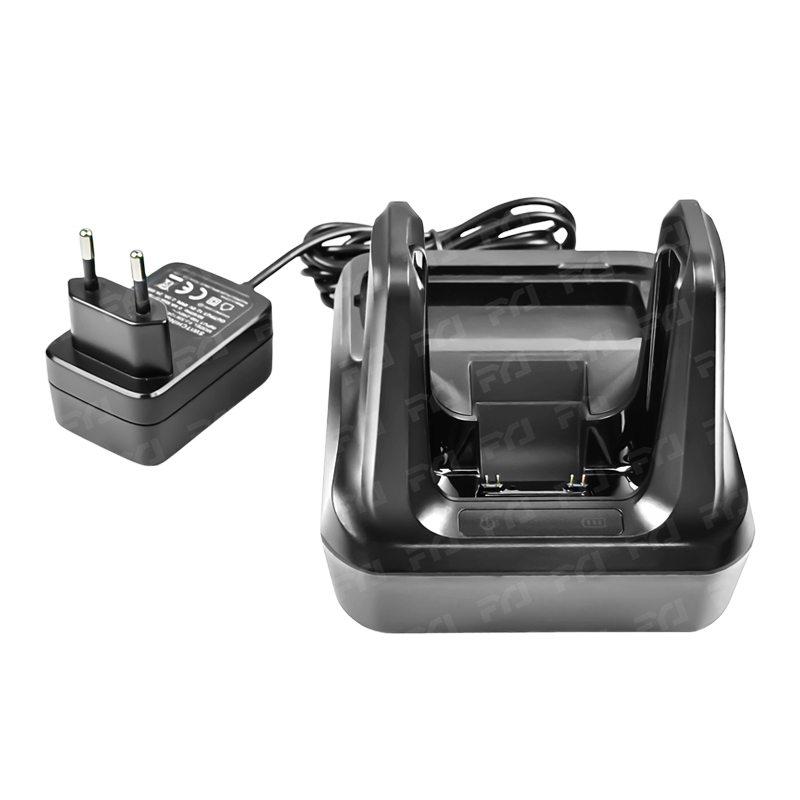

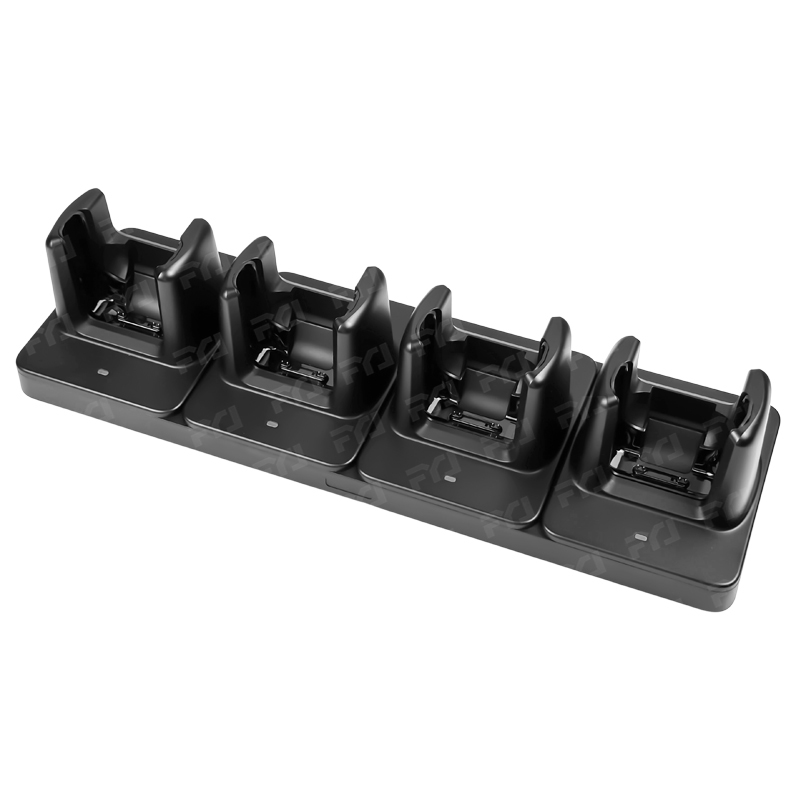

Optional | Bumper、Protection Glass、Single-Slot Charge、OTG Cable、Holster、4 Slot Cradle、4 Battery Cradle |
