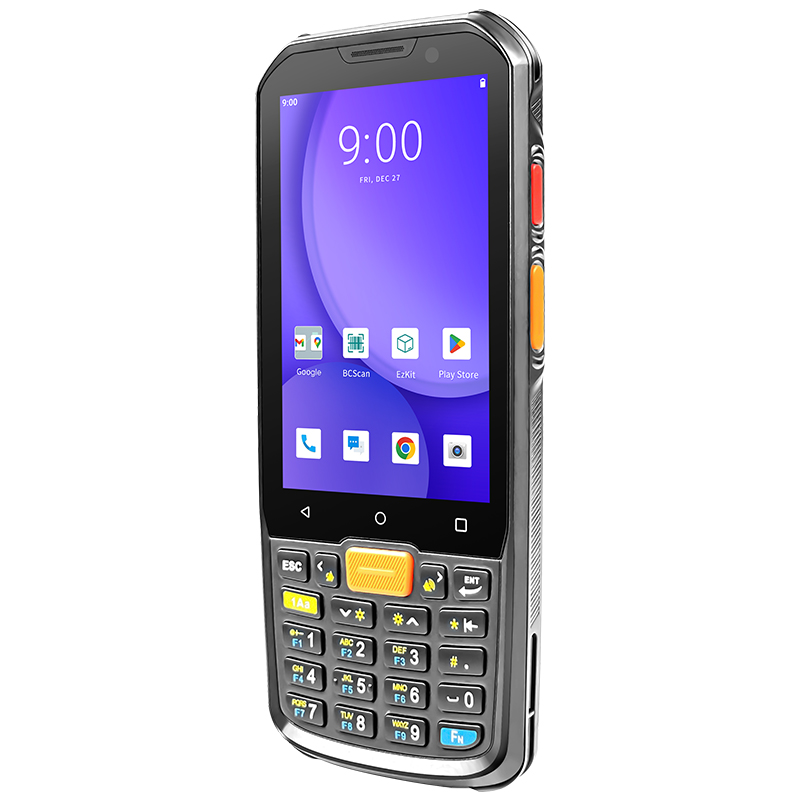

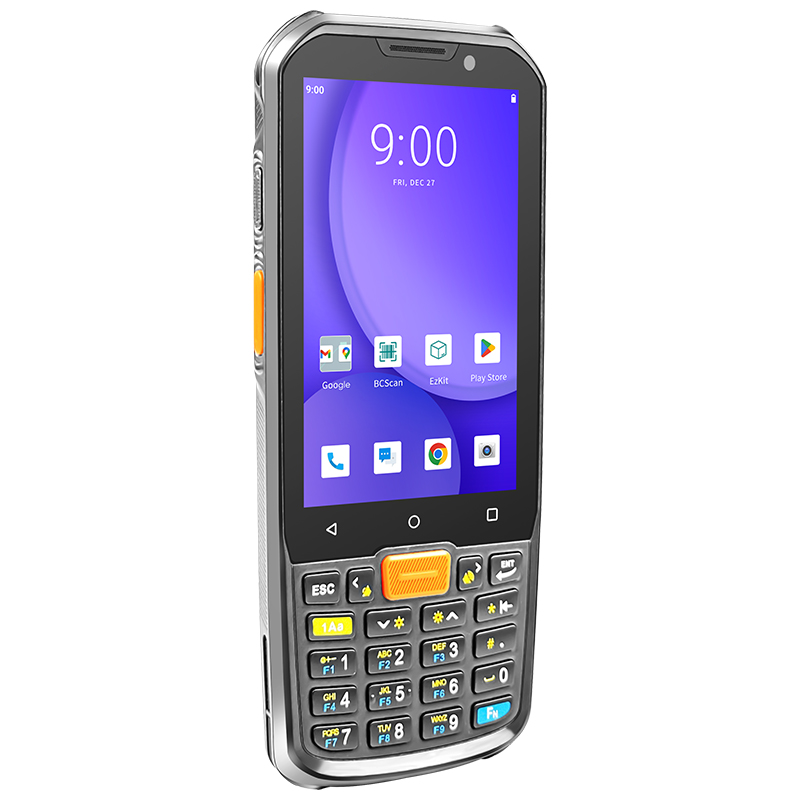

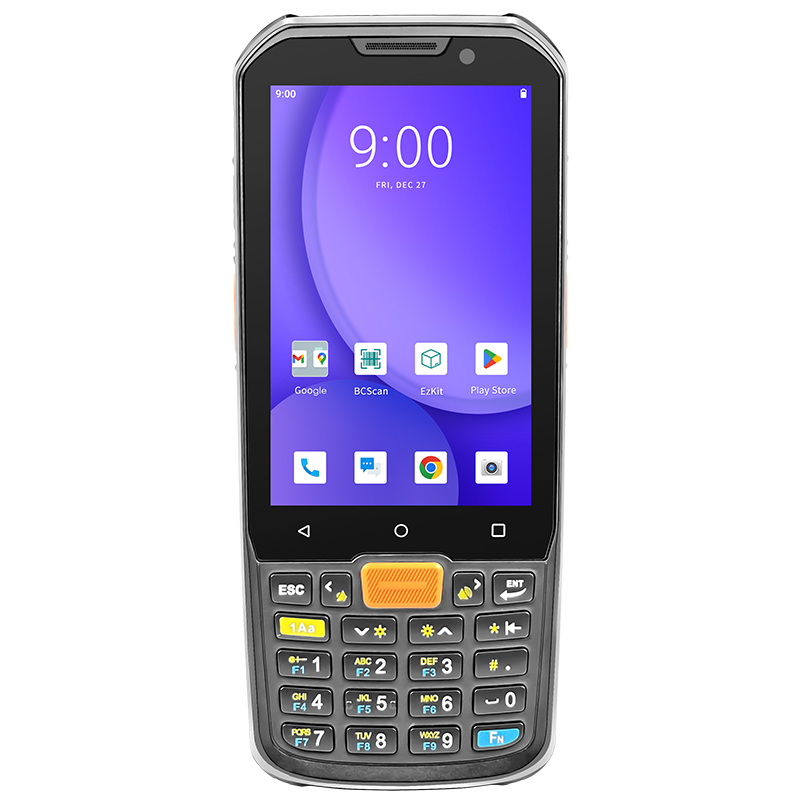

The F9824L Enterprise Mobile Computer redefines operational efficiency with its Gold Scan Tilt Angle Design, transforming traditional two-step operations into a seamless one-step process for enhanced interaction logic and simplified workflows. Engineered with an 8-core 2.0GHz/2.2GHz CPU (optional Android 11/13 OS), a 5100mAh flagship battery, IP65 triple-proof rating, and dual-band WiFi, it guarantees stable, efficient connectivity and rugged durability for demanding enterprise environments.
Model NO. :
F9824LCPU :
Octa-core ,2.0GHz / 2.2GHz(Optional)Operatng System :
Android 11/Android 13 (GMS certified)Display :
4 in. 800(H)×480(W) WVGA industrial-grade IPS displayMemory :
2GB(Optional 3GB) RAM 16GB(Optional 32GB) ROMPower :
Removable lithium-ion battery, rated capacity 3.85V/5100mAh, nominal capacity 3.85V/5200mAhWeight :
243g (including battery)Drop Specifications :
Can withstand multiple falls from a height of 1.5m onto a concrete floor.Sealing :
IP65Advantage :
Support OCR Scanning





| Performance Characteristics | |
| CPU | Octa-core ,2.0GHz / 2.2GHz(Optional) |
| Operating System | Android 11 / Android 13(Optional) |
| Memory | 2GB(Optional 3GB) RAM16GB(Optional 32GB) ROM |
| Physical Characteristics | |
| Dimensions | 160.5(H)×67 (W)×17(T)mm6.3(H)×2.6(W)×0.67(T)inch |
| Weight | 243 g / 8.57 oz.(Battery included) |
| Display | 4 in. 800(H)×480(W) WVGA industrial-grade IPS display |
| Touch Panel | Corning® Gorilla® Glass Capacitive touch panel,support stylus and gloves. |
| Backlight | 400 NITS, LED |
| Power | Removable lithium-ion battery, rated capacity 3.85V/5100mAh, nominal capacity 3.85V/5200mAh |
| Expansion Slot | MicroSD card, support SDHC, SDXC, up to 256GB |
| Expansion Ports | Bottom POGO PIN: USB 2.0, 5V/2A charging port |
| SIM Slots | 2 x Nano SIM |
| Notification | Audible tone; Multi-color LEDs; Vibration |
| Network Connections | WWAN(4G/3G/2G), WLAN, Bluetooth,Ethernet base |
| Voice and Audio | Speaker(1.5W)), Receiver, Dual Mic(Supports noise reduction) |

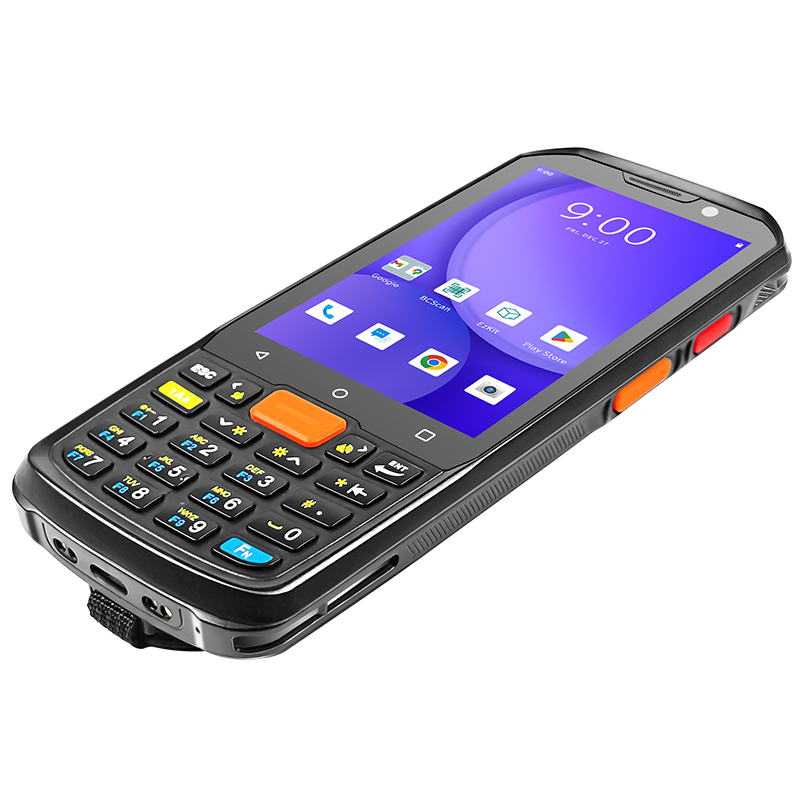

| Front Keypad | 21 key Numeric |
| Side buttons | Programmable:Scan on each side; power; customizable button |
| Interface Ports | Bottom USB 2.0, support OTG |
| User Environment | |
| Operating Temp | -20℃ to +50℃ |
| Storage Temp | -40℃ to +70℃ |
| Humidity | 5% to 95% non-condensing |
| Sealing | IP65 |
| Drop Specification | Withstands multiple 1.5 meter drops to concrete |
| Tumble Specification | 500 round 1.6 ft./0.5 m meter tumbles |
| Electrostatic Discharge | +/-15 kV air discharge, +/-8 kV direct discharge |
| Data Capture | |
| Scanning |

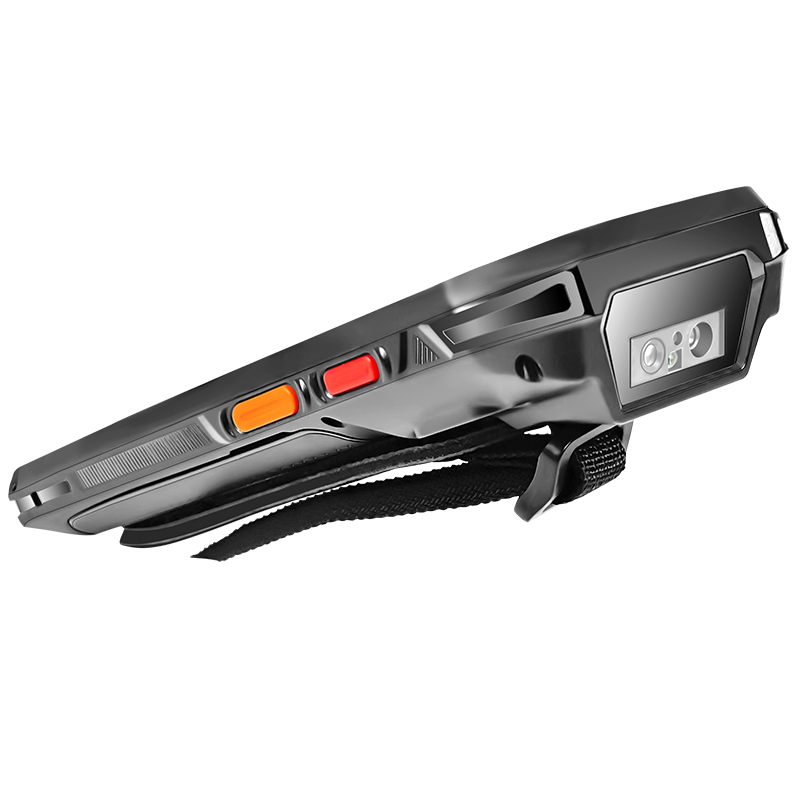

Tilt Scan Head Standard :ME5030 Optional :uE966(1D)/ME5066/HS7/SE4710/SE5500 |

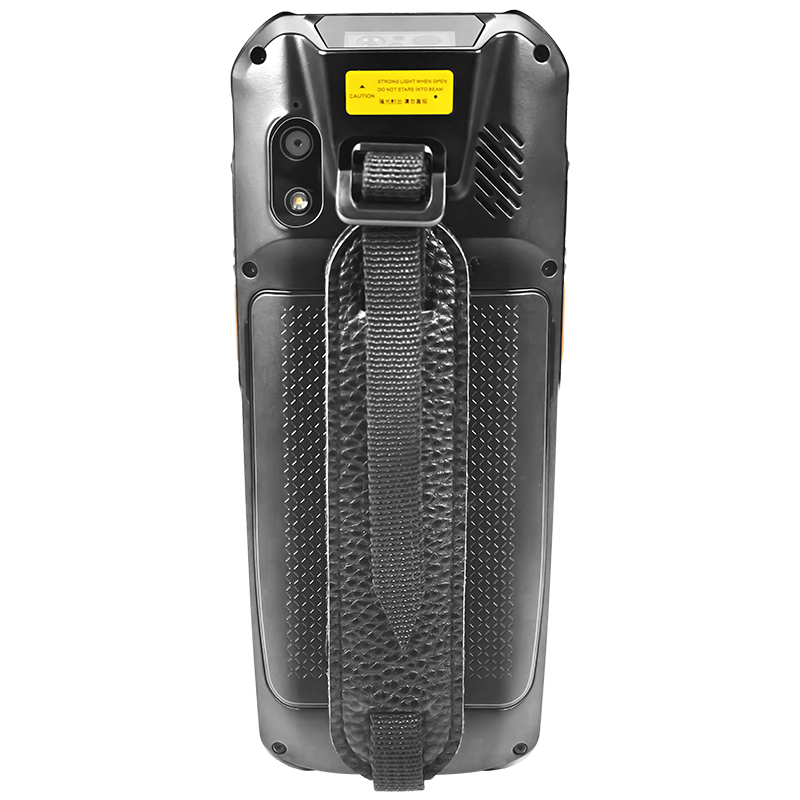

| Camera | Rear 5 MP auto focus,f/2.4 aperture,Flash LED |
| NFC | Optional |
| Interactive Sensor Technology | |
| Light Sensor | Automatically adjusts the brightness of the display backlight(Optional) |
| Motion Sensor | Accelerometer(Optional) |
| Proximity Sensor | Automatically disable the touchscreen and turn off the display in voice calls(Optional) |
| Wireless WAN | |
| WAN Radio Frequecy | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B3/B5/B7/B8/B20/B28A/B28B) WCDMA(B1/B5/B8)TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) GSM/EDGE/GPRS(850/900/1800/1900) |
| GPS | |
| Positioning System | GPS-L1 supports A-GPS; GLONASS; BeiDou; Galileo |
| Wireless LAN | |
| Radio | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w(2.4G/5G Dual band Wi-Fi) |
| Data Rates |
5 GHz: 802.11a/n/ac — up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 150 Mbps |
| Operating Channels | CH1-CH13, CH36-CH165 |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSKEAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA |
| Fast Roam | Supports 802.11r Fast Roaming |
| Wireless PAN | |
| Bluetooth | Bluetooth 5.0,Bluetooth Low Energy (BLE) ; Secondary Bluetooth BLE beacon for finding lost (powered off) devices |
| Communication Distance | >10m |
| Accessories | |
| Standard Accessories | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1、Hand Strap×1 |
| Optional | Glass Tempered Film、Single-Slot Charge(USB/Ethernet)、4-Slot battery Charger、OTG Cable |
