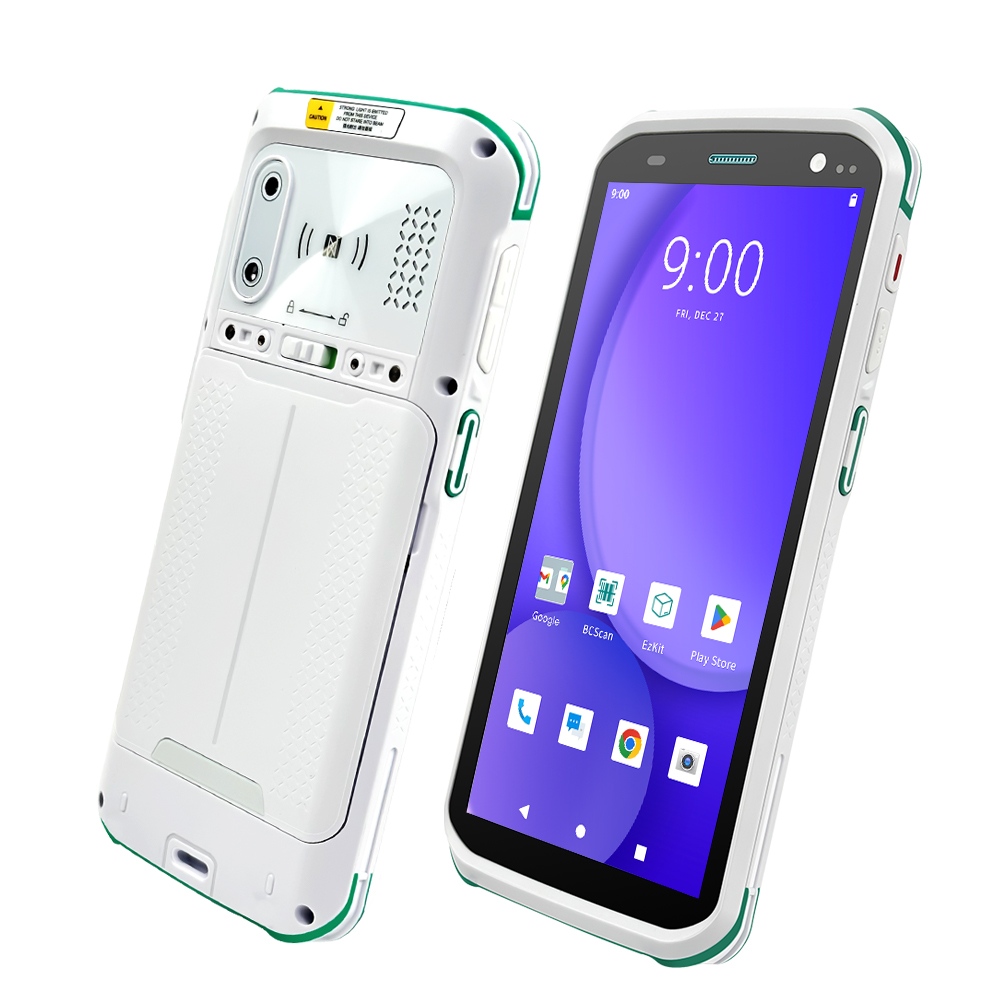

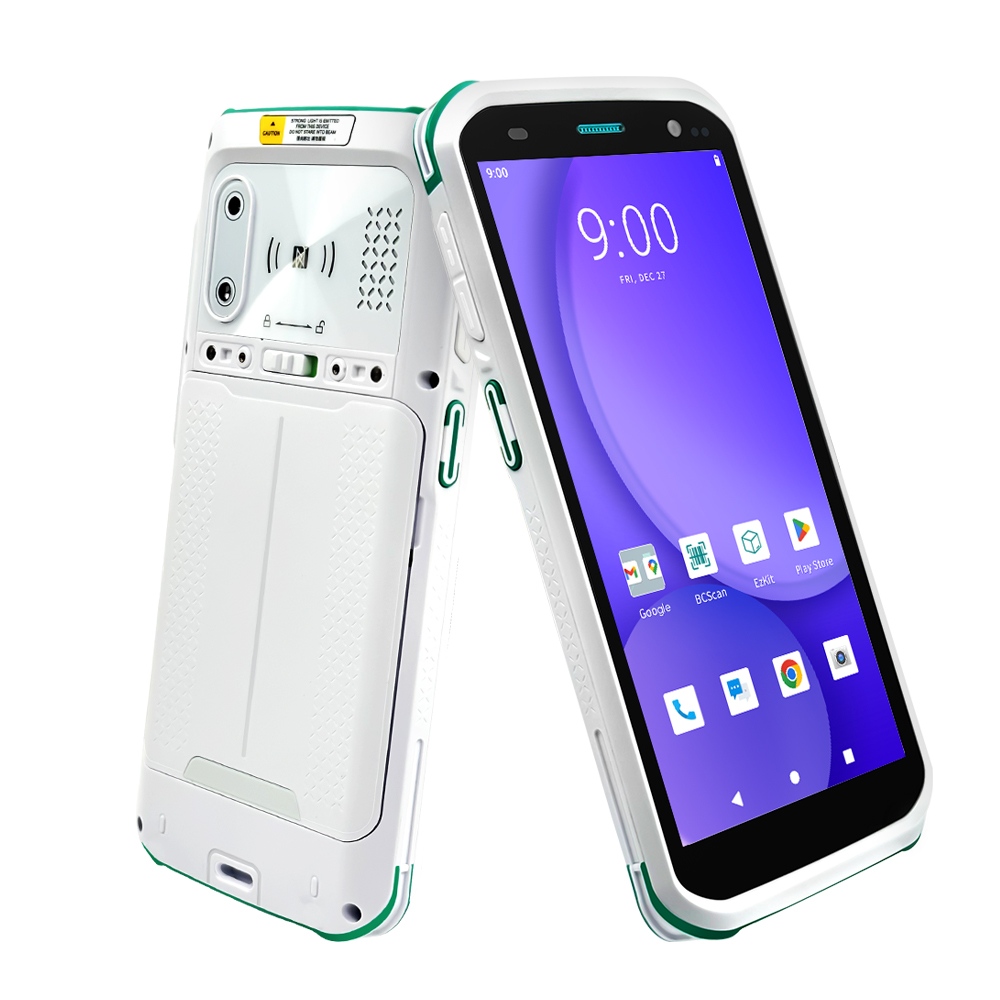

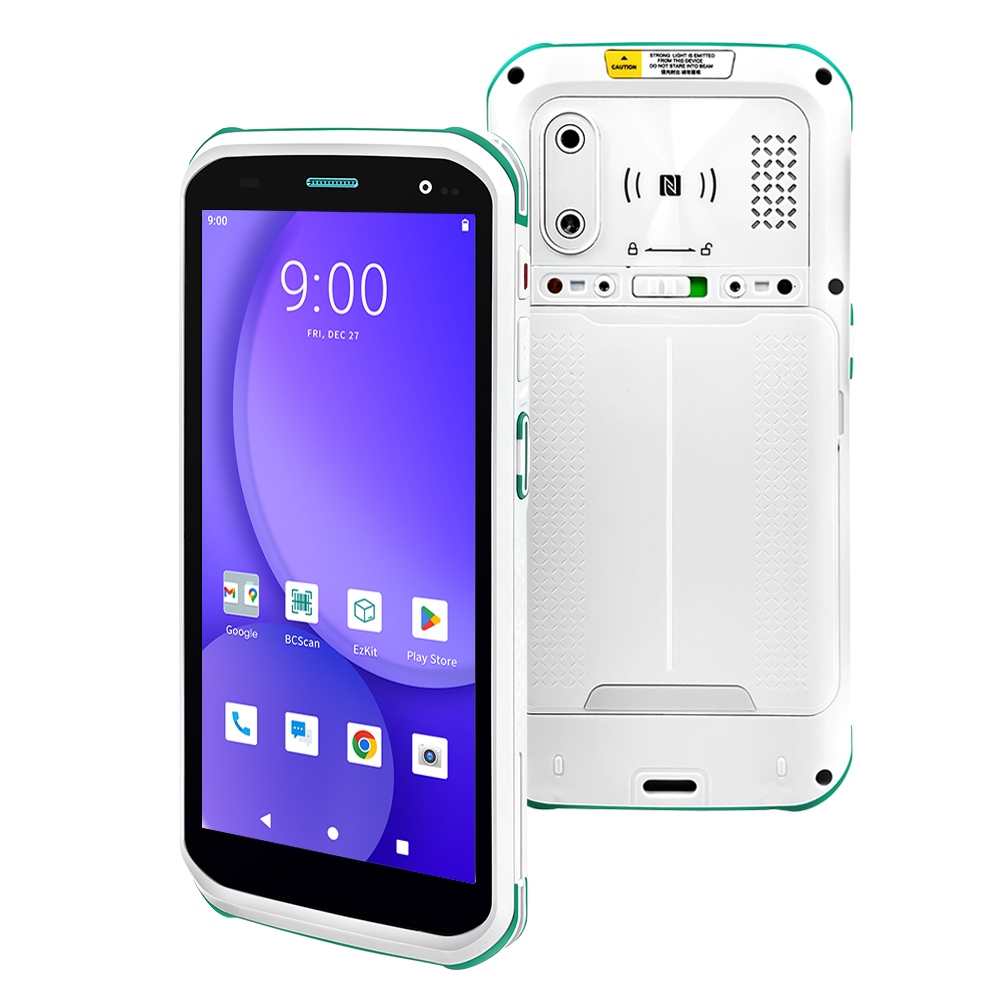

Rugged 5.5-inch Android Healthcare PDA: Secure Mobile Computing for Clinical Environments
The new generation of the medical version of F9825M sets a new standard in performance and user experience. It not only boasts an uncommonly battle-hardened body configuration but also features excellent medical quality and a chemical-resistant shell design, making it ideal for demanding medical environments. Additionally, it supports multiple barcode readings, including Pharmacode and UDI code, ensuring versatility and efficiency in various medical applications.
Model NO. :
F9825MCPU :
8Core, 2.0GHz / 2.2GHZOperatng System :
Android 11 / Android 13Display :
5.5 in. High Definition (1440 × 720), industrial-grade IPS displayMemory :
3GB RAM（4GB optional） 32GB ROM（64GB optional)Power :
Rechargeable Lithium-ion 5000 mAh minimum (3.85V), PE fast charging (up to 3.0 A)Weight :
249g (including battery)Drop Specifications :
Can withstand multiple falls from a height of 1.5m onto a concrete floor.Sealing :
IP67Advantage :
Support OCR Scanning

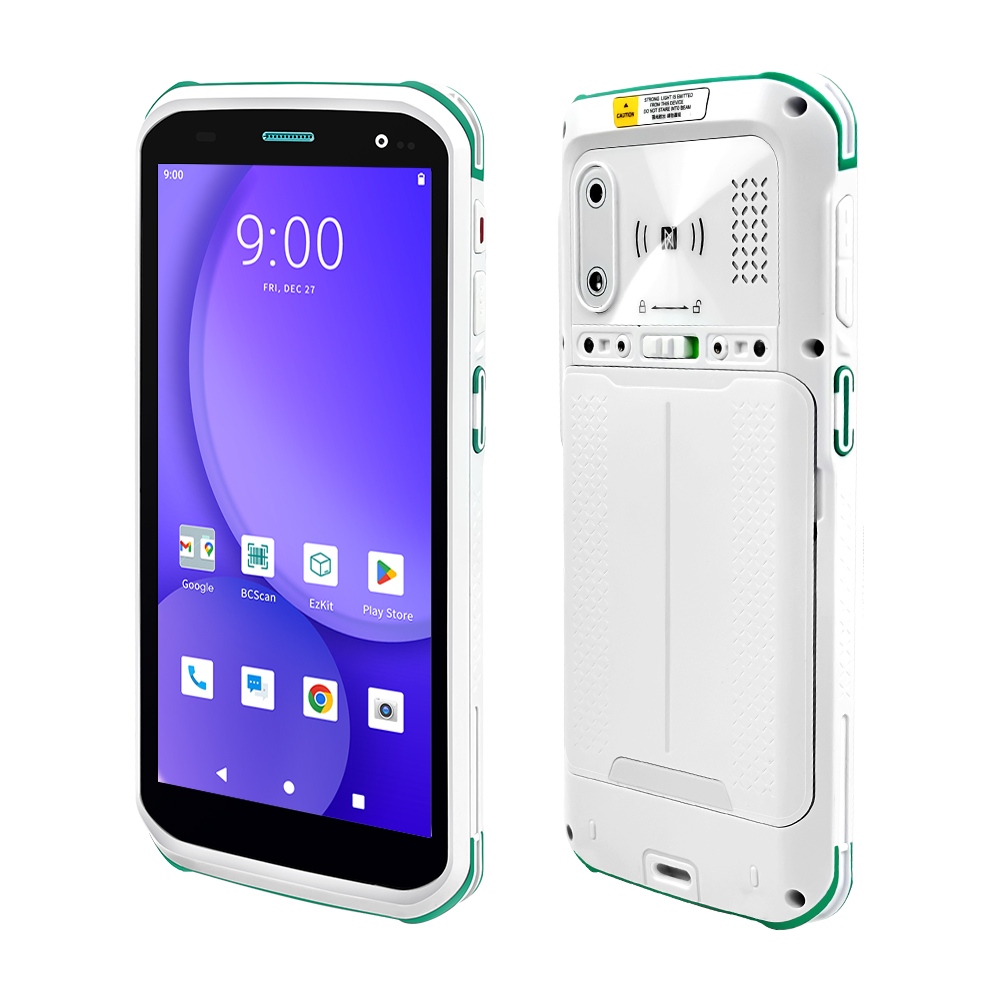

F9825M
A Robust MedicalWork Assistant
Application Scenarios
Emergency Infusion
SPD Consumables Management
Logistics Management

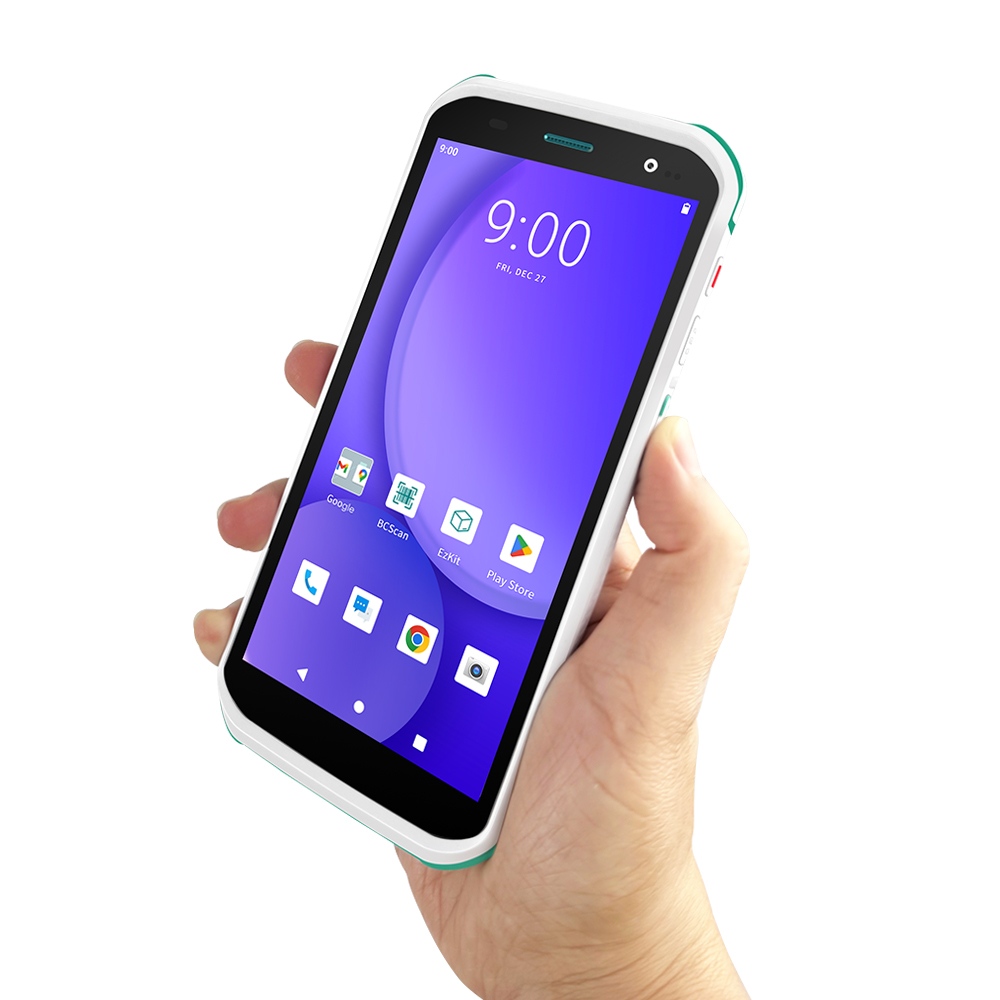

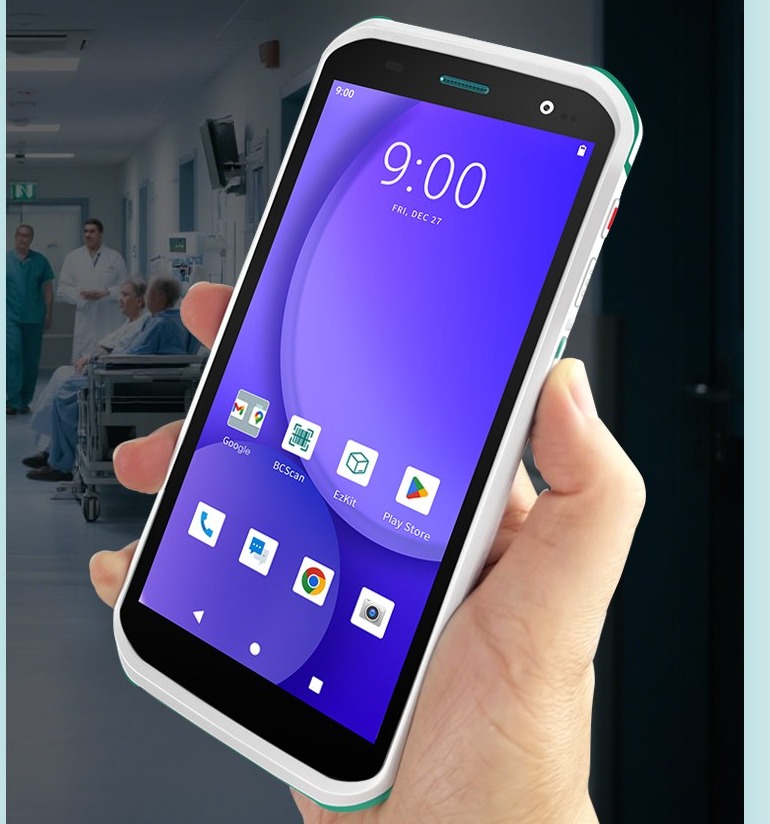

Large Durable Display
5.5inch Display
Glass Corningi Gorillae

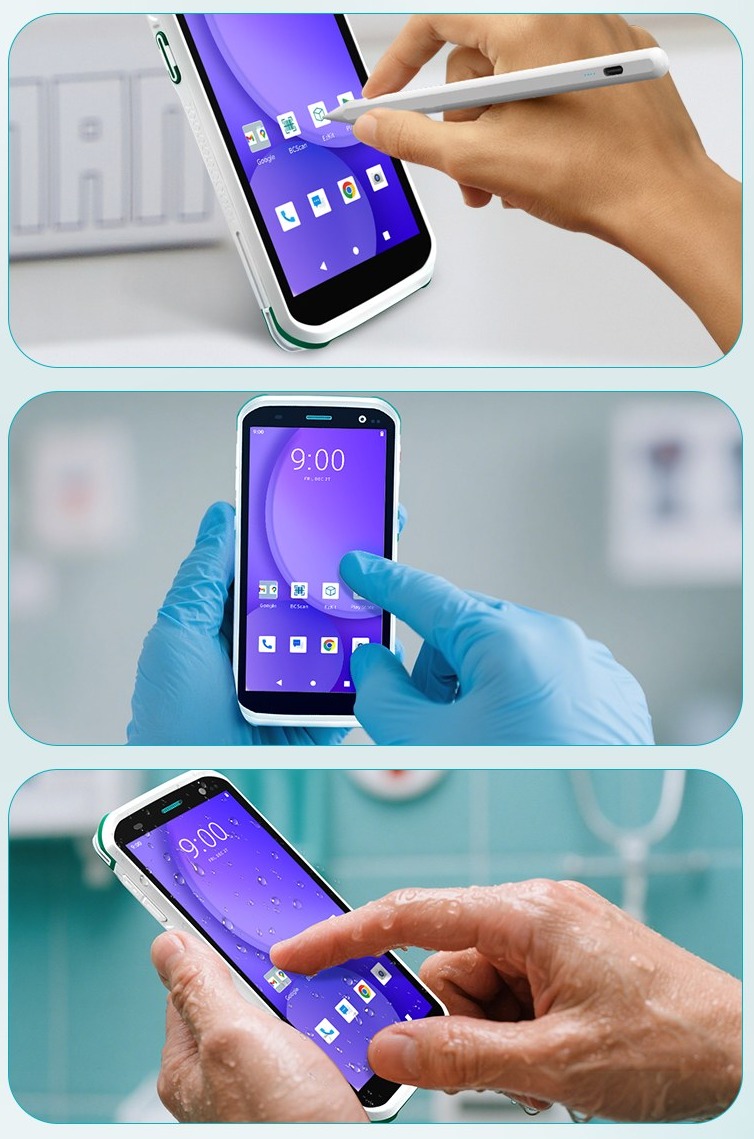

Touch Panel
Supports Stylus,Ungloved Finger or Gloved FingerInput
Multi-touchand Wet Hand Operatior

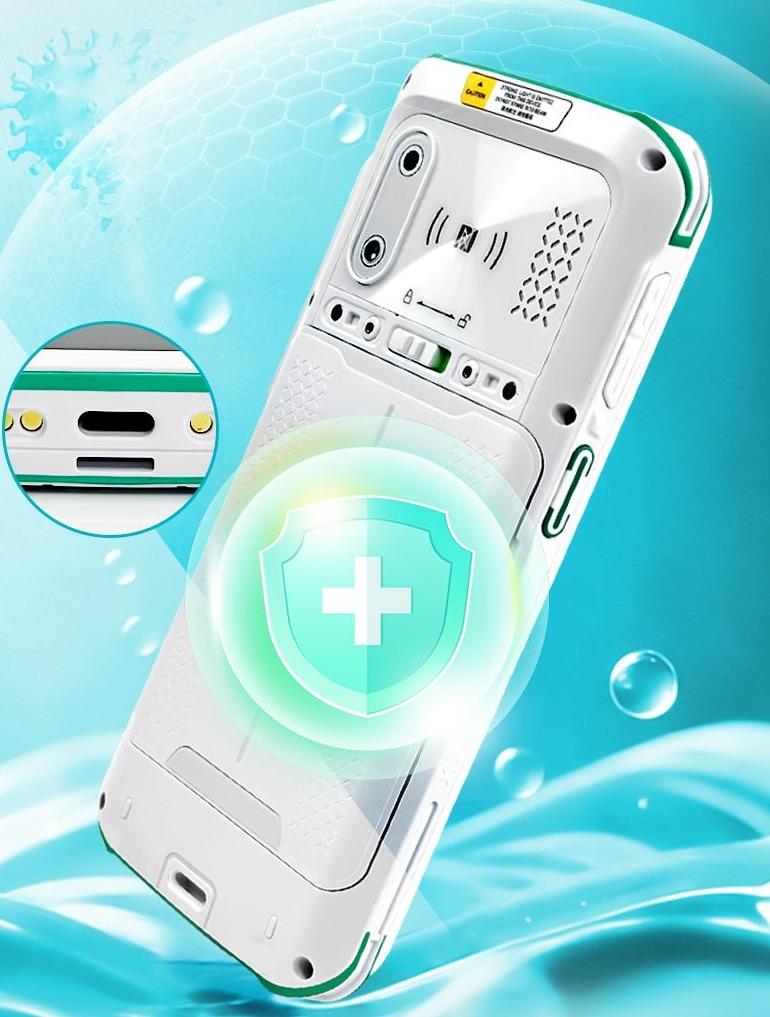

Built for Constant Disinfecting
Antibacterial & Sterilizable Corrosion Resistant Housing
A Specially Designed Housing and USB-C Port Plug
Minimize Crevices Where Pathogens Can Accumulate.
Voice - Calling Features
Push-To-Talk (PTT)
Turn Devices Into Two-Way Radios and PBX Handsets
Empower Your Workforce with Versatile Voice -Calling Features:
Push - to - talk (PTT).Nurses can Instantly Reach Physicians or Take Callsfrom Family Members.

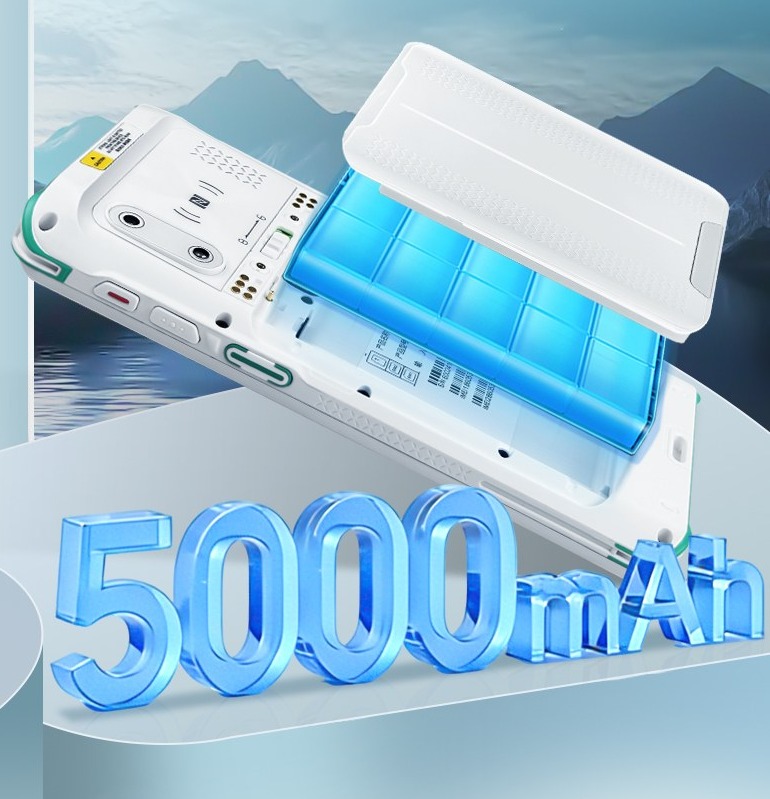

Goodbye Battery Anxiety
5000mAh Battery,Supports 18W Fast Charge
Scan Code Quickly
2.4G/5G Dual-band Wi-Fi,Bluetooth 5.0
Accurate Dual-camera Code Scanning to Protect Medical Details Soft and Non-glaring, Protecting the User's Eyesight
Scan code without lagging
Capture UDl Barcodes Straight Out of The Box
Caregivers can quickly verify if medical equipmentis recalled before use, safeguarding patient safety.Automatically capture all item charges, protecting financial returns. Achieve full and accurate inventory visibility, preventing stock - out risks.
Double IP67 Protection
Shrugs Off Repeated 1.5m Concrete Drops

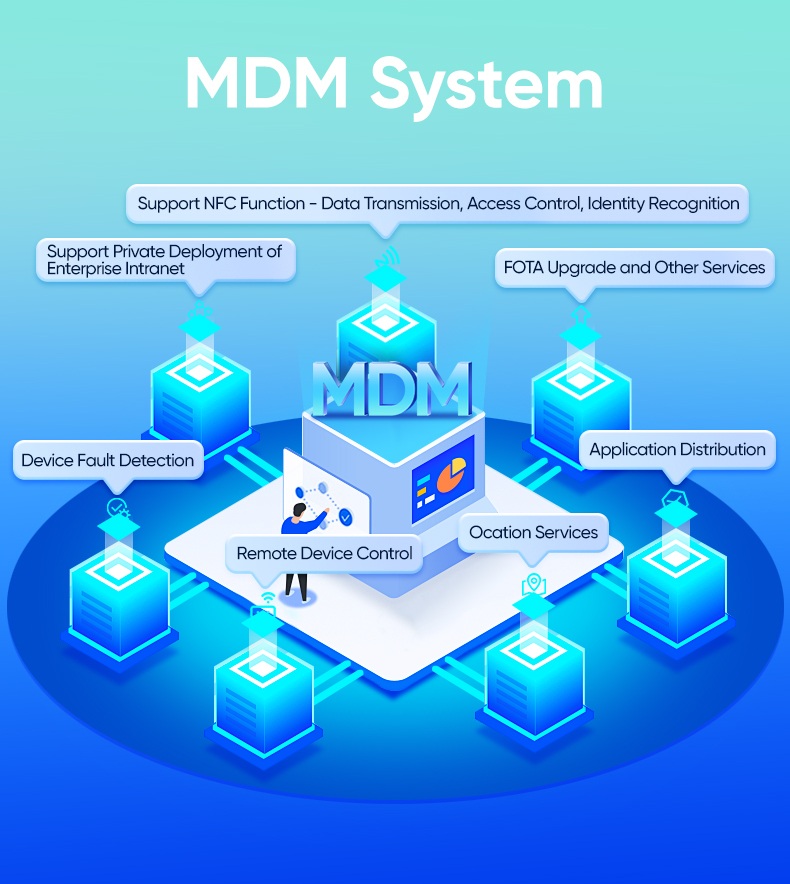

MDM System
Support NFC Function -Data Transmission, Access Control, Identity Recognition
Support Private Deployment ofEnterprise Intranet
FOTA Upgrade and Other Services
Device Fault Detection
Application Distribution
Remote Device Control
Ocation Services
Specification:
| Physical Characteristics | |
| Dimensions | 156(H)×75(W)×14.5(T)mm6.14(H)×2.95(W)×0.57(T)inch |
| Weight | 249 g / 8.78 oz.（Battery included） |
| Display | 5.5 in. High Definition (1440 × 720), industrial-grade IPS display |
| Touch panel | Corning® Gorilla® Glass Dual-mode capacitive touch, supports stylus, ungloved finger or gloved finger input, multi-touch and wet hand operation |
| Backlight | 450 NITS, LED |
| Power | Rechargeable Lithium-ion 5000 mAh minimum (3.85V), PE fast charging (up to 3.0 A ) |
| Expansion Slot | Micro SD Card slot, up to 256GB |
| Expansion Ports | 2 Pin Rear connection: Trigger key signal4 Pin Bottom connection: Charging port 5V/3A, support USB communication and OTG mode |
| SIM Slots | 2 x Nano SIM, 1 x e-SIM (Optinal) |
| Notification | Audible tone; Multi-color LEDs; Vibration |
| Voice and Audio | Speake(1.5W）, Telephone receiver, Dual microphones |
| Keypad | On-screen keypad and enterprise keyboard |
| Buttons | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| Interface Ports | Bottom USB 2.0 OTG- host/client (Type-C) |
| Performance Characteristics | |
| CPU | 8Core, 2.0GHz / 2.2GHZ（optional） |
| Operating System | Android 11 / Android 13(optional） |
| Memory | 3GB RAM（4GB optional）32GB ROM（64GB optional） |
| User Environment | |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 5% to 95%，non-condensing |
| Sealing | IP67 |
| Drop Specification | Withstands multiple 1.5 meter drops to concrete |
| Tumble Specification | 1000 round 0.5 meter tumbles |
| Electrostatic Discharge |
+/-15 kV air discharge +/-8 kV direct discharge |
| Interactive Sensor Technology | |
| Standard Sensors | Light sensor, accelerometer, proximity sensor |
| Optional | Magnetometer, gyroscope, fingerprint sensor |
| Data Capture | |
| Scanning | ME5066/SE4710/N6703/N6803etc. professional 2D scanning engine |
| Camera | Front 5 MP fixed focus; f/2.4 apertureRear 13 MP auto focus; f/2.2 aperture; Flash LED generates balanced white light; supports Torch mode |
| NFC | High RF output power; ISO15693, ISO14443A/B, MIFARE: Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro, Mifare Desfire, FeliCa Supported cards |
| Wireless WAN | |
| WAN Radio Frequecy | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30/B66) WCDMA(B1/B2/B4/B5/B6/B8/B19)TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900) |
| GPS | |
| positioning system | GPS L1 with A-GPS；Glonass、BeiDou、Galileo、QZSS、SBAS |
| Wireless PAN | |
| Bluetooth | Bluetooth BT5.0 + BR/EDR + BLE |
| Communication Distance | >10m |
| Wireless LAN | |
| Radio | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G Dual Band Wi-Fi） |
| Data Rates |
5 GHz: 802.11a/n/ac — up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 150 Mbps |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSKEAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA |
| Fast Roam | Supports 802.11r Fast Roaming |
| Accessories | |
| Standard Accessories | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1 |
| Optional | Glass Tempered Film、Protective Case、Hand Strap、Single-Slot( Charge+USB/Etherne)、 Snap on Trigger Handle、OTG Cable |
