5.5 in. Android 13 4G+64G Rugged Warehouse Data Transmission Handheld Mobile Computer Barcode Scanner
The FYJ F9825 is a powerful device designed for business use, featuring an octa-core processor and Android 13 for seamless operations. Its IP68 rating and robust design ensure it can withstand harsh conditions, making it ideal for various industrial applications. The device also supports NFC Function, enabling efficient data transmission and access control.
Model NO. :
F9825CPU :
8Core,2.2GHZOperatng System :
Android 13Display :
5.5 in. High Definition (1440 × 720), industrial-grade IPS displayMemory :
4GB RAM 64GB ROMPower :
Rechargeable Lithium-ion 5000 mAh minimum (3.85V), PE fast charging (up to 3.0 A)Weight :
249g (including battery)Drop Specifications :
Can withstand multiple falls from a height of 1.5m onto a concrete floor.Sealing :
IP68Advantage :
Support OCR Scanning
Flagship Performance Overview
Optimized Power & Speed
Precision Scanning Technology
IP68 Protection & Durability
Unmatched Clarity and Durability with Industrial-Grade IPS Display
5000mAh Battery & Fast Charging
Power through demanding shifts with the F9825’s 5000mAh battery, engineered for all-day performance in logistics, delivery, or field service roles.
The one-piece ejection buckle design allows swift battery swaps without downtime, while 10W fast charging replenishes 50% capacity in under 45 minutes.
Survive -20°C winters or +60°C summers—the battery maintains efficiency in extreme climates.
Whether managing inventory in a freezer warehouse or conducting inspections in scorching deserts, this long-lasting battery ensures uninterrupted operations.
HiFi Audio & Smart AMP System
Global Frequency Compatibility
Advanced NFC Functionality
Streamline access and payments with the F9825’s NFC function, compatible with Mifare cards (S50, S70, Desfire) and Felica standards.
Its high RF output penetrates thick materials, enabling quick scans of ID badges or inventory tags through packaging.
Perfect for secure facilities, transit systems, or retail checkout counters, this feature reduces manual input errors and accelerates workflows.
Packing List:
|
✔ PDA × 1 ✔ Adapter Charger × 1 ✔ USB Type-C Cable × 1 ✔ Rechargeable Battery × 1 |
 |
Optional Accessories:
| Physical Characteristics | |
| Dimensions | 156(H)×75(W)×14.5(T)mm 6.14(H)×2.95(W)×0.57(T)inch |
| Weight | 8.78 oz./249 g（Batteries required,Depends on Product Configuration） |
| Display | 5.5 in. 1440(H)×720(W) HD+ industrial-grade IPS display |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Corning® Gorilla® Glass Capacitive touch panel,Support Water&Gloves Touch Mode |
| Backlight | 450 NITS, LED |

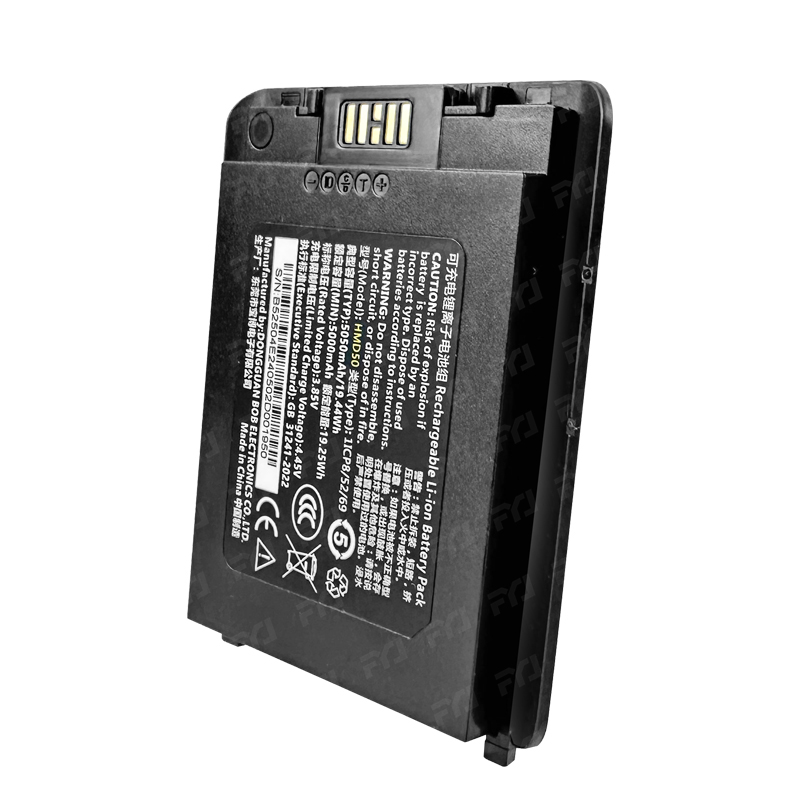

| Power | Removable&Rechargeable 3.85V 5000mAh Li-ion battery |
| Backup Power | 5F Backup Super capacitor |
| Expansion Slot | Micro SD Card slot, 256GB |
| Expansion Ports | 2 Pin Rear connection: Trigger key signal 4 Pin Bottom connection：Charging port 5V/3A, Support USB communication and OTG mode |
| SIM Slots | 2x Nano SIM |
| Notifications | Audible tone; Multi-color LEDs; Vibration |
| Network Connections |
WWAN,Wi-Fi, Ethernet cradle |
| Voice and Audio | 1.5W Speaker, Receiver,Dual Mic |
| Keypad | On-screen keypad and enterprise keyboard |
| Buttons | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| Interface Ports | Bottom USB 2.0 OTG - host/client (Type-C) |
| Performance Characteristics | |
| CPU | Octa-core, 2.0GHz |
| Operating System | Android 11.0 |
| RAM | 3GB LPDDR3 (4GB Optional) |
| Flash | 32GB eMMC 5.1 (64GB Optional) |
| Interactive Sensor Technology | |
| Sensor | Proximity Sensor、Light Sensor、Accelerometer、 Magnetometer、Gyroscope、Fingerprint Sensor |
| Model 5 Data Capture | |
| Scanning | Newland CM60 |
| Camera | Front 2 MP fixed focus; f/2.4 aperture Rear 5 MP auto focus; f/2.2 aperture; Flash LED |
| NFC | High RF output power; ISO15693、ISO14443A/B、MIFARE：Mifare S50,Mifare S70,Mifare UltraLight,Mifare Pro,Mifare Desfire 、 FeliCa Supported cards |
| Model 5 Wireless Communications | |
| Wireless WAN | |
| WAN Radio Frequency |
TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/ B7/B8/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30 /B66) WCDMA(B1/B2/B4/B5/B6/B8/B19) TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900) |
| Data Rate | GPRS：DL / UL171.2kbps EDGE：DL / UL384 kbps CDMA1x: DL 153.6kbps/ UL 153.6kbps EVDO: DL 3.1 Mbps / UL 1.8 Mbps DC-HSPA+: DL 42.2Mbps / UL 11.5 Mbps LTE：DL 150 Mbps (CAT4) / UL 75 Mbps（CAT5) |
| GPS | |
| Positioning System | GPS L1 with A-GPS: Glonass; BeiDou; Galileo |
| Wireless LAN | |
| Radio | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G Dual band WIFI） |
| Data Rates | 5 GHz: 802.11a/n/ac — up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 200 Mbps |
| Operating Channels | CH1-CH13,CH36-CH165 |
| Security and Encryption |
WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK EAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2,PEAP-TLS, PEAP-GTC,PWD,SIM,AKA |
| Fast Roam | Supports 802.11r Fast Roam |
| Wireless PAN | |
| Bluetooth | Bluetooth 4.1 ,Bluetooth Low Energy (BLE);secondary Bluetooth BLE beacon for finding lost (powered off) devices |
| Communication Distance |
>10m |
| User Environment | |
| Operating Temp | -20℃ to +60℃ |
| Storage Temp | -40℃ to +70℃ |
| Humidity | 5% to 95% non-condensing |
| Sealing | IP68 |
| Drop Specification | 1.5m(Concrete Surface) |
| Tumble Specification |
1000 round 0.5 meter tumbles（2000 times impact） |
| Electrostatic Discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct discharge |
| Accessories | |
| Standard Accessories |
Adapter Charger ×1、USB Type-C cable ×1、 Rechargeable Battery ×1 |
| Optional Accessories |

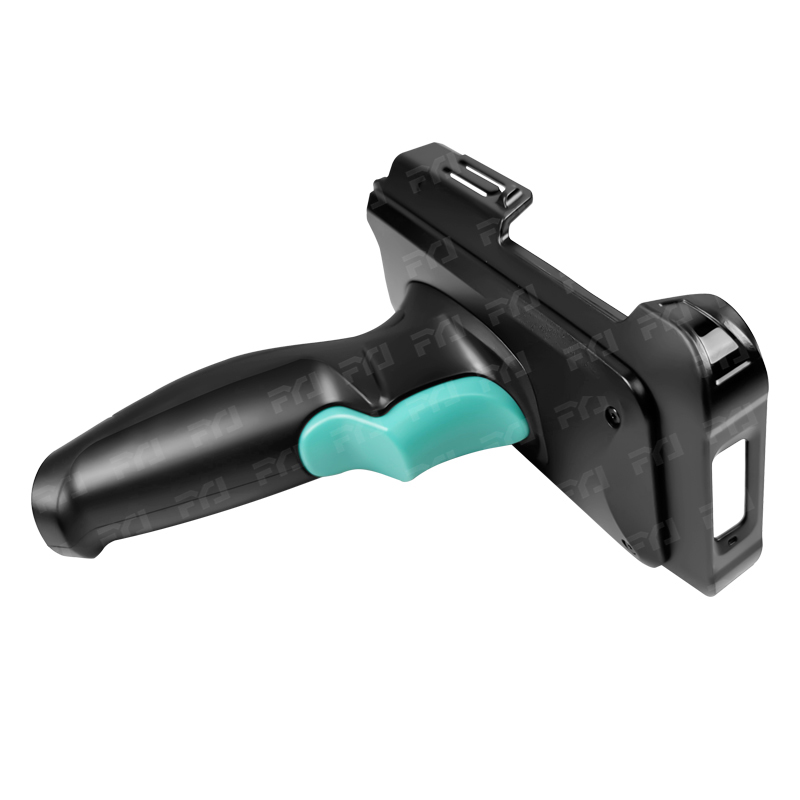

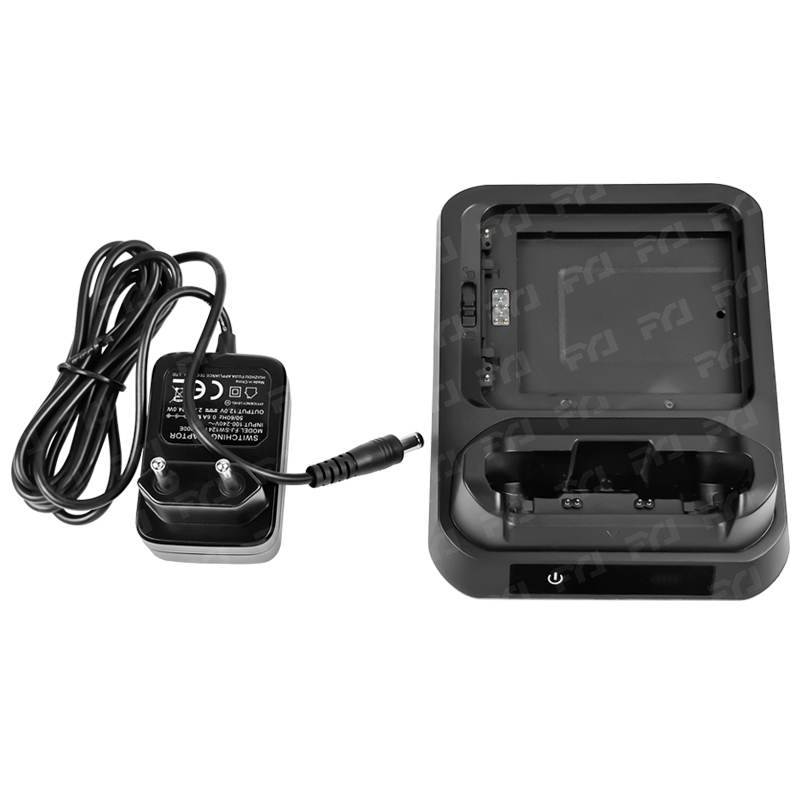

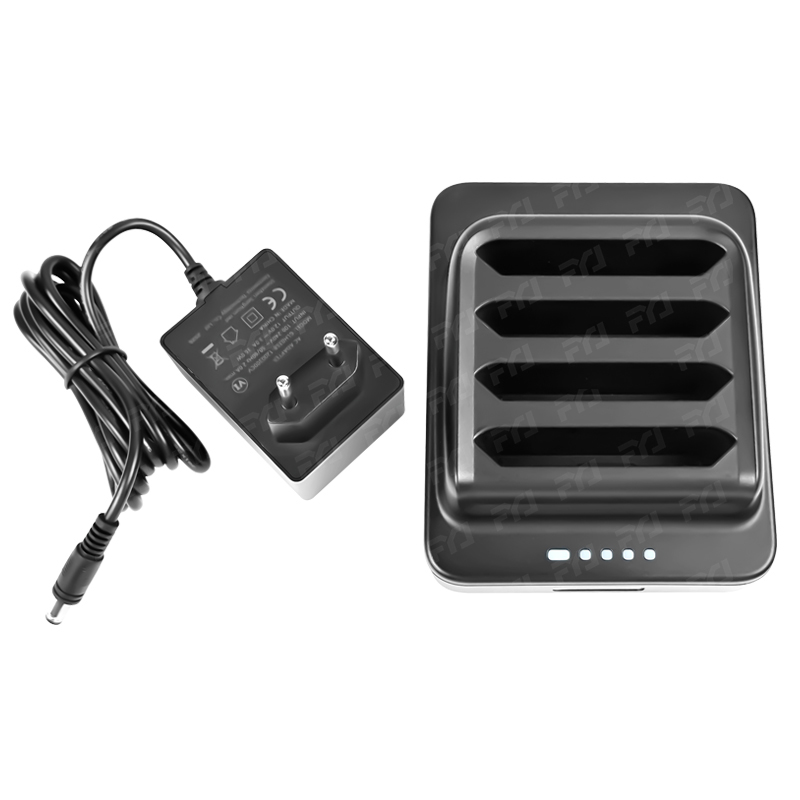

4-Slot battery Charger、Single-Slot Charge+USB/Ethernet、 5-Slot Share-Cradle Charge+Ethernet、Snap on Trigger Handle、 OTG Cable、Hand Strap×1 |
