4.3-inch 15m Long Distance Rugged Android 14.0 Industrial Handheld Terminal Scanner
The F9827 PDA is engineered for ultra-low temperature environments, with -30℃ temperature resistance, and a 5200mAh low-temperature battery for sustained power in cold storage operations. It combines high-density wide-angle scanning and 10/21m long-range scanning capabilities, paired with a robust construction that withstands extreme drops and harsh conditions, ensuring reliability in the toughest settings.
Model NO. :
F9827CPU :
Octa-core 2.2 GHzOperatng System :
Android 14.0Display :
4.3-inch , 800(H)x480(W) WVGA, industrial-grade IPS displayMemory :
4GB LPDDR4X (optional 6GB, 8GB) ;64GB UFS2.2 (optional 128GB, 256GB, 512GB)Power :
Removable lithium-ion battery, rated capacity 5200mAh, support battery replacement without disconnecting 9V/2A 18W PE fast charging (optional)Weight :
400g (with battery, without handle)Drop Specifications :
Can withstand multiple falls from a height of 1.8m onto a concrete floorSealing :
IP68Advantage :

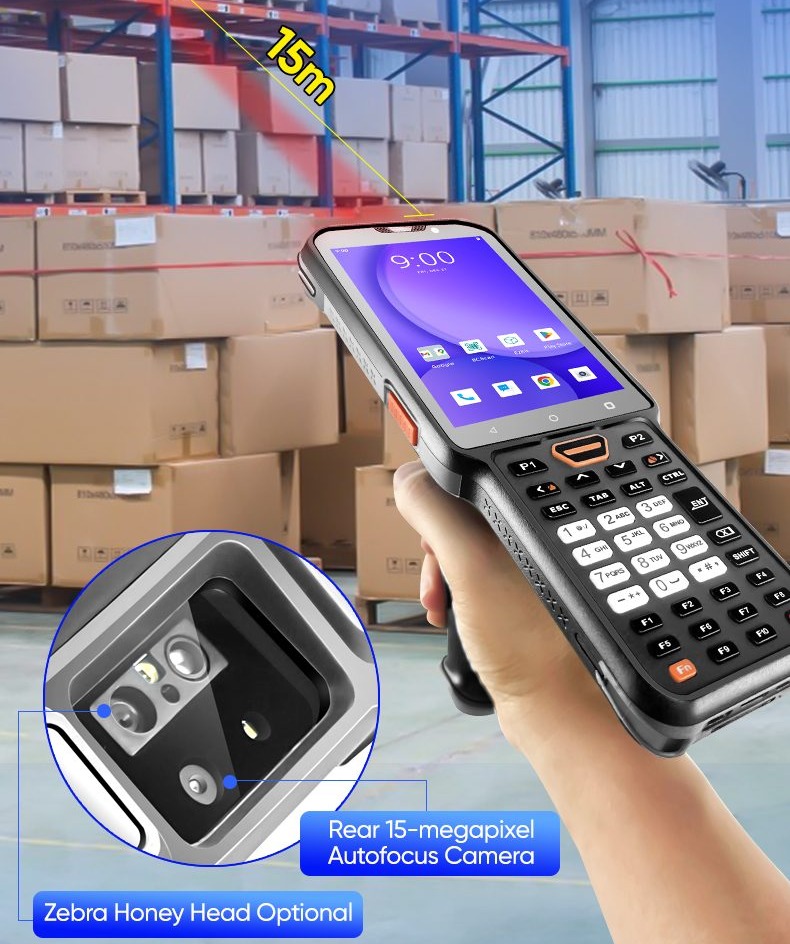

Support OCR ScanningRedefining LongRange Scanning
A Cost-effective Industrial Grade Handheld PDADesigned for Professional Warehousing Application Scenarios

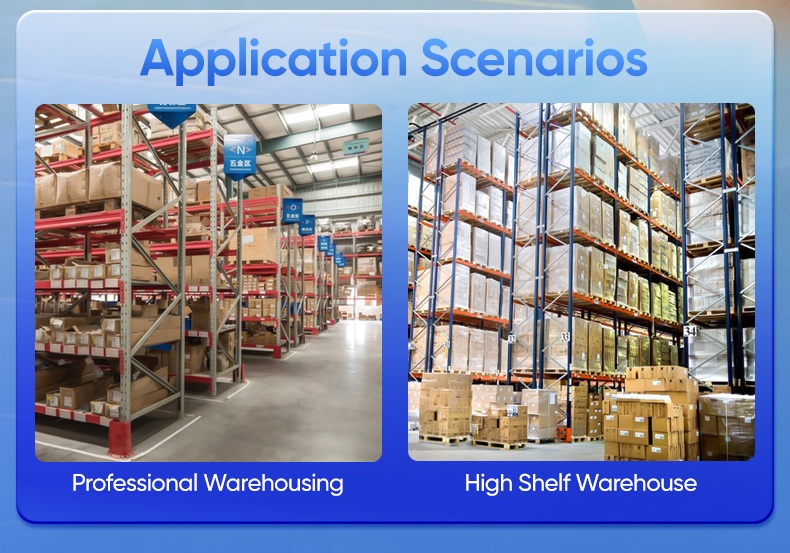

Application Scenarios
Professional Warehousing, High Shelf Warehouse
Full Keyboard Buttons for Easy Operation
Full Keyboard Buttons, Soft and Hard Glue Work Together Inaccordance with Ergonomic Design, Providing A Soft and Comfortable Touch.
Multiple Keyboards
29 Key /38 Key /47 Key Three Optional Keyboards
Super Run
8-core 2.2GHz Android 14

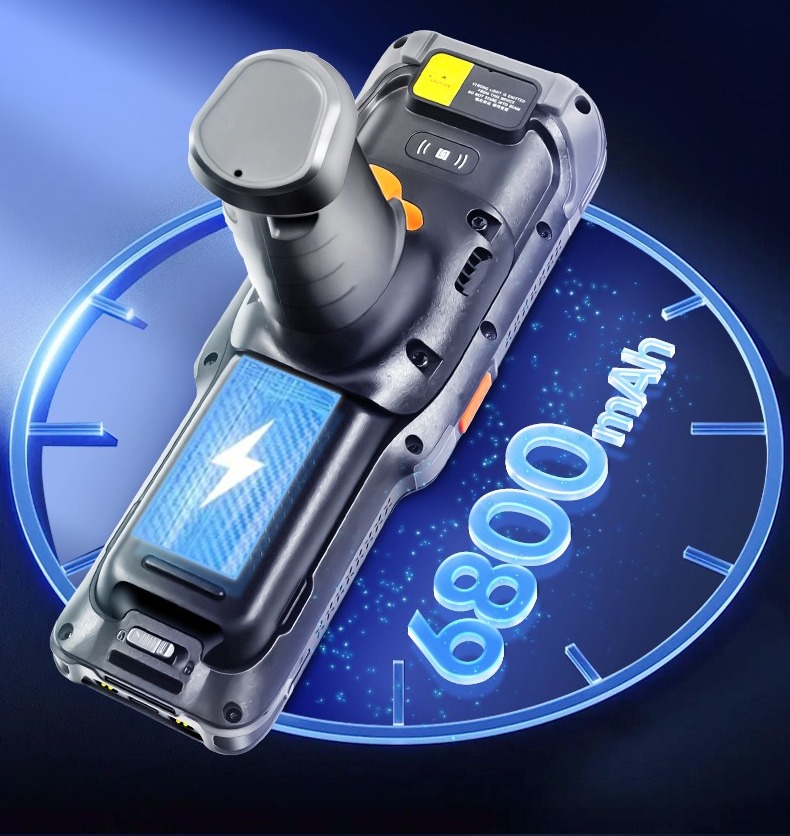

Goodbye Battery Anxiety
6800mAh Lithium Ion Battery, 18W Fast Charging
Supports Battery Replacement without Shutting Down and Can Last for 2 Shifts
Industry-leading Rugged Design
2 Meters Concrete Floor Drop-proof IP68

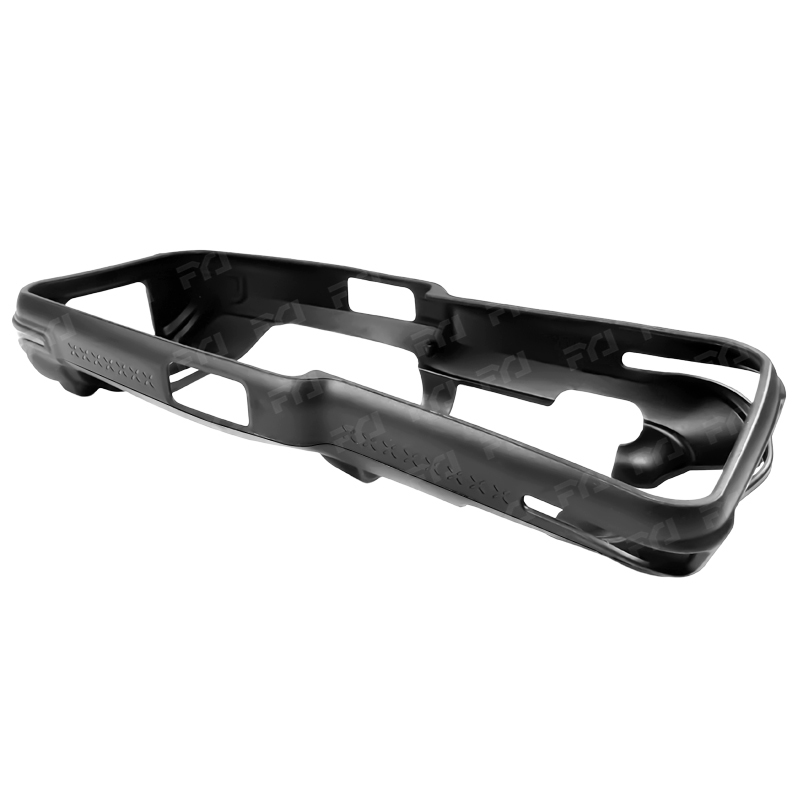

Add perimeter protection for enhanced sturdiness.
Always Online
2.4G/5G Dual-band WIFI,Reduce Enterprise Network Deployment Costs

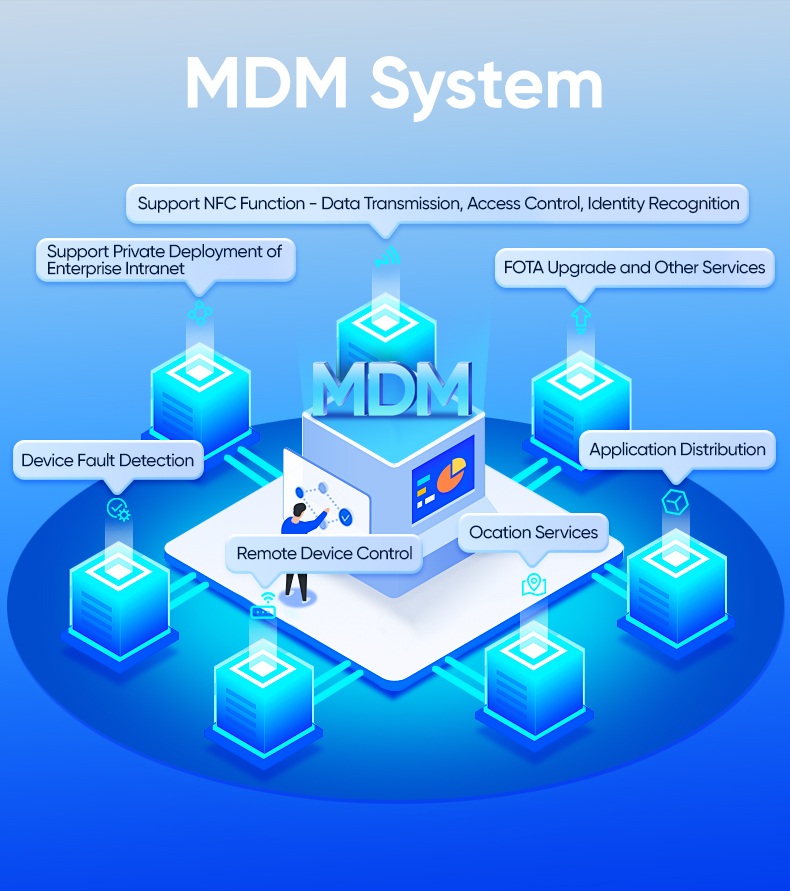

MDM System
1.Application Distribution
2.Ocation Services
3.Remote Device Control
4.Device Fault Detection
5.FOTA Upgrade and Other Services.
6.Support Private Deployment of Enterprise Intranet.
7.Support NFC Function - Data Transmission, Access Control, Identity Recognition

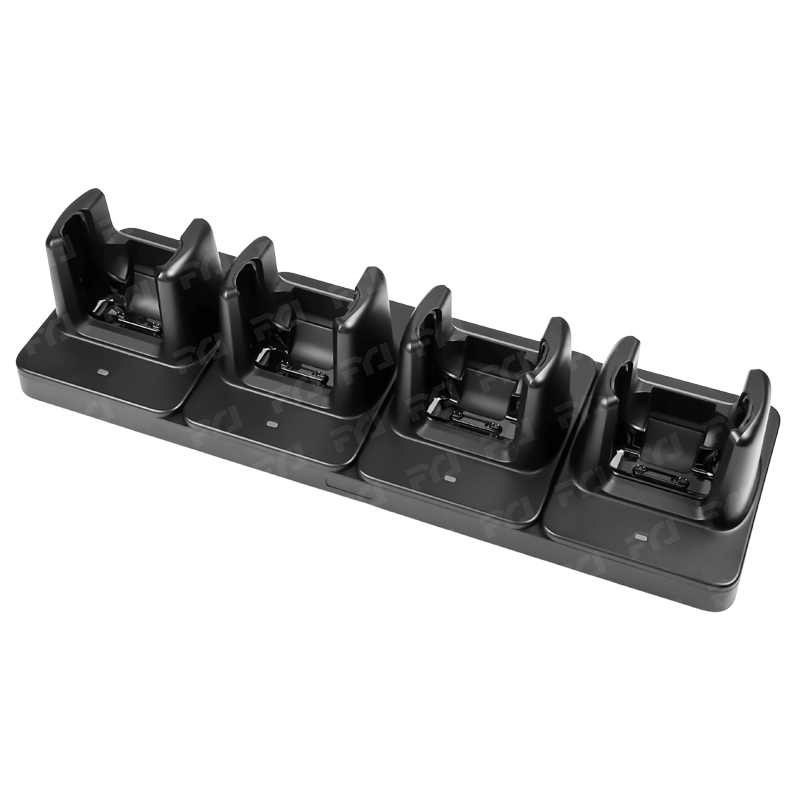

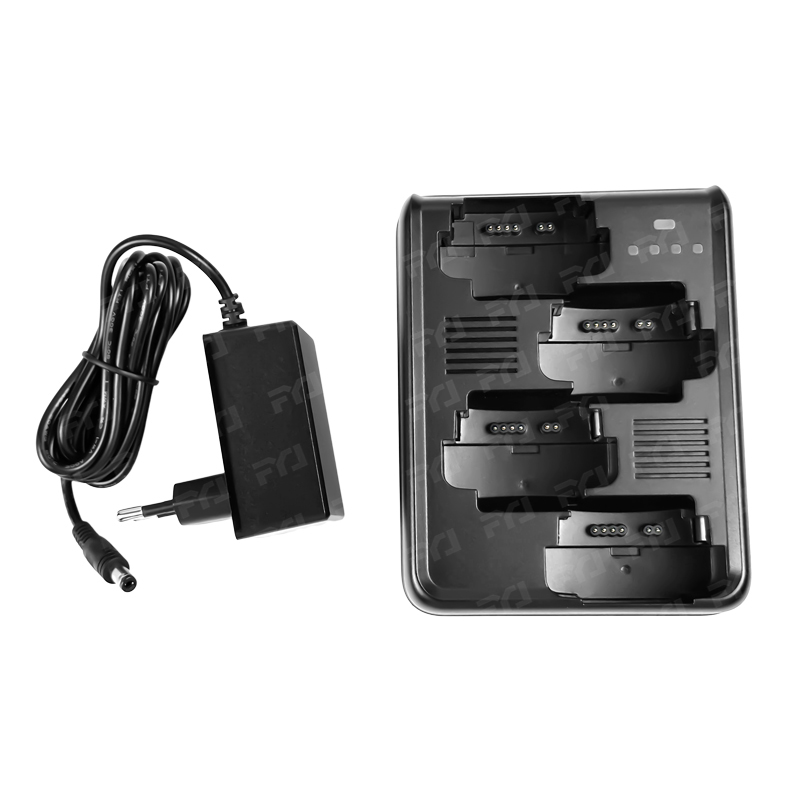

Accessory:
Specificaiton:
CPU | Octa-core 2.2 GHZ |
Operating System | Android 14.0 |
RAM | 4GB LPDDR4X (optional 6GB, 8GB) |
ROM | 64GB UFS 2.2 (optional 128GB, 256GB, 512GB) |
Dimension | 212(L)x75(W)x32.5(Thick)mm |
Weights | 15.87oz./449g (without hand bridge, with battery) |
Display | 4.3-inch. 800(H)x480(W) WNVGA, Industrial Grade IPS Display |
Imager window | Corning Gorilla Glass |
Touchscreens | Corning Gorilla Glass, dual mode capacitive touch, support stylus without gloves finger play with gloves finger input, support multi-touch and wet hand operation |
Backlight | 450 NITS, LED backlight |
Battery | Removable lithium-ion battery, rated capacity 5200mAh, support battery replacement without disconnecting 9V/2A 18W PE fast charging (optional) |
Expansion Slots | Micro SD card, support SDHC, SDXC, up to 512GB |
Expansion Interfaces | Back POGO PIN:Scanning handle interface Bottom POGO PIN:Support USB 2.0 and OTG mode, 5V/2A charging interface |
SIM card slot | 1x Nano SIM card |
PSAM card | Optional 1x PSAM |
Notifications | Beep; Multi-color LED (System Alert Light, Heating Alert Indicator, Scanning Indicator); Vibration Motor |
Network connection | 2G/3G/4G, Wi-Fi, Bluetooth, Ethernet docking support |
Sound & Audio | 2WN Ultra Linear Speaker, Earpiece, Dual Microphone (Noise Cancellation Supported) Type-C Headset Supported |
Keyboards | Front 38 keys (including one main scanning key, power key); Side 2 dedicated scanning keys. (47 and 29 keys are optional). |
Interface Ports | Bottom USB 2.0 support OTG |
Scanning engine | ME5066/SE4750/N6803/EX30 and other professional 2D scanning engine |
Camera | Front 5MP fixed-focus camera,Rear 13MP camera with autofocus support and flash(with hand bridge: rear camera and sweeping dock combined in scanning position/without handle: camera on the back) |
NFC | Supports cards such as IS015693, 1S014443A/B, MMIFARE (including Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro, Mifare Desfire), FeliCa, etc. |
Sensors | Proximity sensor, light sensor, accelerometer, compass, infrared (optional) |
Wireless WAN | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B66/B71TDD-LTE: B34/B38/B39/B40/B41WCDMA: B1/B2/B4/B5/B6/B8/ B1/B2/B4/B5/B6/B8/ B19CDMA 1x: BCOGSM: 850/900/1800/1900 B19CDMA 1x: BCOGSM: 850/900/1800/1900 |
GPS | GLONASS, NavIC, Beidou,GPS, QZSS, Galileo |
Wireless LANs | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w2.4G/5G Dual-Band Wi-Fi Support 802.11r Fast Roaming |
Bluetooth | BT5.2+BR/EDR+BLE communication distance>10m |
Operating Temperature | -30°C to +50°C (screen and scan window can be heated) |
Storage temperature | -40°C to +70°C |
Humidity level | 5% to 95% non-condensing |
Sealing | IP68 |
Drop Specification | 1.8m (concrete floor) |
Rollover specifications | Withstand 2000 drops of 0.5m (1000 rolling impacts) |
Electrostatic Discharge (ESD) | +/-15 kV air discharge +/-8 kV direct discharge |
Standard | Power adapter x 1, USB Type-C cable x 1, rechargeable battery x 1, wrist strap x 1 (without handle) / hand strap x 1 (with handle) |

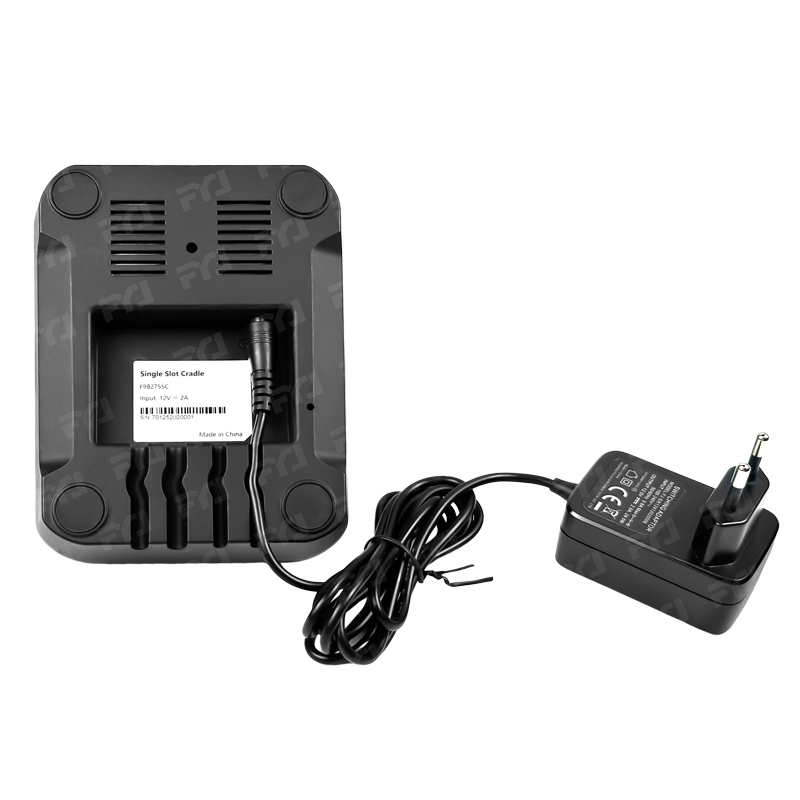

Optional Accessories | Single charger (charging + USB communication), single handle, OTG cable |
