IP68 5G Thermal Imaging Rugged Mobile Handheld Terminal

Home Mobile Computers

IP68 5G Thermal Imaging Rugged Mobile Handheld Terminal

IP68 5G Thermal Imaging Rugged Mobile Handheld Terminal

Rugged Thermal Imaging Phone with 10,000mAh Battery – Engineered for harsh outdoor environments, this IP68/IP69K-certified device features 256×192 high-resolution thermal imaging and a 20MP night vision camera, delivering precision in industrial inspections or wildlife rescue missions. Powered by a MediaTek 8791H 5G processor and 66W fast charging, it combines military-grade durability with all-day performance for field engineers and adventurers requiring reliability in extreme conditions.

  • Model NO. :

    FYJ FP20 Pro
  • CPU :

    MT8791T 8-Core 2.6GHz
  • Operatng System :

    Android 14.0
  • Display :

    6.6 inch FHD+ ips 1080*2400, 120Hz
  • Memory :

    RAM 8GB+Virtual 16GB; ROM 512GB
  • Power :

    10000mAh,66W fast charging
  • Weight :

    /
  • Drop Specifications :

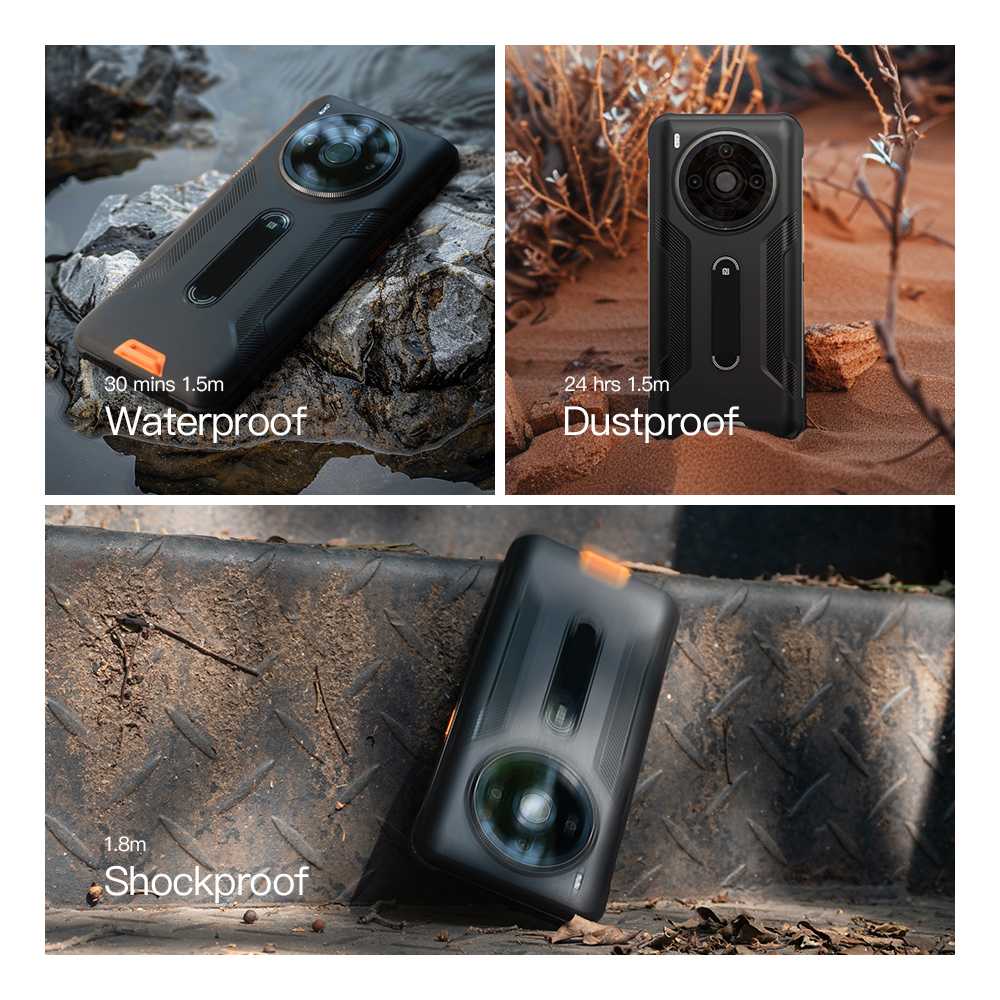

    1.5m Dustproof/Waterproof; 1.8m Shockproof
  • Sealing :

    IP68/CE/Mil-STD- 810G/ MSDS/ UN38.3 available
  • Advantage :

    Support OCR Scanning
Military-Grade Adventure Smartphone

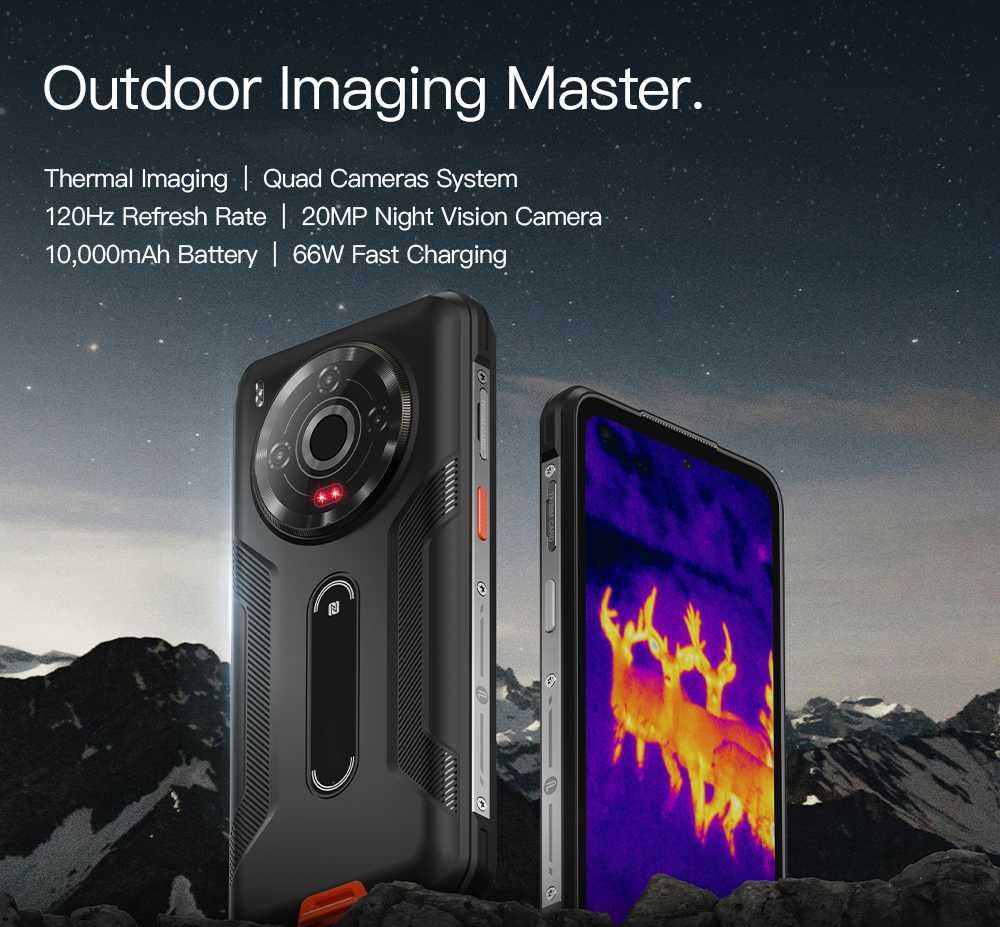

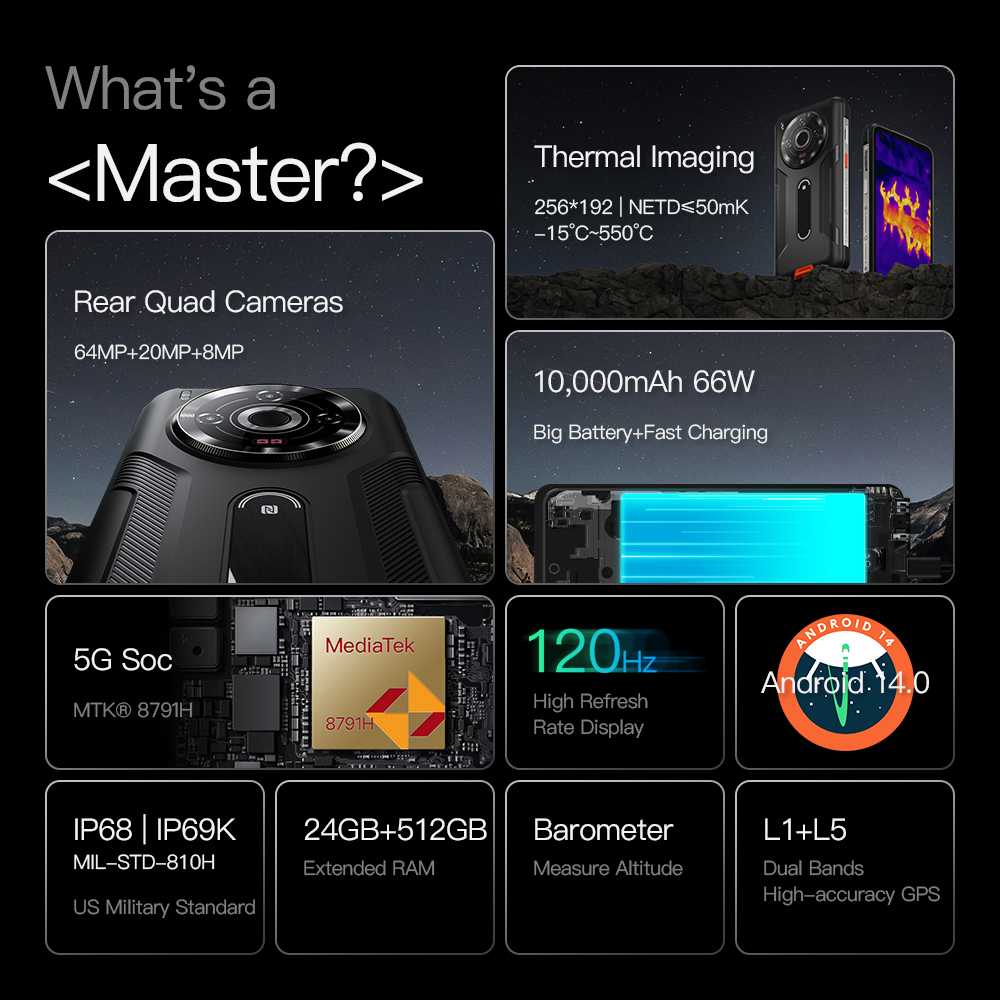

The FYJ FP20 Pro Industrial Rugged Phone redefines outdoor imaging with its thermal imaging quad-camera system and 120Hz high-refresh-rate display.



Equipped with a 20MP night vision camera, it captures crisp details even in complete darkness, while the 10,000mAh battery and 66W fast charging ensure uninterrupted operation during extended fieldwork.



Built to thrive in harsh environments, this device integrates HIKMICRO thermal imaging technology for precise temperature detection (-15°C to 550°C), making it ideal for industrial inspections, firefighting, or nighttime security patrols.



Whether scanning equipment for faults or navigating rugged terrains, its IP68/IP69K and MIL-STD-810H certifications guarantee unmatched durability.





Dual-Band GPS Rugged Computer





Industrial Thermal Imaging Camera

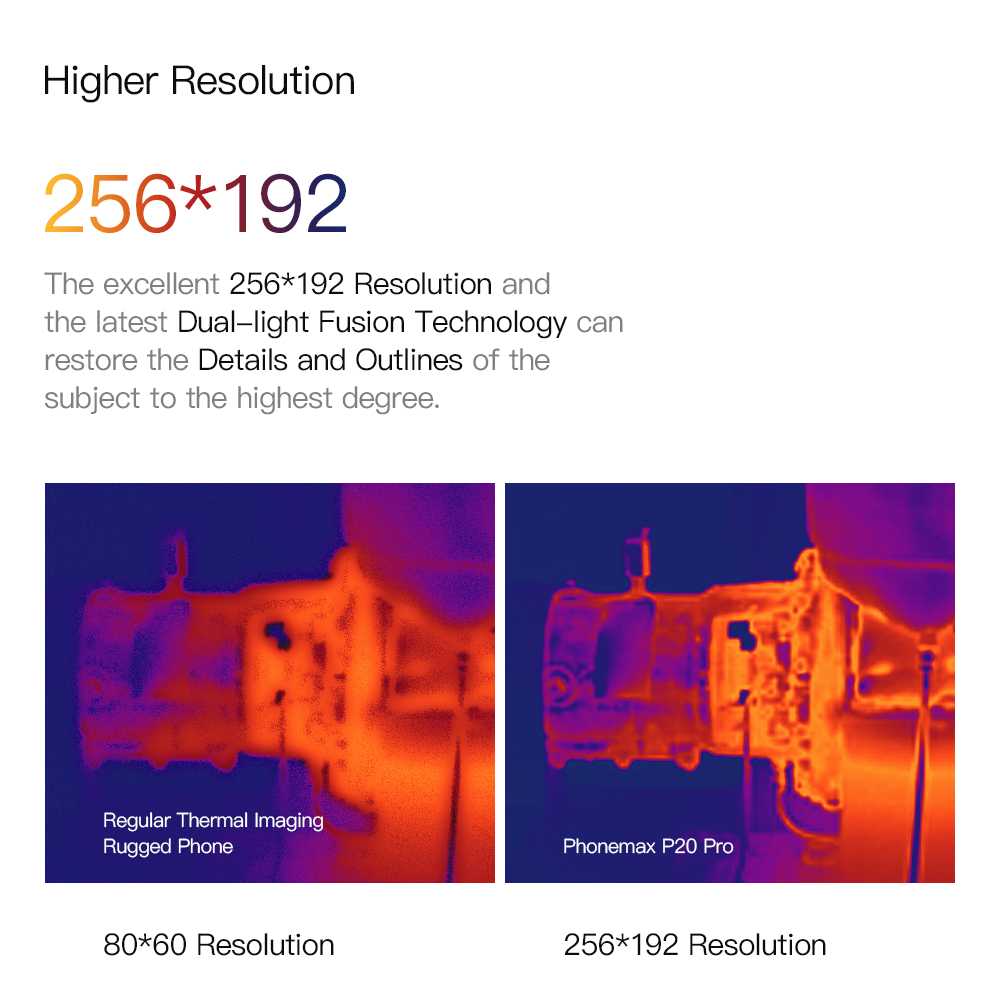

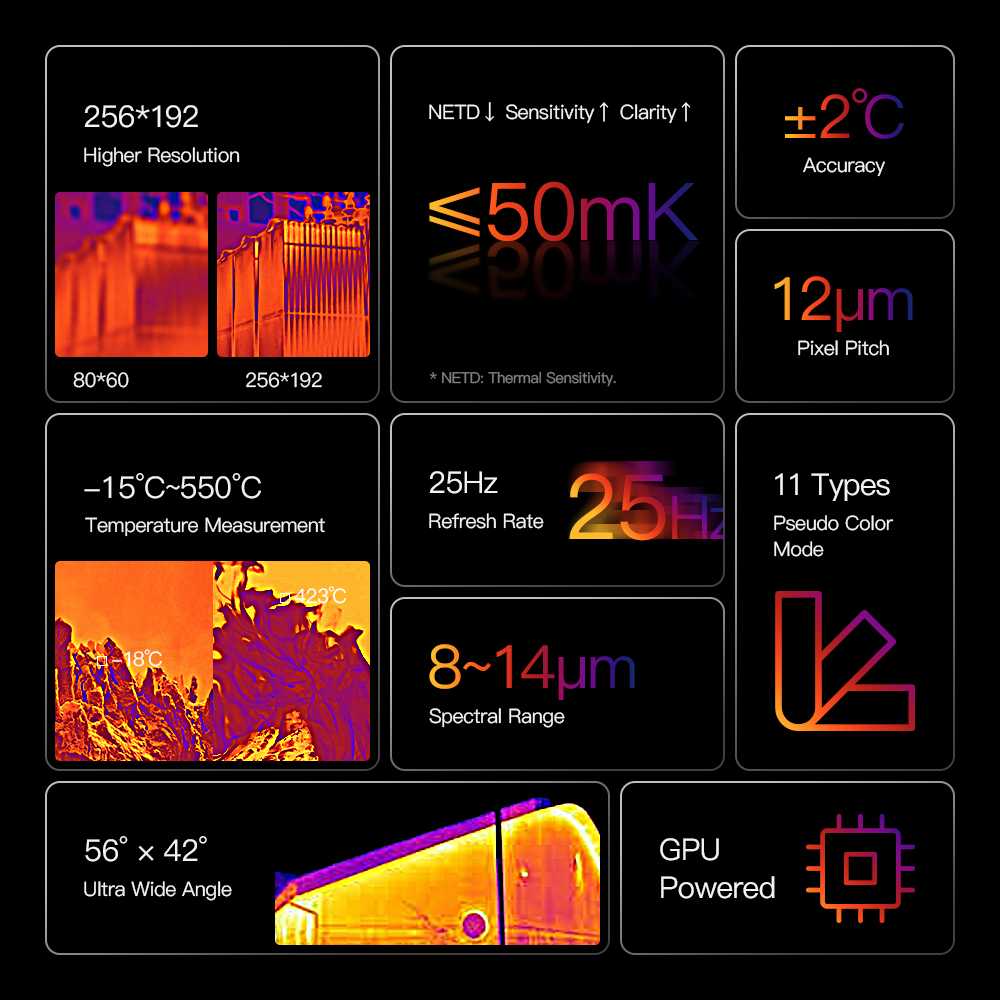

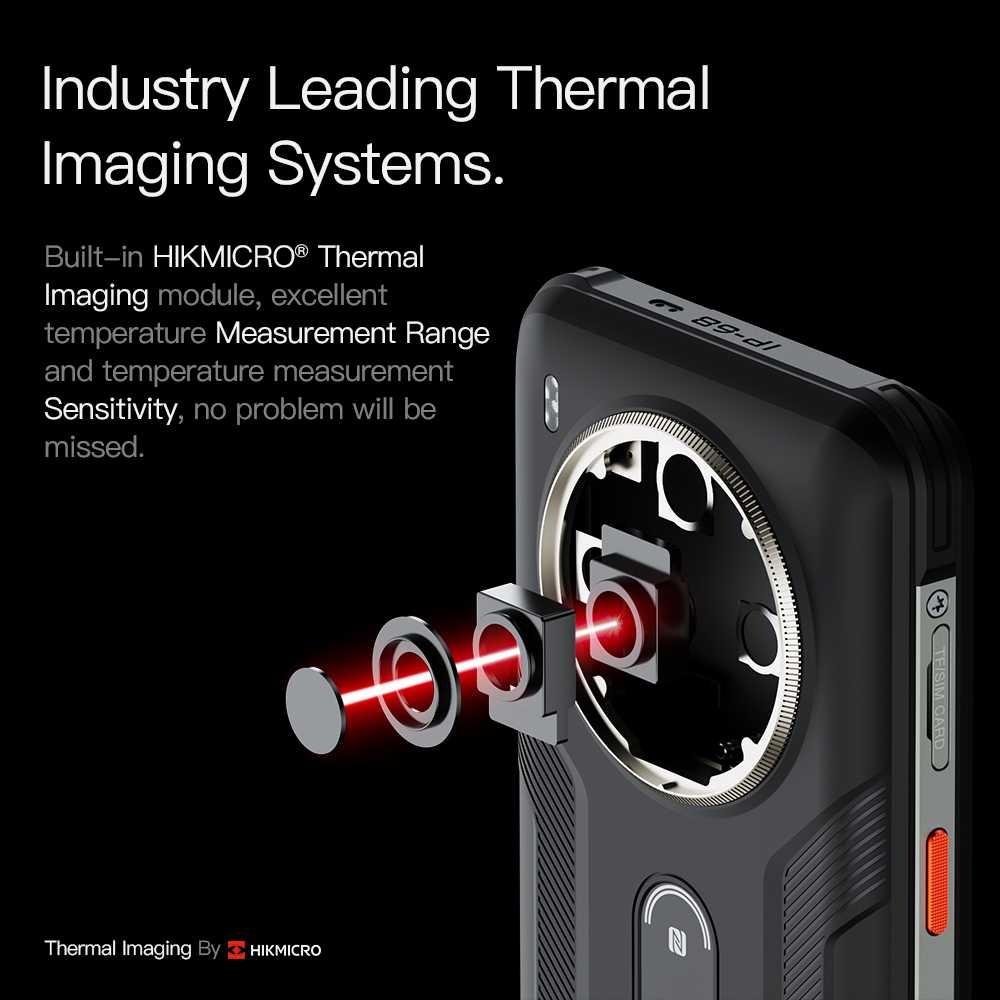

Experience industry-leading thermal imaging powered by HIKMICRO’s 256×192 resolution module in the FYJ FP20 Pro.



Its 12μm pixel pitch and 25Hz refresh rate deliver sharp, real-time thermal visuals, perfect for electrical inspections or fire detection.



The ultra-wide 56°×42° lens captures expansive scenes, while 11 pseudo-color modes adapt to diverse environments—from industrial machinery diagnostics to outdoor survival scenarios.



Combined with IP68 waterproofing, this rugged mobile Phone ensures no critical detail goes unnoticed, even in rain, dust, or sub-zero temperatures.



  • 12μm Pixel Pitch Imaging Tool
  • Dual-Light Fusion Thermal Camera
  • Smart Home Thermal Monitoring Tool



64MP Ultra-Clear Rugged Camera

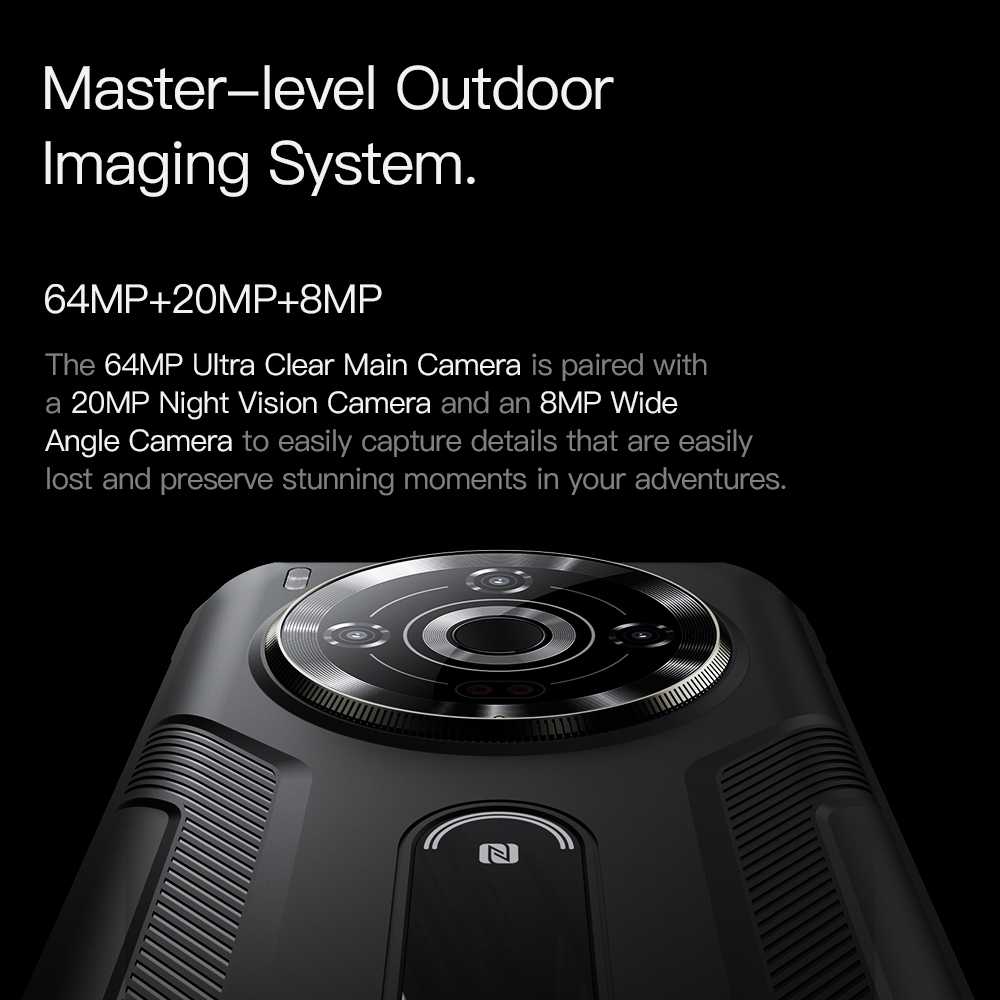

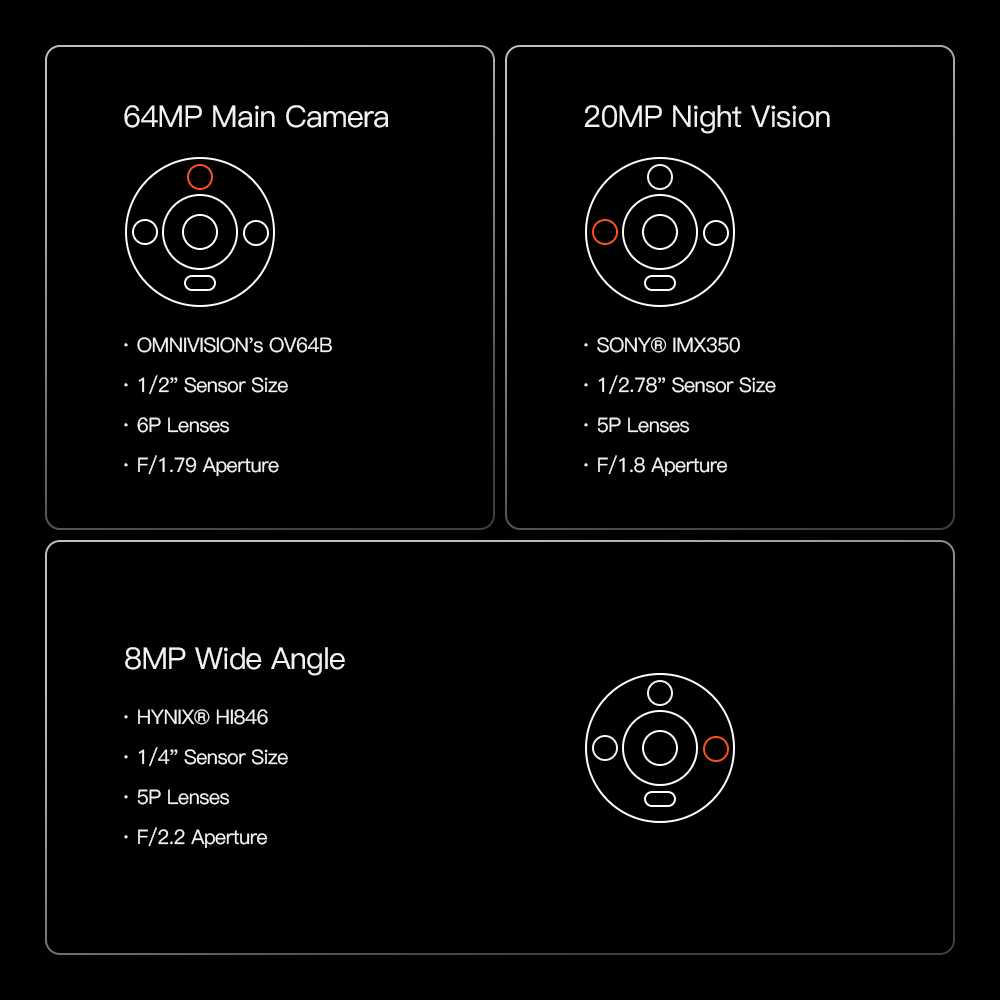

Capture every detail with the FYJ FP20 Pro’s 64MP+20MP+8MP triple-camera setup.



The 64MP OV64B main sensor (1/2” size, f/1.79) excels in daylight, while the 20MP Sony IMX350 night vision lens illuminates dark environments for campsite safety or property surveillance.



An 8MP wide-angle lens (f/2.2) expands your frame, perfect for landscape photography or group inspections.



Paired with MediaTek’s 5G chipset, this rugged imaging powerhouse ensures seamless performance for adventure bloggers and field technicians alike.

  • Sony Night Vision Imaging Device
  • Nocturnal Wildlife Detection Camera
  • Wildlife Alert Thermal Scanner
  • High-Resolution Industrial Camera
  •
  • Low-Light Selfie Rugged Phone



All-Day Battery Rugged Phone

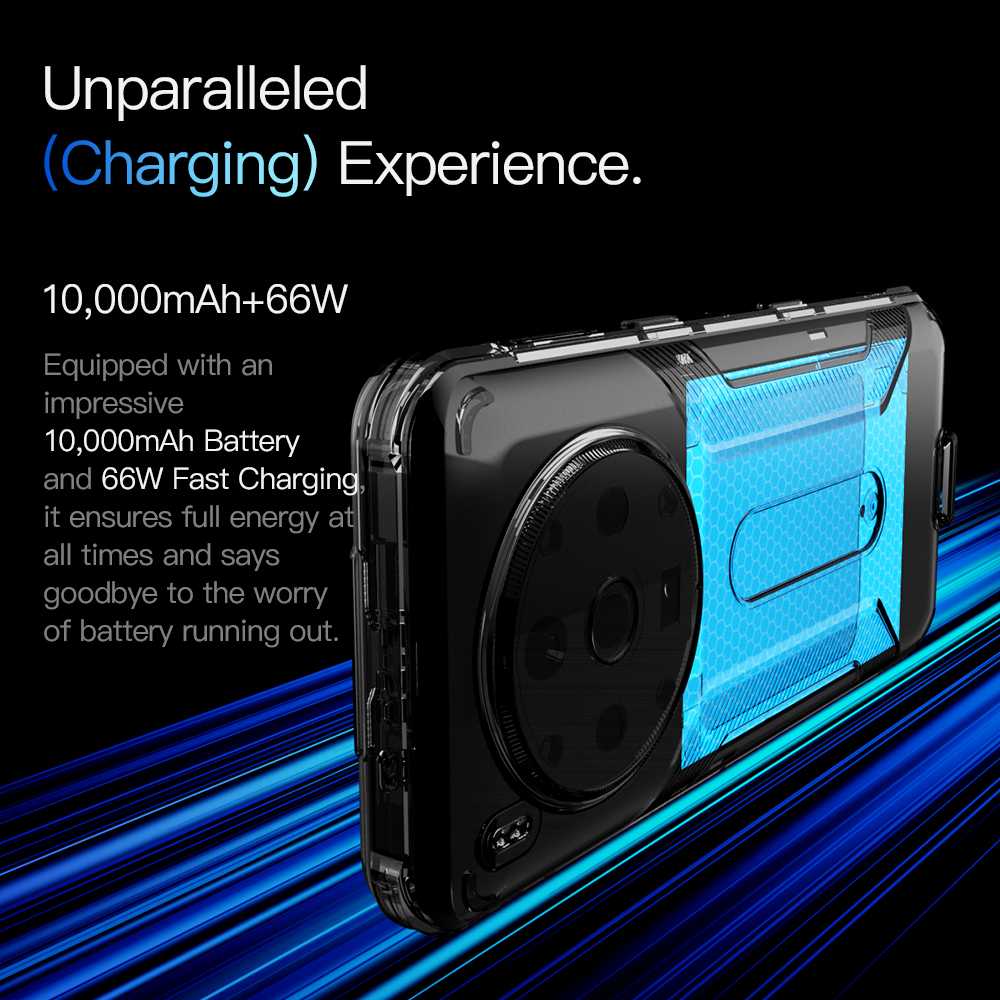

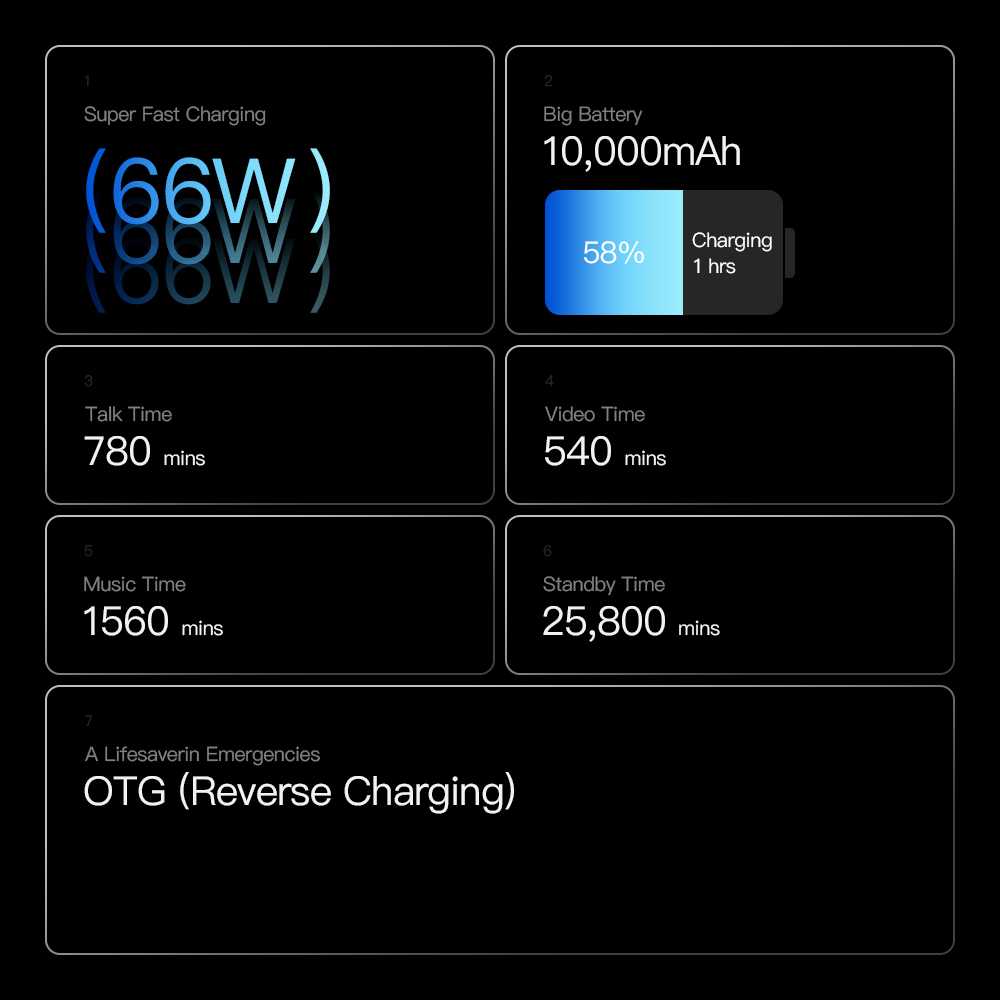

Never run out of power with the FYJ FP20 Pro’s 10,000mAh battery and 66W fast charging.



Recharge to 58% in just 30 minutes, ensuring continuous operation for 780-minute calls or 540-minute video playback.



The OTG reverse charging doubles as a lifeline for charging other devices during camping trips or emergencies.



Built for field workers and adventurers, this industrial-grade phone keeps you connected through the toughest missions.



25,800-Minute Standby Phone





5G Octa-Core Rugged Processor

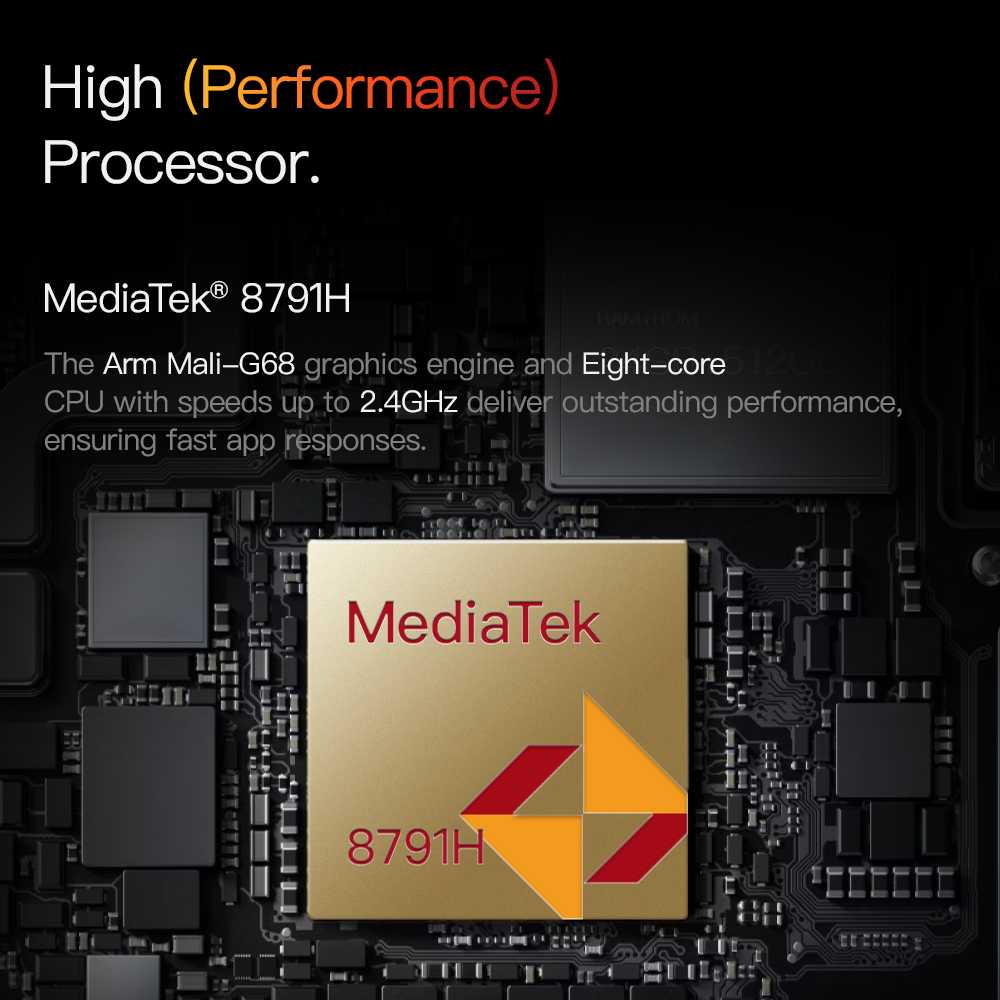

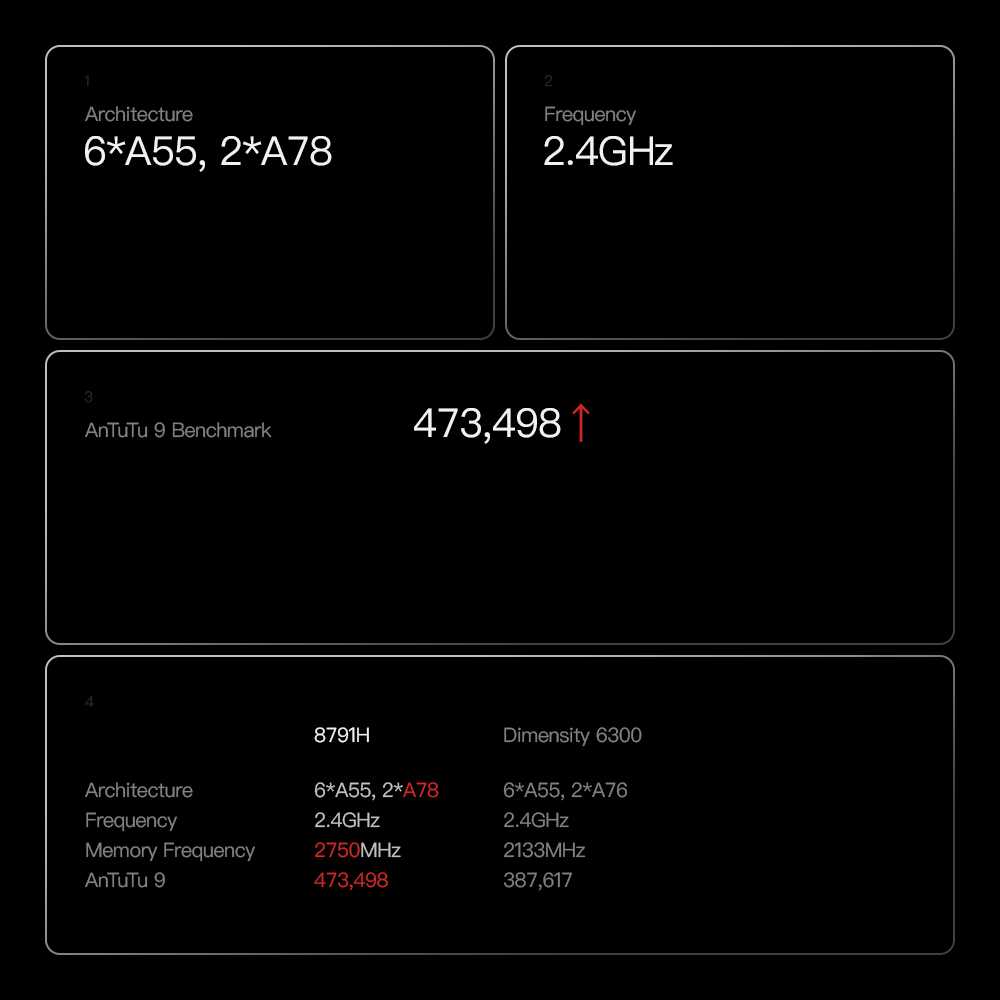

Experience blazing speed with the MediaTek 8791H 5G processor (2.4GHz octa-core) in the FYJ FP20 Pro.



The Mali-G68 GPU handles graphic-intensive apps and 4K video editing effortlessly, while AnTuTu 473,498 benchmarks outperform competitors.



Ideal for drone operators, GIS mappers, or gamers, this rugged handheld Phone ensures zero lag in real-time data processing or multi-app workflows.



AnTuTu 473K Benchmark Device





24GB RAM Multitasking Device

Boost productivity with 24GB RAM and 512GB storage (expandable to 1TB) on the FYJ FP20 Pro.



The LPDDR4X RAM ensures smooth multitasking for GIS software or thermal imaging apps, while UFS 2.2 storage accelerates file transfers.



Perfect for construction managers storing blueprints or researchers archiving field data, this rugged mobile Phone eliminates storage anxiety in demanding workflows.



6.6-inch 120Hz Outdoor Screen

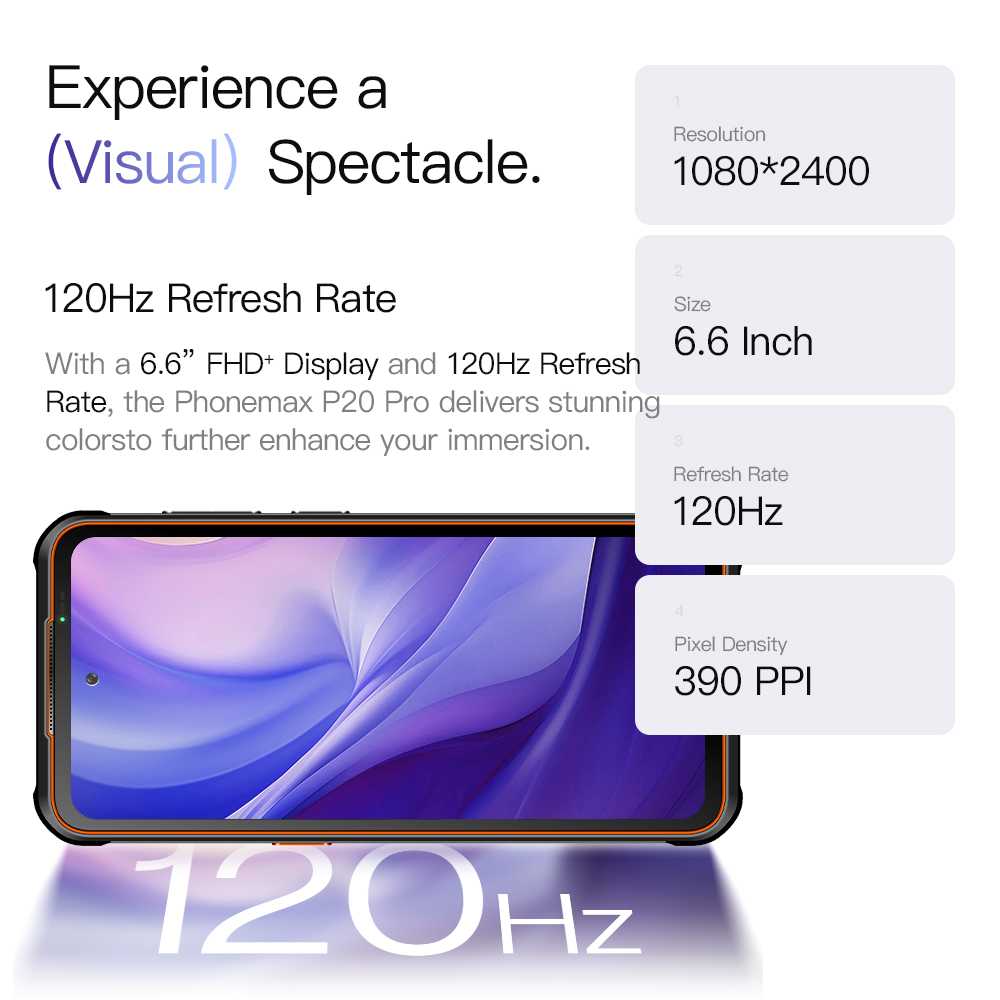

Immerse yourself in the 6.6-inch FHD+ display with 120Hz refresh rate on the FYJ FP20 Pro.



The 390 PPI pixel density renders sharp visuals for thermal image analysis or outdoor navigation, while the 120Hz smoothness enhances scrolling and gaming.



Tailored for drone pilots and field inspectors, this high-performance rugged phone balances clarity and durability in any environment.







IP68 Mobile Phone

High-Density Pixel Rugged Phone



Product Specification

CPU

MT8791T 8-Core 2.6GHz
LCD
6.6 inch FHD+ ips 1080*2400, 120Hz
OS
Android 14.0
RAM
8GB+Virtual 16GB
ROM
512GB
Camera
Front Camera: 32MP
Rear Camera: 64MP AF Main Camera
20MP Night Vision
Thermal Imaging Camera(256*192)
Battery
10000mAh,66W fast charging
2G Frequency Band
B2/3/5/8
3G Frequency Band
B1/B2/B4/B5/B6/B8/B19/BC0/BC1/BC10
4G Frequency Band
B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B25/B26/B28A/28
5G Frequency Band
N1/N3/N7/N28/N38/N41/N77/N78/N79
NFC
Yes
Fingerprint
Yes
Work time
Video 20H+
Standby operation 30 days+
Size
172.6x81x17.8mm
Touch Panel
incell
Button
Power Button: one
Volume Toggle: one in each, PTT: one
Sensor
Gravity sensor, light sensor, Distance sensor, Gyroscope sensor
Compass
support
AC Power
110~240V 11V6A
Wireless
WIFI(2.4G/5G)/WIFI 6
Bluetooth: BT5.2
GPS L1CA+L5, BeiDou B1I +B2a, Glonass L1OF Galileo E1+e5a,
QFMZSRS:aLd1iCoA: +YLe5s
I/O port
Line in
USB Type C
TF card
Support to max512G TF card
USB
USB Type C
OTG
Yes
SIM card
Double SIM (Nano &Nano)
Earphone
USB Type C
Color
Green/Orange/Grey
Certifications
IP68/CE/Mil-STD- 810G/ MSDS/ UN38.3 available
FHD+ Outdoor Visual Device
