6-inch 1D & 2D Code Scanner Android 11 Healthcare Handheld Terminal PDA
The new F9826M sets the trend for the medical version of mobile smart data terminals. It combines the high-end flagship power configuration with quality healthcare capabilities, making it an all-around excellent, rugged, anti-bacterial and anti-virus healthcare assistant. This device is designed to meet the demanding requirements of modern healthcare environments while providing reliable and efficient performance.
Model NO. :
F9826MCPU :
Qualcomm Oct-Core, 2.0GHzOperatng System :
Android 11Display :
6.0 in. Full High Definition(2160 × 1080), industrial-grade IPS displayMemory :
4GB RAM(6GB optional） 64GB ROM(128GB optional）Power :
Rechargeable Lithium-ion 5000 mAh minimum (3.85V), QC3.0 fast charging (up to 2.8 A )Weight :
259g (including battery)Drop Specifications :
Can withstand multiple falls from a height of 1.5m onto a concrete floorSealing :
IP67Advantage :
Support OCR Scanning
F9826M
New Generation 5G Smart Medical Terminal
Product Introduction
F9826M: A High - End, Intelligent, Industrial - Grade PDA Tailored for Medical Staff. It Features a 6 - Inch Large Screen, Outstanding Performance, Dual - Layer Protection, and Despite These, Maintains a Slim Profile for Easy Handling.
Powerful Performance
Qualcomm Oct-Core,2.0GHz
Android 11
4GB RAM(6GB optional)64GB ROM(128GB optional)

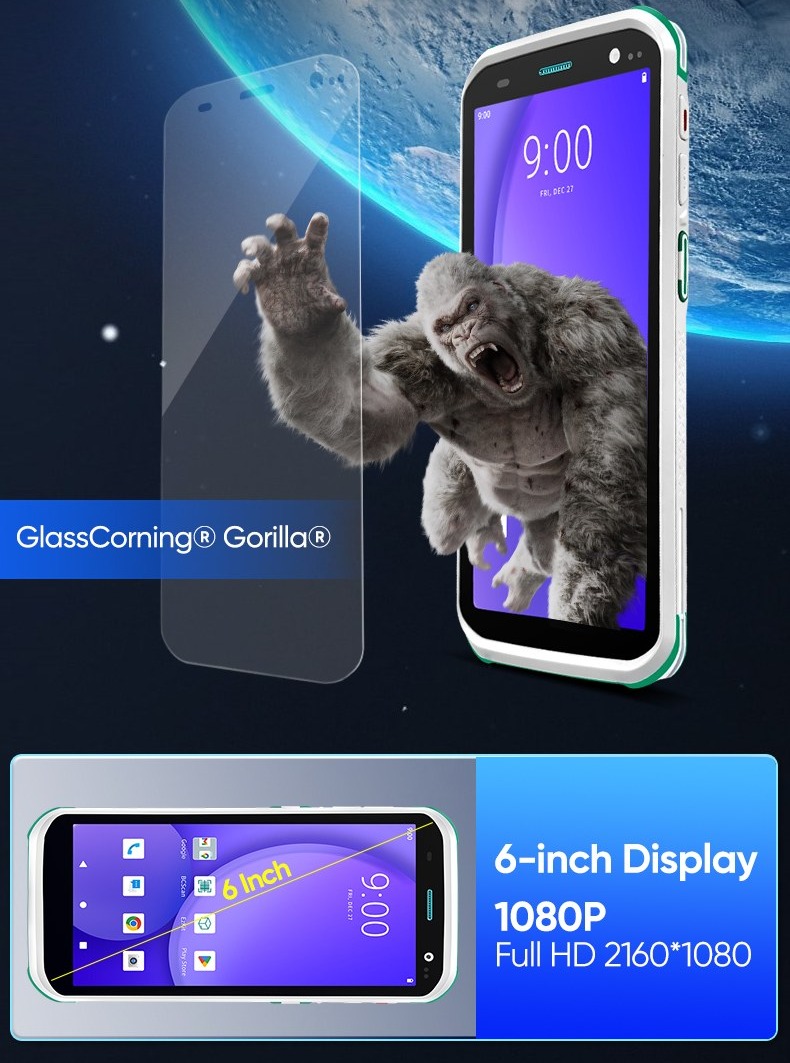

Large Durable Display
6-inch Display
1080P（Full HD 2160*1080）
GlassCorning® Gorilla®

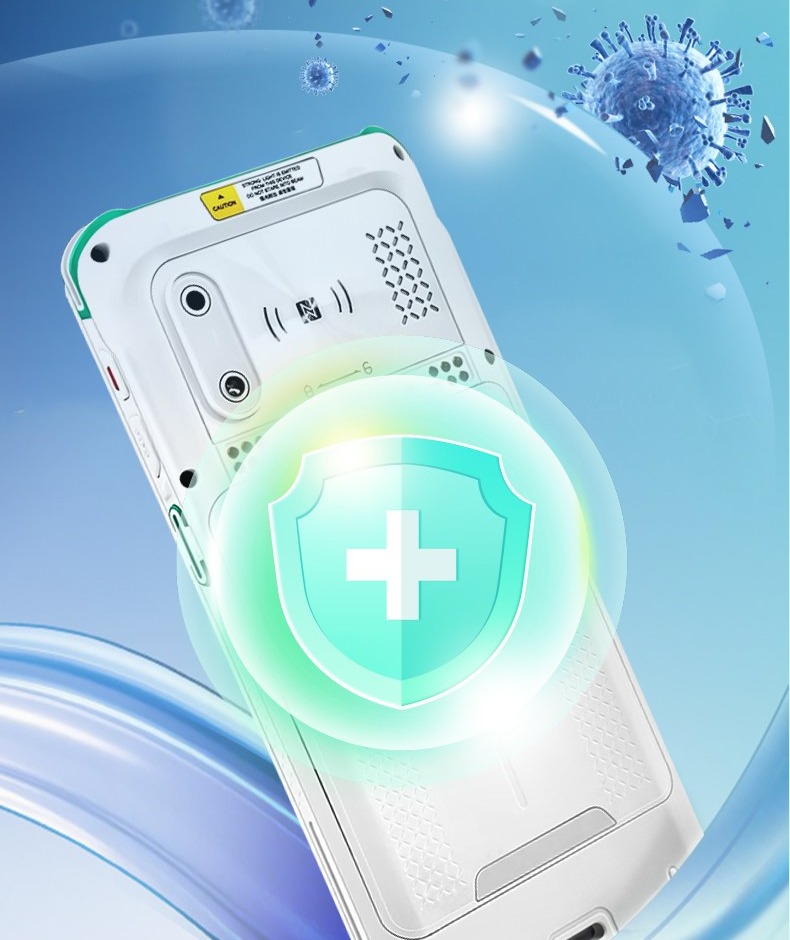

Safety with You
Antibacterial & Sterilizable Corrosion Resistant Housing

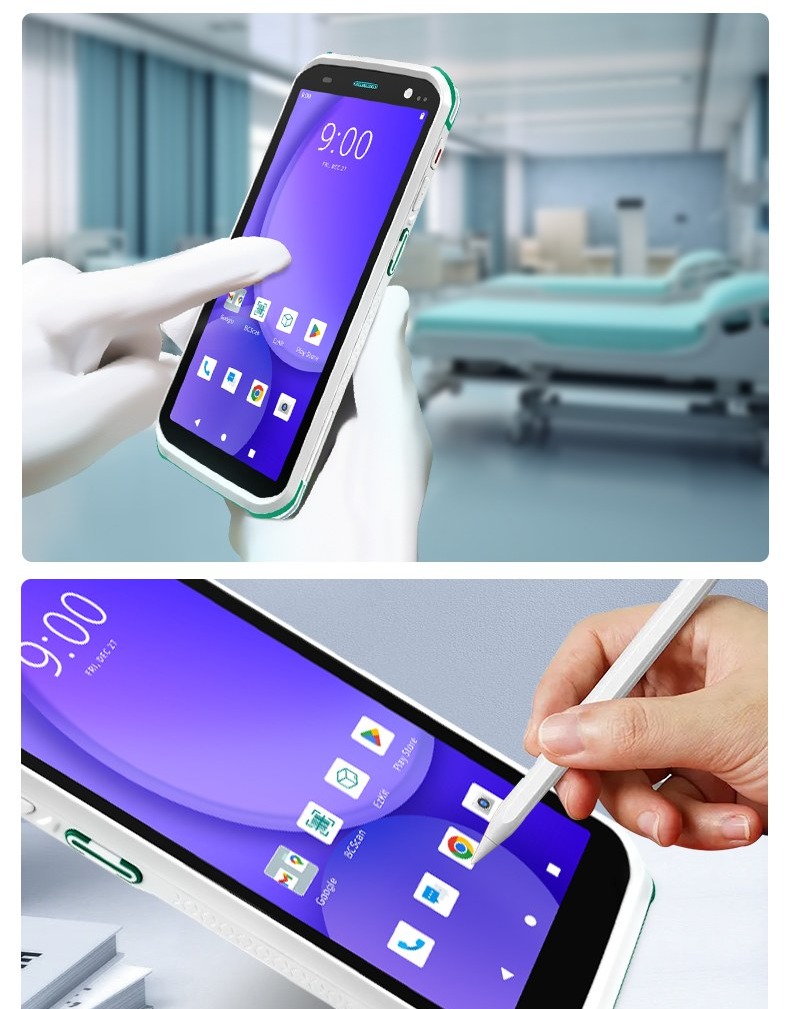

Touch Panel
Supports Stylus,Ungloved Finger or Gloved Finger Input, Multi-touchand Wet Hand Operatior
Turn Devices Into Two-Way Radios and PBX Handsets
Empower Your Workforce with Versatile Voice - Calling Features: Push - to - talk (PTT) . Nurses can Instantly Reach Physicians or Take Calls from Family Members.

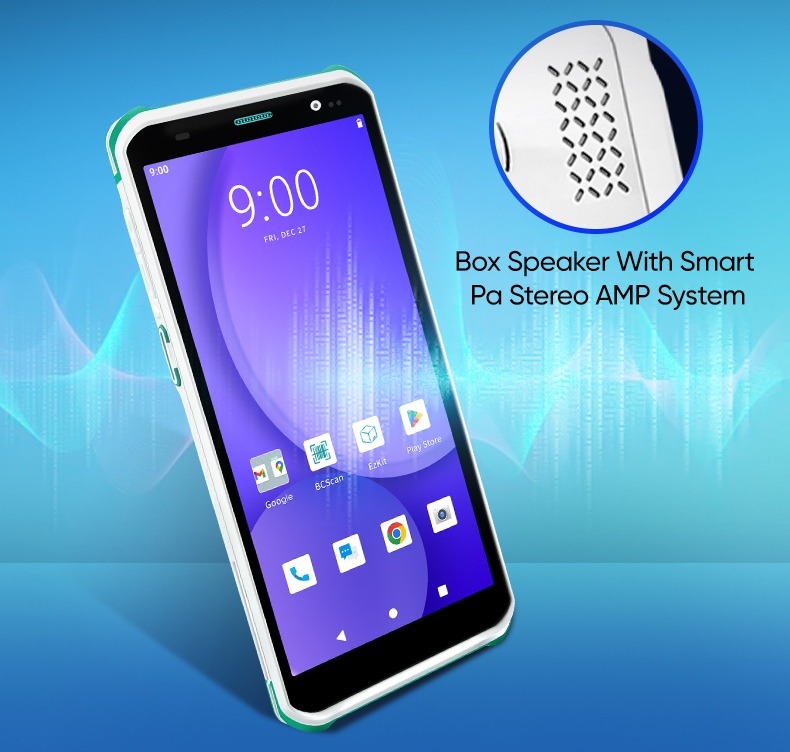

Ample Volume, Pristine Sound
2W Ultra LinearSpeaker

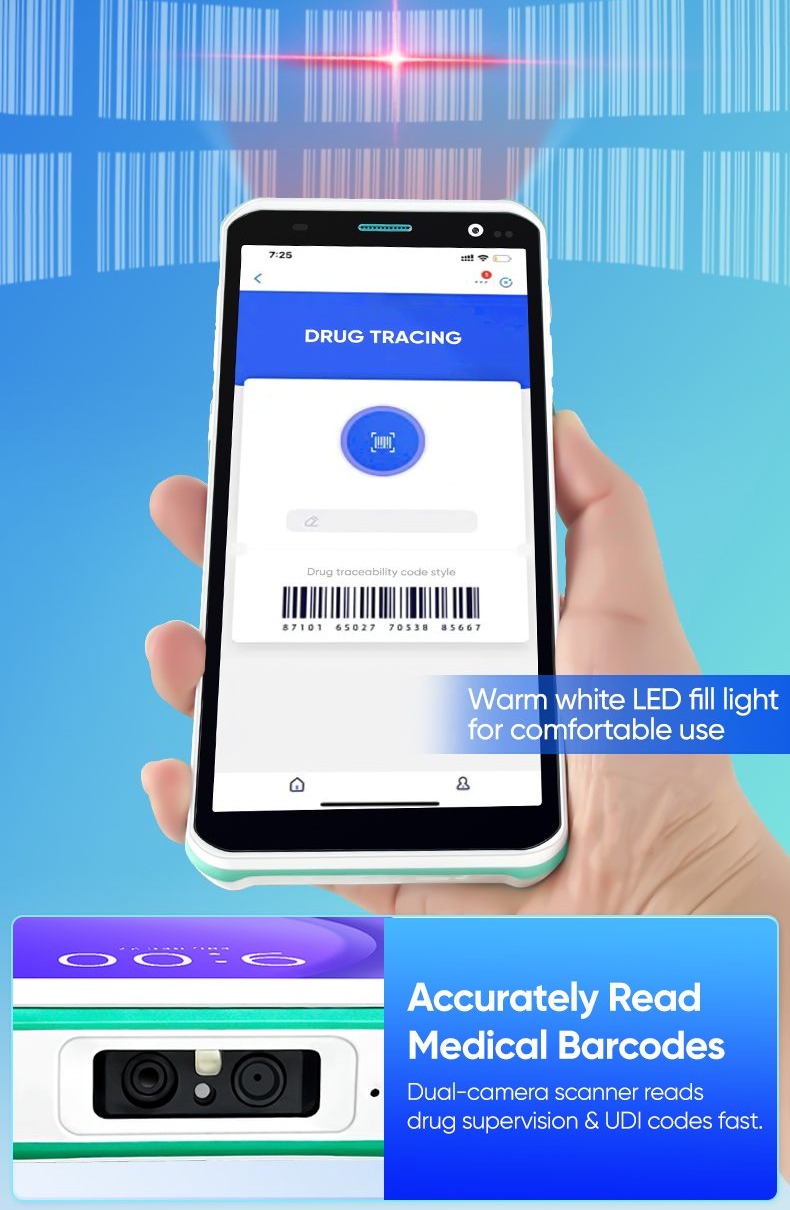

Capture UDI Barcodes Straight Out of The Box.
Caregivers can quickly verify if medical equipment is recalled before use, safeguarding patient safety. Automatically capture all item charges, protecting financial returns. Achieve full and accurate inventory visibility, preventing stock - out risks.
Fast and Efficient Operation
- Connectivity for Efficiency: Equipped with 5G and Wi-Fi 6, Enabling Seamless, Round - the - Clock Patient Care.
- Robust Security: Adopts WPA/WPA2 - PSK Encryption, Ensuring Secure Data Transmission.

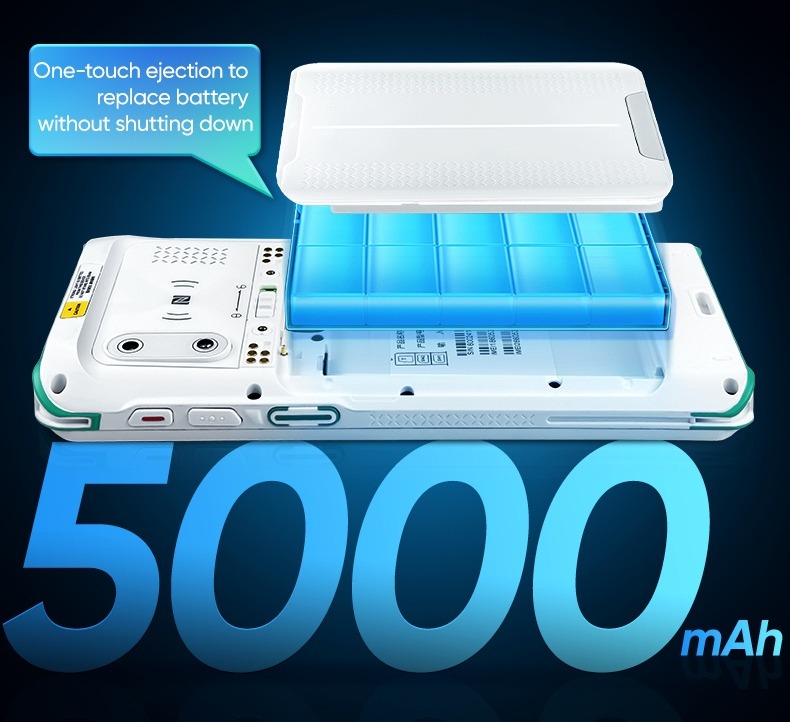

Goodbye Battery Anxiety

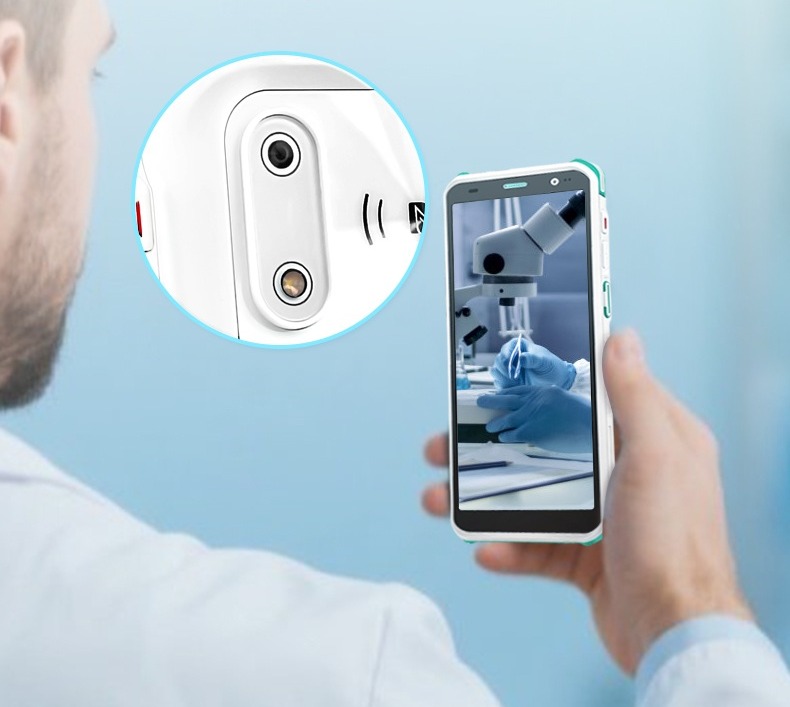

High-Definition Camera
F9826M Boasts A 16MP Autofocus Color Camerawith Flash. You Can Easily Capture Photosand Videos in Various Modes, Even Underlow Light and Back-lit Conditions.

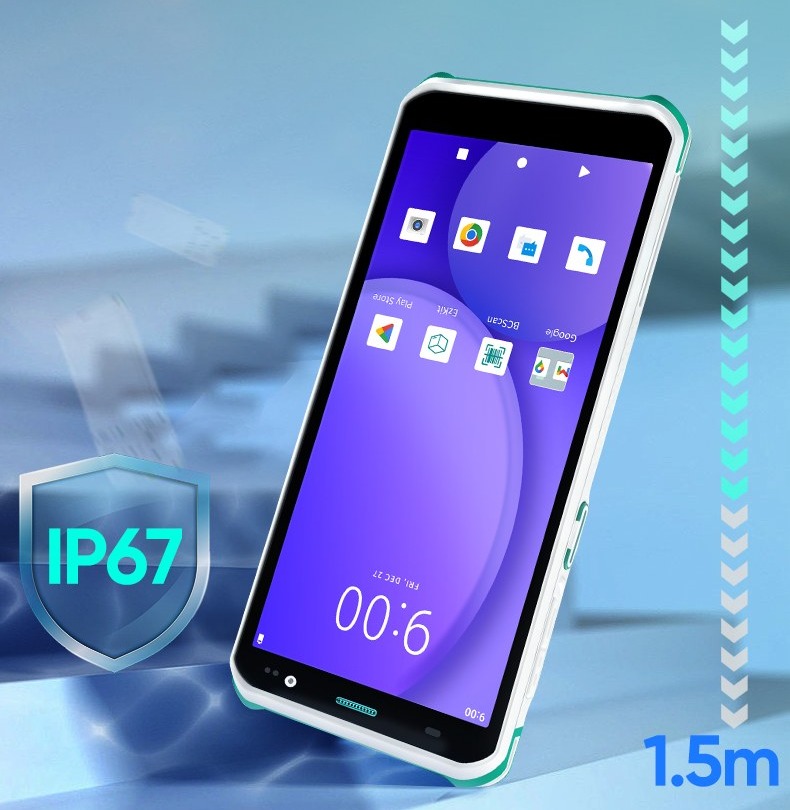

Enhanced Protection for Secure Use
IP67
Double IP67 Protection: Shrugs Off Repeated 1.5m Concrete Drops.

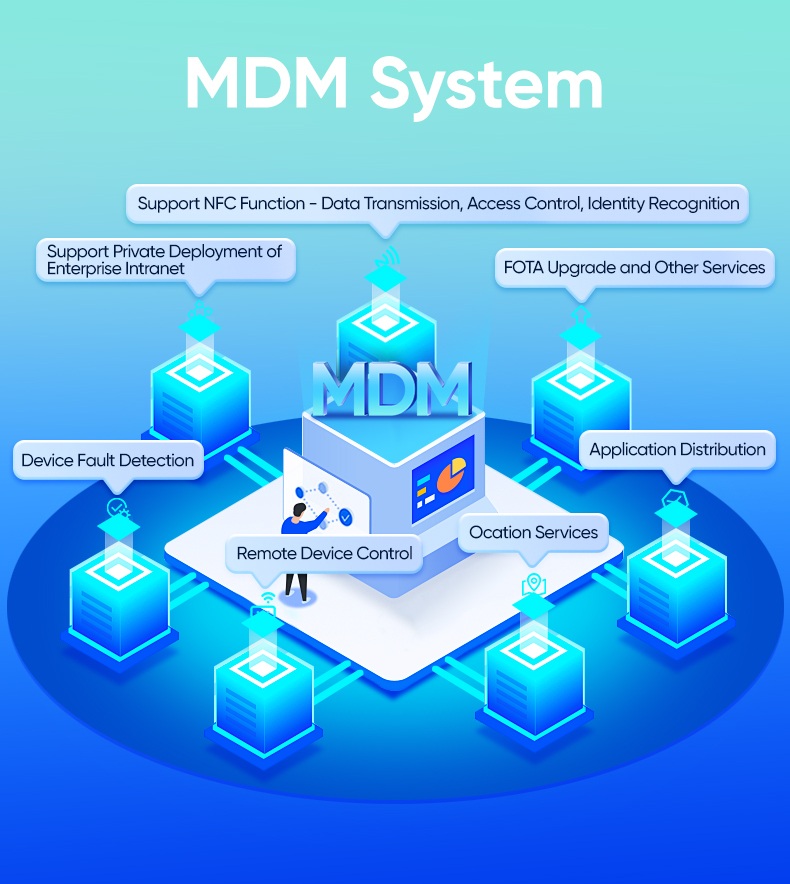

MDM System
1.Application Distribution
2.Ocation Services
3.Remote Device Control
4.Device Fault Detection
5.FOTA Upgrade and Other Services.
6.Support Private Deployment of Enterprise Intranet.
Accessory
Specification:
| Physical Characteristics | |
| Dimensions | 163(H)×77.2(W)×13(T)mm6.4(H)×3.0(W)×0.51(T)inch |
| Weight | 259 g/9.14 oz.（ battery included） |
| Display | 6.0 in. Full High Definition(2160 × 1080), industrial-grade IPS display |
| Touch panel | Corning® Gorilla® Glass Dual-mode capacitive touch, supports stylus, ungloved finger or gloved finger input, multi-touch and wet hand operation |
| Backlight | 450 NITS, LED |

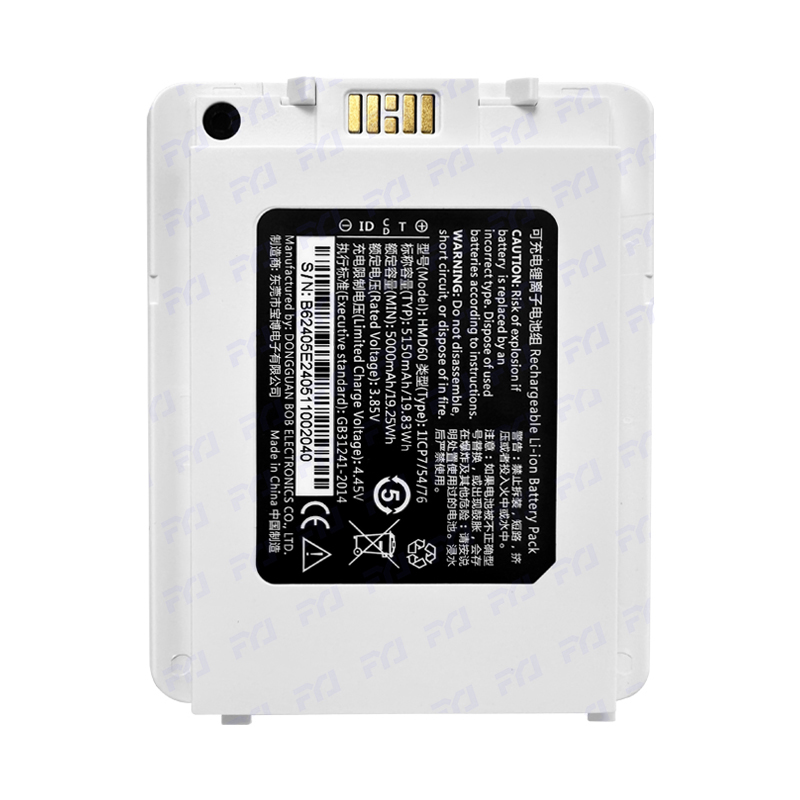

| Power | Rechargeable Lithium-ion 5000 mAh minimum (3.85V), QC3.0 fast charging (up to 2.8 A ) |
| Backup Power | backup super capacitor |
| Expansion Slot | Micro SD Card slot, up to 512GB |
| Expansion Ports | 10 Pin Rear connection: USB 2.0 signal ,UART signal, Trigger key signal, Charging port 5V/3A4 Pin Bottom connection: Charging port 5V/3A, support USB communication and OTG mode |
| SIM Slots | 2 x Nano SIM, 1 x e-SIM (Optinal) |
| Notification | Audible tone; Multi-color LEDs; Vibration |
| Voice and Audio | Speaker（2W),, Telephone receiver, Dual microphones |
| Keypad | On-screen keypad and enterprise keyboard |
| Buttons | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| Performance Characteristics | |
| CPU | Qualcomm Oct-Core, 2.0GHz |
| Operating System | Android 11 |
| Memory | 4GB RAM(6GB optional）64GB ROM(128GB optional） |
| User Environment | |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 5% to 95%，non-condensing |
| Sealing | IP67 |
| Drop Specification | Withstands multiple 1.5 meter drops to concrete |
| Tumble Specification | 1000 round 0.5 meter tumbles |
| Electrostatic Discharge |
+/-15 kV air discharge +/-8 kV direct discharge |
| Interactive Sensor Technology | |
| Standard Sensors | Proximity Sensor, Light Sensor, Accelerometer, Magnetometer, Gyroscope |
| Option | fingerprint sensor |
| Data Capture | |
| Scanning | ME5066/SE4710/N6703/N6803etc. professional 2D scanning engine |
| Camera | Front 5 MP fixed focus; f/2.4 apertureRear 16 MP auto focus; f/1.85 aperture; Flash LED generates balanced white light; supports Torch mod |
| NFC | High RF output power; ISO15693, ISO14443A/B, MIFARE: Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro, Mifare Desfire, FeliCa Supported cards |
| Wireless WAN | |
| WAN Radio Frequecy | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30/B66) WCDMA(B1/B2/B4/B5/B6/B8/B19)TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900) |
| GPS | |
| positioning system | GPS L1 with A-GPS、Glonass、BeiDou、Galileo、QZSS、SBAS |
| Wireless PAN | |
| Bluetooth | BT5.1+ BR/EDR + BLE |
| Communication Distance | >10m |
| Wireless LAN | |
| Radio | IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w（2.4G/5G Dual Band Wi-Fi） |
| Data Rates |
5 GHz: 802.11a/n/ac— up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 200 Mbps |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSKEAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA |
| Fast Roam | Supports 802.11r Fast Roaming |
| Accessories | |
| Standard Accessories | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1 |

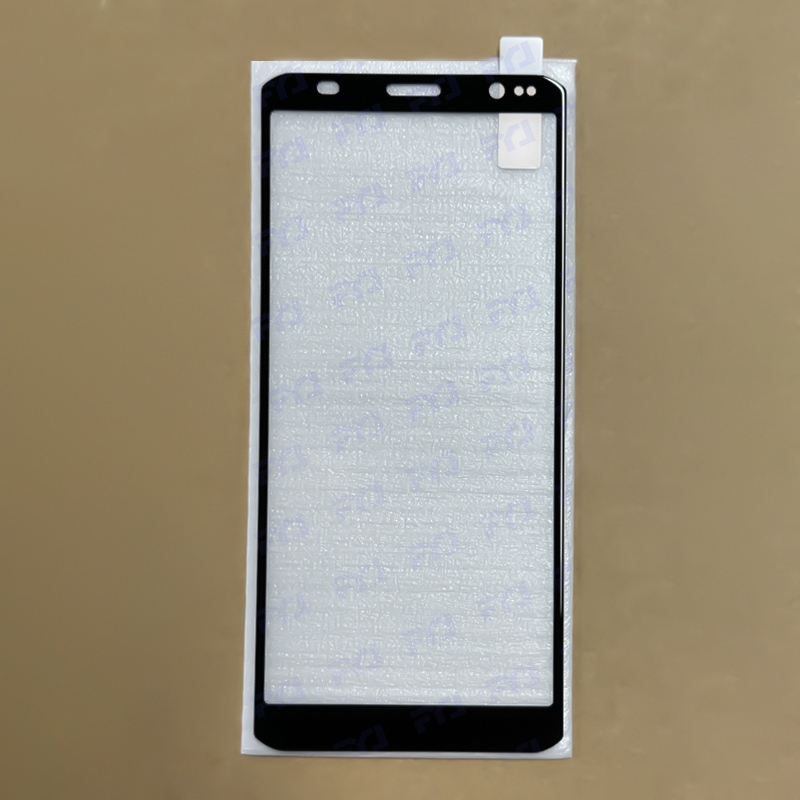

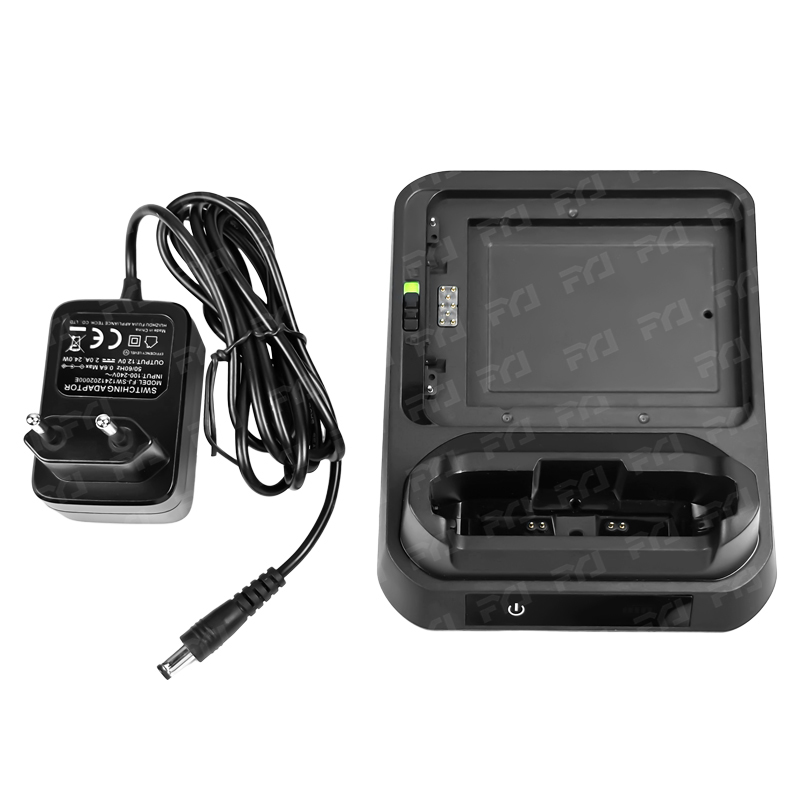

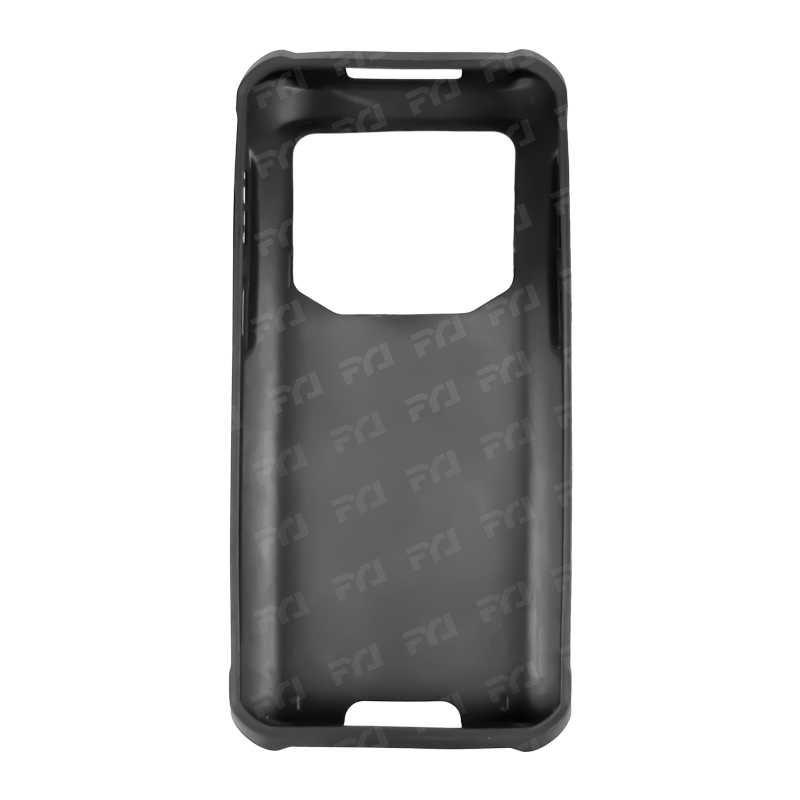

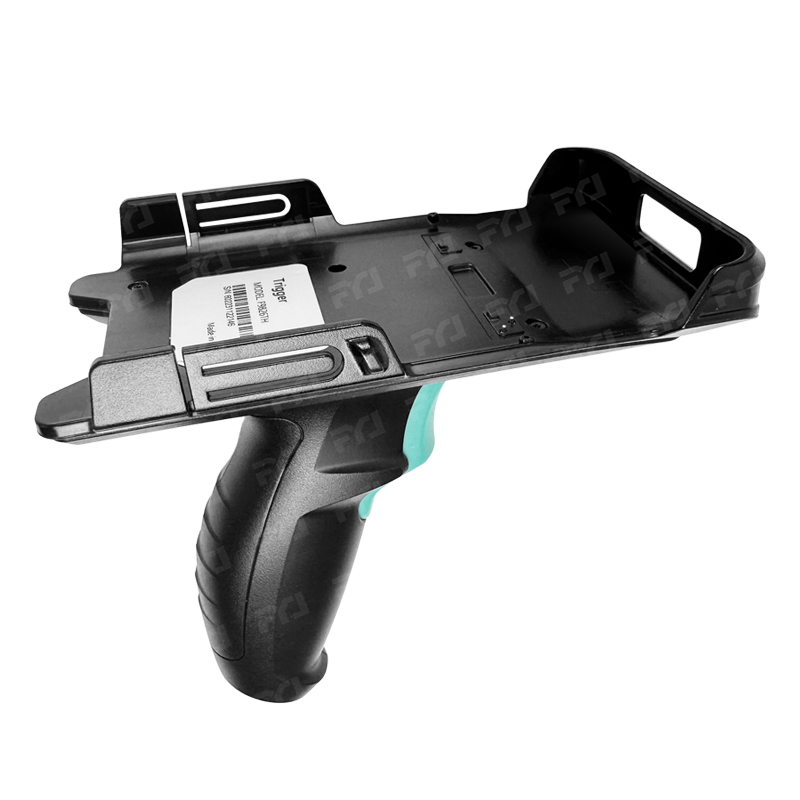

| Optional | Glass Tempered Film、Protective Case、Hand Strap、Single-Slot( Charge+USB/Etherne)、 Snap on Trigger Handle、RFID Handle、OTG Cable |
