Mobile Android RFID Reader for Real-Time Data Capture​

Home RFID Hardware

Mobile Android RFID Reader for Real-Time Data Capture​

Mobile Android RFID Reader for Real-Time Data Capture​

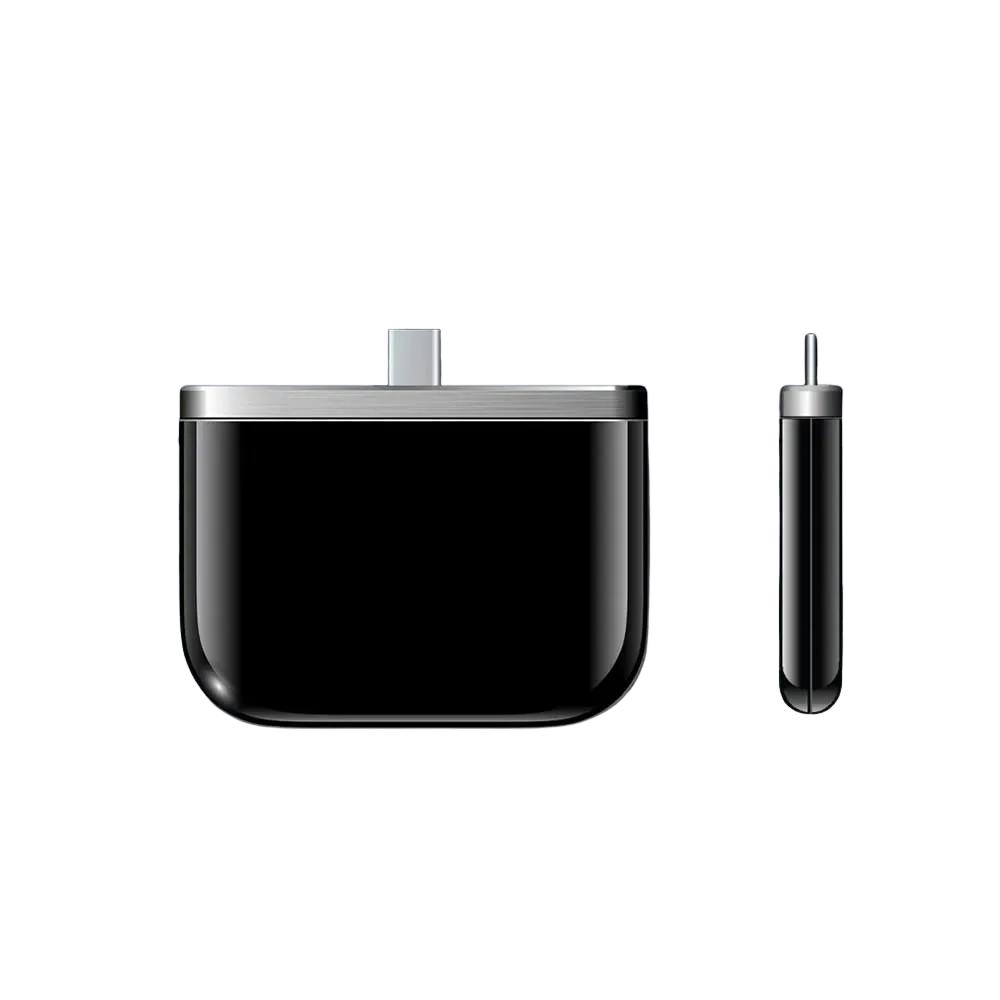

The F-B4L Ultra-Portable UHF RFID Reader redefines mobile RFID operations with its smartphone-compatible design. Powered via USB Type-C and weighing only 37g, this palm-sized device delivers instant tag detection within 30cm, ideal for anticounterfeiting, inventory checks, and workflow management.Its magnetic attachment seamlessly integrates with mobile devices,while developer-friendly SDKs (C#/Java) ensure effortless system integration.

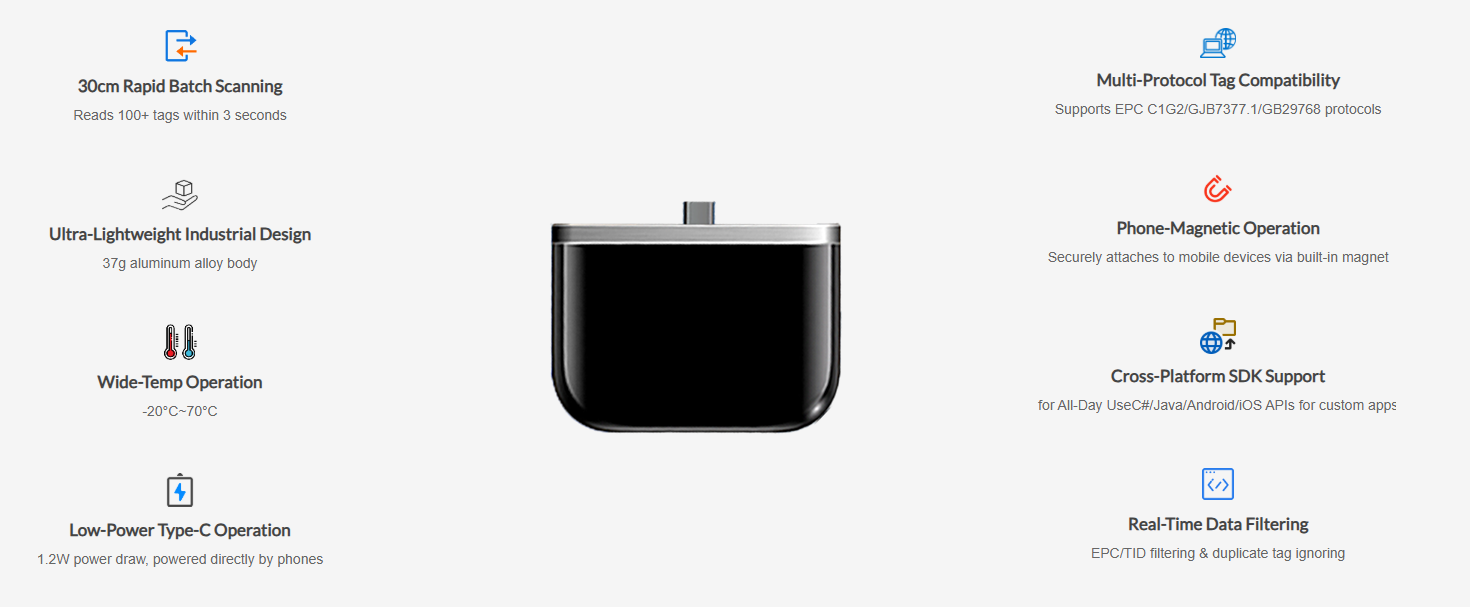

Highlights:

1.37g ultra-lightweight design, easy to carry. Connects directly to smartphones.

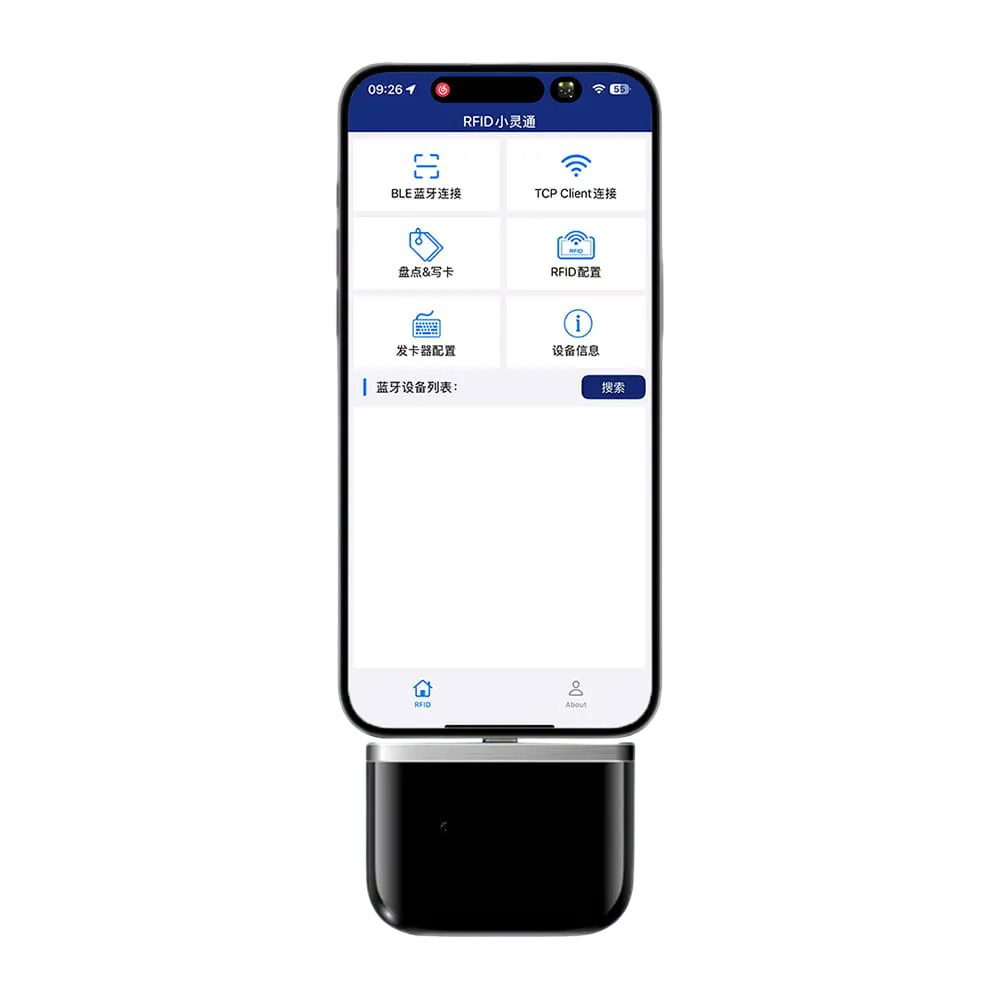

2.Dedicated app enables fast RFID tag and item identification.
3.Near-field antenna design limits read range to ≤30cm and write range to ≤10 cm.
4.Provides development resources for C# and Java.
5.USB Type-C for power and communication.

  • Operating Humidity :

    -40°C to +85°C
  • Overall Dimensions (LWH) :

    62.5 mm × 48 mm × 9 mm
  • Protocol :

    EPC C1G2, ISO 18000-6B, ISO 18000-6C
  • Communication Interfaces :

    USB Type-C
  • Model NO. :

    F-B4L
  • Battery Capacity :

    10,000mAh
  • Operating Temperature :

    -20°C to +70°C



Specification:



Brand FYJ
Mode F-B4L
Product Name Mobile Android RFID Reader​
Dimensions 48×62.5×9mm
Weight 37g
Power Consumption 1.2W @ +18dBm
Ports USB Type-C 2.0 with OTG
Frequency FCC 902-928MHz GB 920 -925MHz
Reading Range 0~30cm (EPC), 0~10cm (Write)
Antenna Circularly Polarized Antenna (18dBm)
Air Protocol ISO 18000-6C/6B、EPC C1G2、GB/T 29768-2013(Optional)、GJB 7377.1-2011/72018A
Bulk Read Speed >100 tags/sec(circular polarization)
Operating Temperature -20℃ to 70℃ (Industrial-Grade Range)
Storage Temperature -40℃ to 85℃ (Extreme Condition Resilience)
​Humidity 10%RH–95%RH (Non-Condensing)
API Interfaces RESTful & Native APIs (IoT/ERP Integration Ready)
Languages Java, C# (Cross-Platform Compatibility)
Secondary Development SDK Full toolkit for ​custom firmware & app development
