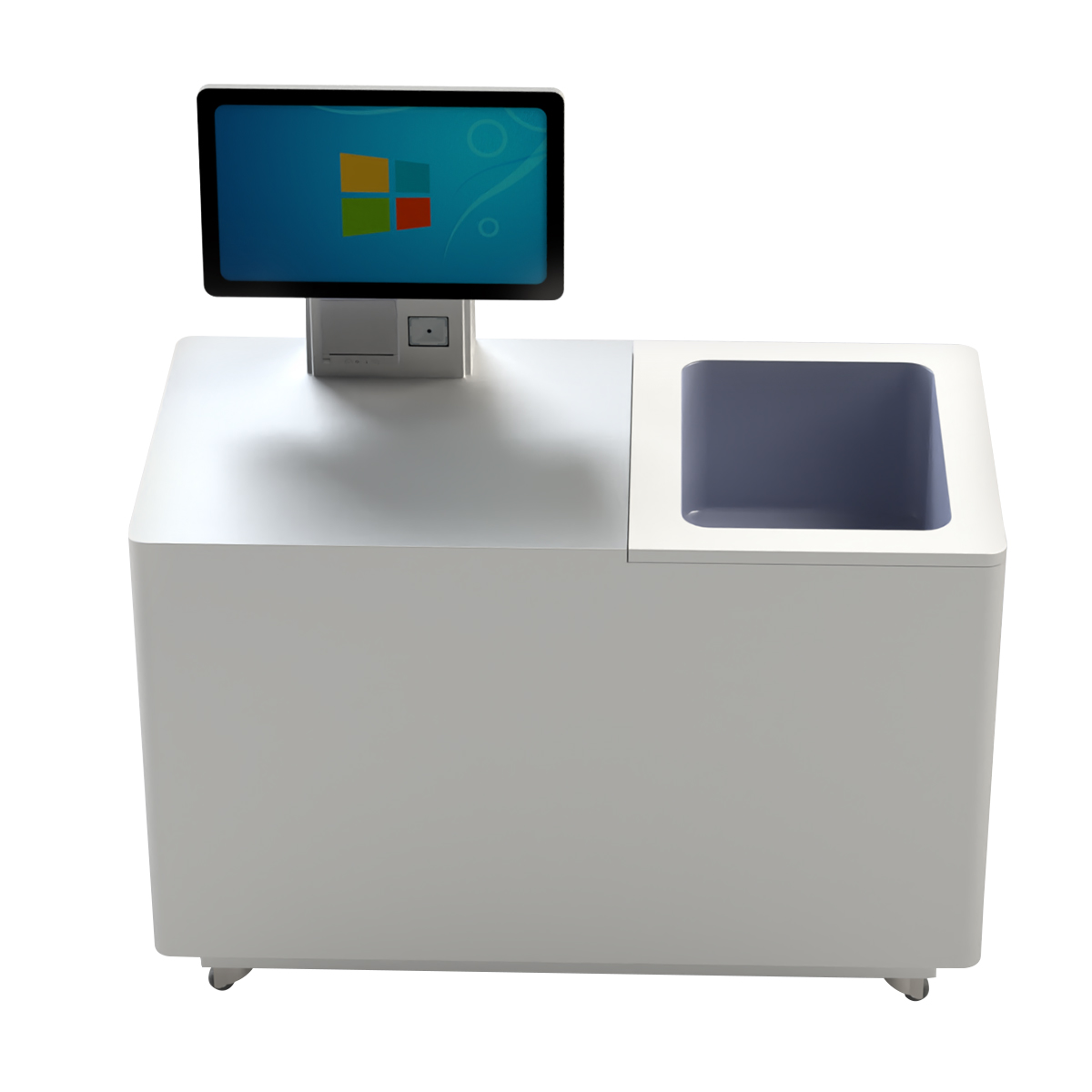

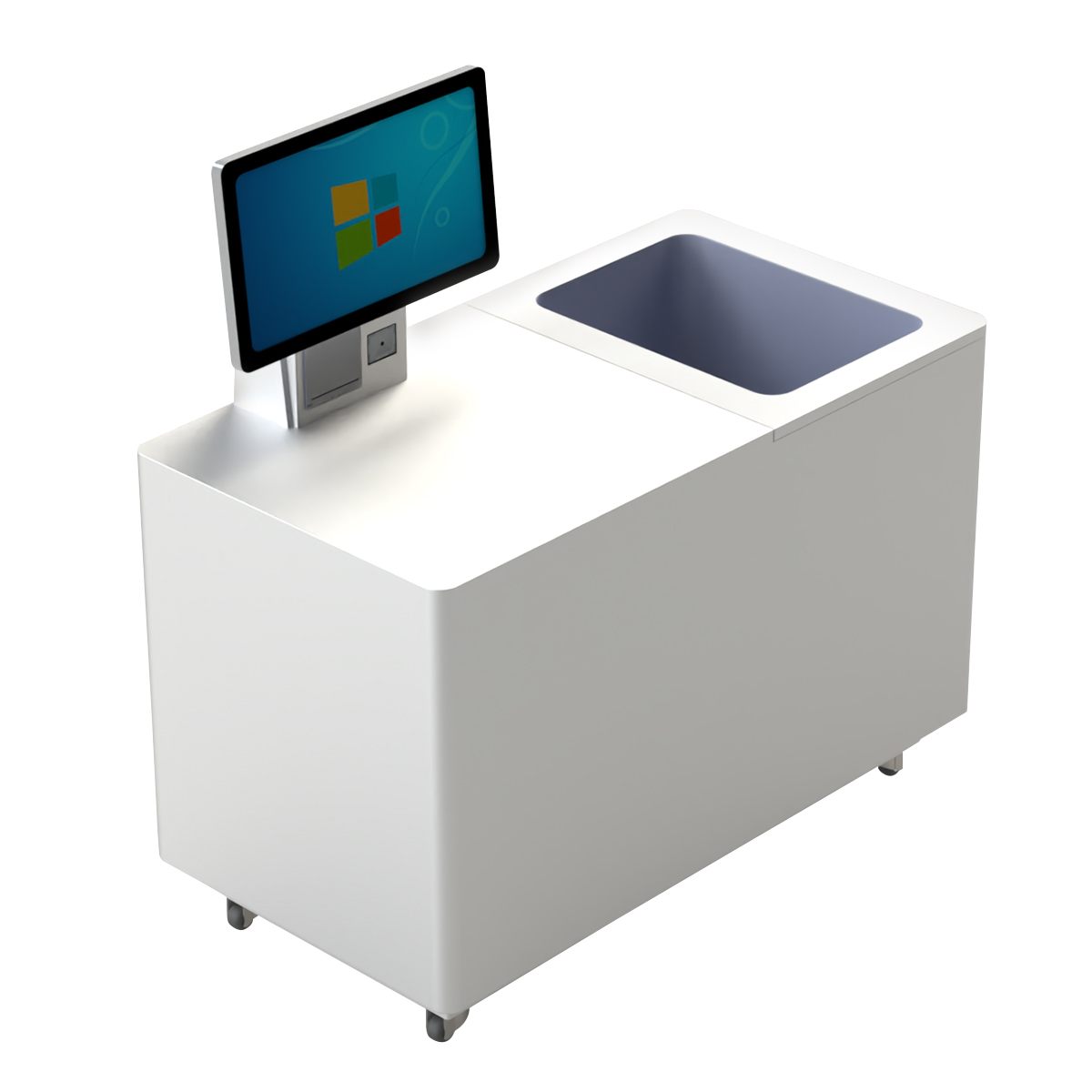

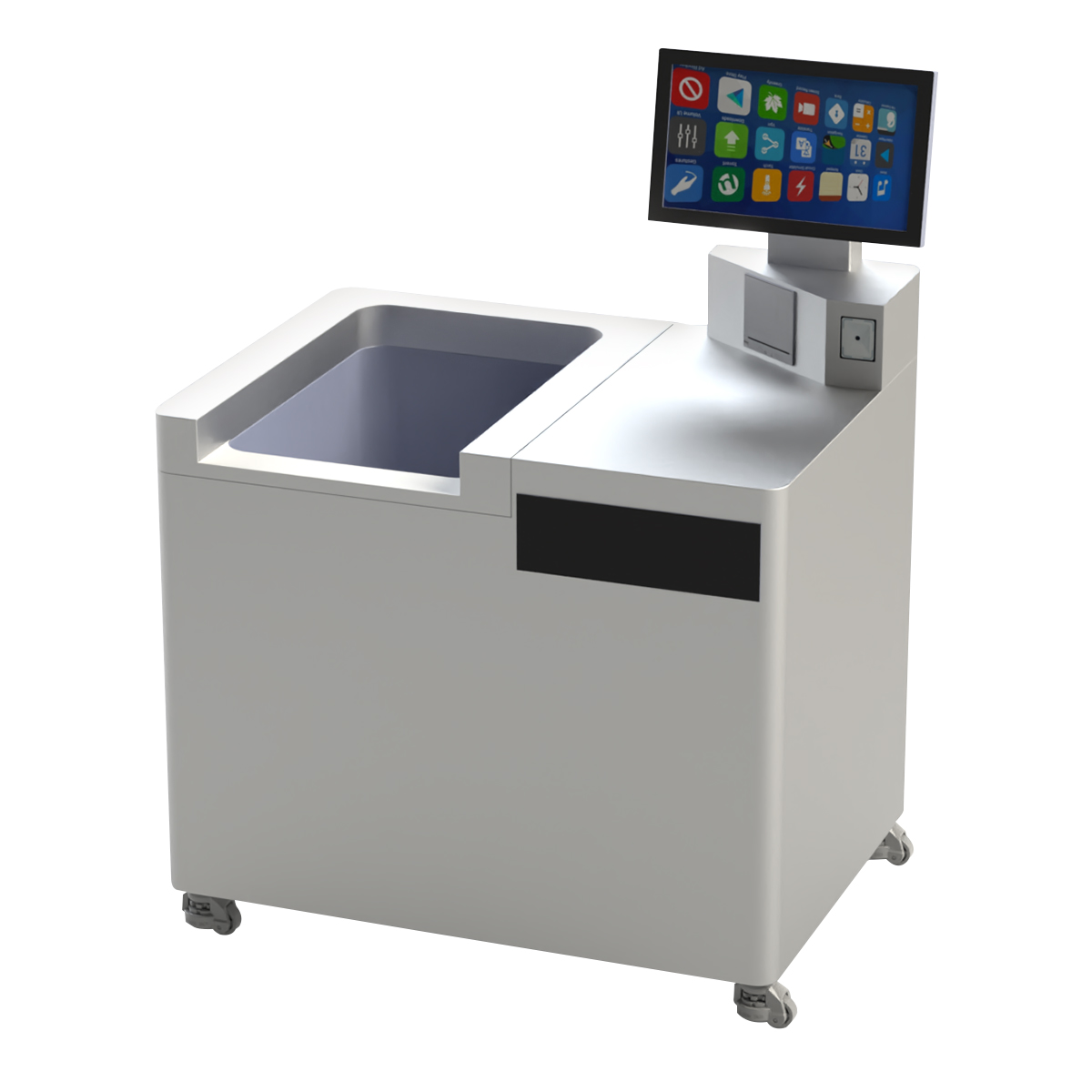

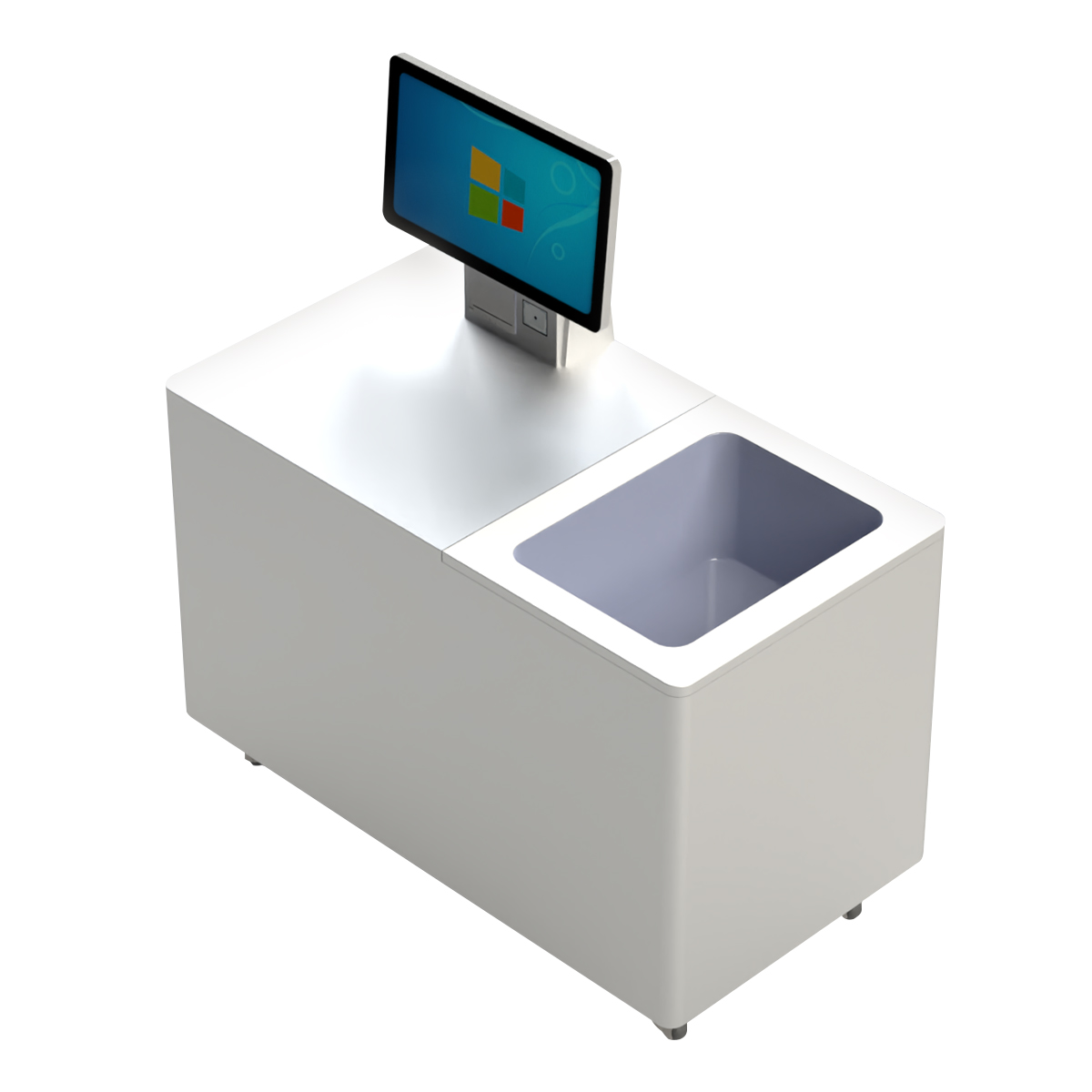

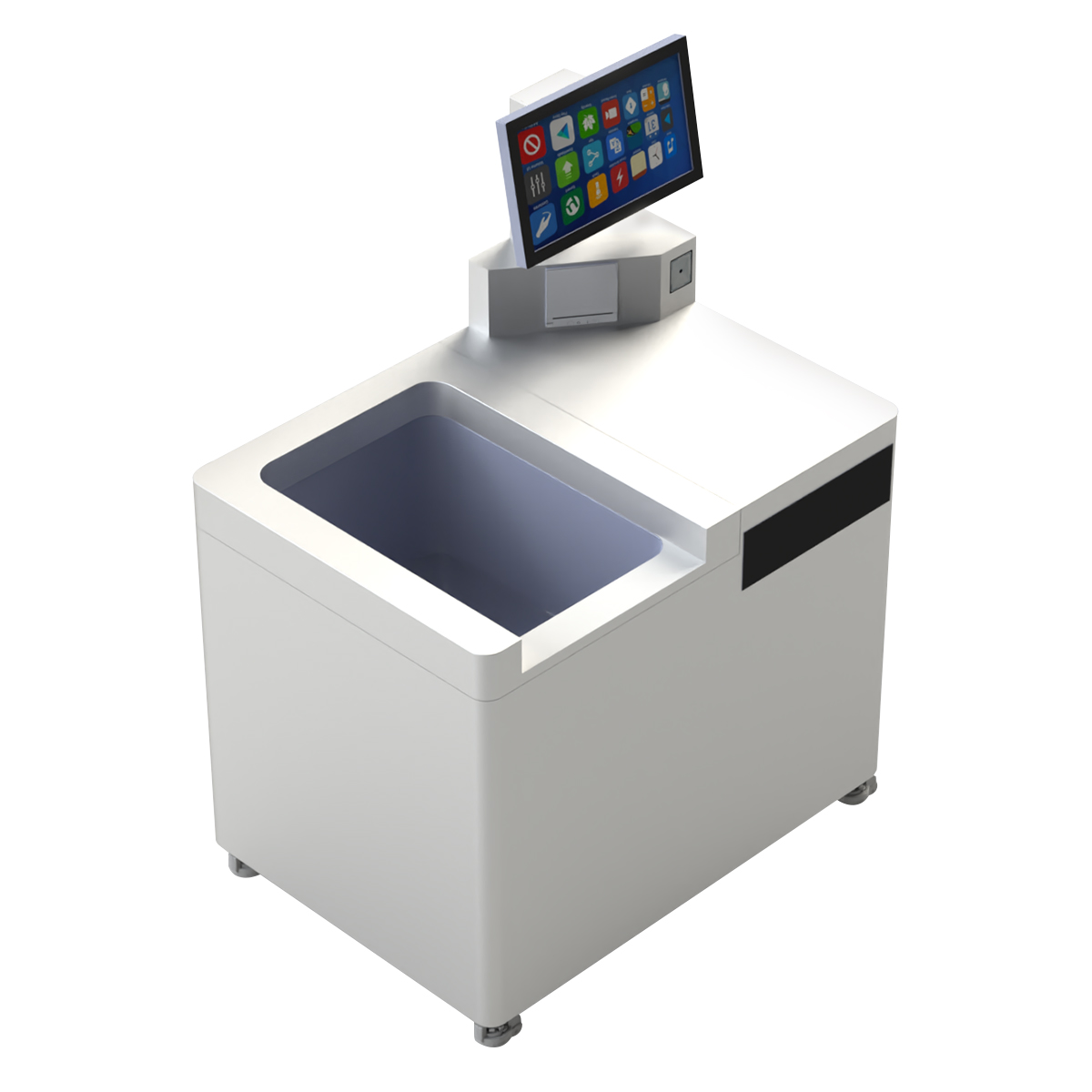

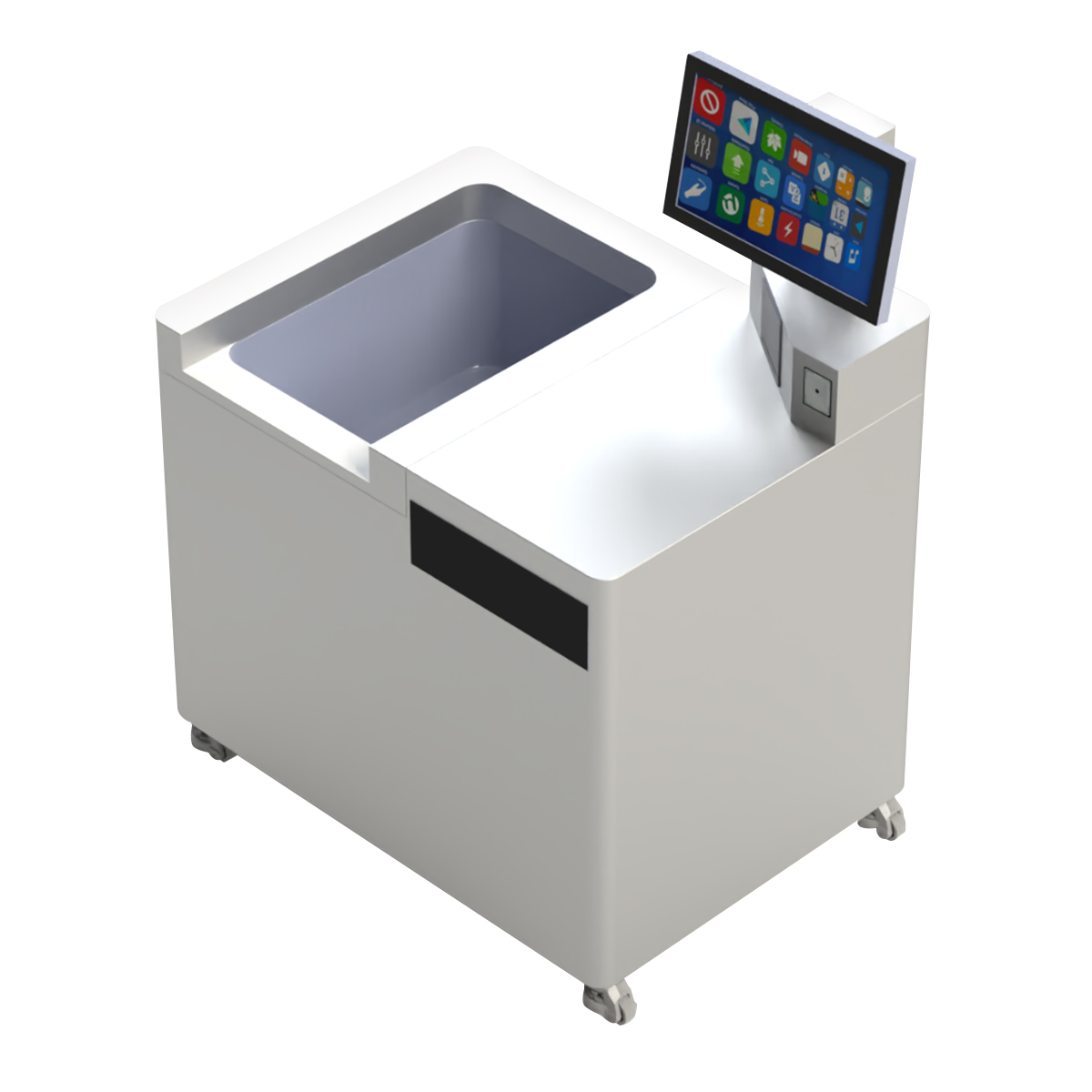

UHF RFID Checkout Counter Batch 3s Settlement RFID Reader 21.5'' Android/Windows Retail Workstation Cash Register

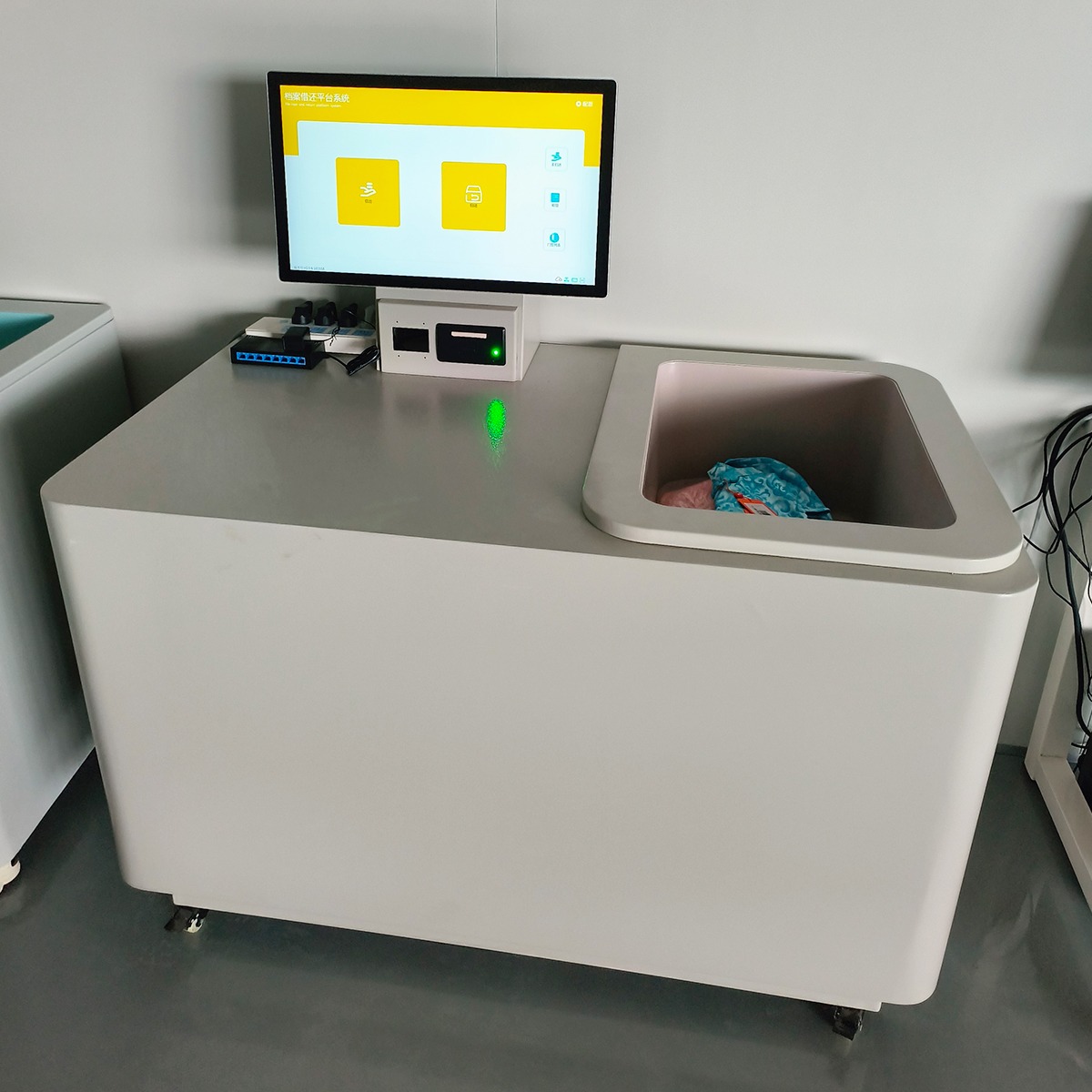

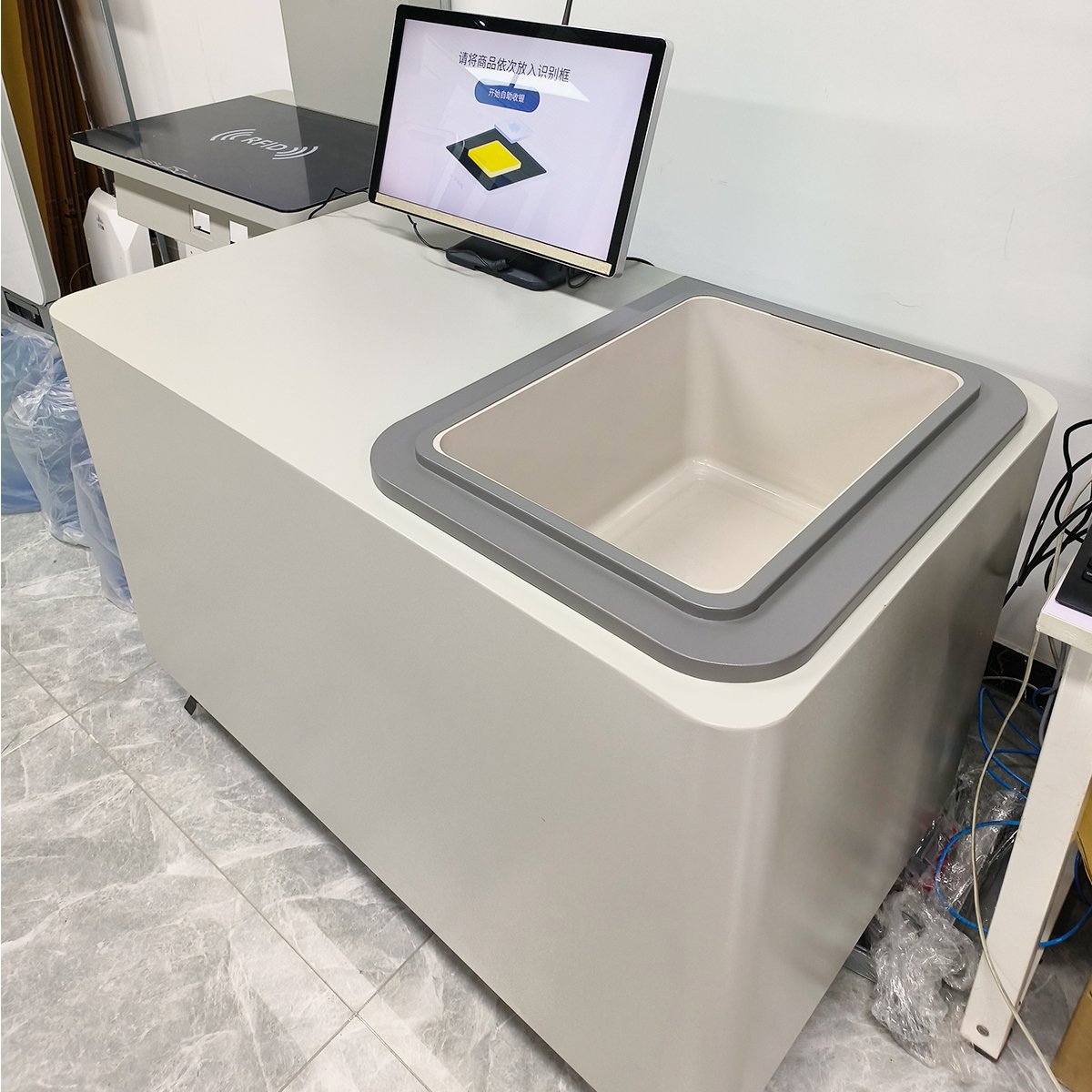

This device is mainly used in smart retail and other scenarios for settling payments of products with RFID tags.When products with RFID tags are placed in the smart recognition basket, the checkout computer screen displays the product name, quantity, price, and payment information. Customers can complete batch checkout for all purchased items.Product Features:1.Supports simultaneous scanning of ≥20 items, significantly improving checkout efficiency.2.External PC/Industrial Computer Connectivity.3.Requires connection to a computer or industrial panel PC via Ethernet (RJ45) / Serial Port (RS232) for data exchange.
Identification Frame Dimensions (LWD) :
510MM*370MM*260MMRFID Protocol Standard :
ISO 18000 - 6C (EPC C1 G2)Communication Interfaces :
Ethernet Port, WIFIPower Input :
DC12V/3AModel NO. :
FYJ-SHY-K1AIndustrial All - in - one Machine :
21.5 - inch Touch Screen, I5 8 + 128G WIN10 or RK3288 4 + 32 G ANDIOD 10.0Identification Method :
Radio Frequency Identification (UHF RFID)Fixing Method :
Bottom CastersReading Time :
0 - 3 secondsOverall Dimensions (LWH) :
880MM*635MM*1150MM (Table Height 750MM)Frequency Range :
840MHZ - 960MHZ
Identification Method | Radio Frequency Identification (UHF RFID) |
Reading Time | 0 - 3 seconds |
Frequency Range | 840MHZ - 960MHZ |
RFID Protocol Standard | ISO 18000 - 6C (EPC C1 G2) |
Power Input | DC12V/3A |
Operating Temperature | 0~60℃ |
Operating Humidity | 10%RH~90%RH |
Overall Dimensions (LWH) | 880MM*635MM*1150MM (Table Height 750MM) |
Identification Frame Dimensions (LWD) | 510MM*370MM*260MM |
Communication Interfaces | Ethernet Port, WIFI |
Industrial All - in - one Machine | 21.5 - inch Touch Screen, I5 8 + 128G WIN10 or RK3288 4 + 32 G ANDIOD 10.0 |
Fixing Method |
Connectivity options | RS232 serial port,RJ45 Ethernet port,Bluetooth (optional),WiFi (optional) |
