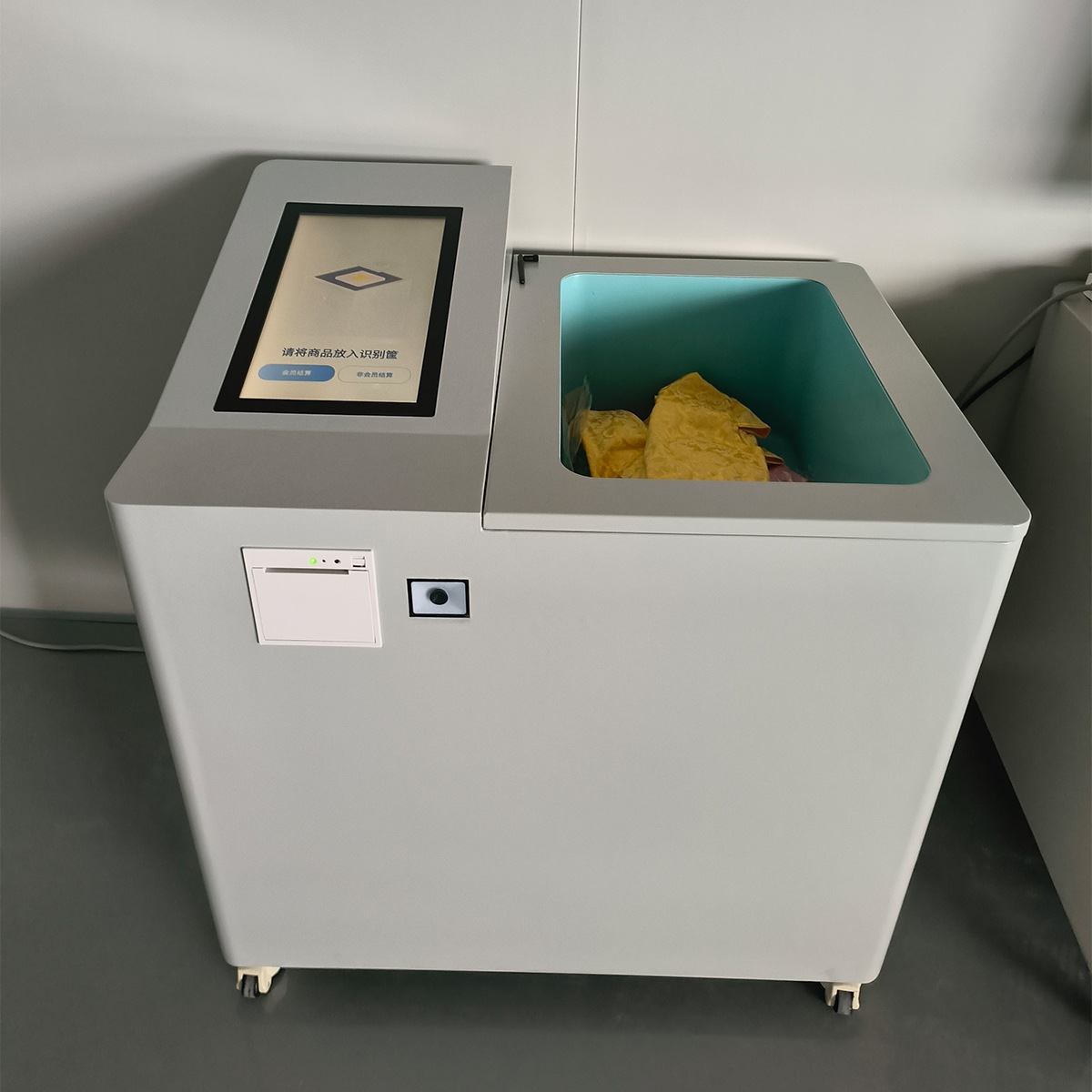

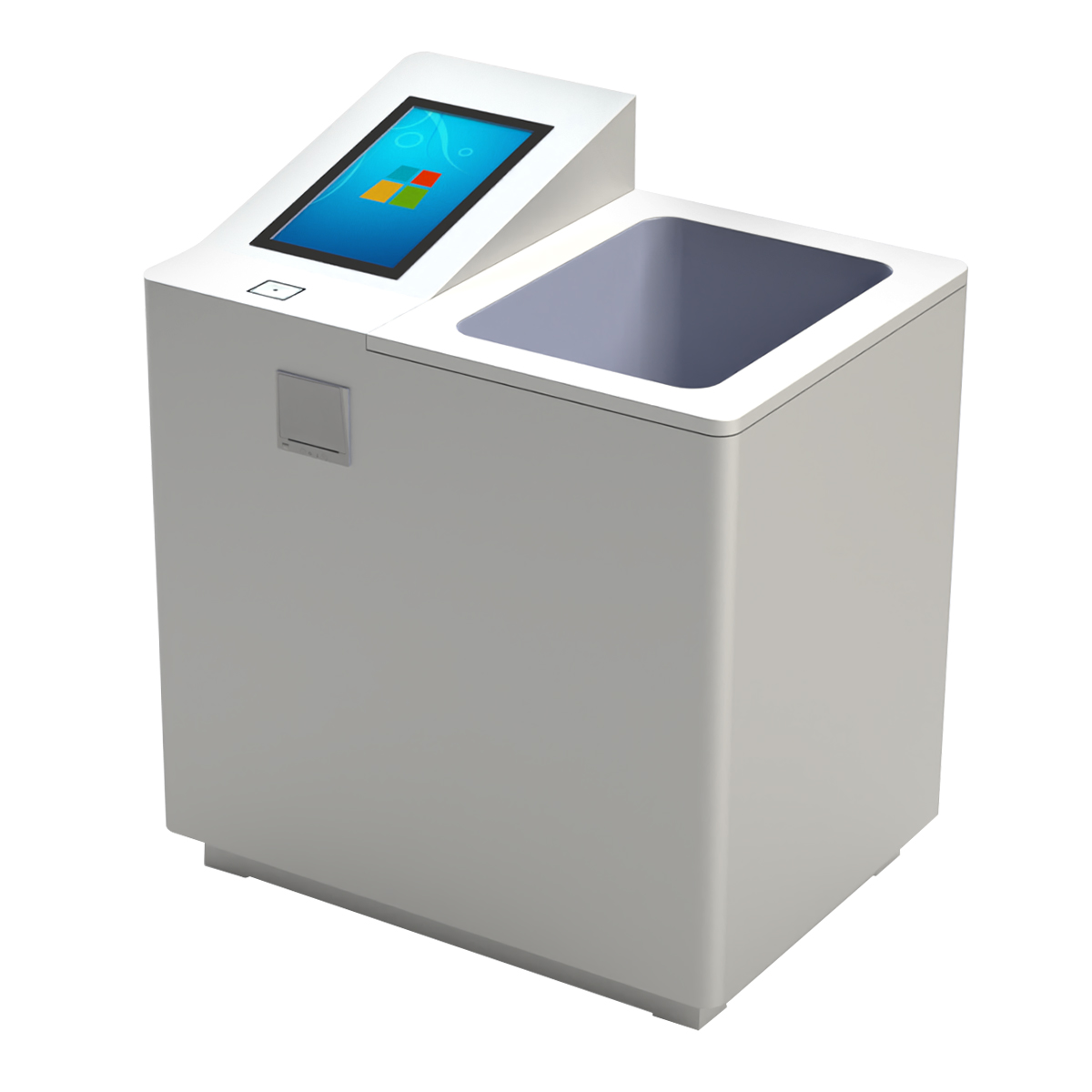

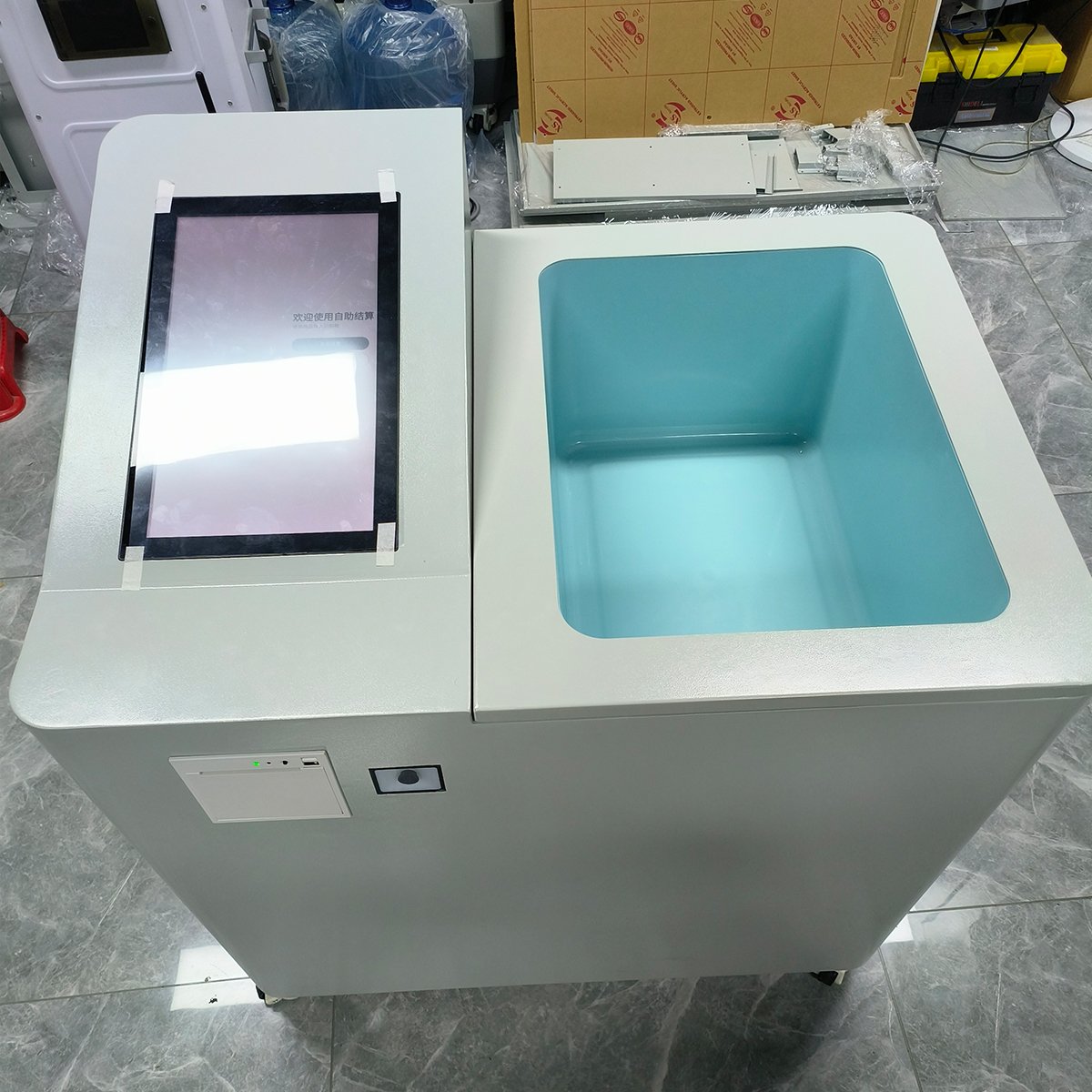

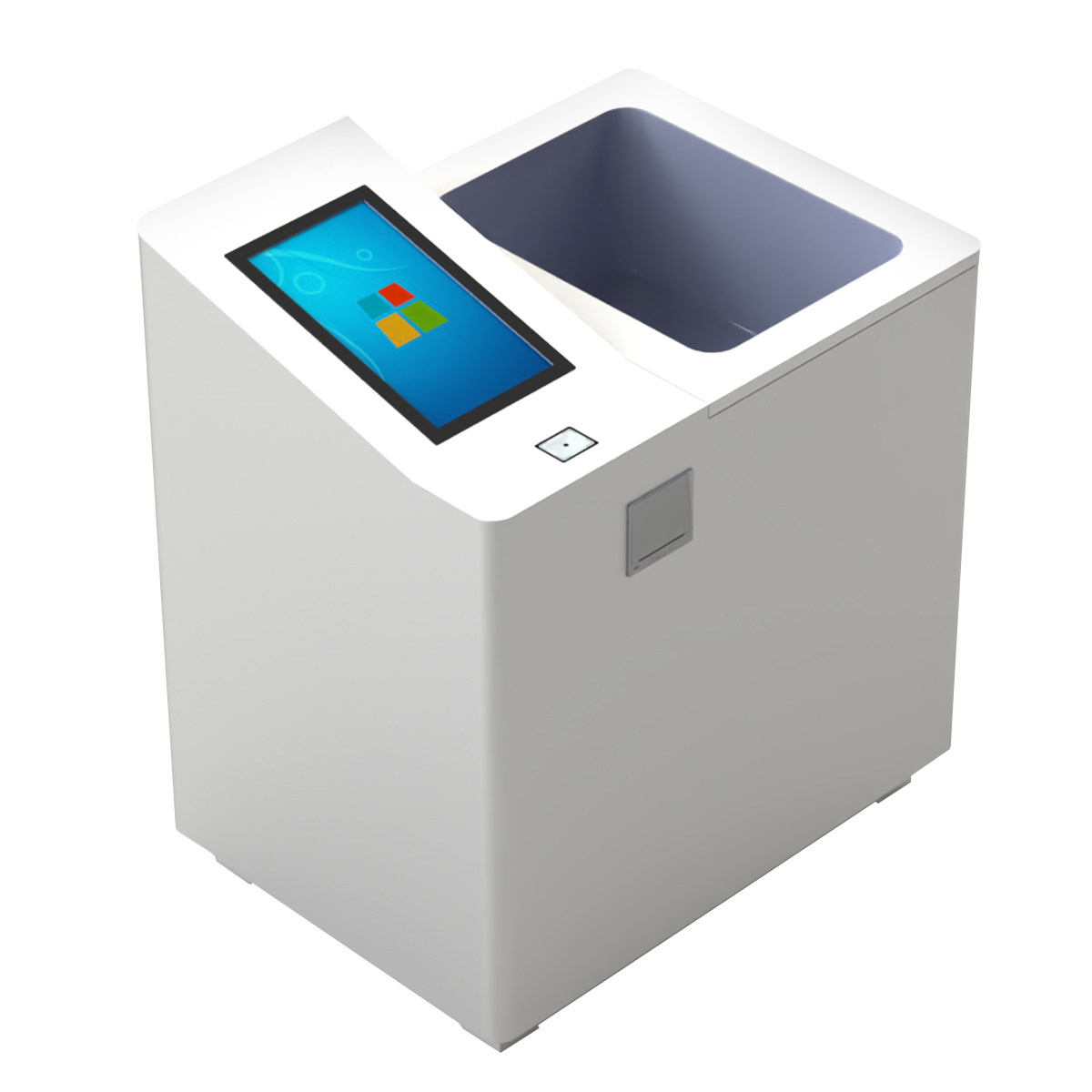

RFID Intelligent Identification Basket Smart Retail-RFID Checkout Counter,Instant Batch Payment (3 sec/transaction) RFID Scanning Station
This device is mainly used in smart retail and other scenarios for settling payments of products with RFID tags.When products with RFID tags are placed in the smart recognition basket, the checkout computer screen displays the product name, quantity, price, and payment information. Customers can complete batch checkout for all purchased items.Product Features:1.Supports simultaneous scanning of ≥20 items, significantly improving checkout efficiency.2.External PC/Industrial Computer Connectivity.3.Requires connection to a computer or industrial panel PC via Ethernet (RJ45) / Serial Port (RS232) for data exchange.
Identification Frame Dimensions (LWD) :
510mm*370mm*260mmRFID Protocol Standard :
ISO 18000 - 6C (EPC C1 G2)Communication Interfaces :
RS232/Ethernet Port/WiFiModel NO. :
FYJ-SHY-K5Industrial All - in - one Machine :
15 - inch Touch Screen I5 8 + 256G win10 or rk3288 8 + 64 GIdentification Method :
Radio Frequency Identification (UHF RFID)Reading Time :
0 - 3 secondsOverall Dimensions (LWH) :
855mm*635mm*820mmFrequency Range :
840MHz - 960MHz
Identification Method | Radio Frequency Identification (UHF RFID) |
Reading Time | 0 - 3 seconds |
Frequency Range | 840MHz - 960MHz |
RFID Protocol Standard | ISO 18000 - 6C (EPC C1 G2) |
Power Input | DC12V/3A |
Operating Temperature | 0 - 60℃ |
Operating Humidity | 10%RH - 90%RH |
Overall Dimensions (LWH) | 855mm*635mm*820mm |
Identification Frame Dimensions (LWD) | 510mm*370mm*260mm |
Communication Interface | RS232/Ethernet Port/WiFi |
Industrial All - in - one Machine | 15 - inch Touch Screen I5 8 + 256G win10 or rk3288 8 + 64 G |
Fixing Method | Bottom Casters |
