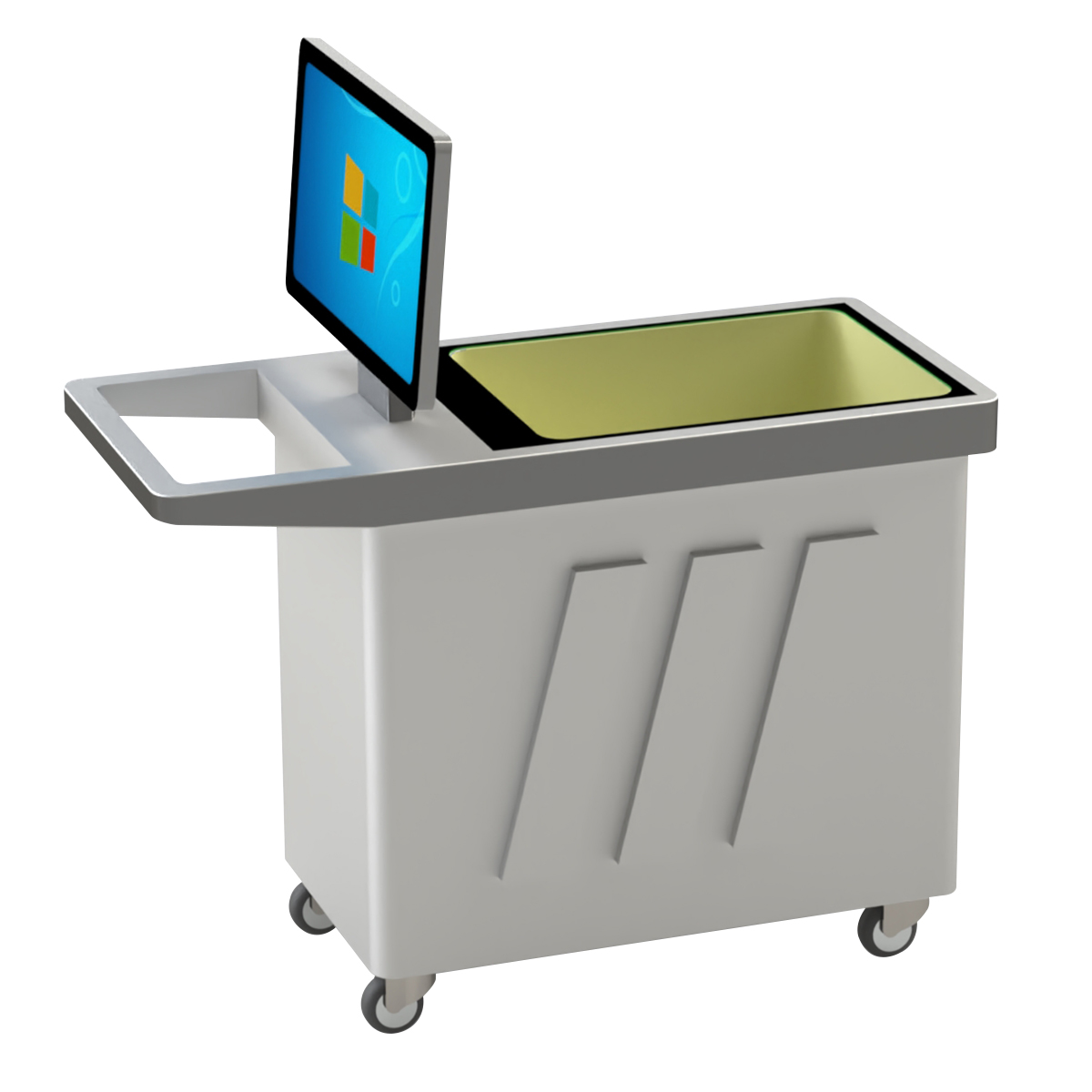

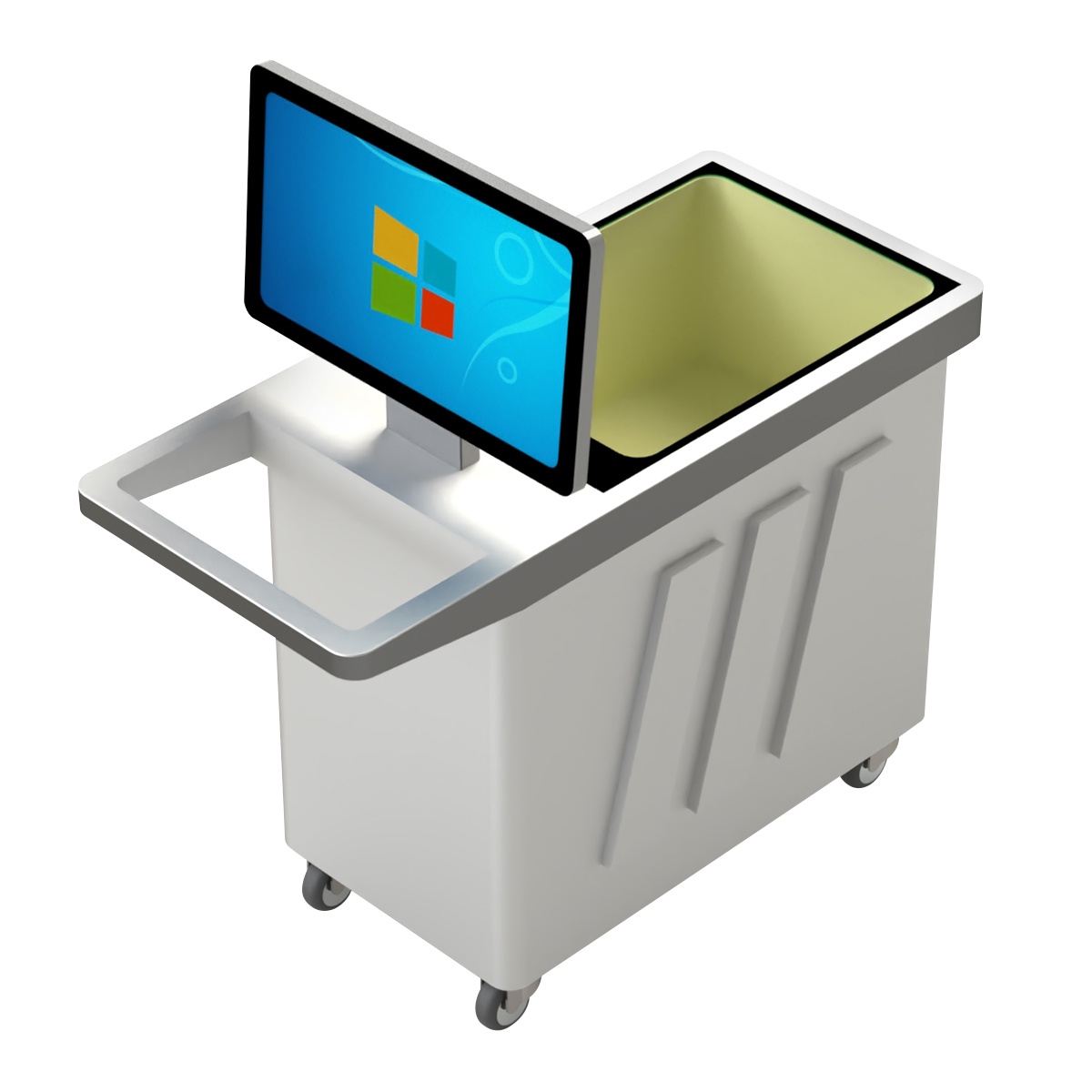

FYJ-TC-1 Intelligent Mobile Cart is a smart workstation compliant with the GB/T 29768-2013 / EPC Class 1 Gen 2 (ISO 18000-6C) protocol standards. Equipped with RFID smart identification technology, it enables mobile self-service borrowing and returning functions.
This product can be deployed in indoor environments or secure semi-outdoor open spaces, supporting inventory management, item tracking, and other operations. The device offers stable performance and features a user-friendly, efficient human-machine interface.
Identification Method :
UHF RFID Wireless IdentificationReading Time :
1 - 6 secondsOverall Dimensions (LWH) :
1023MM*453MM*1109MMFrequency Range :
840MHZ - 960MHZRFID Protocol Standard :
GB/T29768 - 2013/ISO 18000 - 6C (EPC C1 G2)Communication Interfaces :
Ethernet Port (WIFI Optional)Model NO. :
FYJ-SHY-K5Industrial All - in - one Machine :
I5,4G + 128G (RK3288, 4G + 32G Optional) WINDOWS (ANDROID Optional)
Operating System | WINDOWS (ANDROID Optional) |
Industrial All - in - one Machine | I5,4G + 128G (RK3288, 4G + 32G Optional) |
Identification Method | UHF RFID Wireless Identification |
Frequency Range | 840MHZ - 960MHZ |
Protocol Standard | GB/T29768 - 2013/ISO 18000 - 6C (EPC C1 G2) |
Identification Capability | Support Multi - tag Identification, Support Tag Data Filtering, Support RSSI |
Reading Time | 1 - 6 seconds |
Power Input | AC220V/50HZ |
Operating Temperature | 0~65℃ |
Operating Humidity | 10%RH~95%RH |
Development Support | Secondary Development SDK Package (Supported Languages: C#、C/C++、JAVA、ANDROID、PYTHON) |
Overall Dimensions (LWH) | 1023MM*453MM*1109MM |
Inner Dimensions of Identification Frame (LWD) | 510*370*260 MM |
Screen | 21 - inch Capacitive Touch Screen Industrial All - in - one Machine |
QR Code Reader | Standard Configuration |
Communication Interface | Ethernet Port (WIFI Optional) |
Permission Management | HF Card Identification (Optional: Face Recognition, Fingerprint Recognition) |
Monitoring Management | Surveillance Camera (Optional) |
