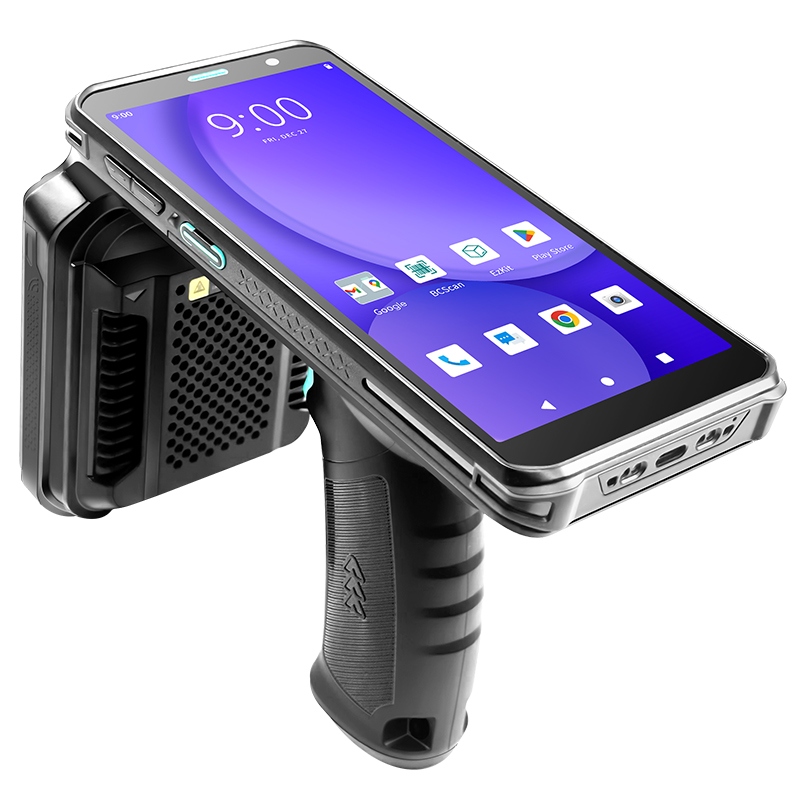

This FYJ F9826R rugged industrial UHF RFID handheld reader delivers an exceptional 15-meter reading range and rapid 1300 tags/sec capture, powered by a long-lasting 10000mAh hot-swap battery for demanding all-day inventory and asset tracking.
Model NO. :
F9826RCPU :
Qualcomm Oct-Core, 2.0GHzOperatng System :
Android 11Display :
6.0 in. Full High Definition(2160 × 1080), industrial-grade IPS displayMemory :
4GB RAM(6GB optional） 64GB ROM(128GB optional）Power :

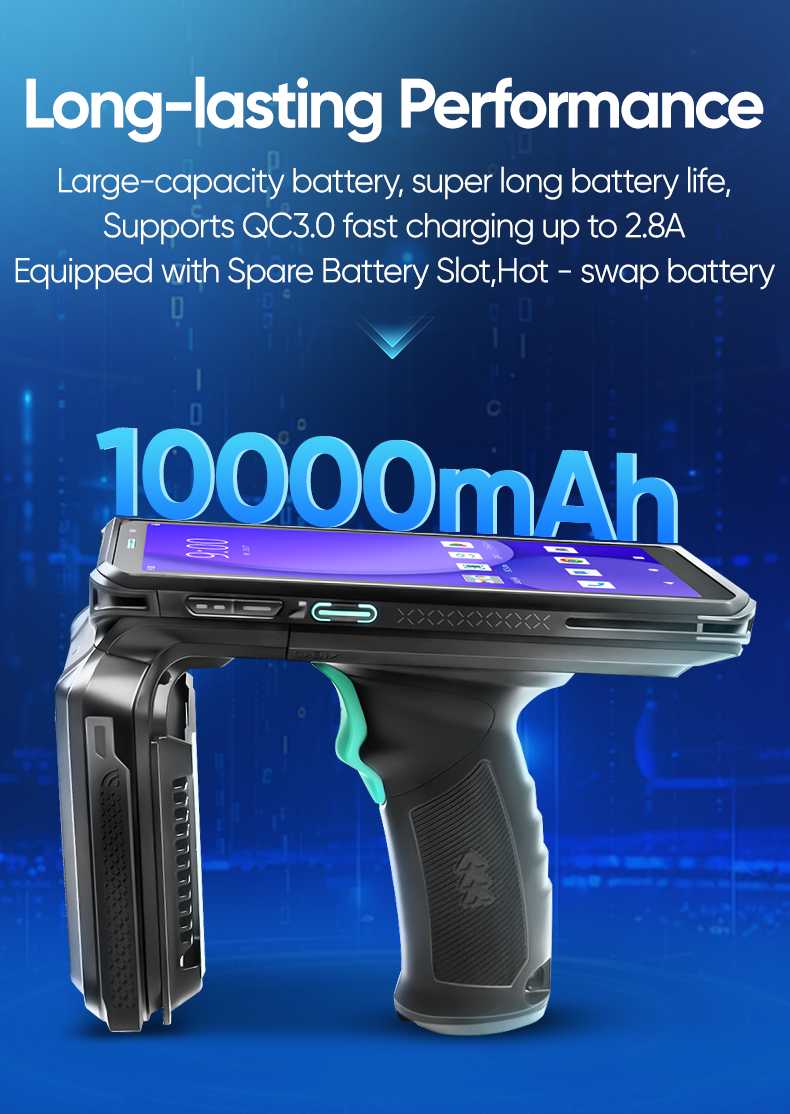

Rechargeable Lithium-ion 10000 mAh minimum (3.85V), QC3.0 fast charging (up to 2.8 A )Weight :
580g (including battery)Drop Specifications :
Can withstand multiple falls from a height of 1.2m onto a concrete floorSealing :
IP67Advantage :
Support OCR Scanning

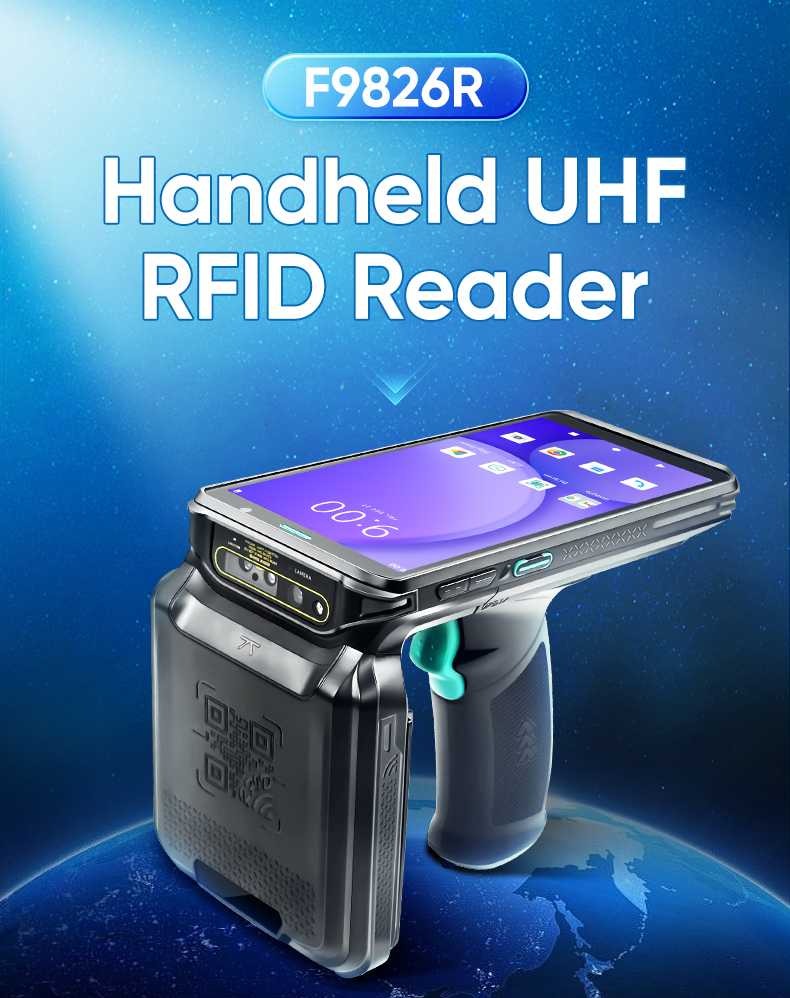

Meet the F9826R Handheld UHF RFID Reader, the powerhouse built for demanding industrial environments.
Engineered with a Qualcomm Snapdragon 8-core 2.0GHz processor and running Android 11, it delivers desktop-level performance in the palm of your hand.
Its core strength lies in the exceptional 15m ultra-long reading distance, enabling efficient asset tracking and inventory management in vast warehouses or outdoor yards without constant movement.
The rugged IP67-rated construction ensures reliability against dust, water, and accidental 1.2-meter drops onto concrete, making it the ideal rugged mobile computer for logistics, manufacturing, and field service teams who need durable, high-performance scanning on the go.
Unlock blazing-fast data capture with the F9826R's superior performance.
Driven by the advanced Qualcomm Snapdragon 8-core processor (2.0GHz) and Android 11 OS, it handles complex UHF RFID group reading at speeds up to 1300 tags per second effortlessly.
Choose between ample 4GB+64GB or upgrade to 6GB+128GB storage for extensive application and data needs.
This processing muscle translates directly to productivity: rapidly complete warehouse inventories, track high-velocity assets on production lines, or manage complex logistics operations without lag.
It's not just a reader; it's a powerful Android handheld terminal designed to keep your workforce moving at peak efficiency.

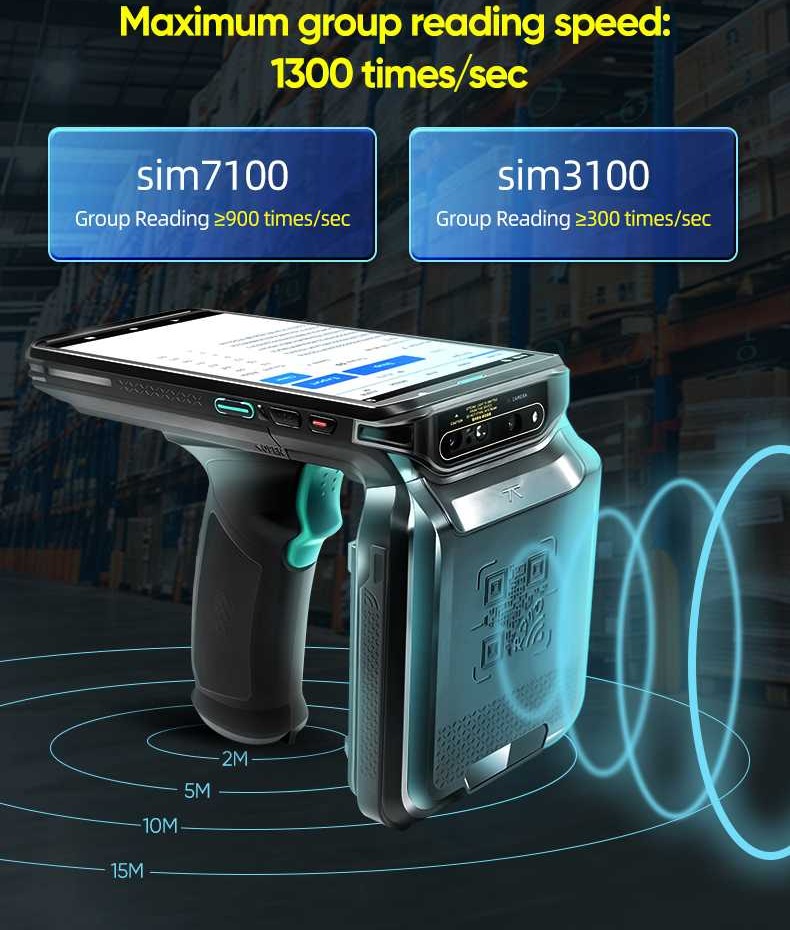

Achieve unprecedented efficiency with the F9826R's industry-leading 15-meter UHF RFID reading capability.
Utilizing a self-developed module based on the powerful Impinj E710 chipset and a high-gain 5dBi air dielectric antenna, it excels at long-range asset tracking in sprawling distribution centers, freight yards, or manufacturing plants.
Its sophisticated anti-collision algorithm enables incredibly fast group reading speeds of up to 1300 tags per second, allowing you to capture entire pallets or racks of inventory in seconds, far surpassing competitors (e.g., ≥900 tags/sec for sim7100, ≥300 for sim3100).
Maximize productivity in large-scale inventory and logistics applications where speed and distance are critical.

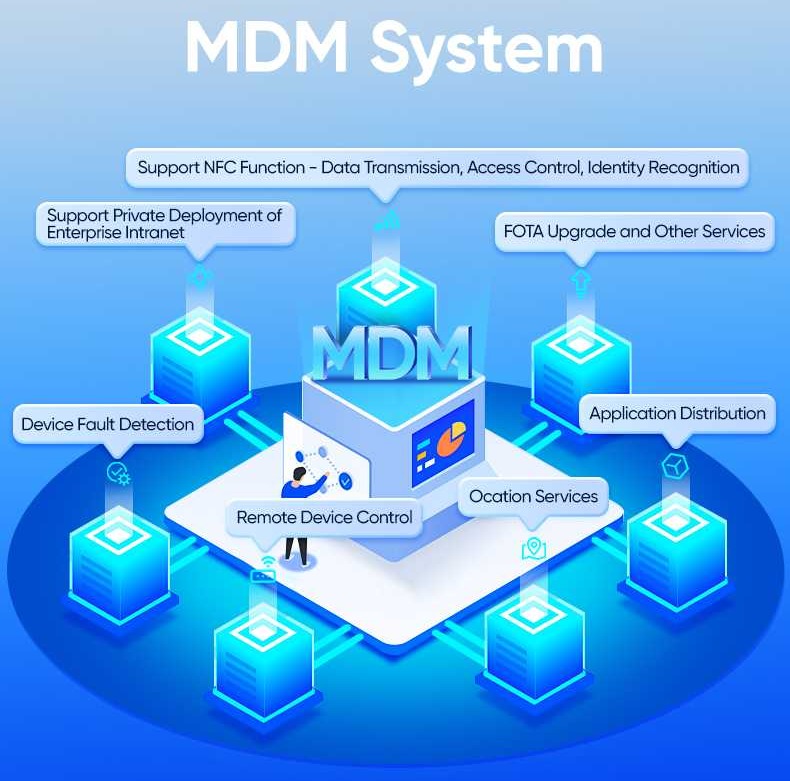

MDM & Enterprise Features
Secure and manage your fleet effortlessly with the F9826R's comprehensive enterprise features. Integrated NFC functionality enables versatile applications like secure data transmission, access control, and identity recognition. Support private deployment within your secure enterprise intranet for maximum data control. Leverage robust Mobile Device Management (MDM) capabilities for centralized control: remotely configure devices, distribute applications, perform FOTA (Firmware Over-The-Air) upgrades, monitor device health, pinpoint locations, and enforce security policies. This suite of tools is essential for IT administrators in logistics, manufacturing, or retail, enabling efficient remote device management, enhanced security compliance, and minimized downtime across your entire mobile workforce.
| Physical Characteristics | |
| Dimensions | 177. 6(H) x 77. 2 (W)x 45 (T)mm7. 0 (H) x 3. 0 (w) x1. 77(T)inch |
| Weight | 580g/20.45 oz.( battery included) |

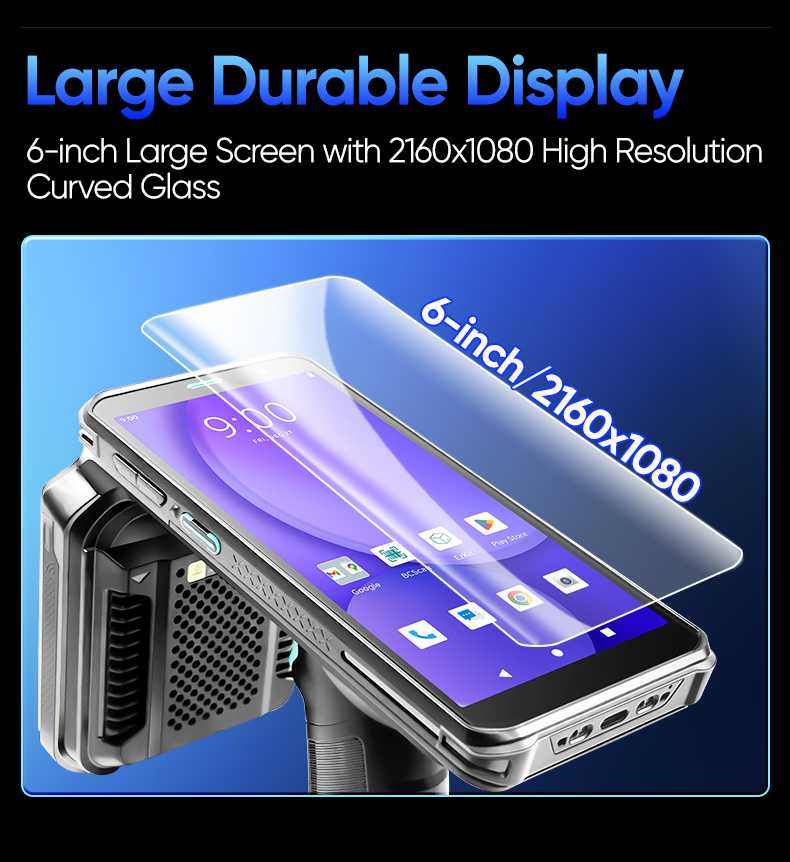

| Display | 6.0 in. Ful1 High Definition(2160x 1080),industrial-grade IPS display |
| Touch panel | Corning® Gorilla® Glass Dual-mode capacitive touch, supports stylus, ungloved finger or gloved finger input, multi-touch and wet hand operation |
| Backlight | 450 NITS, LED |
| Power | Rechargeable Lithium-ion 5000 mAh minimum (3.85V), QC3.0 fast charging (up to 2.8 A ) |
| Backup Power | backup super capacitor |
| Expansion Slot | Micro SD Card slot, up to 512GB |
| Expansion Ports | 4 Pin Bottom connection: Charging port 5V/3A, support USB communication and OTG mode |
| SIM Slots | 2 x Nano SIM, 1 x e-SIM (Optinal)，support PSAM |
| Notification | Audible tone; Multi-color LEDs; Vibration |
| Voice and Audio | Speaker（2W),, Telephone receiver, Dual microphones |
| Keypad | On-screen keypad and enterprise keyboard |
| Buttons | Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT) |
| User Environment | |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 5% to 95%，non-condensing |
| Sealing | IP67 |
| Drop Specification | Withstands multiple 1.2 meter drops to concrete |
| Tumble Specification | 300 round 0.5 meter tumbles |
| Electrostatic | +/-15 kV air discharge |
| Discharge | +/-8 kV direct discharge |
| Performance Characteristics | |
| CPU | Qualcomm Oct-Core, 2.0GHz |
| Operating System | Android 11 |
| Memory | 4GB RAM(6GB optional）64GB ROM(128GB optional） |
| Data Capture | |

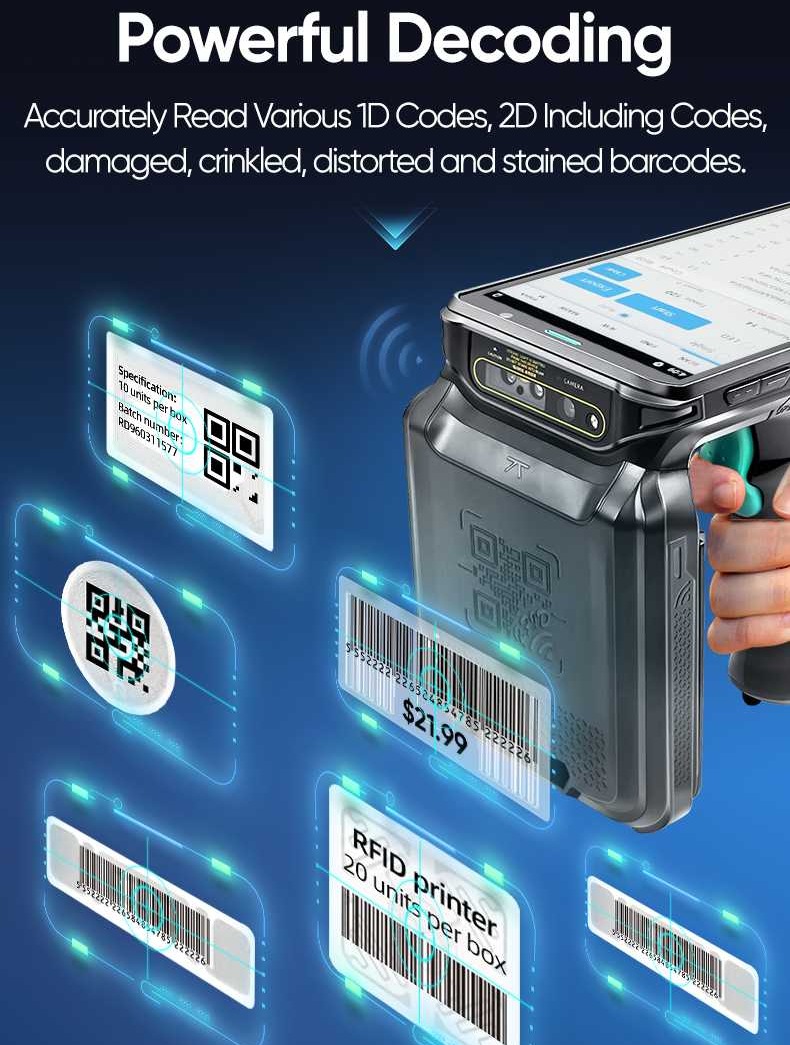

| Scanning | ME5066/SE4710/N6703/N6803etc. professional 2D scanning engine |
| Camera | Front 5 MP fixed focus; f/2.4 apertureRear 16 MP auto focus; f/1.85 aperture; Flash LED generates balanced white light; supports Torch mod |
| NFC | High RF output power; ISO15693, ISO14443A/B, MIFARE: Mifare S50, Mifare S70, Mifare UltraLight, Mifare Pro, Mifare Desfire, FeliCa Supported cards (optional） |
| Interactive Sensor Technology | |
| Standard Sensors | Proximity Sensor, Light Sensor, Accelerometer, Magnetometer, Gyroscope |
| option | fingerprint sensor |
| GPS | |
| positioning system | GPS L1 with A-GPS、Glonass、BeiDou、Galileo、QZSS、SBAS |
| Wireless WAN | |
| WAN Radio Frequecy | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30/B66) WCDMA(B1/B2/B4/B5/B6/B8/B19)TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900) |
| Wireless PAN | |
| Bluetooth | BT5.1+ BR/EDR + BLE |
| Communication Distance | >10m |
| Wireless LAN | |

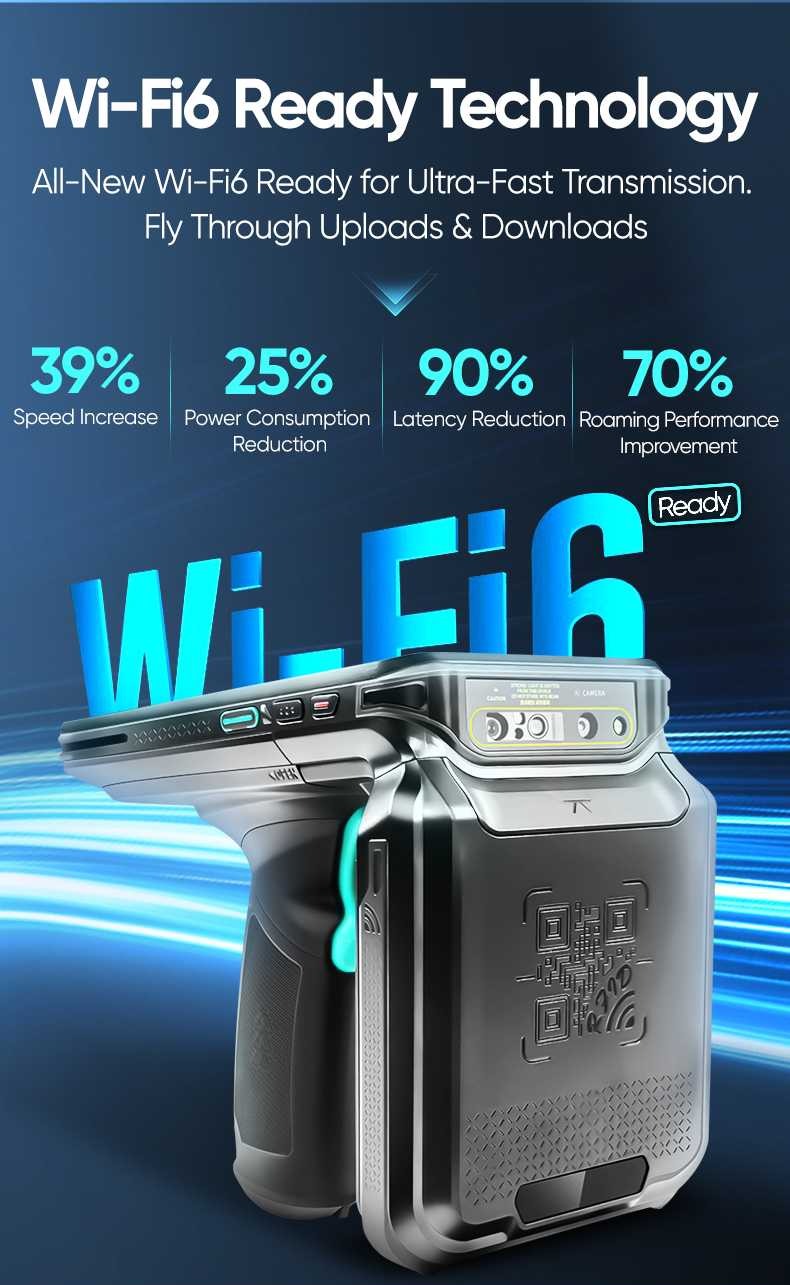

| Radio | IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w（2.4G/5G Dual Band Wi-Fi） |
| Data Rates |
5 GHz: 802.11a/n/ac — up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 200 Mbps |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK，EAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA |
| Fast Roam | Supports 802.11r Fast Roaming |
| UHF | |
| Frequency | 902-928 MHz, 865-868 MHz (optional) |
| Engine | Based on Impinj E710 |
| Protocal | EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B |
| UHF Antenna | 5dBi air dielectric antenna |
| Sensitivity | ＜ 85dBM |
| Output Power | 0 ~ 33dbm |
| Read Distance | ＞ 15m |
| Peak Inventory Speed | ＞ 700pcs/s |
| Supported Regions | China, Korea, Malaysia, JapanUS, Canada and other regions following U.S. FCCEurope and other regions following ETSI EN 302 208 |
