RFID Anti-Theft Gate

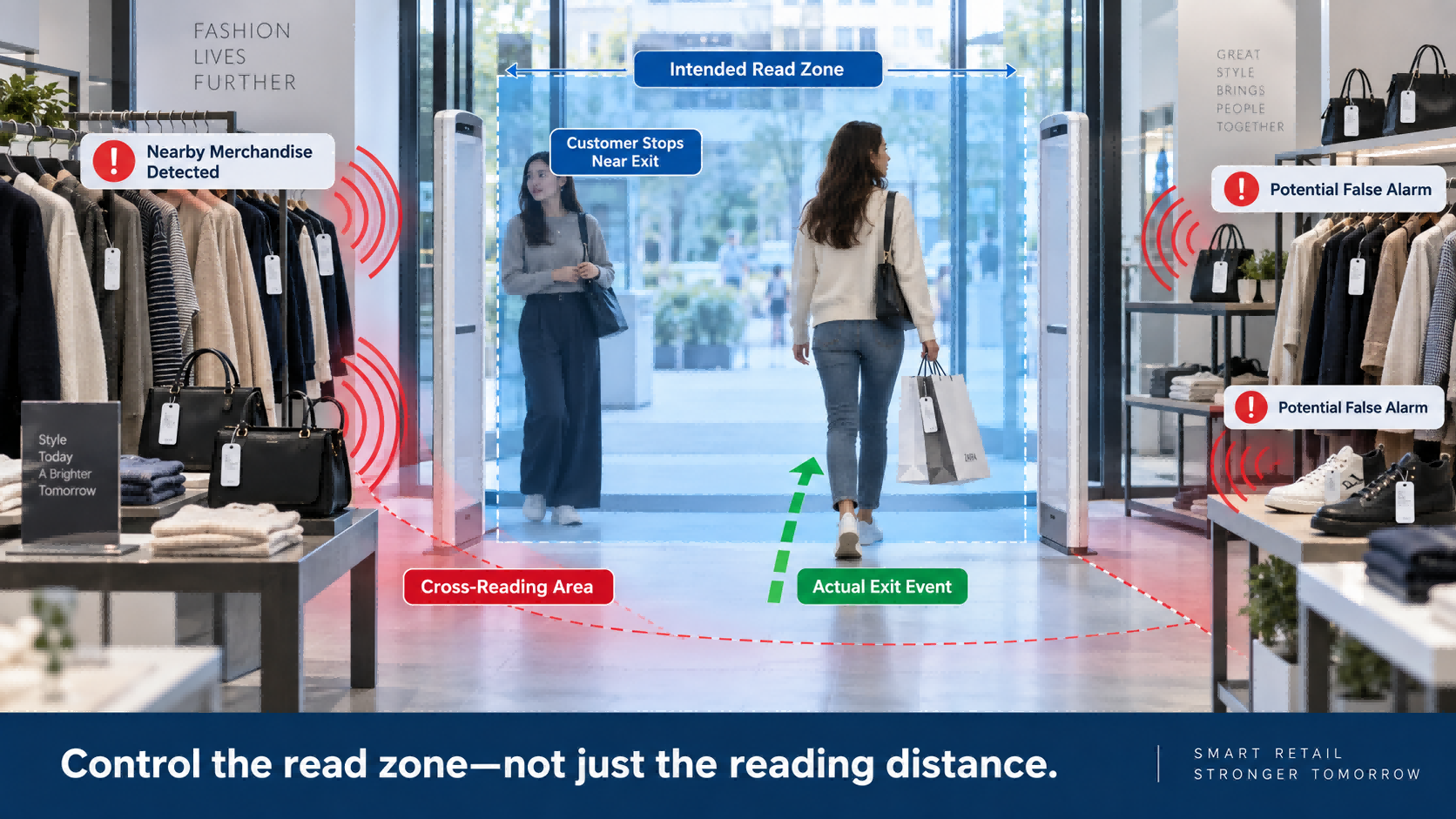

RFID gates are widely used at retail entrances and exits to monitor tagged merchandise and support loss prevention. But a gate that reads farther is not always a better gate. In retail, one of the biggest challenges is cross-reading: the RFID system detects tags near the entrance even though those products never actually leave the store. That can lead to unnecessary alarms, staff frustration, and poor customer experience. So the real question is not: How far can the RFID gate read? It is: Can the gate monitor the right area and identify the right event?   This guide explains why false alarms happen, what RFID cross-reading means, how to reduce it, and how to choose between three common retail RFID gate designs: Traditional RFID pedestal gates Ceiling-mounted RFID gates AI trajectory-recognition RFID gates   Quick Answer   RFID gate false alarms usually happen because tags outside the intended monitoring zone are also being detected. Common causes include: Merchandise too close to the entrance RF power set too high Poorly controlled read zones Store layout changes Tag placement and orientation Product materials Customers stopping or turning near the exit For most retail stores, the solution is not simply to increase reading power. A better approach is to control the read zone, test the real store environment, and choose the gate architecture that fits the entrance. For a standard retail doorway, a traditional pedestal RFID gate is often the simplest and most cost-effective option. A store that wants a cleaner, open entrance may prefer a ceiling-mounted gate. A more complex entrance with nearby merchandise or difficult movement patterns may justify trajectory-recognition technology.     Why Retail Stores Use RFID Gates   Traditional anti-theft systems mainly answer one question: Did a protected tag pass the exit? RFID gates can add another layer of information. Because RFID tags have unique IDs, the system can potentially know: Which tag was detected When it was detected Whether it matches an authorized or restricted rule Whether an alarm condition should be triggered This makes RFID useful not only for anti-theft alarms, but also for more controlled item-level event management. The value comes from combining: RFID Identification + Read-Zone Control + Alarm Logic   Why Do RFID Gates Produce False Alarms?   False alarms usually come from the interaction between the RFID gate, merchandise, store layout, tags, and system settings.   Merchandise Is Too Close to the Entrance This is one of the most common retail scenarios. A clothing rack, shoe display, or handbag shelf may be positioned close to the doorway. Those products are still inside the store, but their RFID tags may enter the reader's effective range. If the gate treats every detected tag as an exit event, false alarms become more likely.   RF Power Is Set Too High More power does not automatically mean better performance. If RF power is increased too much, the reader may detect merchandise farther inside the store. That can make the read zone much larger than the actual passage. For retail loss prevention, a controlled zone is often more useful than the longest possible read range. A good principle is: Read the passage, not the whole store.   Store Layout, Tag Placement and Product Materials Retail stores change frequently. Racks move. Promotional displays are added. Products may be placed closer to the entrance. At the same time, RFID performance can change depending on: Tag orientation Tag placement Product material Packaging Metal components Liquids or dense materials This is why an RFID gate should always be tested using the actual merchandise and tags used in the store.   What Is RFID Cross-Reading?   RFID cross-reading occurs when a reader detects tags outside the intended monitoring area. Imagine a customer walking through the exit with one tagged jacket. At the same time, five other tagged garments are hanging on a rack just inside the store. The gate should ideally identify the jacket moving through the doorway. If it also reads the five garments that never moved, cross-reading is happening. This is one of RFID's strengths and weaknesses at the same time. RFID does not require direct line-of-sight, which makes it excellent for inventory counting. But at a store entrance, the read zone has no visible physical boundary. That invisible RF boundary has to be controlled carefully.   Three Types of RFID Gates for Retail   There is no single gate design that fits every retail environment. The best choice depends on entrance width, merchandise placement, store design, and the level of movement recognition required.   Type 1: Traditional RFID Pedestal Gate A traditional RFID pedestal gate uses floor-standing units installed on one or both sides of the entrance. This is still the most common and practical RFID gate architecture for many retail stores.     Why Pedestal Gates Are Still Widely Used For a standard entrance with a stable layout and enough distance between merchandise and the doorway, a conventional pedestal gate can be: simple to understand mature in design easy to deploy cost-effective suitable for sound-and-light alarm workflows compatible with item-level RFID identification For many stores, this is all that is needed. Typical Applications Pedestal RFID gates are commonly used in: Apparel stores Footwear stores Bag and accessory stores Libraries Asset rooms Controlled exits What Needs Attention The main challenge is controlling the read zone. Deployment typically needs to consider: Entrance width Antenna position RF power Merchandise distance Tag performance Store layout If merchandise is placed too close to the gate, cross-reading risk can increase. Pedestal units also occupy floor space on both sides of the entrance, which may matter for stores that want a more open visual design.   Type 2: Ceiling-Mounted RFID Gate A ceiling-mounted RFID gate moves the reader and antenna structure above the passage. Instead of using side-mounted pedestal units, the hardware is installed overhead. Main Advantage: A Cleaner Entrance This design can be useful when: Floor space is limited Store aesthetics matter A wider open entrance is preferred Side gate panels are undesirable The physical entrance remains more open. Important Distinction Ceiling-mounted does not automatically mean AI-powered. A conventional ceiling-mounted RFID gate still depends on: Installation height Antenna coverage Entrance width RF power Tag orientation Merchandise position Onsite adjustment Ceiling-mounted describes the installation structure. It does not necessarily describe how the system understands movement.   Type 3: AI Trajectory-Recognition RFID Gate Trajectory-recognition gates add movement analysis on top of RFID detection. Instead of relying mainly on whether a tag is present in the read zone, the system analyzes how the tag moves through the monitored area. This type becomes more useful when: Merchandise is close to the entrance Customers often stop or turn near the exit Simultaneous entry and exit is common Cross-reading is difficult to control The entrance is relatively wide Repeated onsite tuning is undesirable This does not mean every store needs AI trajectory recognition. For a standard, stable entrance, a conventional pedestal gate may remain the better and more economical choice.   Traditional Pedestal vs Ceiling-Mounted vs AI RFID Gate   Feature Traditional Pedestal Gate Ceiling-Mounted Gate AI Trajectory-Recognition Gate Installation Floor-standing Ceiling-mounted Usually ceiling-mounted Floor Space Required Not required Not required RFID Detection Yes Yes Yes Sound/Light Alarm Common Model-dependent Common Entry/Exit Judgment Configuration-based Configuration-based Movement-based Onsite Tuning Usually required Usually required Usually reduced Cross-Reading Control RF zone adjustment Coverage adjustment Movement analysis Best For Standard retail entrances Open-design entrances Complex dynamic entrances   How to Reduce False Alarms and Cross-Reading   Good hardware matters, but deployment quality matters just as much. 1. Keep the Read Zone Focused Do not optimize for maximum reading distance unless the application requires it. The target should be the passage itself. 2. Avoid Excessive RF Power Too much power can make the system read merchandise that is not part of the actual exit event. Power should match the real doorway and product environment. 3. Test Merchandise Near the Entrance Do not test the gate in an empty doorway. Place products where they will actually be displayed. Then check whether nearby static tags are being detected. 4. Test Real Customer Movement Testing should include: Walking in Walking out Stopping near the doorway Turning around Moving quickly Carrying several items Passing left, center, and right A single straight-line test is not enough. 5. Use the Actual Tags and Products Testing should use the same: RFID tag tag placement merchandise packaging product materials planned for deployment. 6. Configure Appropriate Alarm Logic If the gate connects to retail software, alarm rules can become more precise. Depending on the system, the gate may use: whitelist rules blacklist rules authorization status sales status EPC filtering This is better than treating every RFID read as the same event.   Common RFID Gate Selection Mistakes   A large number of RFID gate problems begin before installation. They begin during product selection. Mistake 1: Choosing by Maximum Read Distance A longer reading range sounds attractive, but for retail loss prevention it can increase cross-reading. The best gate is not the one that reads the farthest. It is the one that reads the correct zone.   Mistake 2: Ignoring Merchandise Placement If clothing racks or product displays are close to the entrance, this should be considered before the gate is selected. Do not assume the store layout will remain empty around the doorway.   Mistake 3: Testing Only One Tag A single tag in an open doorway does not represent a real retail environment. Test multiple items, real products, different tag orientations, and real customer movement.   Mistake 4: Forgetting Software Integration The gate may detect a tag correctly, but the alarm logic still depends on what the system knows about that tag. If the project requires: paid vs unpaid status authorized vs restricted items whitelist / blacklist logic then software integration should be considered early.   Mistake 5: Assuming the Most Advanced Gate Is Always Better A standard pedestal gate may be completely suitable for a normal store entrance. Do not add complexity where it is not needed. The right gate is the one that matches the environment and workflow.   Which RFID Gate Is Right for Your Store?   Choose a Traditional Pedestal RFID Gate If: The entrance is standard in width Floor-standing hardware is acceptable Merchandise can stay a reasonable distance from the gate The store layout is relatively stable Cost and mature deployment matter For many retail stores, this is the best starting point.   Choose a Ceiling-Mounted RFID Gate If: You want a visually open entrance Floor space is limited Side gate panels are undesirable Store appearance is important The key question is whether the RF monitoring zone can still be controlled reliably.   Consider a Trajectory-Recognition Gate If: Merchandise is close to the entrance Customers frequently stop or turn near the exit Cross-reading remains difficult after normal tuning The entrance is wide Simultaneous entry and exit happens often The project needs less repeated onsite adjustment This is where movement-based recognition provides more value.   How Far Should Merchandise Be from an RFID Gate?   There is no universal distance. The correct distance depends on: Antenna design RF power Tag type Tag orientation Product material Entrance width Gate architecture Store layout The right distance should be confirmed through real onsite testing. This is also why blindly copying another store's RFID gate settings is not recommended. Two entrances that look similar may perform differently.   Do RFID Gates Need Retail Software Integration?   Not every project requires deep integration. But if the store wants the gate to make more intelligent decisions, software becomes important. A typical workflow may look like: RFID Gate Detects Tag → System Checks Tag Status → Authorized or Restricted? → Record Event / Trigger Alarm For simple anti-theft applications, the configuration may remain relatively basic. For stores that want paid/unpaid status, detailed event records, or more advanced alarm rules, software integration becomes more important.   Questions to Ask Before Buying an RFID Gate   Before comparing products, clarify: 1. How wide is the entrance? 2. How close is merchandise to the doorway? 3. What RFID tags will be used? 4. Which products are being tagged? 5. Is sound and light alarm required? 6. Is whitelist or blacklist logic required? 7. Do you need entry and exit direction recognition? 8. Is floor-standing hardware acceptable? 9. Does the gate need to connect with POS or retail software? 10. How much onsite tuning is acceptable? 11. Does the store layout change frequently? 12. Will multiple tagged items pass at the same time? These questions are usually more useful than simply comparing maximum reading range.   FYJ RFID Gate Options   FYJ provides different RFID gate architectures for retail and controlled-entry applications, including: Traditional RFID pedestal gates Ceiling-mounted RFID gates AI trajectory-recognition RFID gates The appropriate configuration depends on: entrance width product placement tag type alarm requirements store layout software integration expected movement patterns For many standard retail entrances, a conventional pedestal RFID gate remains a practical and economical choice. More complex environments may benefit from ceiling-mounted or trajectory-recognition designs. The goal is not to use the most advanced gate. It is to use the gate that best matches the real entrance.   FAQ   What causes RFID gate false alarms? Common causes include nearby merchandise, oversized read zones, excessive RF power, changing store layouts, tag orientation, product materials, and cross-reading outside the intended passage. What is RFID cross-reading? RFID cross-reading happens when the reader detects tags outside the area it is supposed to monitor. How can RFID cross-reading be reduced? Typical methods include reducing RF power, controlling antenna coverage, testing merchandise near the entrance, using appropriate tags, and choosing a gate architecture that matches the store. What is the difference between a pedestal and ceiling-mounted RFID gate? A pedestal gate uses floor-standing units on the sides of the entrance. A ceiling-mounted gate installs RFID hardware above the passage and keeps the floor area open. Is every ceiling-mounted RFID gate AI-powered? No. Ceiling-mounted refers to installation structure. AI trajectory-recognition adds movement analysis on top of RFID detection. Do RFID gates require onsite tuning? Many conventional RFID gates require onsite adjustment of RF power, antenna coverage, and read zones. The amount of tuning depends on the hardware and environment. Can RFID gates identify unpaid merchandise? The RFID gate can identify individual tags. Determining whether an item is unpaid depends on the system's alarm logic and integration with retail or POS software. How far should merchandise be from an RFID gate? There is no fixed distance that works for every store. It should be determined through testing using the actual gate, tags, products, and entrance layout.   Conclusion   RFID loss prevention is not mainly about how far a gate can read. It is about controlling where the system reads and deciding which events matter. For a standard retail entrance, a traditional pedestal RFID gate may be the simplest and most economical choice. For stores that need a cleaner, more open entrance, ceiling-mounted RFID gates offer another option. For more complex environments with nearby merchandise, wide passages, or difficult movement patterns, trajectory-recognition gates can add another layer of control. Start with the entrance. Look at merchandise placement, customer movement, tag type, alarm requirements, and software integration. Then choose the RFID gate. Not the other way around.
