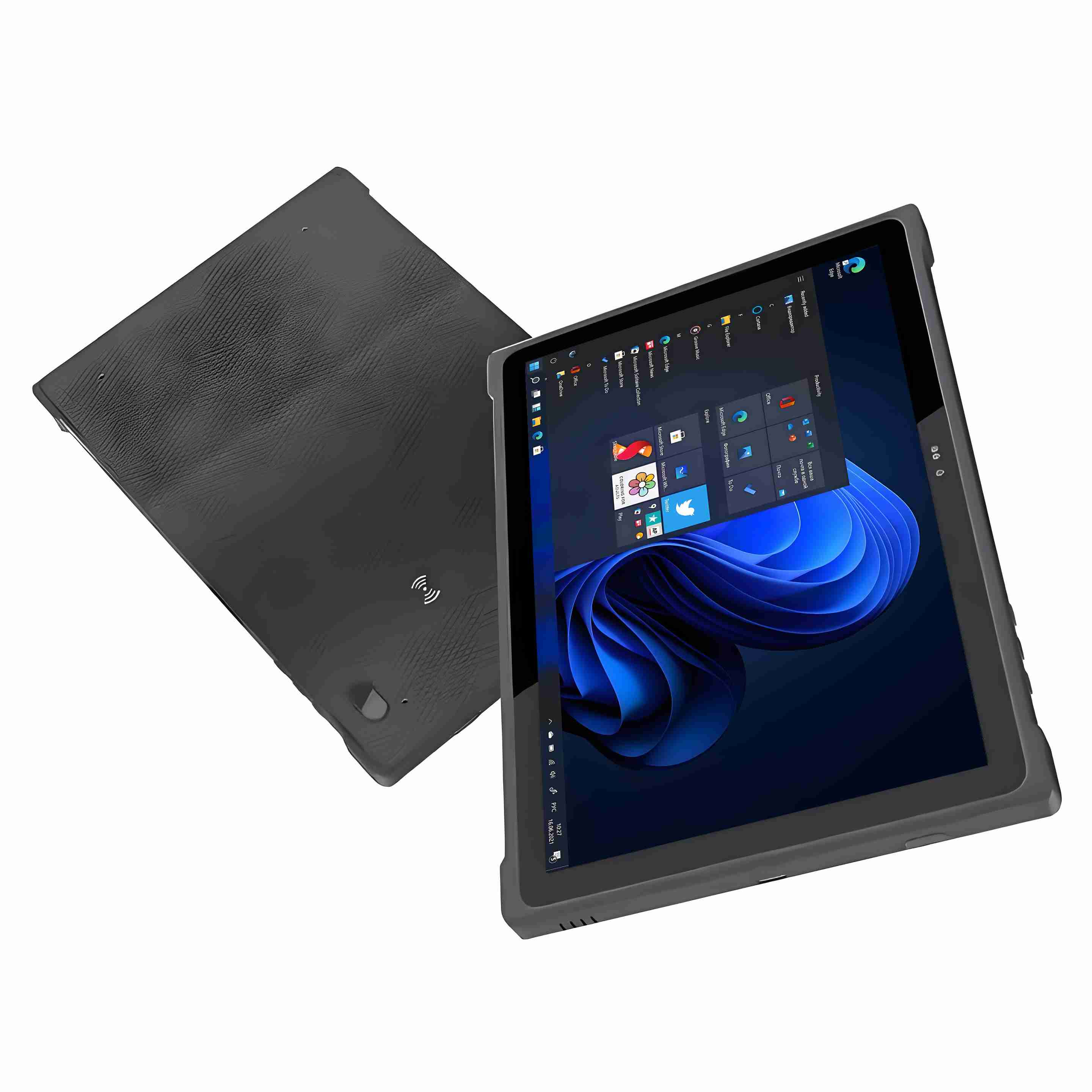

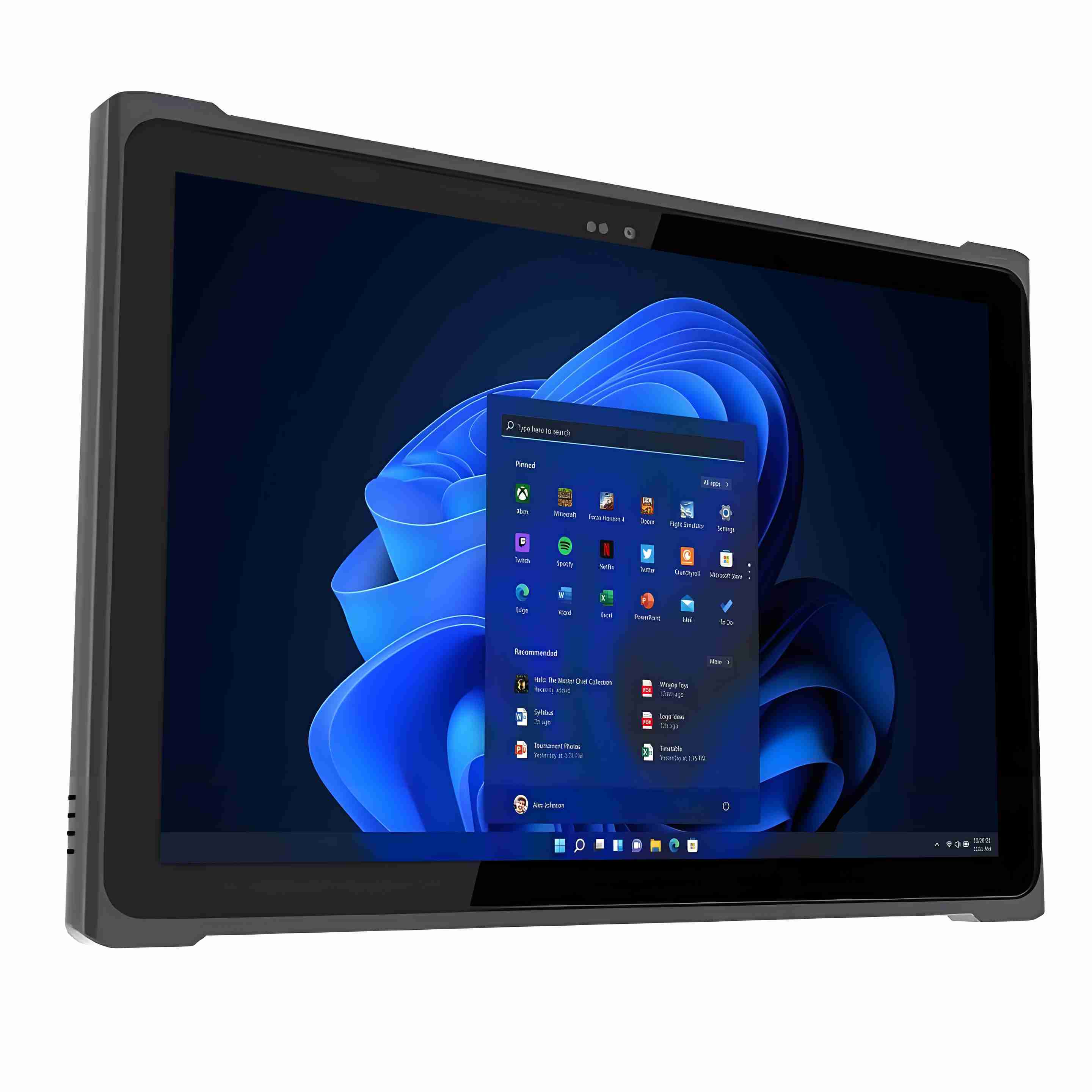

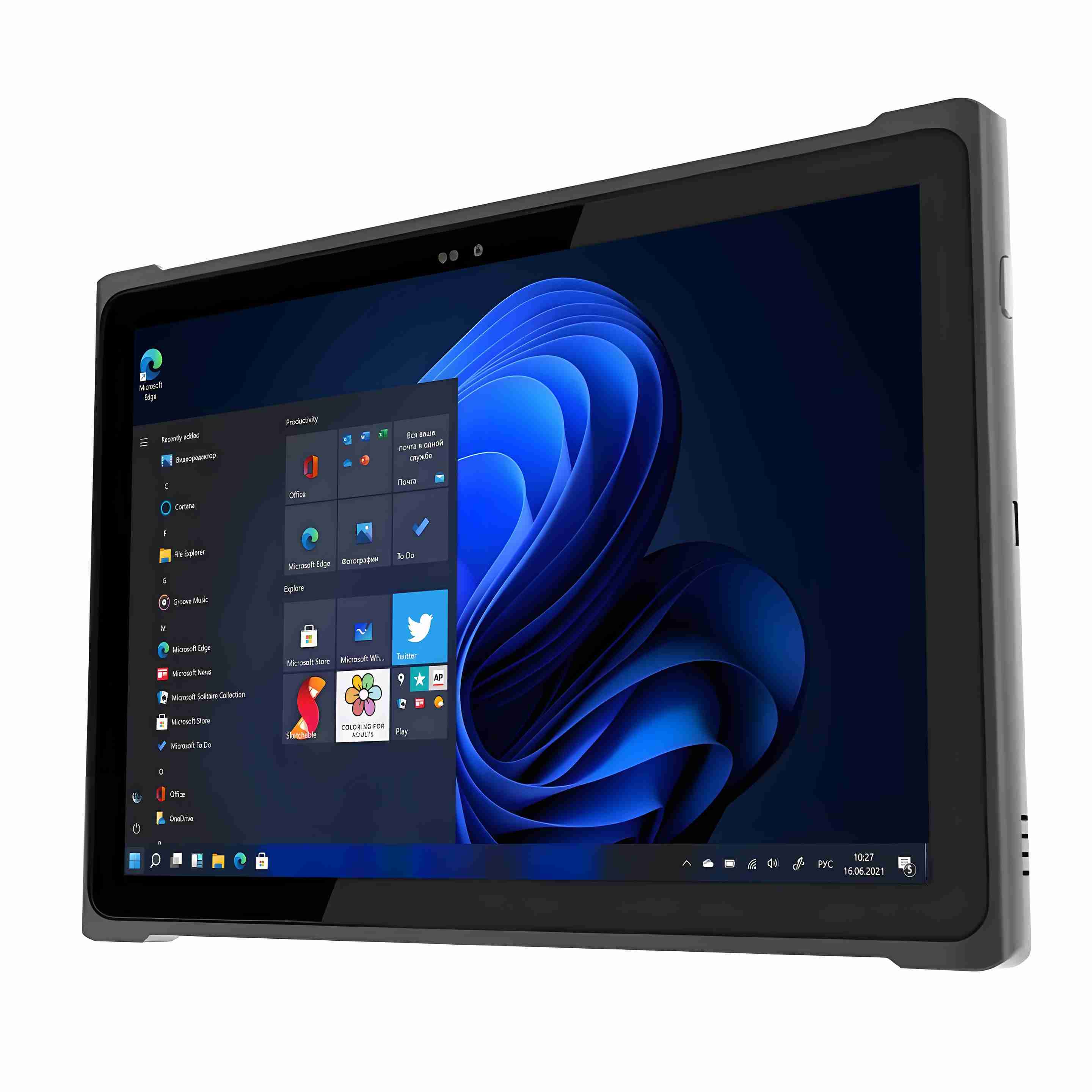

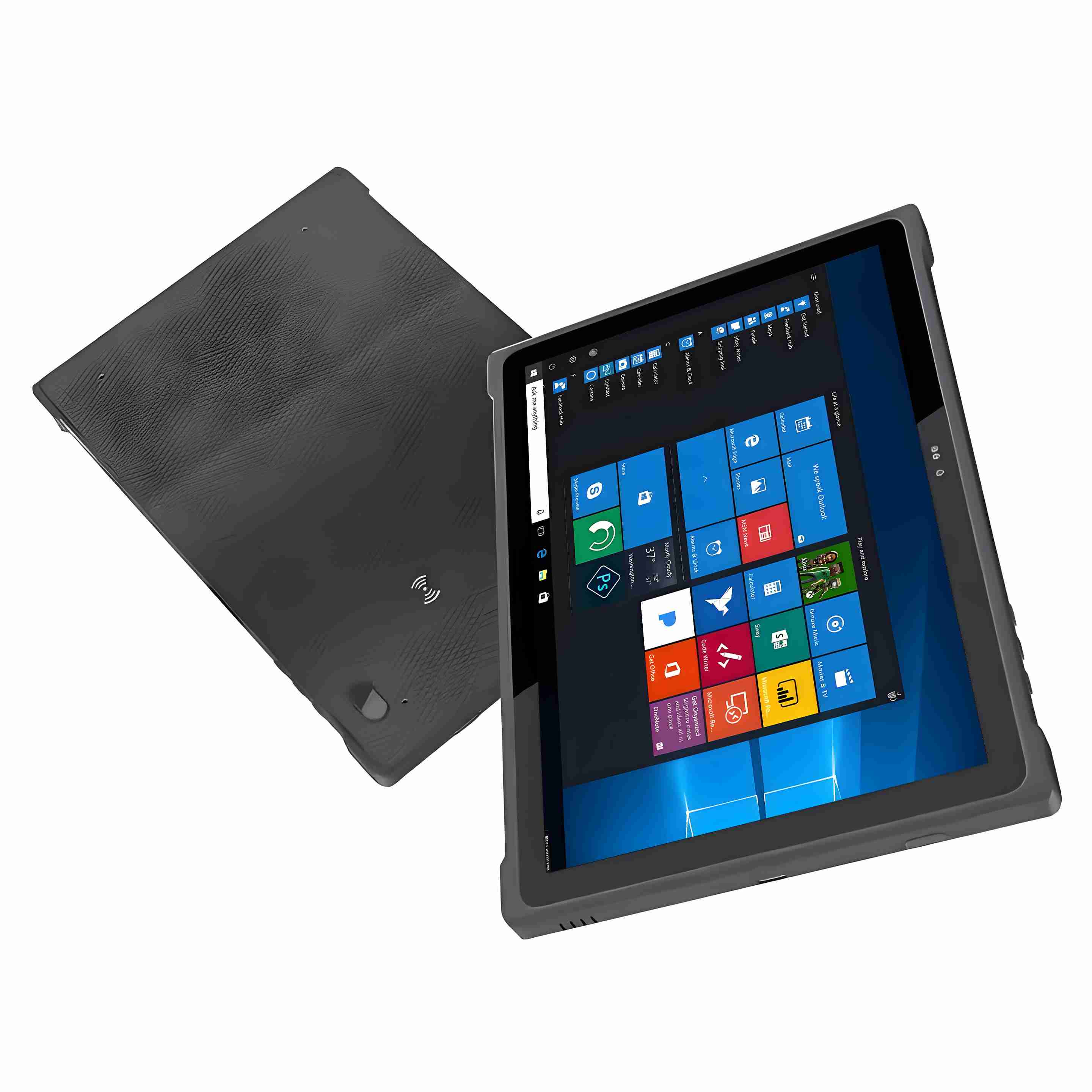

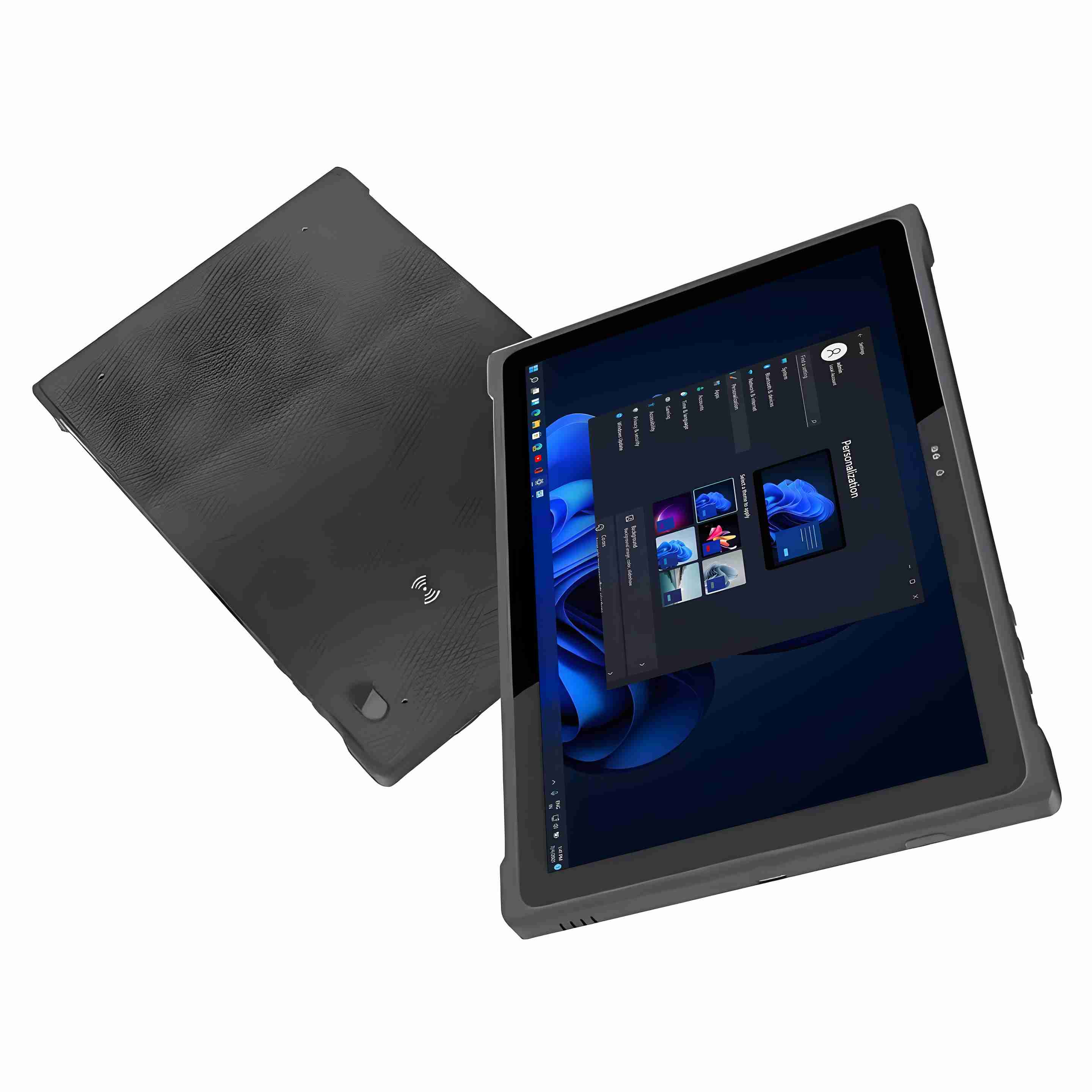

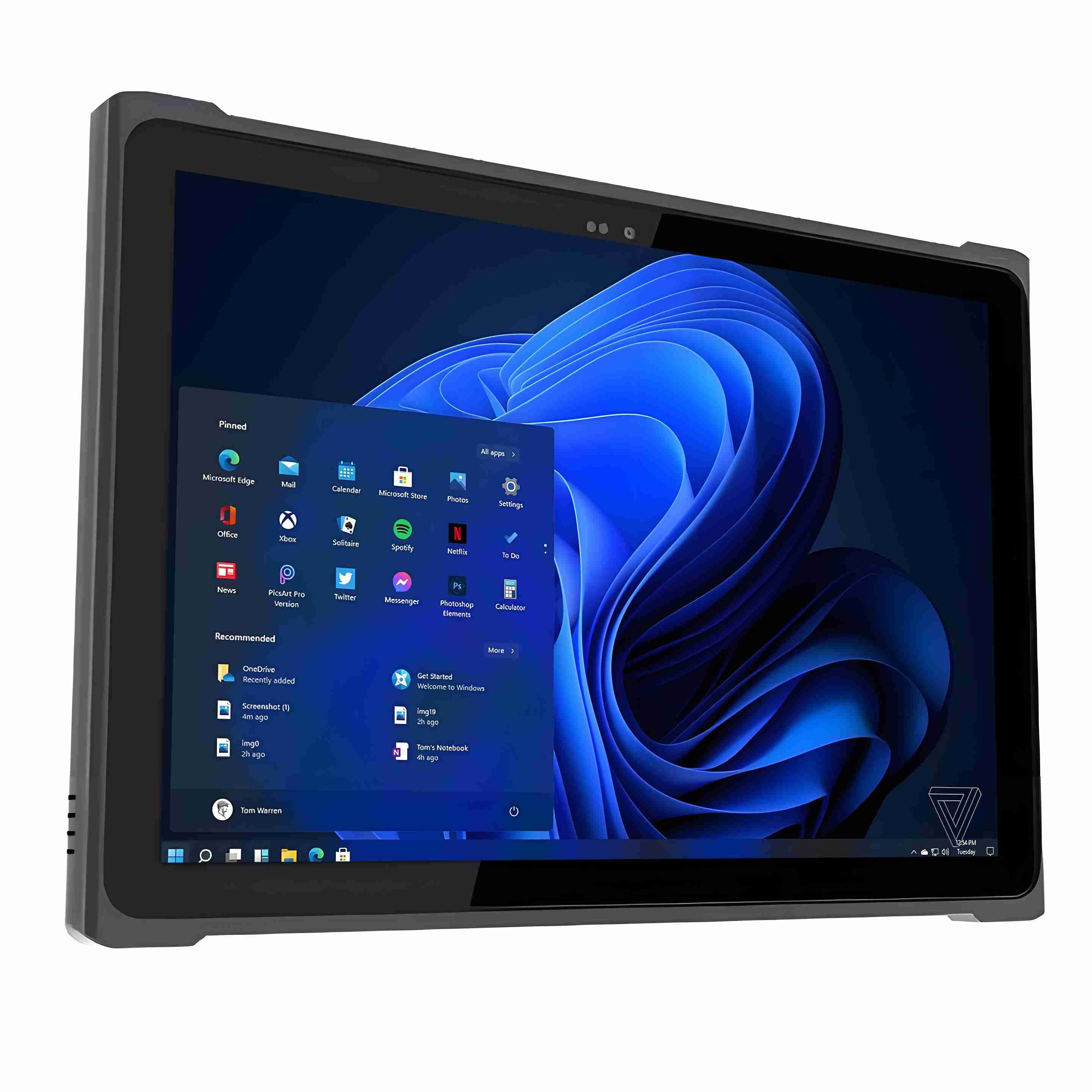

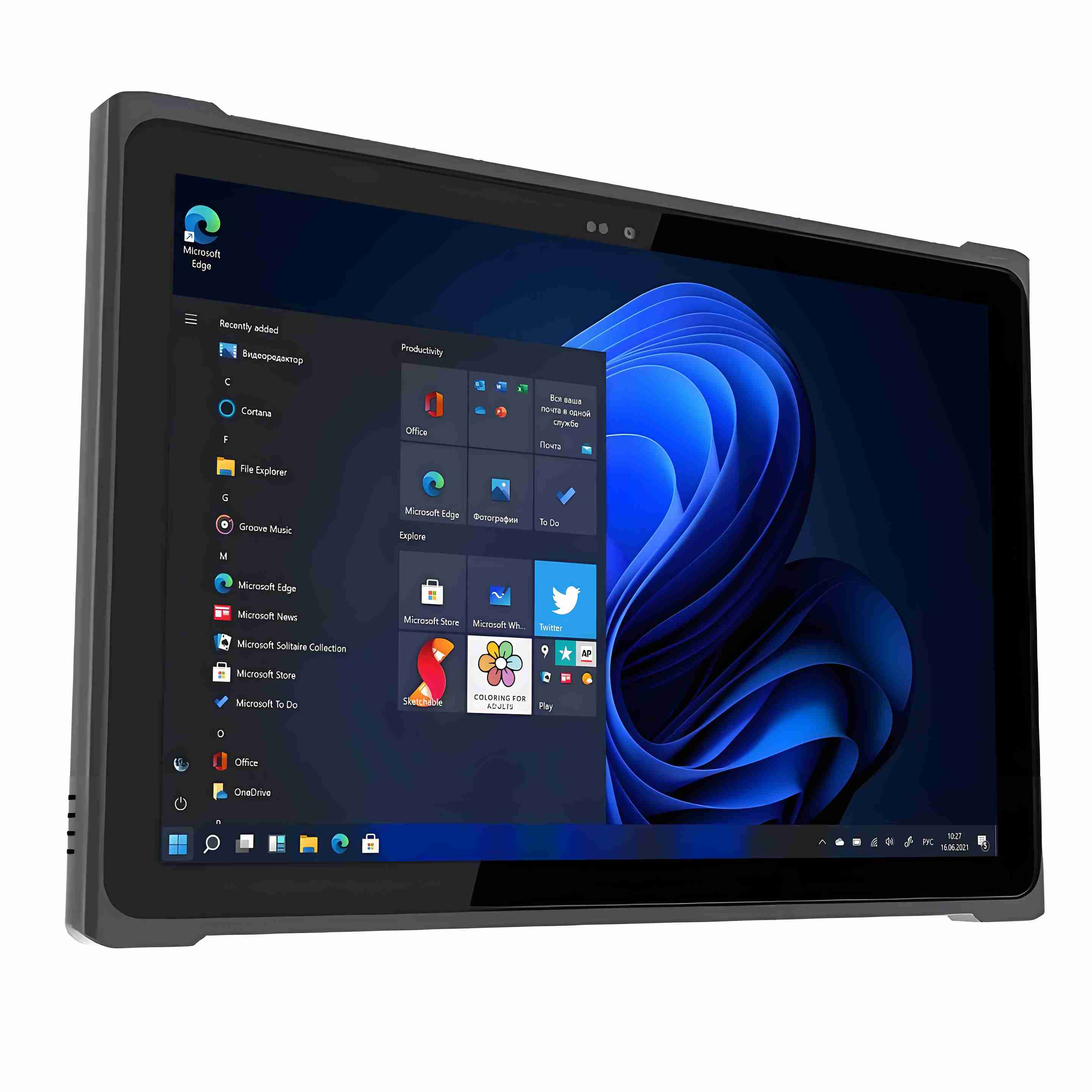

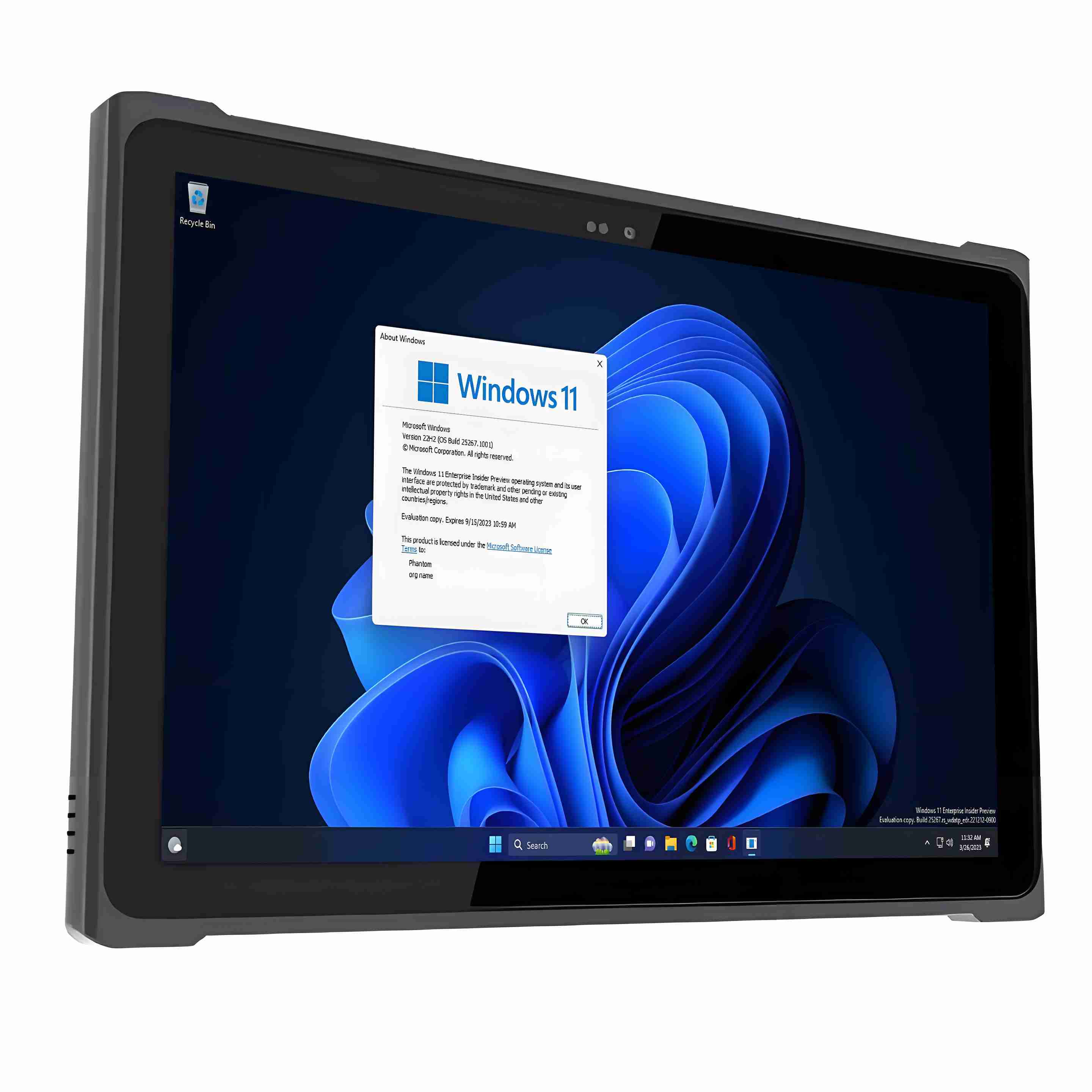

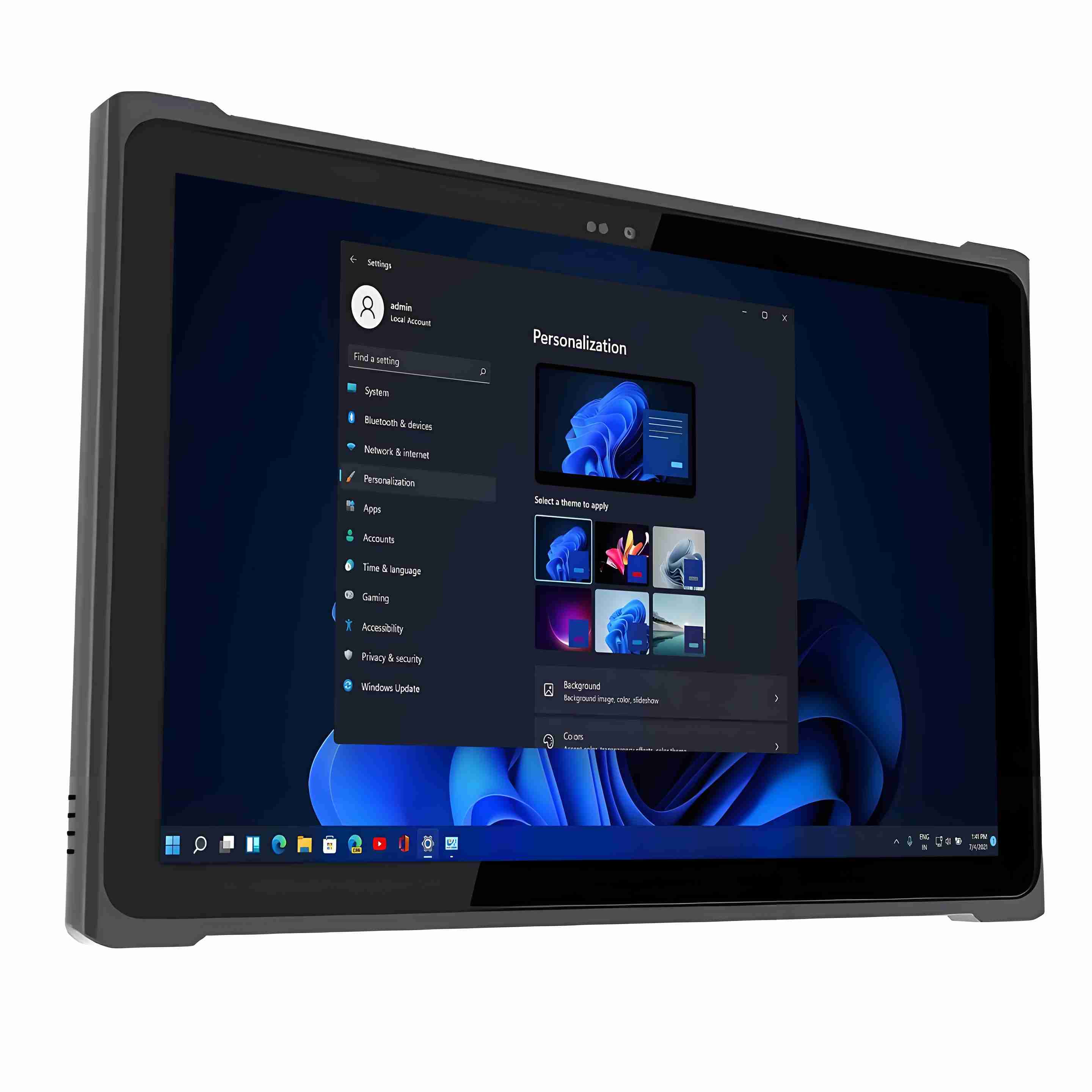

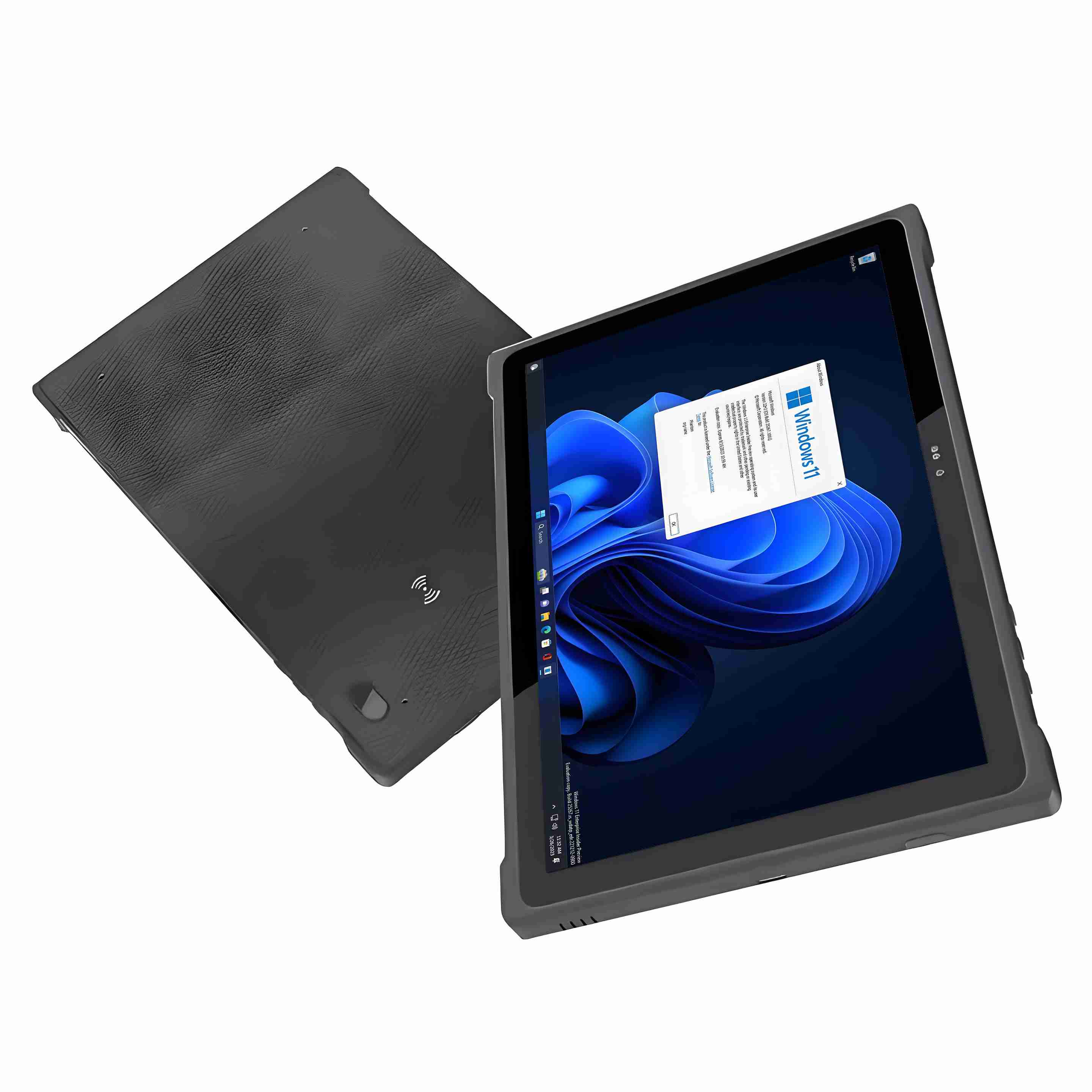

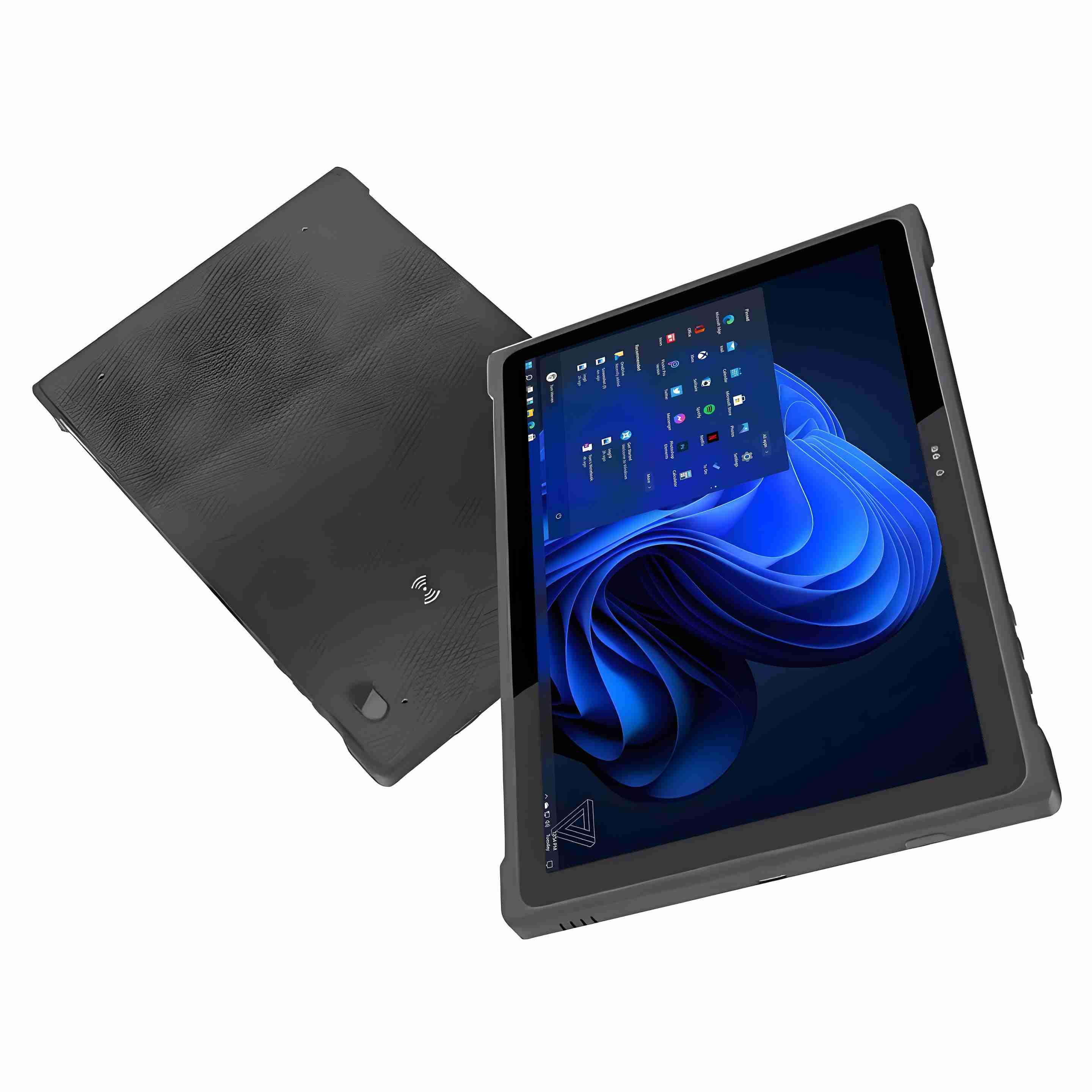

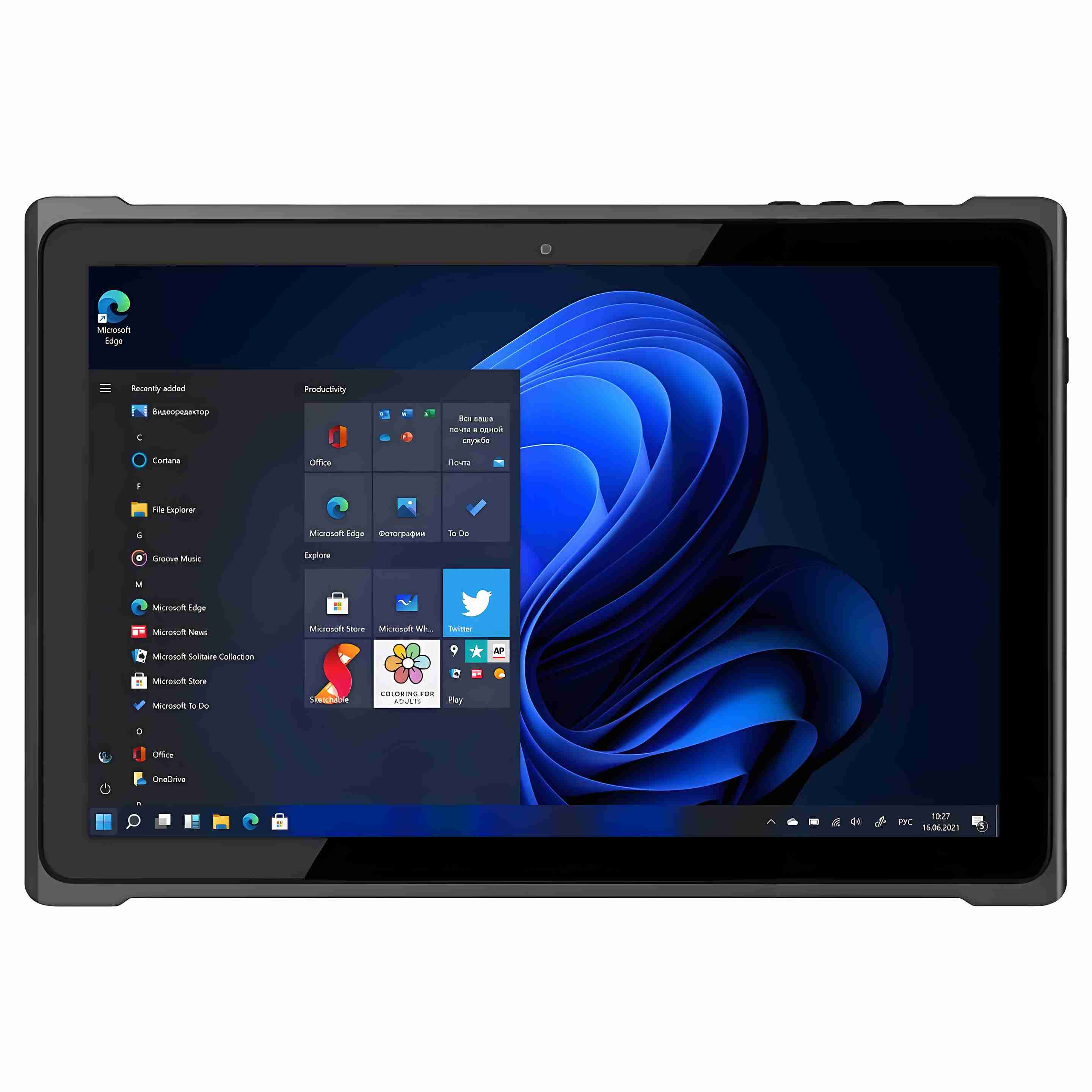

The 10.1-inch Rugged Tablet PDA is a flagship mobile workstation that perfectly balances ultra-lightweight portability (only 700g) with industrial-grade durability. Powered by the Qualcomm Snapdragon 7c processor and Windows 11 Pro, it delivers seamless multitasking for complex enterprise applications. Equipped with a built-in professional 1D/2D barcode scanner, IP65 water/dust resistance, and a 4750mAh fast-charging battery, this versatile tablet is engineered to maximize productivity across warehousing, logistics, healthcare, and outdoor field services.
Model NO. :
F9837CPU :
Qualcomm SC7180 OCTA core; 2x high-performance Kryo 2.4GHz, 256KB L2; 6x low-power Kryo 1.8GHz, 64KB L2Operatng System :
Windows 11 ProDisplay :
Type: IPS;Size: 10.1 inch 16:10 ;Resolution: 1200*1920;Brightness: 400cd/㎡Memory :
RAM 8GB LPDDR4X ; ROM 128GBPower :
Built-in Li-polyment Battery 4750mAh/7.6V 11 hours ( 50% volume sounds, LCD 50% brightness, 1080P HD video display by default )Weight :
700gDrop Specifications :
1MSealing :
IP65Advantage :
Support OCR Scanning
Power: Qualcomm Snapdragon 7c + Windows 11 OS for complex tasks.
Portable: Ultra-lightweight (700g) for easy mobility.
Rugged: Built for tough environments (construction, warehouse, field).
Productive: Keeps mobile teams connected and efficient.

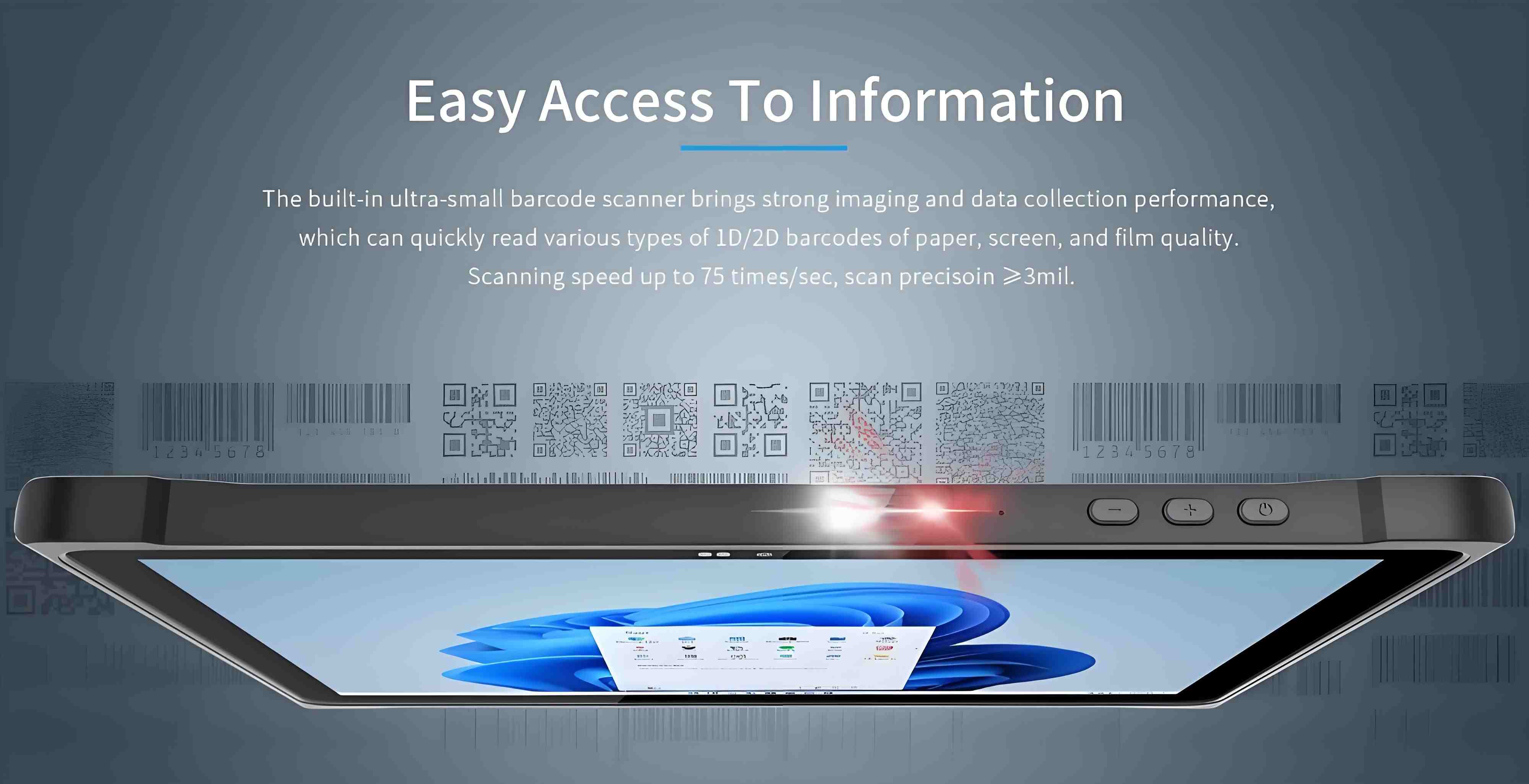

The built-in ultra-small barcode scanner brings strong imaging and data collection performance,which can quickly read various types of 1D/2D barcodes of paper,screen, and film quality.Scanning speed up to 75 times/sec, scan precisoin 3mil.

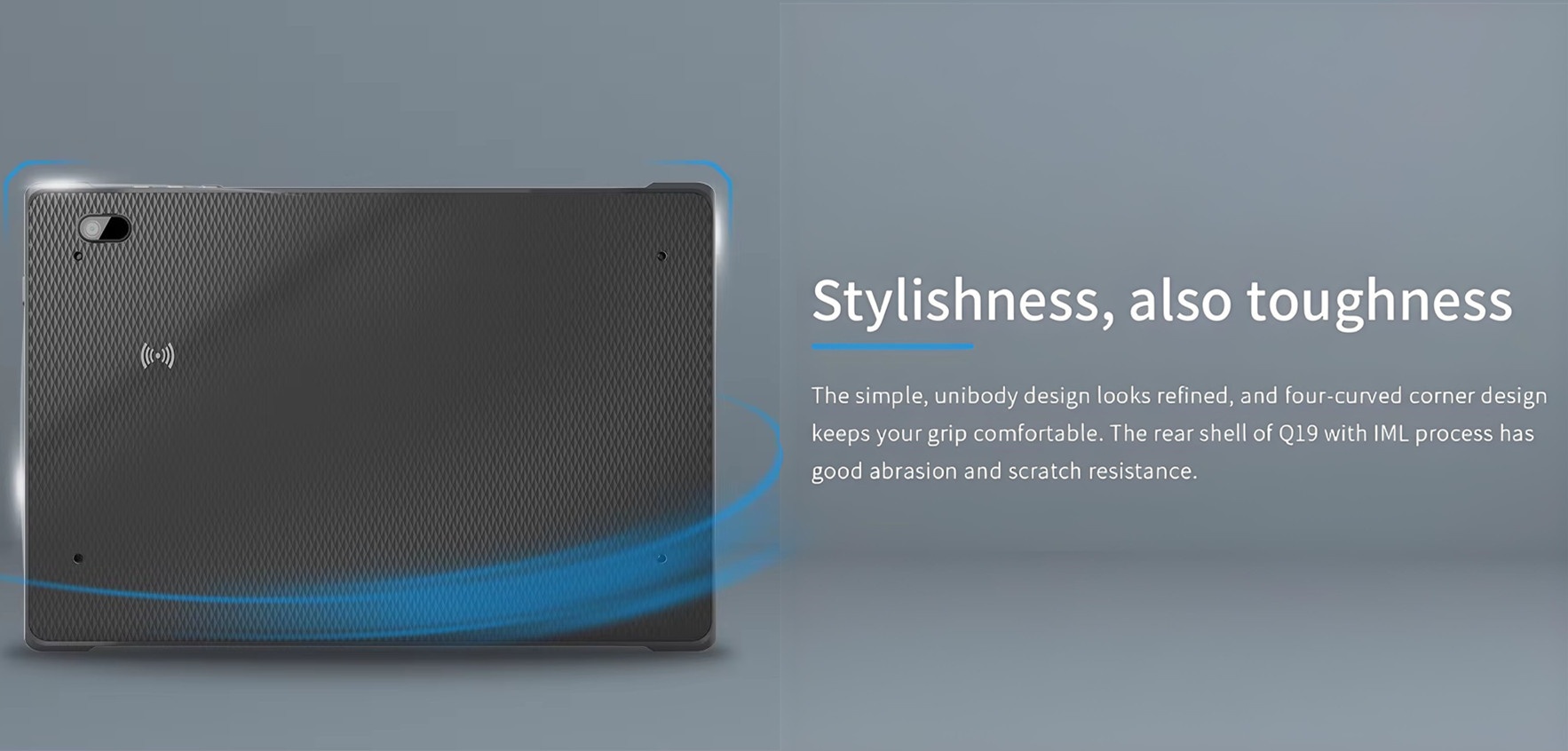

Unibody Design: Four-curved corners for secure, ergonomic grip.
Scratch-Resistant: IML-processed rear shell for harsh environments.
Durable & Stylish: Withstands daily wear while maintaining a professional look.

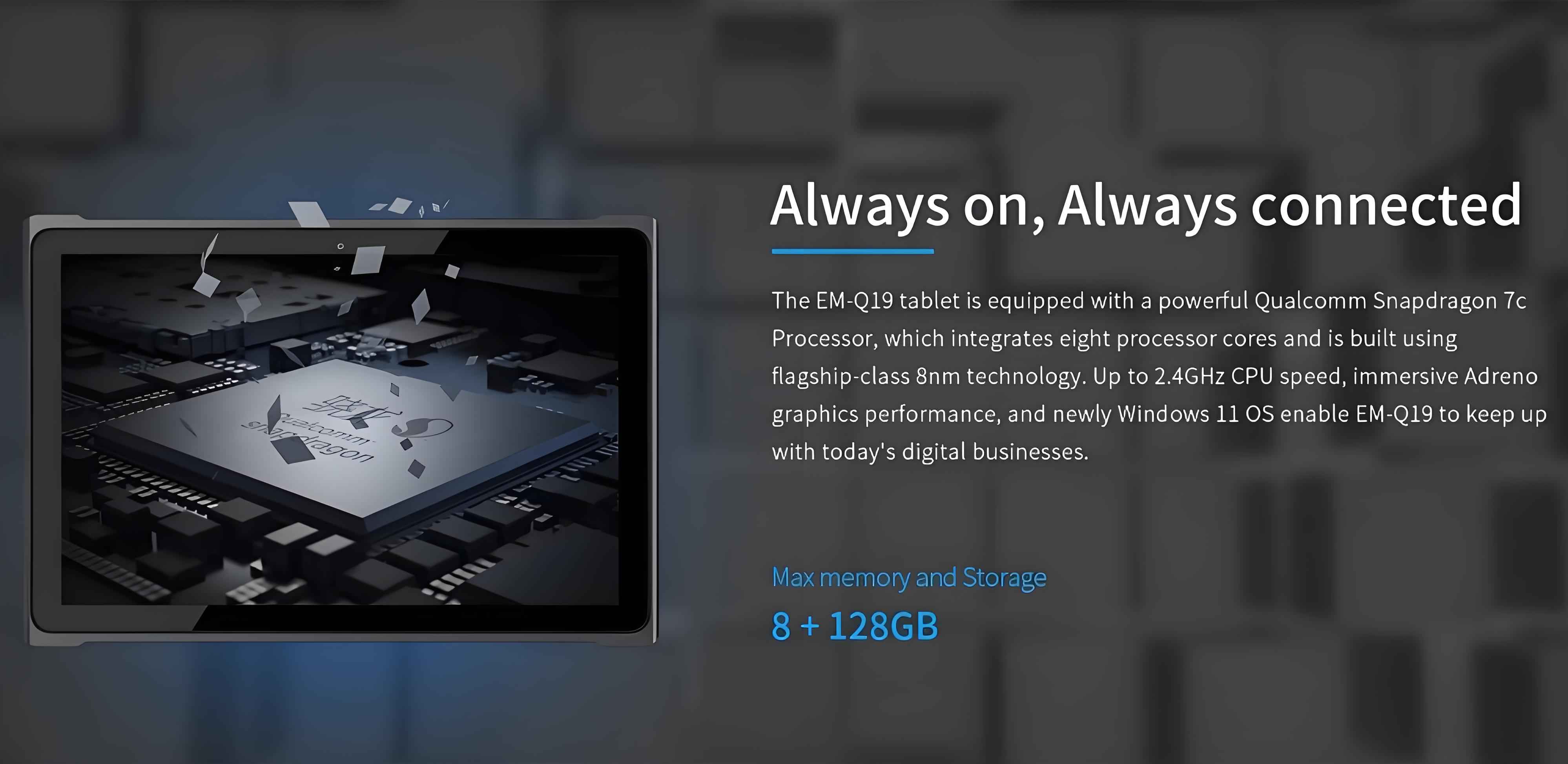

Always connected: Dual-band Wi-Fi 802.11ad ensures smooth video conferencing and real-time collaboration.
High-Performance: 8-core Snapdragon 7c chip (2.4GHz, 8nm) + 8GB RAM + 128GB storage for fast app launches and data processing.
Productivity Engineered: Adapts to high-intensity business tasks like inventory management and remote diagnostics.
Flagship Graphics: Supports Adreno GPU for smooth visuals and demanding applications.

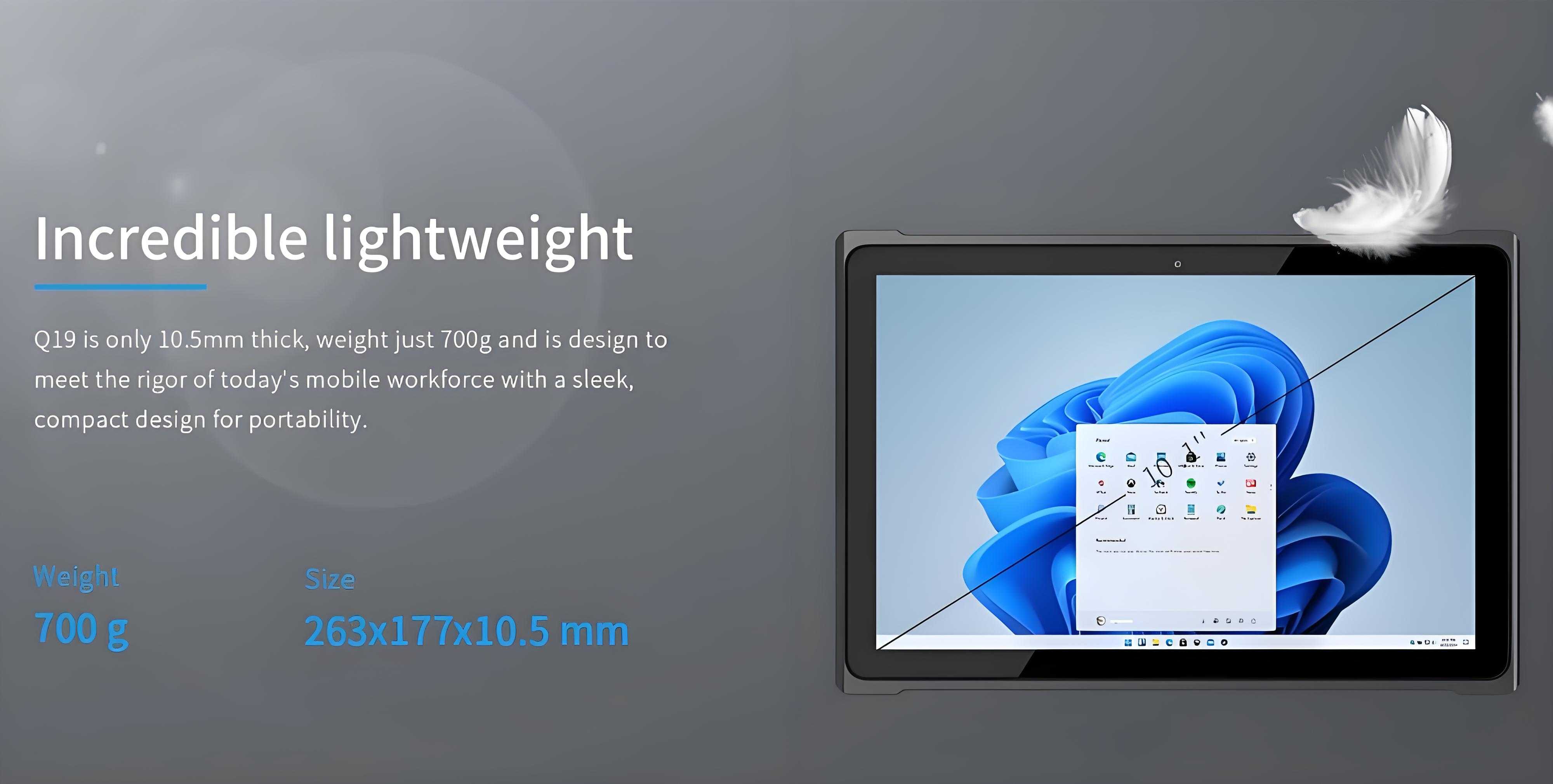

Extremely Portable: Weighs only 700g with a slim 10.5mm profile (263x177x10.5mm).
Designed for Mobility: Easily fits in toolkits or backpacks for field use.
Durability & Comfort: Rugged build ensures reliability during extended use and travel.
Ideal For: Technicians, delivery drivers, healthcare workers, and other mobile professionals.

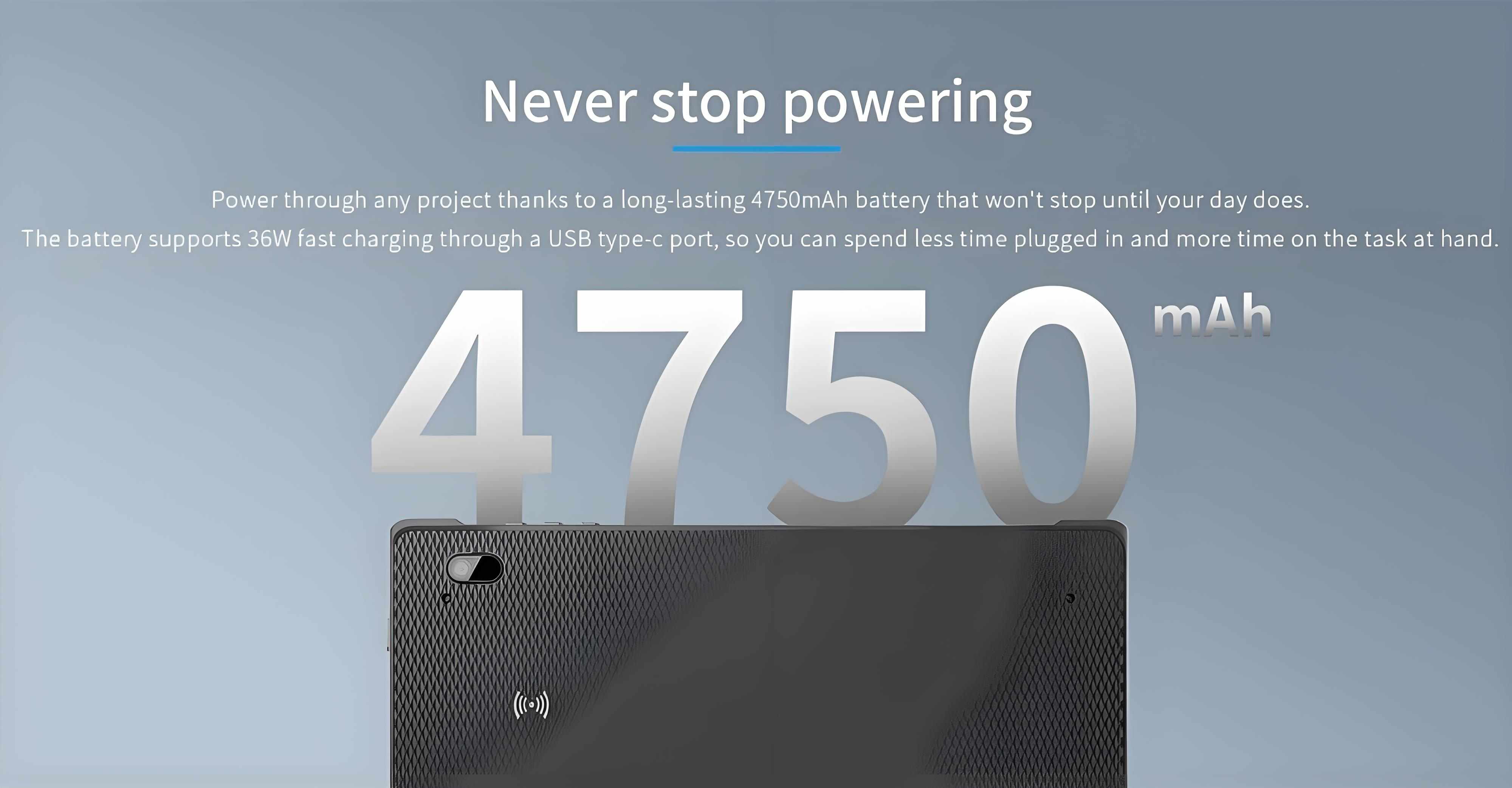

Power through any project thanks to a long-lasting 4750mAh battery that won't stop until your day does.
The battery supports 36W fast charging through a USB type-c port, so you can spend lesstime plugged in and more time on the task at hand.
lts enhanced shock absorption is able to withstand drops'ofup to 1.0 meters and it is IP65 rated dustproof and waterresistant, providing peace of mind when working inunpredictable outdoor environments.
| Product Component | Detailed Specification |
|---|---|
| Product Form | 10.1 inch Rugged Tablet |
| Material | PC+10%GF |
| Dimension | 263*177*10.5 mm |
| Weight | 700g |
| Product Color | Black |
| CPU | Qualcomm SC7180 OCTA core; 2x high-performance Kryo 2.4GHz, 256KB L2; 6x low-power Kryo 1.8GHz, 64KB L2 |
| GPU | Qualcomm® Adreno™ GPU 618 |
| Memory | RAM 8GB LPDDR4X ; ROM 128GB |
| Operating System | Windows 11 Pro |
| Display | Type: IPS;Size: 10.1 inch 16:10 ;Resolution: 1200*1920;Brightness: 400cd/㎡ |
| Touch Pannel | 10 points capacitive screen, G+G |
| Camera | Front 5.0MP; Rear 13.0MP, Auto focus, Single flash |
| Charging Indicator | Specification: red green dual color lamp; Logic: no breathing effect (0%~10% low battery red light flashes, red charging light stays on, green stays on after 100% battery) |
| Buttons | Power *1 ; Volume Adjustment Key (+) *1 ; Volume Adjustment Key (-) *1 ; Barcode Scanning *1 |
| Speaker | 8Ω/1W Waterproof Speaker *2 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor |
| Battery (Tablet) | Built-in Li-polyment Battery 4750mAh/7.6V 11 hours ( 50% volume sounds, LCD 50% brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11 b/g/n/a/ac Dual frequency 2.4G+5.0G (5.1G+5.8G) WIFI, Support AP seamless roaming |
| Bluetooth | BT5.1 |
| 2G/3G/4G | European version frequency band: GSM：NA WCDMA：B1+B3+B5+B8 FDD：B1+B3+B5+B7+B8+B20+B28(a+b) TDD: B38+B39+B40+B41 (whole section) Optional, American version band: GSM：NA WCDMA：B2+B4+B5 FDD：B2+B4+B5+B12+B13+B14+B17+B25+B26+B30+B66+B71 TDD：B38+B41N |
| GPS | By default, the software enables GPS/Galileo/GLONASS/BeiDou (G+G+G+B) |
| I/O Interface | Type C * 1 (USB3.0/OTG) TF card *1, Max: 512GB SIM card *2 Two out of three card holders (Micro Sim+TF or Micro Sim+Nano Sim) 12PIN Pogo Pin *1 |
| Adapter | USB-Type-C interface, 12V/3A voltage stabilization, 36W European/American AC wire can be selected |
| Type-C OTG cable | Type-C OTG cable_V1.0, AWM 2725 10/0.10*4C +LV +32/0.10 OD3.5 L=138MM |
| Type-C cable | Type-C data cable_ V1.10003946, the black wire is 1.0m long, the CC pin is connected to VCC on one side after adding resistance, and the other side is empty. Modification record: add tail, change differential line to twisted pair, add shielding layer, copper core internal resistance ＜ 80 Ω |
| Rugged Features | EOS: VBUS 300/80us VBAT 300v/20us Electrostatic discharge (ESD): ± 15kV air discharge, ± 8kV contact discharge 1m drop Working temperature: -10 °C to 50 °C Storage temperature: -20 °C to 60 °C Humidity: 95% Non-Condensing |
| Certification | IP65 CE/FCC/CCC |
| Data Collection | QR Code Scanner Optical resolution: ≥3mil Code system: 1D：Code128、EAN-13、EAN-8、UPC-E、UPC-A、ISBN、ISSN、Code11、 Interleaved 2 of 5、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、MSI Plessey、GS1 DataBar、Plessey、 Febraban、Composite 2D：QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、Aztec、 Maxicode、汉信码、Dotcode |
| Hand-strap (Standard) |  |
| Adapter (Standard) |  |
| Docking Charger (Optional) |  |
| Leather Case Keyboard (Optional) |  |
