At the 140th Canton Fair, one question came up again and again at the FYJ booth:
“We already have our own WMS, ERP or POS system. Can we add RFID without replacing it?”
In many cases, yes.
Some visitors already had warehouse management software. Others were using ERP platforms, retail POS systems or applications developed by their own technical teams.
They were not necessarily looking for another complete software platform.
They wanted to add RFID capabilities such as:
This was not an isolated question.
During the fair, FYJ met customers asking specifically for RFID hardware with SDK support, businesses requesting API testing, retailers wanting to add RFID to existing retail software, and technical teams looking for hardware they could integrate into their own applications.
One manufacturing customer provided a particularly clear example.
The company was already managing metal sheet products with QR codes and had an existing software system. Instead of immediately replacing that software, the customer planned to first ask its software provider whether RFID functionality could be added.
If the existing software could support RFID, the company would evaluate RFID hardware integration.
If not, it would consider a separate RFID software solution.
This is often the right starting point.
Do not begin with:
“Which RFID reader should we buy?”
Begin with:
“What does our existing system already do, and where should RFID fit into the workflow?”
Yes. In many projects, RFID can be added without replacing the existing business system.

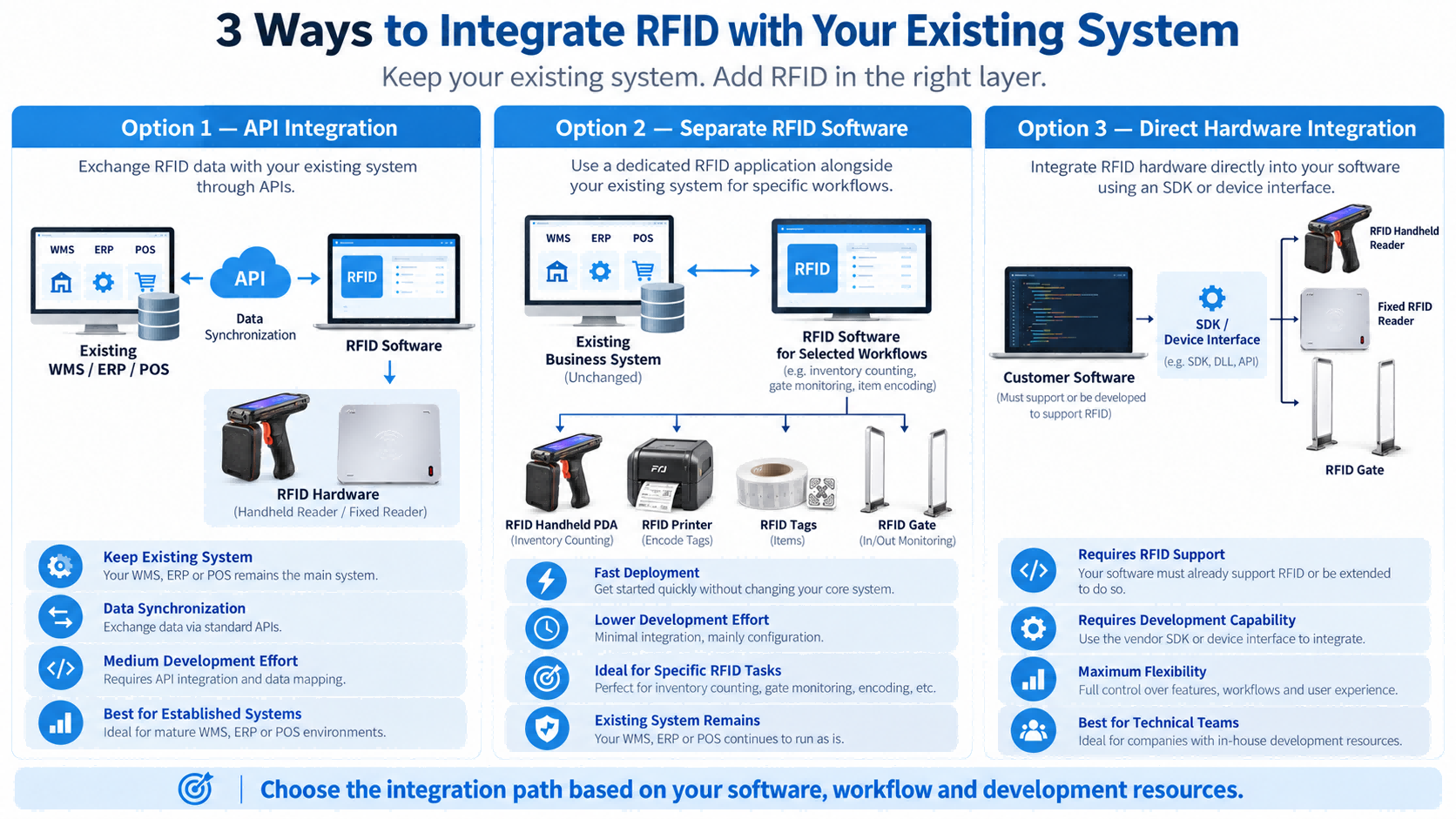

There are three common integration paths:
The third option has an important requirement:
Your software must already support RFID, or your internal development team or software provider must develop the required RFID functions.
Buying an RFID reader does not automatically give an ERP, WMS or POS RFID capability.
The software must be able to:
The right path depends on four things:
your existing software, internal development resources, target workflow and required level of integration.
Most established businesses already have years of data and workflow logic inside their existing systems.
That may include:
Replacing all of this simply to introduce RFID often creates unnecessary work.
Data may need to be migrated.
Employees may need retraining.
Existing interfaces may need to be rebuilt.
And in many projects, RFID is only needed at specific points such as:
If your ERP already manages purchasing, finance and sales well, RFID does not need to replace those functions.
The goal is to insert RFID into the workflow where automatic identification creates value.
This approach is usually suitable when the existing ERP, WMS or POS should remain the main business system.
RFID software manages the RFID-specific layer, including device communication, tag reading and RFID workflow logic.
The two systems exchange required data through APIs.
A simplified process may look like:
WMS / ERP / POS → RFID Software → RFID Reader → RFID Tag
and back:
RFID Tag → RFID Reader → RFID Software → WMS / ERP / POS
For example, a WMS sends a shipping order to the RFID application.
The RFID system reads the goods at the outbound point and compares the detected EPCs with the expected items.
Once verification is complete, the result is returned to the WMS.
API integration is usually a strong choice when:
At the Canton Fair, FYJ met customers specifically requesting test access and API interfaces while evaluating RFID warehouse solutions.
Before development begins, both sides should define:
An API provides the connection.
The project still needs clear rules for what data moves, when it moves and what action follows.
Deep integration is not always necessary.
A company may keep its current ERP, WMS or POS while using a separate RFID system only for specific tasks.
Typical examples include:
The existing system continues to handle the core business process.
The RFID system handles the workflow where RFID adds value.
A company already uses ERP for purchasing, sales and inventory records.
Its main problem is physical inventory.
Rather than replacing the ERP, the company introduces an RFID application for stocktaking.
Product data is imported or synchronized according to the project design, and RFID inventory results are then used to update or reconcile the main system.
This approach works well when:
It also reduces the risk of rebuilding software functionality that already works.
This route is most relevant to:
In this model, the customer keeps its own software and integrates FYJ RFID hardware into it.
But the condition is important:
The software must already support RFID, or the customer’s software provider or technical team must develop the RFID functions required for the project.
RFID hardware does not automatically become part of an existing application.
The software needs to understand both the device and the business event behind each read.
At the Canton Fair, FYJ met businesses that already had their own software and wanted hardware or SDK support. One software company had its own technical team and RFID capability but needed a broader RFID hardware offering rather than another standard software platform.
Depending on the workflow, development may include:
A reader returning an EPC such as:
E280XXXXXXXXXXXX
does not tell the business system enough on its own.
The application needs to know that the EPC corresponds to something meaningful, such as:
EPC → SKU → Product → Warehouse Location
or:
EPC → Asset ID → Department → Responsible User
That business logic belongs in the software layer.
The table below gives a more practical way to choose among the three approaches.
| Your Situation | API Integration | Separate RFID Software | Direct Hardware Integration |
| Existing ERP/WMS/POS already works well | Strong fit | Possible | Possible |
| Existing software has API support | Best fit | Possible | Depends on RFID support |
| Existing software does not support RFID | Possible through middleware | Strong fit | Requires development |
| You have no internal development team | Good fit | Best fit | Usually not recommended |
| You have your own technical team | Good fit | Possible | Strong fit |
| Your software already supports RFID | Possible | Usually unnecessary | Best fit |
| Only one workflow needs RFID | Possible | Strong fit | Possible |
| You want deep control over device behavior | Moderate | Moderate | Best fit |
| You want faster deployment | Moderate | Strong fit | Depends on development |
| You want maximum long-term flexibility | Good | Moderate | Strong fit |
| You want to keep your existing software | Yes | Yes | Yes |
| Development effort | Medium | Low–Medium | Medium–High |
Choose API integration when your current software is strong and provides good interfaces.
Choose separate RFID software when you need RFID quickly but do not want to develop RFID functions internally.
Choose direct hardware integration when your software already supports RFID or your technical team can develop the RFID layer.
One of the most common misunderstandings in RFID integration is assuming that the RFID reader directly updates the ERP.
Usually, there are several layers.

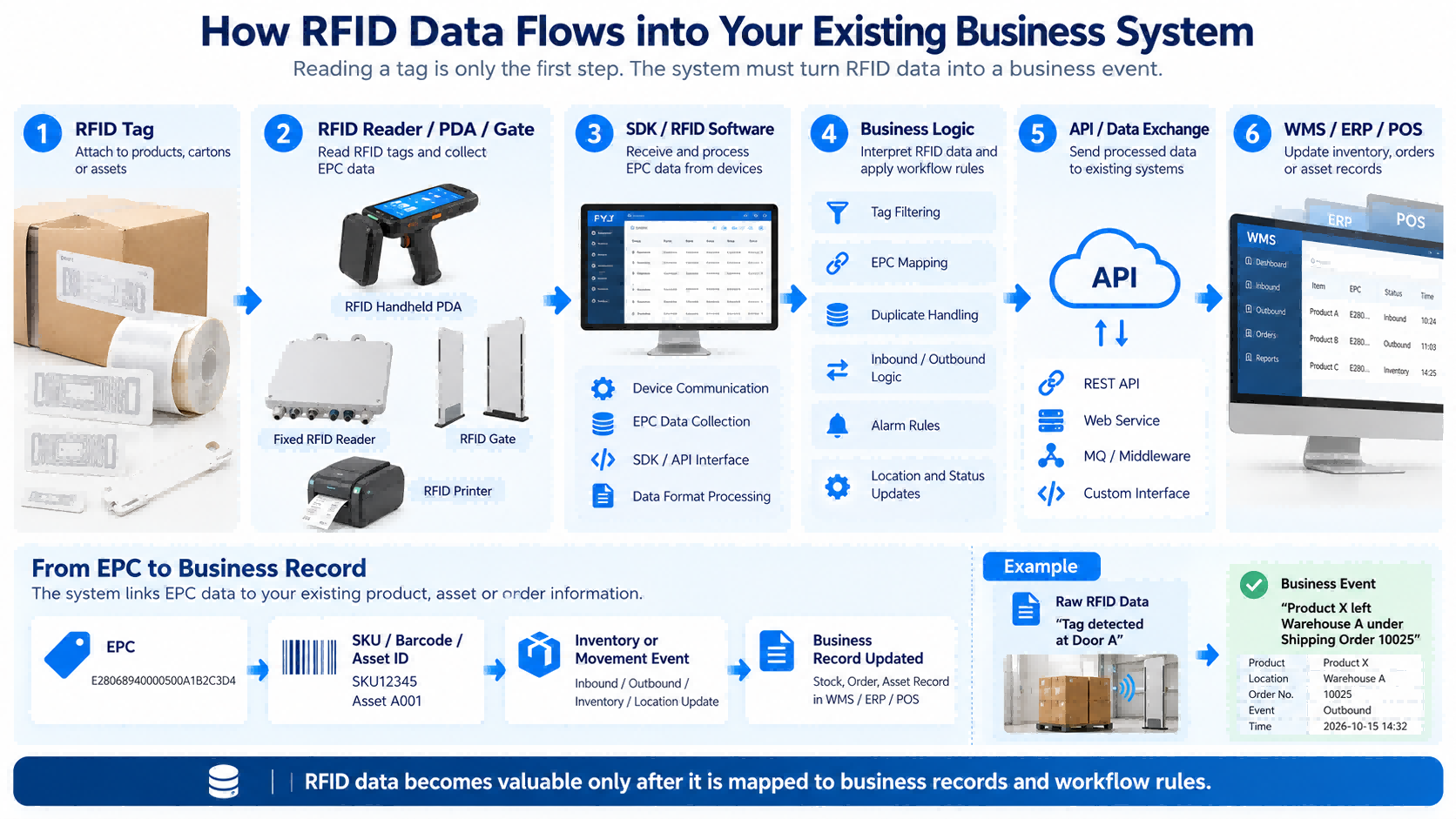

A simplified RFID data flow looks like this:
↓
RFID Reader / PDA / RFID Gate
↓
Device SDK / Interface / RFID Software
↓
Business Logic
↓
API / Data Exchange Layer
↓
WMS / ERP / POS
The reverse direction can also happen.
For example:
ERP Shipping Order
↓
RFID Application
↓
Expected EPC List
↓
RFID Reader Detects Actual Tags
↓
Verification Result
↓
ERP Order Updated
This distinction matters because RFID integration is not only about transferring EPC numbers.
The system must turn tag reads into business events.
For example:
Tag detected at Door A
is only raw RFID data.
The business system may need to interpret it as:
Product X left Warehouse A at 14:32 under Shipping Order 10025.
That transformation is where RFID integration creates business value.
What RFID Hardware Might Be Required?
Software architecture comes first, but the workflow determines the hardware.
Suitable for mobile operations such as:
A handheld is often one of the simplest ways to introduce RFID because staff control where and when reading takes place.
An RFID printer is required when labels need to be printed and encoded.
It is especially useful when each item needs a unique EPC associated with an existing SKU, barcode, part number or asset record.
Fixed readers suit automatic identification at predefined locations, including:
RFID gates identify tagged goods passing through an entrance or exit.
The software must then determine the meaning of the event:
Inbound? Outbound? Authorized? Unexpected?
This is why successful RFID gate projects depend on both reading performance and business logic.
Tag selection depends on:
For example, one customer evaluating RFID for cold-storage components needed to confirm whether the selected tag could withstand the transition from freezing conditions back to room temperature.
Most businesses already use identifiers such as:
RFID introduces another identifier: the EPC stored in the RFID tag.
The system needs a defined relationship between the EPC and the existing business record.
For example:
EPC → SKU → Product
or:
EPC → Barcode → Product Record
or:
EPC → Asset ID → Asset Record
Without this relationship, the reader can successfully detect a tag while the business system still does not know what was actually identified.
This leads to an important distinction.
Device Integration
Can your software receive data from the RFID device?
Business Integration
Can your software understand what that data represents and use it correctly?
A technically successful connection is not enough if the business logic is missing.
Before selecting devices or asking developers to start coding, answer these questions:
These answers usually determine the integration architecture before the final hardware model is selected.
A high-performance RFID reader still creates problems if the software cannot communicate with it.
Confirm the integration architecture before ordering hardware.
An SDK helps developers communicate with the device.
It does not automatically create:
These functions still need to exist in the application.
RFID reads EPCs.
Your business manages products, SKUs, orders and assets.
The connection between them must be defined before deployment.
Not every barcode process needs to be replaced.
Keep barcode where one-by-one scanning is already efficient.
Use RFID where batch identification, automation or faster inventory creates measurable value.
A proper RFID test should use:
The important question is not:
“Can the reader detect the tag?”
It is:
“Can the system reliably identify the correct item at the correct point in the workflow?”
Many of the integration discussions at the FYJ booth came down to a few recurring questions.
“We already have our own software. Can we buy only the RFID hardware?”
Yes—provided the software already supports RFID or your developers can add the required functionality.
“Can RFID connect to our existing WMS or ERP?”
Often yes. The available API, required data fields and workflow need to be reviewed first.
“Do we have to replace our existing retail software?”
No. Depending on the current system, RFID may be integrated directly or handled through a separate RFID workflow.
“Can our developers integrate the hardware themselves?”
Yes, when the relevant SDK or device interface is available and the development team can build the required RFID functions.
“What if our current software does not support RFID?”
First ask the existing software provider whether RFID functionality can be added.
If that is not practical, a separate RFID software solution may be a better route.
These were not theoretical questions. Exhibition records included businesses with their own ERP systems, retail platforms, warehouse applications and internal development teams looking specifically for ways to add RFID without rebuilding everything from scratch.
Can RFID be integrated with an existing WMS?
Yes.
If the WMS provides suitable interfaces, RFID data can be integrated directly or through RFID middleware/software.
If the WMS has no RFID capability, a separate RFID application can manage RFID-specific workflows while the WMS remains the main warehouse system.
Can an RFID reader connect directly to an ERP?
Only when the ERP already supports the RFID device or developers add the required integration.
Most standard ERP systems do not automatically interpret RFID reader data.
Do I always need an API?
No.APIs are mainly used to exchange data between software systems.
If RFID functionality is built directly into your own software, the application may communicate with the hardware through an SDK or another supported device interface.
What is the difference between an API and an SDK in RFID integration?
An API usually connects software systems and exchanges business data.
An SDK gives developers tools to communicate with hardware and build device-related functions.
Some RFID projects use both.
Can barcode and RFID work together?
Yes.Many businesses keep barcode for workflows where one-by-one scanning is efficient and add RFID only where batch reading or automated identification provides greater value.
Can an EPC be linked to our existing SKU or barcode?
Yes.A mapping relationship is created between the EPC and the existing SKU, barcode, part number or asset record.
The exact structure should be defined during system design.
Can FYJ RFID hardware work with any software?
Not automatically.
The software must already support RFID or be developed to communicate with the hardware through the appropriate SDK, protocol or device interface.
Compatibility should be confirmed before deployment.
What should we provide when asking for an RFID integration proposal?
Useful information includes:
The more clearly these are defined, the easier it is to choose the right integration path.
Adding RFID does not mean starting your software environment again from zero.
In many projects, the better approach is to keep the existing WMS, ERP or POS and introduce RFID only where it improves identification, inventory or automation.
The decision usually comes down to three paths:
Use API integration when your existing system works well and provides suitable interfaces.
Use separate RFID software when you need RFID functionality without building the RFID layer yourself.
Integrate RFID hardware directly when your software already supports RFID or your technical team can develop the required functions.
Before choosing a reader, define the workflow.
Before choosing an integration method, understand the software.
And before deployment, make sure RFID data can become meaningful business data.
The right RFID project is not built around the reader. It is built around the business process.
Hi! Click one of our members below to chat on
en
IPv6 network supported
