Fixed vs. Handheld RFID Readers: How to Choose for Asset Tracking?

In the era of digital transformation, RFID technology has become a cornerstone for enterprises seeking real-time asset visibility. Whether you're managing manufacturing tools, tracking medical equipment, or conducting retail inventory counts, selecting the right RFID reader directly impacts system efficiency, return on investment, and day-to-day operational smoothness.

The choice often comes down to two main categories: fixed and handheld. Each serves distinct purposes, and understanding their differences is critical to building a successful RFID asset tracking system. This article breaks down the key considerations to help you make an informed decision.

Fixed vs. Handheld: Understanding the Core Difference

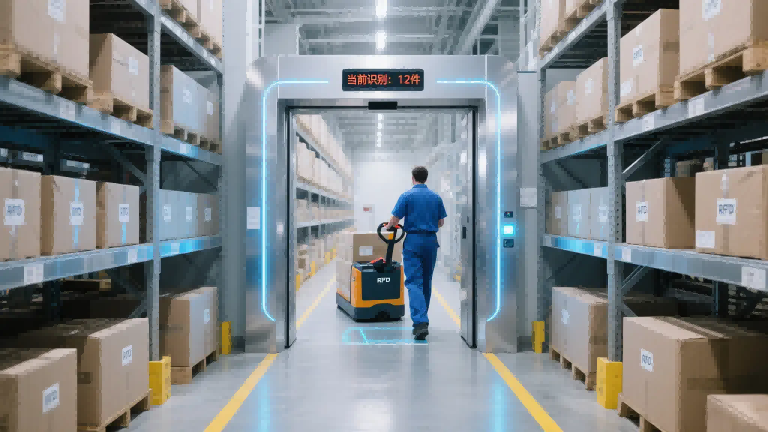

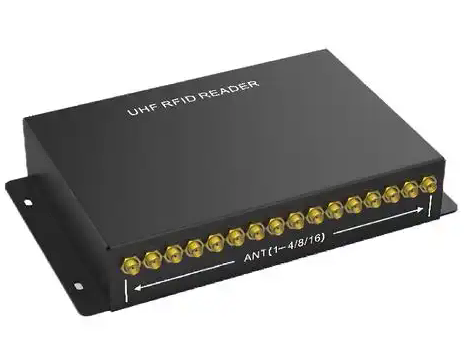

Fixed RFID Readers

A fixed RFID reader is typically installed at entry/exit points, conveyor belts, racks, or specific workstations, using external antennas to create a stable reading zone. The defining characteristics are automation and non-intrusive operation. When an asset with an RFID tag enters the coverage area, the system automatically captures the data without any manual intervention.

Common form factors include portal-style readers, integrated units, and modular readers.

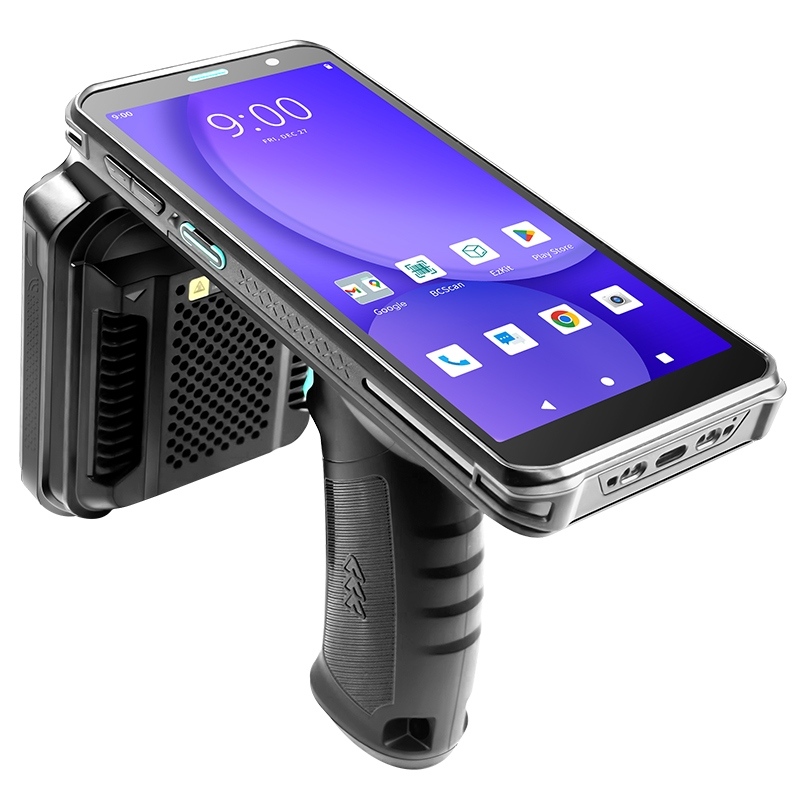

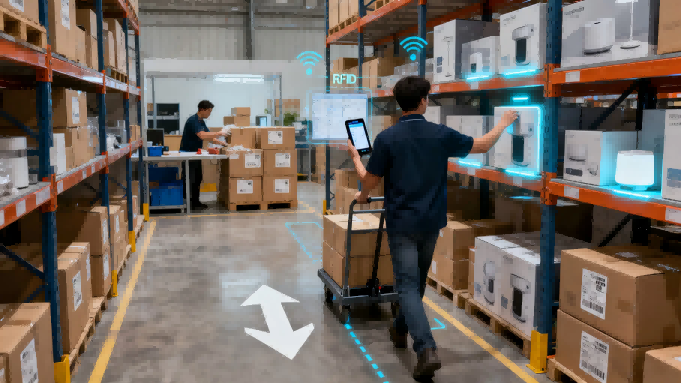

Handheld RFID Readers

A handheld RFID scanner, often built into an industrial-grade PDA, is carried by an operator who moves close to the assets being tracked. The key strengths are flexibility and directional precision. Handheld devices are ideal for scenarios that require manual intervention, scattered reading points, or complex environments where assets are difficult to reach.

These devices are frequently referred to as handheld RFID scanner units or industrial Bluetooth RFID scanner models that offer wireless flexibility.

Key Decision Factors: 5 Dimensions to Evaluate

1. Read Frequency and Automation Needs

A.Choose fixed readers when you need 24/7 automatic tracking of asset movements—such as warehouse gate monitoring or production line work-in-progress tracking. Fixed systems eliminate manual steps and ensure real-time data accuracy.

B.Choose handheld units when reading tasks are intermittent—such as monthly cycle counts or spot checks—and when full automation is not a requirement.

2. Read Range and Environment

A.Fixed advantage: With high-gain antennas, a long range RFID reader can cover distances of several meters to over ten meters, making it ideal for large doorways and open areas. However, in environments with dense metal or liquid, antenna placement becomes critical.

B.Handheld advantage: Operators can position a handheld RFID scanner close to tags, ensuring high read accuracy even when assets are stacked or tags are placed in challenging locations. For outdoor use, elevated work areas, or locations without a stable power source, handheld devices offer unmatched portability.

3. Tag Type and Read Volume

A.Fixed readers excel at bulk, simultaneous reads. For example, a fixed UHF RFID reader installed at a loading dock can read an entire pallet of tagged items in a fraction of a second. If your scenario demands high-volume concurrency, fixed infrastructure is the way to go.

B.Handheld readers are best suited for one-at-a-time or small-batch reads. While modern industrial handhelds support anti-collision algorithms, their concurrent read capacity generally does not match that of a high-end fixed UHF RFID reader system.

4. Workforce Integration and Workflow

A.Fixed readers embed data capture into the physical environment, requiring no additional labor. However, they demand engineering resources for network cabling, integration, and commissioning.

B.Handheld readers rely on operator routes and actions. They offer plug-and-play flexibility but introduce the possibility of human error and add to frontline staff workload.

5. Budget and Total Cost of Ownership

A.Initial investment: A single high-performance handheld RFID reader can range from several hundred to over a thousand dollars. A complete fixed system—including readers, antennas, cables, and installation—often requires a higher upfront investment.

B.Long-term costs: Fixed systems typically have long depreciation cycles but require ongoing network and maintenance considerations. Handheld devices incur costs related to battery replacement, charging infrastructure, and—most importantly—labor time.

Matching Scenarios: Which Solution Fits?

Active vs. Passive: Another Layer of Consideration

When designing an RFID asset tracking system, you'll also encounter the distinction between active vs passive RFID reader configurations.

Passive RFID readers (both fixed and handheld) work with passive tags that have no internal power source. They are the most common choice for asset tracking due to their low tag cost and long lifespan.

Active RFID readers communicate with battery-powered active tags, offering extended read range (up to 100+ meters) and continuous beaconing capabilities. Active systems are typically used for high-value asset tracking in large open areas where real-time location is critical.

Your choice between fixed and handheld may intersect with this decision. For instance, a long range RFID reader for active tags is often deployed in fixed locations to provide persistent coverage over a large facility, while a Bluetooth RFID scanner can serve as a bridge for both passive UHF and Bluetooth-enabled active tags in mobile applications.

Hybrid Deployments: Why "And" Often Beats "Or"

In practice, many organizations find that fixed and handheld readers are not mutually exclusive—they are complementary. A mature RFID asset tracking system often employs a hybrid architecture:

Fixed readers serve as the backbone, automating capture at critical control points to create a continuous data stream.

Handheld RFID scanners act as the last-mile tool for exception handling, spot checks, and deep dives into specific areas.

For example, in a large manufacturing facility, fixed UHF RFID reader portals at loading docks and line-side storage areas automatically record asset movements, while floor managers use handheld RFID scanner devices for daily spot checks and to quickly locate specific tools.

Actionable Selection Framewor

To make the right choice for your organization, follow this four-step approach:

1.Define your core objective

Are you aiming for real-time, automated visibility, or do you need to improve inventory count efficiency? The answer sets the direction.

2.Map your workflow

Identify every point where assets are read. If read points are fixed and high-frequency → lean toward fixed readers. If they are scattered or unpredictable → lean toward handheld.

3.Conduct on-site testing

Test both device types in your actual environment. Evaluate read range, accuracy, interference tolerance, and operator acceptance.

4.Calculate total cost of ownership

Compare hardware, installation, maintenance, labor, and training costs over a 3‑ to 5‑year horizon.

Conclusion

There is no one-size-fits-all answer when choosing between fixed and handheld RFID scanner solutions. The right choice depends on your asset types, operational workflows, workforce structure, and budget. A well-designed RFID asset tracking system aligns technology with real-world business processes.

Before making a decision, ask yourself: “In an ideal state, do I want asset data to be collected automatically by infrastructure, or manually by staff with handheld devices?” Your answer will point you toward the right path.

---------------------
