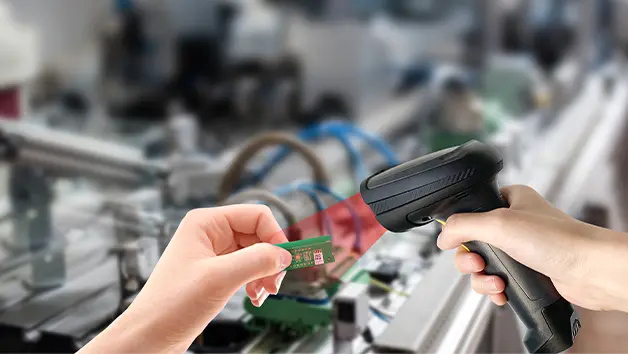

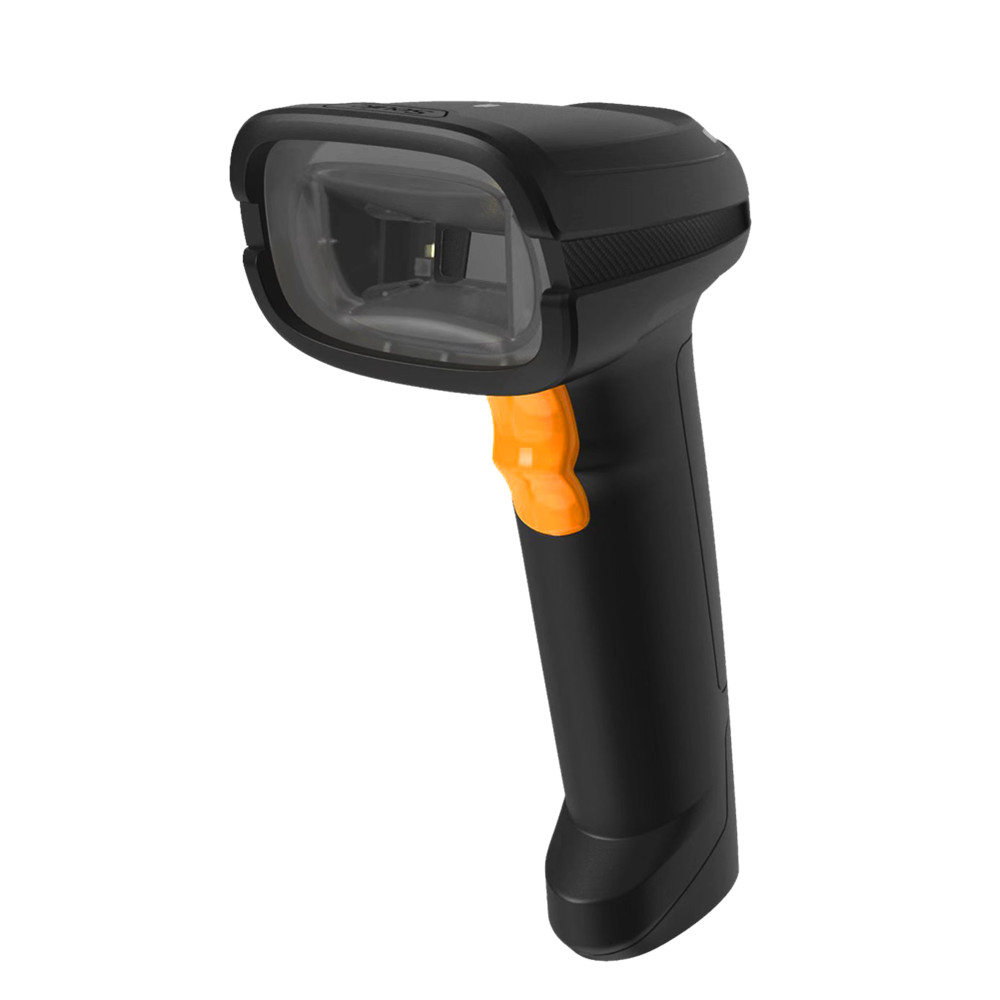

1. The F325DP is an industrial wireless barcode scanner with powerful DPM decoding capabilities. It effectively addresses issues like distortion, deformation, stippling, blur, defects, and low contrast in DPM codes. Featuring a fast dual-core processor and advanced AI recognition algorithm, it delivers a smoother and more intelligent decoding experience.
2.Dual core fast processing with AIcapabilityThe cpu have greatly improved frompredecessor single core to dual-core, andwith the 1.3M decoding ability, it can readhigh-density long 1D barcode, with AI supportwhich have been trained by more thanhundred thousands barcodes, it can swiftlycapture the barcode and decode it accurate
3.Three-direction LEDreminder, friendlyinteractionThe top cover of the equipment displaysathree-direction LED readingstatusreminderand battery capacity indicator; theequipment's status is visibleat oneglance.
Battery Capacity :
Rated Capacity:3150mAh ；Typical Capacity：3500mAh；Removable battery；Camera Option :
DPMNumber of Scans :
Supports 100,000 continuous scans at arateof2scans per secondSensor Speed :
1080 * 1280 COMS sensor with global shutterCharge time fromempty to full :
6~8 hours over USB, 2.5 hours over external 5V powerScan Density :
1D code: 3mil 2D code: 5milMaximum storage inbatch mode :
5000Environmental Sealing :
IP54 (Water and Dust Resistant)Certificates :
CE, FCC, RoHS, UN38.3Drop Specification :
Operational after 50 drops from6 ft. (1.8m)toconcreteImage Sensor :
1080 * 1280 COMS sensor with global shutter
New Algorithm Performance Upgraded
Self-developed AI scanning technology continually enhances performance, leading to faster reading and improved accuracy.
The 1.3 million CMOS sensor ensures high-precision scanning of one-dimensional, high-density, and long barcodes.
Equipment Overview

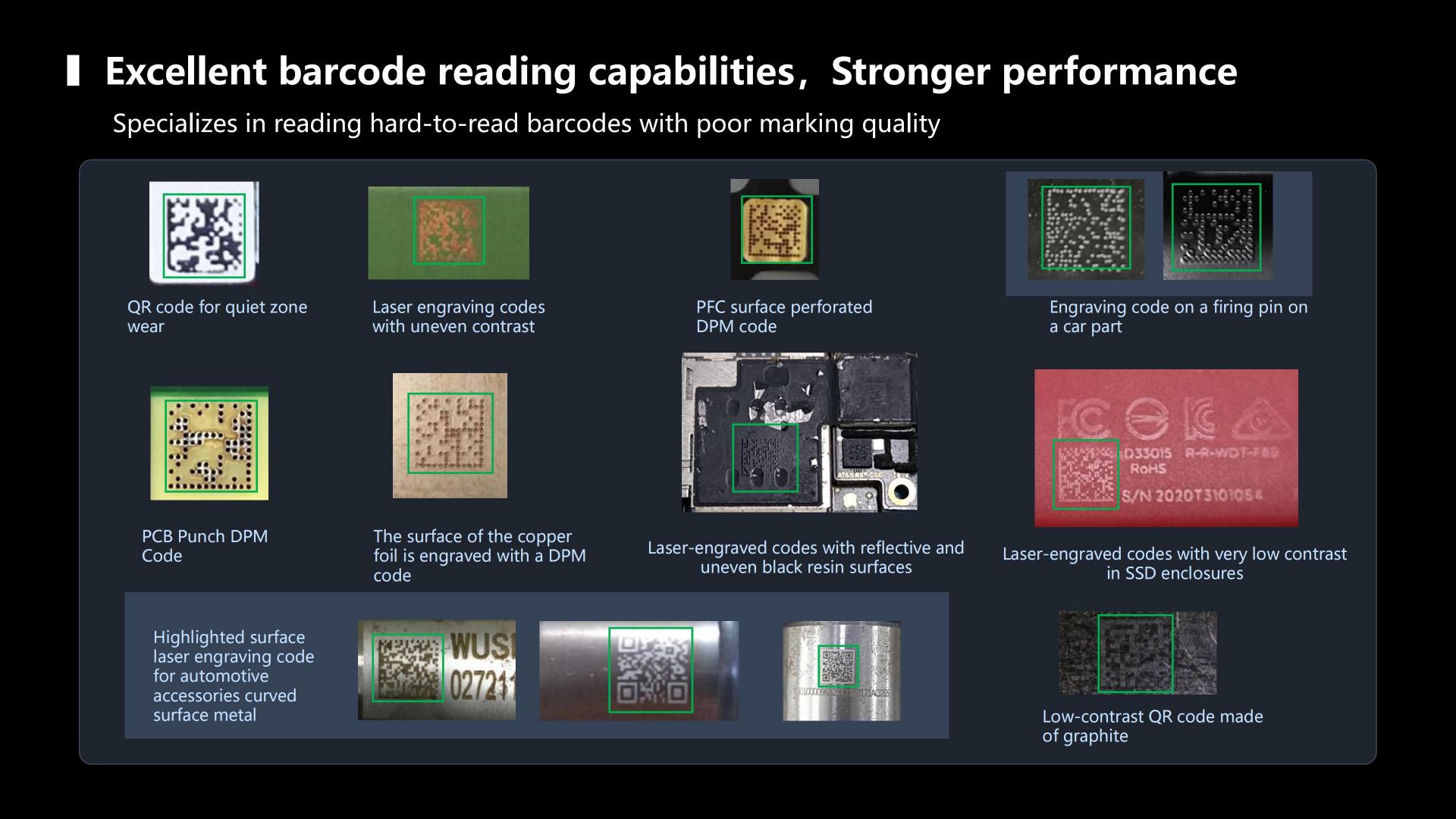

Excellent Reading Performance

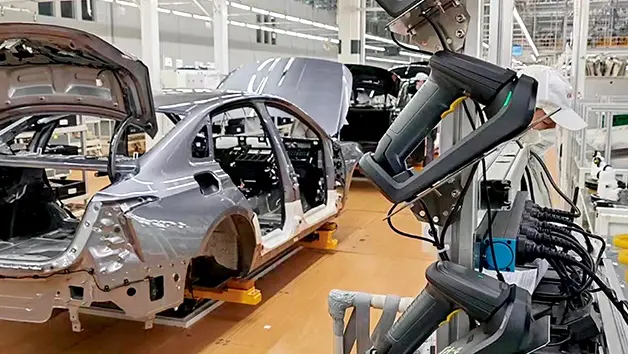

Specialist in reading DPM codes with issues such as worn QR codes in quiet zones, laser-engraved codes with uneven contrast, perforated FPC DPM codes, dot peen codes on auto parts, low-contrast graphite QR codes, PCB perforated DPM codes, DPM codes engraved on copper foil, laser codes on bright arc metal for auto parts, and uneven, reflective black resin QR codes on SSD shells.

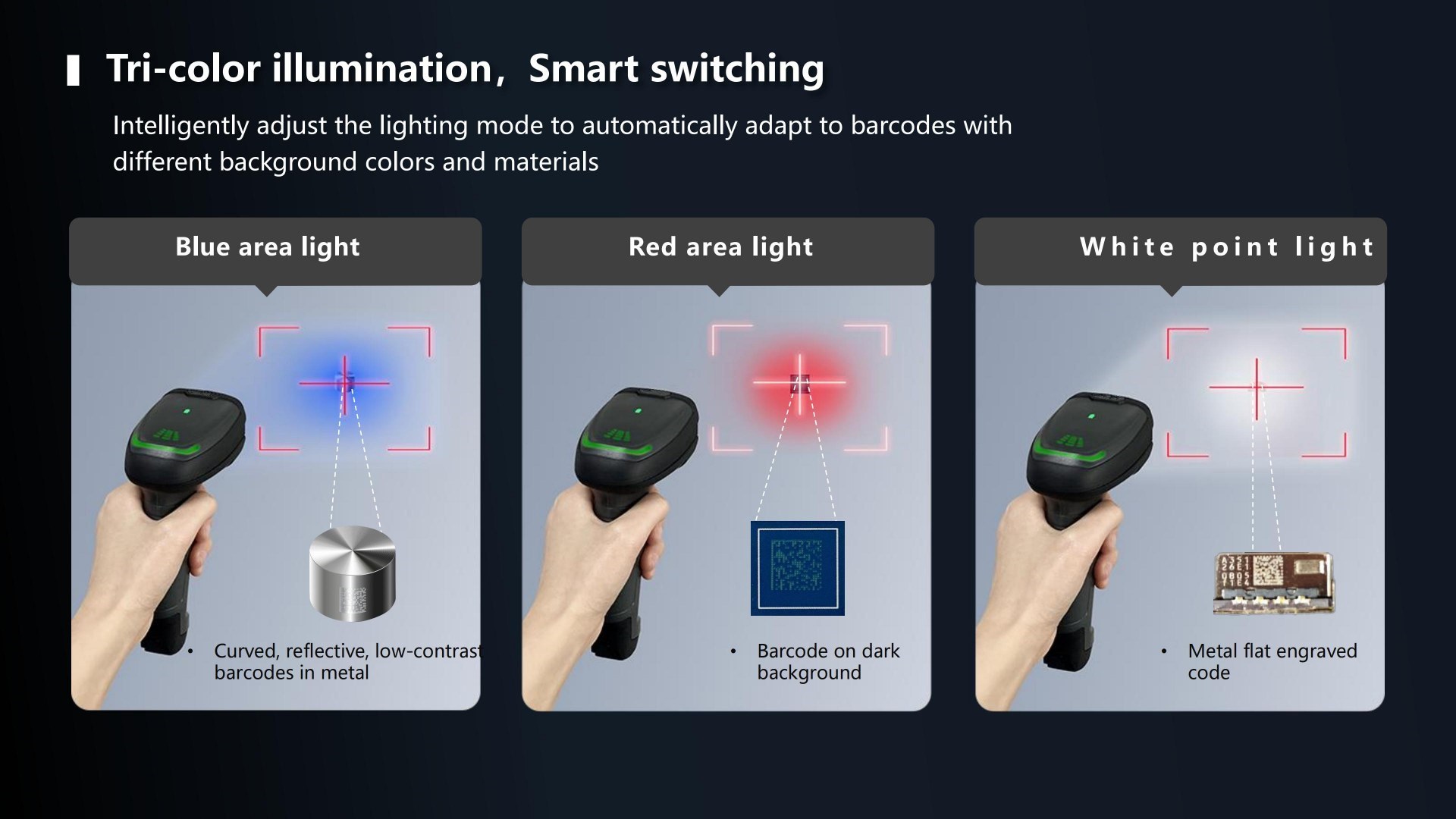

Tri-Color Illumination System
The FS325DP wireless barcode scanner can intelligently adjust its lighting mode—blue, red, or white—to automatically adapt to barcodes with various background colors and materials.

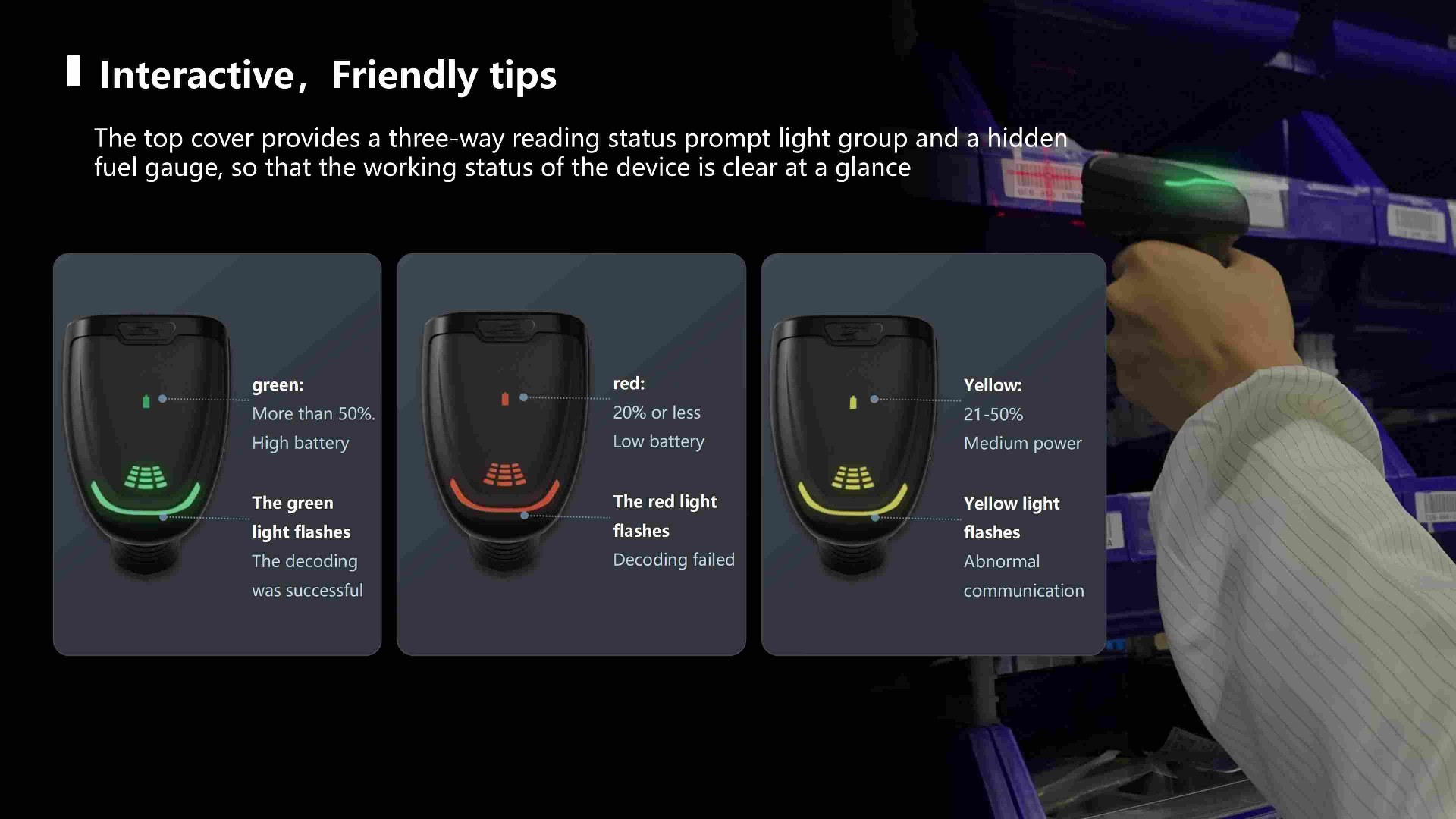

Friendly Human-Computer Interaction
The top cover features a three-way reading status indicator and a concealed fuel gauge, allowing the device's operational status to be easily monitored at a glance.
Superior Performance
You get the ultimate in DPM scanning performance-period. Your workers can scan DPM barcodes as quickly as they pull the trigger. Whether the barcodes are shrink-wrapped, damaged, dirty, or poorly printed, not a problem, this intelligent scanner can handle it all.
Unparalleled Ergonomics
The patented ergonomic design features a two-finger trigger button, a carbon fiber-like texture, and a non-slip grip for an enhanced user experience. FYJ's wireless barcode scanner offers convenience and swift operation, boosting productivity and efficiency.
High Compatibility
The F325DP handheld barcode scanner is highly compatible with Windows, Android, Linux, and other operating systems, allowing for easy plug-and-play functionality anywhere.

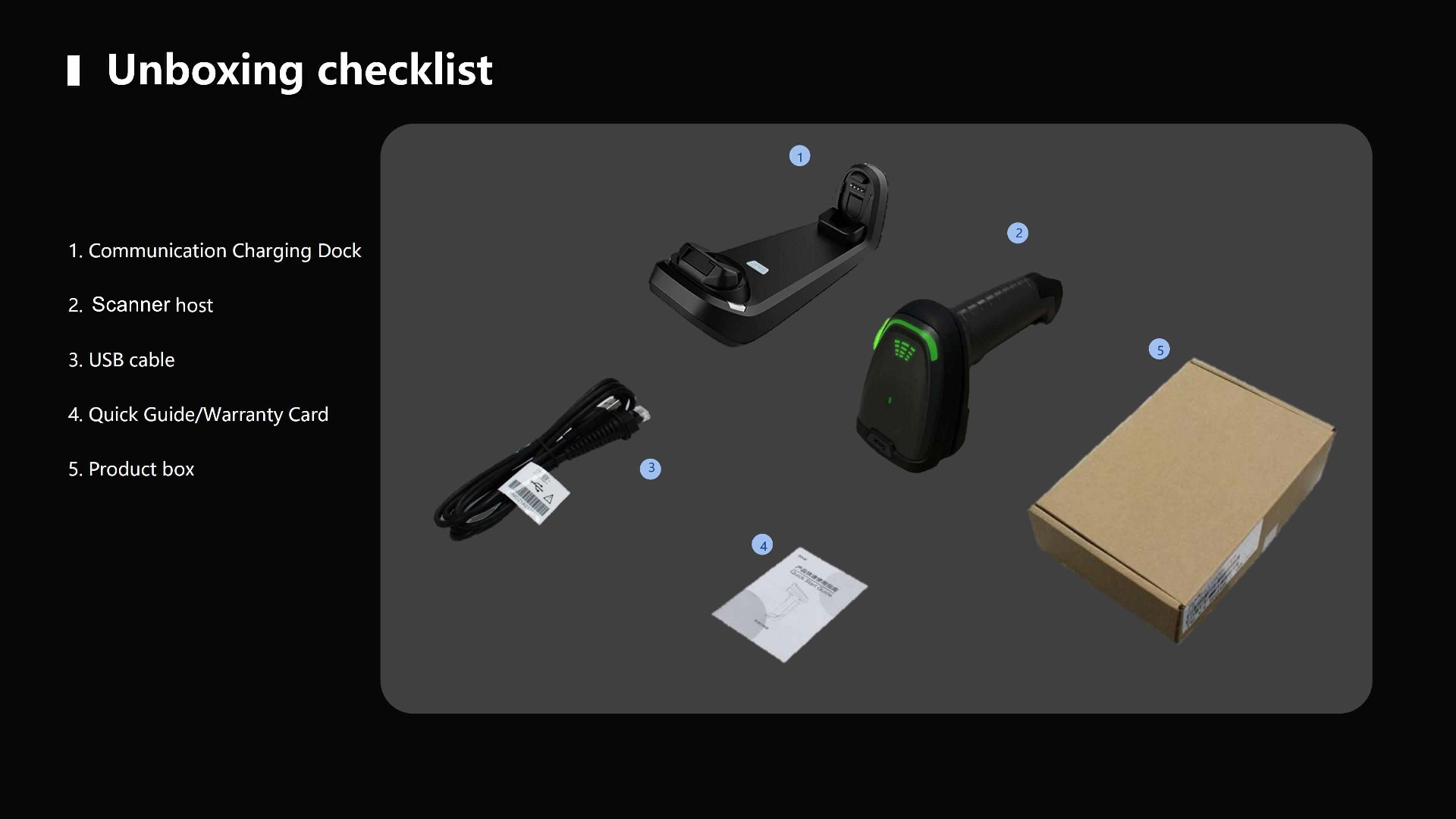

Unboxing Checklist
Specification:
| Physical Characteristics | ||
| Image Sensor | 1080 * 1280 COMS sensor with global shutter | |
| Camera Option | DPM | |
| Illumination LEDs | Intelligent adjustable diffuse light(red/white/blue) | |
| Aiming | Cross-shape laser aimer | |
| Sensor Speed | 60 fps | |
| Support Symbologies | 1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, etc. | |
| 2D: PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR, etc. | ||
| Scan Angle | Pitch angle ±60° and skew angle ±55° | |
| Scan Density | 1D code: 3mil | |
| 2D code: 5mil | ||
| Standard Range for Typical Symbols | 3mil Code128 | 3.5cm~6.5cm |
| 5mil Code128 | 1.5cm~18cm | |
| 10mil Code128 | 0.5cm~28cm | |
| ENA 13 | 1cm~26.5cm | |
| 5mil DM/QR | 3.7cm~7.2cm | |
| 10mil DM/QR | 1.9cm ~ 15.9cm | |
| 20mil DM/QR | 0~33.5cm | |
| Radio Range | Direct line of sight in open air: Minimum 300 ft. (100.0 m) | |
| Vibration motor | Support | |
| Communication Interface | RS232, USB keyboard, USB COM | |
| Dimension | 166.2mm(L)*68.5mm(W)*105.5mm(H) | |
| Weight | 7.9oz±0.1oz/226g±3g | |
| Operating | 32 ° F to 122 ° F/0°C to 50°C | |
| Temperature | ||
| Storage Temperature | -4 ° F to 158 ° F/-20°C to 70°C | |
| Humidity | 5% to 95% RH non-condensing | |
| Environmental Sealing | IP54 (Water and Dust Resistant) | |
| Light Levels | 0 to 100,000 Lux | |
| Drop Specification | Operational after 50 drops from 6 ft. (1.8 m) to concrete | |
| Impact Specification | 2000 rounds of 0.5m tumble | |
| Shell Material | Highly resistant industrial plastic | |
| Battery Capacity | Rated Capacity:3150mAh ； Typical Capacity ： 3500mAh； Removable battery； | |
| Number of Scans | Supports 100,000 continuous scans at a rate of 2 scans per second | |
| Charge time from empty to full | 6~8 hours over USB | |
| 2.5 hours over external 5V power | ||
| Maximum storage in batch mode | 5000 | |
| ESD Protection | ±15kV Air discharge,±8kV direct discharge | |
| Certificates | CE, FCC, RoHS, UN38.3 | |
| Standard Cradle Specifications | ||
| Normal rated charging power | USB:2.5W | |
| Dimension | 219.3mm(L)*88.4mm(W)*62.3mm(H) | |
| Weight | 179g±3g | |
| Operating Temperature | 0°C to 50°C | |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% RH non-condensing | |
| Environmental Sealing | IP51 (Water and Dust Resistant) | |
| Mechanical Shock | 50 rounds of 3.9 ft./1.2m drops across the operating temperature range | |
| Shell Material | Highly resistant industrial plastic | |
| ESD Protection | ±15kV Air discharge,±8kV direct discharge | |
1. The F325DP is an industrial wireless barcode scanner with powerful DPM decoding capabilities. It effectively addresses issues like distortion, deformation, stippling, blur, defects, and low contrast in DPM codes. Featuring a fast dual-core processor and advanced AI recognition algorithm, it delivers a smoother and more intelligent decoding experience. 2.Dual core fast processing with AIcapabilityThe cpu have greatly improved frompredecessor single core to dual-core, andwith the 1.3M decoding ability, it can readhigh-density long 1D barcode, with AI supportwhich have been trained by more thanhundred thousands barcodes, it can swiftlycapture the barcode and decode it accurate 3.Three-direction LEDreminder, friendlyinteractionThe top cover of the equipment displaysathree-direction LED readingstatusreminderand battery capacity indicator; theequipment's status is visibleat oneglance.
